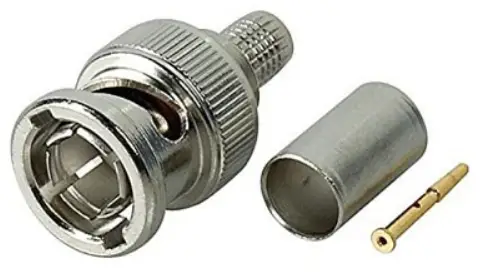

Winchester 2065 Series 12G-SDI Compliant BNC Connectors
Product Benefits
- Full crimp design
- Designed for analog & digital cables
- Field installable
- Meets or exceeds 4K UHD Standards
- Within Series Adapters Available
- Cable assemblies available upon request
Mechanical / Electrical
- Durability: 500 Cycles Min Center Contact
- Center Contact Retention: 6 lbs. Minimum
- Coupling Mechanism: 100 lbs. Minimum
- Interface Dimension: IL-C-39012 except 75 Ohms
- Impedance: 75 Ohms
- Voltage Rating: 500 Volts RMS
Environmental
- Moisture Resistance: 0 to 95%: MIL-STD-202
- Corrosion (Salt Spray): MIL-STD-202 Method 101
