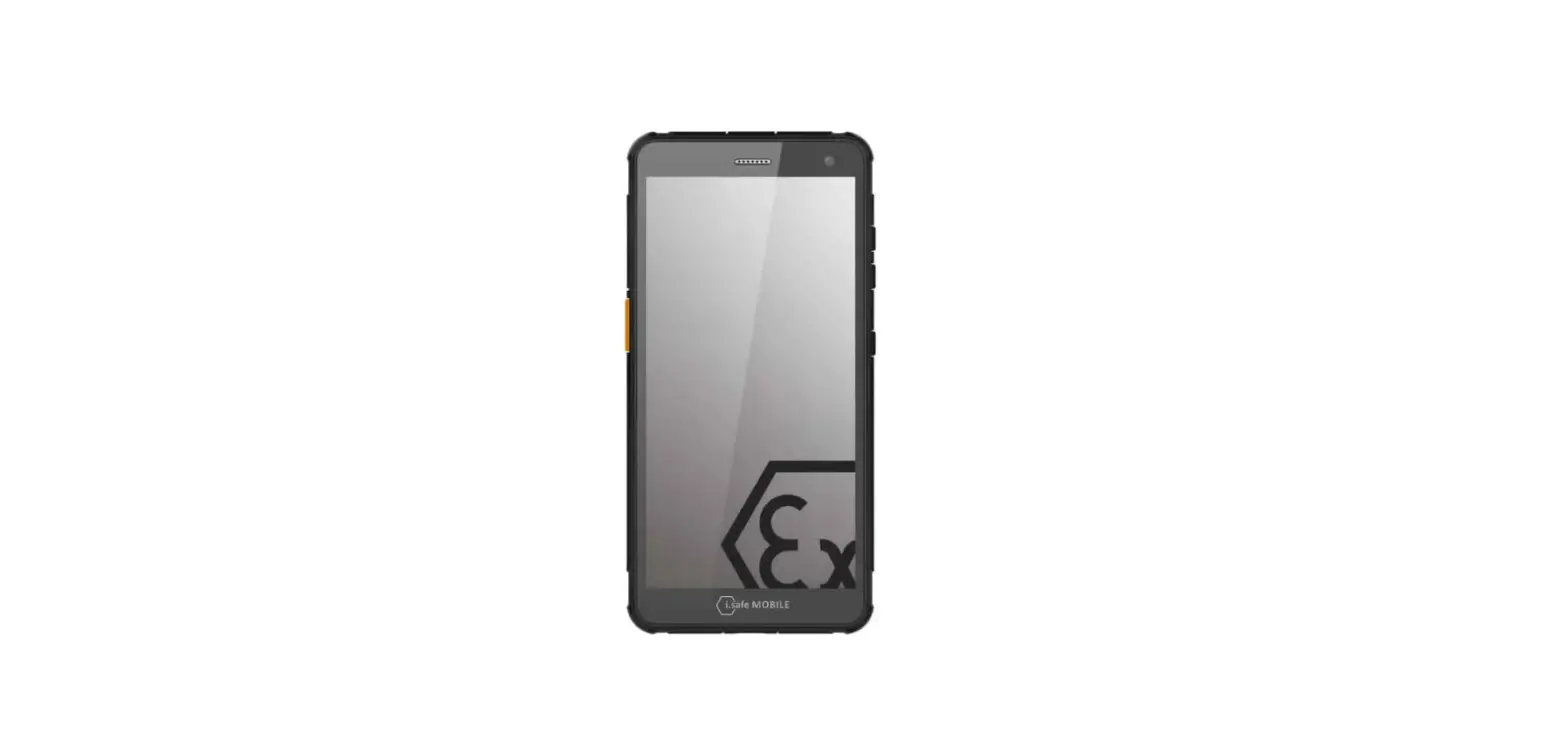

I Safe Mobile Is655.2 Ex-proof Smartphone Instructions

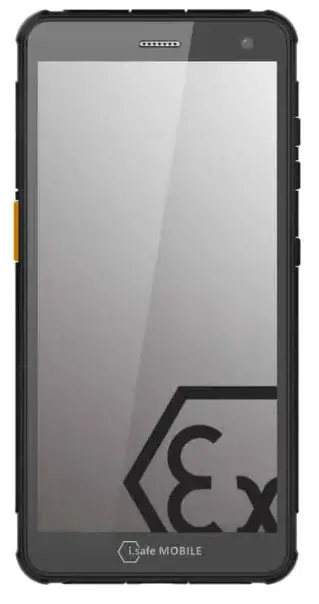

i Safe MOBILE IS655.2 Ex-proof Smartphone Instructions

EX MARKINGS

ATEX

• II 3G Ex ic IIC T4 Gc IP54
• II 3D Ex ic IIIB T135°C Dc IP54
• Certificate of conformity:
• EPS 19 ATEX 1 129 X
• CE-designation:

IECEx

• Ex ic IIC T4 Gc IP54
• Ex ic IIIB T135°C Dc IP54
• IECEx Certificate: IECEx EPS 19.0064X

UKEX

• II 3G Ex ic IIC T4 Gc IP54
• II 3D Ex ic IIIB T135°C Dc IP54
• CML 21UKEX2495X
• UKCA-designation:

EX-RELEVANT SAFETY REGULATIONS

Use of this device assumes that the operator observes the conventional safety regulations and has read and understood manual, safety instructions and certificate. The following safety regulations must also be complied with

Inside ex-hazardous areas the covers of all interfaces must be closed.
To ensure the IP-protection, it has to be ensured that all gaskets are present and functional. There must be no large gap between the two halves of the housing.
The device may only be charged outside ex-hazardous areas.
The device may only be charged at ambient temperatures between +5°C … +35°C.
Physical connections to other equipment are only allowed outside ex-hazardous areas.
The device may not be exposed to any aggressive acids or alkalis.
The device may only be used in zones 2 or 22.
Only accessories approved by i.safe MOBILE GmbH may be used.

EX-RELEVANT SAFETY REGULATIONS FOR NORTH AMERICA

The headset connector and the USB micro connector are to be used in non hazardous areas only.
The battery may be charged outside explosion hazardous areas only using approved external adapter model ICP12-050-2000B with output rated 5Vdc, 2A or other external approved AC/ DC adapter for use in US and Canada which also complies with the requirements of LPS and has output rated 5Vdc, 2A.
The battery pack is placed permanently into the housing therefore do not detach the two halves of the enclosure. It is not user serviceable or interchangeable.
In order to maintain the IP64 protection, do not detach the two halves of the enclosure.
The device must be protected from impacts with high impact energy, against excessive UV light emission and high electrostatic charge processes.i-Safe-MOBILE-IS655-2-Ex-proof-Smartphone-Instructions-FIG-4

Restrictions in the 5 GHz band

According to Article 10 (10) of Directive 2014/53/EU, the packaging shows that this radio equipment will be subject to some restrictions when placed on the market in Belgium (BE),- Bulgaria (BG), the Czech Republic (CZ),Denmark (DK), Germany (DE), Estonia (EE), Ireland (IE), Greece (EL), Spain(ES), France (FR), Croatia (HR), Italy (IT), Cyprus (CY), Latvia (LV), Lithuania(LT), Luxembourg (LU), Hungary (HU), Malta (MT), Netherlands (NL), Austria(AT), Poland (PL), Portugal (PT), Romania (RO), Slovenia (SI), Slovakia (SK),Finland (FI), Sweden (SE), the United Kingdom (UK), Turkey (TR), Norway(NO), Switzerland (CH), Iceland (IS), and Liechtenstein (LI). The WLAN function for this device is restricted to indoor use only when operating in the 5150 to 5350 MHz frequency range.

	AT	BE	BG	CH	CY	CZ	DE
	DK	EE	EL	ES	FI	FR	HR
	HU	IE	IS	IT	LI	LT	LU
	LV	MT	NL	PL	PT	RO	SE
	SI	SK	TR	UK

EU/UK – Declaration of Conformity
according to directive 2014/34/EU, SI 2016 No. 1107, 2014/53/EU, SI 2017 No. 1206, 2011/65/EU (2015/863/EU), SI 2012 No. 3032 nach Richtlinie 2014/34/EU, 2016 No. 1107, 2014/53/EU, SI 2017 No. 1206, 2011/65/EU (2015/863/EU), SI 2012 No. 3032 The company i.safe MOBILE GmbH declares under its sole responsibility that the product to which this declaration relates is in accordance with the provisions of the following data, directives and standards: Die Firma i.safe MOBILE GmbH erklärt in alleiniger Verantwortung, dass Ihr Produkt auf welches sich diese Erklärung bezieht, den nachfolgenden Daten, Richtlinien und Normen entspricht:

EU/UK DECLARATION OF CONFORMITY

Document No. 1034MM11REV01 Version: 2022-10-27 (c) 2022 i.safe MOBILE GmbH i.safe MOBILE GmbH i_Park Tauberfranken 10 97922 Lauda-Koenigshofen Germany Tel. +49 9343 60148-0 [email protected] www.isafe-mobile.com
