MOBILE
SAFETY INSTRUCTIONS
IS120.2

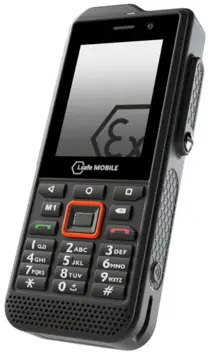

MODEL M120A01
SAFETY INSTRUCTIONS
Document No . 1050MM11REV00
Version: 2021-12-22
(c) 2021 i.safe MOBILE GmbH
i .safe MOBILE GmbH
i_Park Tauberfranken 10
97922 Lauda-Koenigshofen
Germany
Tel . +49 9343 60148-0
[email protected]
www.isafe-mobile.com
Template: TEMPMM01REV10
EX MARKINGS
ATEX:
II 3G Ex ic IIC T4 Gc II 3D Ex ic IIIC T135°C Dc
Certificate of Conformity:
EPS 21 ATEX 1 108 X
CE-designation:
IECEx:
Ex ic IIC T4 Gc
Ex ic IIIC T135°C Dc
IECEx Certificate: IECEx EPS 21 .0041X
UKEX: II 3G Ex ic IIC T4 Gc II 3D Ex ic IIIC T135°C Dc
CML 21UKEX21328X
UKCA-designation:
Temperature range:
-20°C … +60°C (EN/IEC 60079-0)
-10°C … +50°C (EN/IEC 62368-1)
Manufactured by:
i.safe MOBILE GmbH
i_Park Tauberfranken 10
97922 Lauda-Koenigshofen Germany
EX-RELEVANT SAFETY REGULATIONS
The use of this device assumes that the operator observes the conventional safety regulations and has read and understood Operating Manual, Safety Instructions, and certificate. When used in explosion hazardous areas, the following Safety Instructions must also be complied with:
Inside explosion hazardous areas the covers of all interfaces (USB) must be closed . To ensure the IP-protection, it has to be ensured that all gaskets are present and functional . There must be no large gap between the two halves of the housing and between the battery compartment cover and housing. The battery may be charged outside explosion hazardous areas only. The device may only be charged at temperatures between +5 °C to +35 °C. Physical connections to IS120 .2 are only allowed outside explosion hazardous areas. The device may not be exposed to any aggressive acids or alkalis. The device may only be used in zones 2 or 22. Only accessories approved by I .safe MOBILE GmbH may be used.
INFORMATION CONCERNING SAR CERTIFICATION
(SPECIFIC ABSORBATION RATE)
The SAR limit of Europe is 2,0 W/kg for the head and body, and 4,0 W/kg for the limbs. The device has been tested against this SAR limit. The highest SAR value reported under this standard during product certification for use at the ear is 0,72 W/kg and when correctly worn on the body is 1,44 W/kg, and limbs are 3,08 W/kg.
This device was tested for typical body-worn operations with the back of the handset kept 5 mm from the body. The device complies with RF specifications when used at 5 mm from the body. Belt clips, holsters and similar accessories used should not contain metallic components in the assembly. The use of accessories that do not satisfy these requirements may not comply with RF exposure requirements and should be avoided.
MAXIMUM OUTPUT POWER
| Frequency bands | Maximum output power |
| GSM 900 | 32,48 dbm |
| DCS 1800 | 29,57 dbm |
| WCDMA 2100 | 22,90 dBm |
| WCDMA 900 | 22,69 dBm |
| LTE band 1 | 24,01 dBm |
| LTE band 3 | 23,34 dBm |
| LTE band 7 | 24,05 dBm |
| LTE band 8 | 23,24 dBm |
| LTE band 20 | 22,97 dBm |
| LTE band 28 | 24,65 dBm |
| LTE band 34 | 24,15 dBm |
| LTE band 38 | 24,65 dBm |
| LTE band 40 | 24,78 dBm |
| WiFi 2 .4G | 17,48 dbm |
| WiFi 5G | 15,95 dbm |
| BT | 5,44 dbm |
| BLE | -3,29 dBm |
Restrictions in the 5 GHz band:
According to Article 10 (10) of Directive 2014/53/EU, the packaging shows that this radio equipment will be subject to some restrictions when placed on the market in Belgium (BE),Bulgaria (BG), the Czech Republic (CZ), Denmark (DK), Germany (DE), Estonia (EE), Ireland (IE), Greece (EL), Spain(ES), France (FR), Croatia (HR), Italy (IT), Cyprus (CY), Latvia (LV), Lithuania(LT), Luxembourg (LU), Hungary (HU), Malta (MT), Netherlands (NL), Austria(AT), Poland (PL), Portugal (PT), Romania (RO), Slovenia (SI), Slovakia (SK), Finland (FI), Sweden (SE), the United Kingdom (UK), Turkey (TR), Norway(NO), Switzerland (CH), Iceland (IS), and Liechtenstein (LI) . The WLAN function for this device is restricted to indoor use only when operating in the 5150 to 5350 MHz frequency range.
 | AT | BE | BG | CH | CY | CZ | DE |
| DK | EE | EL | ES | FI | FR | HR | |
| HU | IE | IS | IT | LI | LT | LU | |
| LV | MT | NL | PL | PT | RO | SE | |
| SI | SK | TR | UK |
EU/UK-DECLARATION OF CONFORMITY
EU/UK – Declaration of Conformity
EU/UK – Konformitätserklärung
according to directive 2014/34/EU, SI 2016 No. 1107, 2014/53/EU, SI 2017 No. 1206, 2011/65/EU
(2015/863/EU), SI 2012 No. 3032
nach Richtlinie 2014/34/EU, 2016 No. 1107, 2014/53/EU, SI 2017 No. 1206, 2011/65/EU
(2015/863/EU), SI 2012 No. 3032
The company i.safe MOBILE GmbH declares under its sole responsibility that the product to which this declaration relates is in accordance with the provisions of the following data, directives and standards:
Die Firma i.safe MOBILE GmbH erklärt in alleiniger Verantwortung, dass Ihr Produkt auf welches sich diese Erklärung bezieht, den nachfolgenden Daten, Richtlinien und Normen entspricht:
| Name & address of the manufacturer in the EU Name & Anschrift des Herstellers innerhalb der europäischen Gemeinschaft | i.safe MOBILE GmbH i_Park Tauberfranken 10 97922 Lauda – Koenigshofen Germany |
| Description of the devices Beschreibung der Geräte | Mobile Phone type / Typ: IS120.2 model / Modell: M120A01 |
| Ex – marking Ex – Kennzeichnung |  II 3G Ex ic IIC T4 Gc II 3D Ex ic IIIC T135°C Dc |
| Conformity statement 2014/34/EU issued by Konformitätsaussage 2014/34/EU ausgestellt durch Applied harmonized standards Angewandte harmonisierte Standards | EPS 21 ATEX 1 108 X Bureau Veritas Consumer Product Services Germany GmbH Businesspark A96 86842 Tuerkheim, Germany identification number / Kenn-Nummer: 2004 EN IEC 60079-0:2018; EN 60079-11:2012 |
| Conformity statement SI 2016 No. 1107 issued by Konformitätsaussage SI 2016 No. 1107 ausgestellt durch Applied standards Angewandte Standards | CML 21UKEX21328X Eurofins E&E CML Limited, Newport Business Park, New Port Road, Ellesmere Port, CH65 4LZ, United Kingdom identification number / Kenn-Nummer: 2503 EN IEC 60079-0:2018; EN 60079-11:2012 |
| Conformity statement 2014/53/EU issued by Konformitätsaussage 2014/53/EU ausgestellt durch Applied harmonized standards Angewandte harmonisierte Standards | MiCOM Labs Inc. 575 Boulder Court, Pleasanton, California 94566 USA identification number / Kenn-Nummer: 2280EN IEC 62368-1:2020+A11:2020; EN 50663:2017; EN 62479:2010; EN 50566:2017; EN 62209-1:2016; EN 62209-2:2010/A1:2019 EN 50360:2017; Draft EN 301 489-52 V1.1.2; |
| Conformity statement SI 2017 No. 1206 issued by Konformitätsaussage SI 2017 No. 1206 ausgestellt durchApplied standards Angewandte Standards | MiCOM Labs Inc. 575 Boulder Court, Pleasanton, California 94566 USA identification number / Kenn-Nummer: 2280EN IEC 62368-1:2020+A11:2020; EN 62209-1:2016; EN 62209-2:2010/A1:2019 EN 50360:2017; EN 50566:2017; EN 50663:2017; EN 62479:2010; Draft EN 301 489-52 V1.1.2; |
| Conformity statement 2015/863/EU amending 2011/65/EU issued by Konformitätsaussage 2015/863/EU ergänzt 2011/65/EU ausgestellt durchApplied harmonized standards Angewandte harmonisierte Standards | Shenzhen TCT Testing Technology Co., Ltd. TCT testing Industrial Park, Fuquiao 5 th Industrial Zone, Fuhai Street, Shenzhen, ChinaIEC 62321-2: 2013; IEC 62321-3-1: 2013; IEC 62321-5: 2013; IEC 62321-4: 2013 + A1: 2017; IEC 62321-7-1: 2015; IEC 62321-7-2: 2017; IEC 62321-6: 2015; IEC 62321-8: 2017 |
| Conformity statement SI 2012 No. 3032 issued by Konformitätsaussage SI 2012 No. 3032 ausgestellt durchApplied standards Angewandte Standards | Shenzhen TCT Testing Technology Co., Ltd. TCT testing Industrial Park, Fuquiao 5 th Industrial Zone, Fuhai Street, Shenzhen, ChinaBS EN 62321-2: 2014; BS EN 62321-3-1: 2014; BS EN 62321-5: 2014; BS EN 62321-4: 2014 + AMD1: 2017; BS EN 62321-7-1: 2015; BS EN 62321-7-2: 2017; BS EN 62321-6: 2015; BS EN 62321-8: 2017 |
| CE/UKCA Marking CE/UKCA-Kennzeichnung | |
MOBILE
Lauda – Koenigshofen 20.12.2021
Dirk Amann
Managing Director
1050CC14REV00_sgr
All rights reserved, i.safe MOBILE GmbH
WWW.ISAFE-MOBILE.COM
