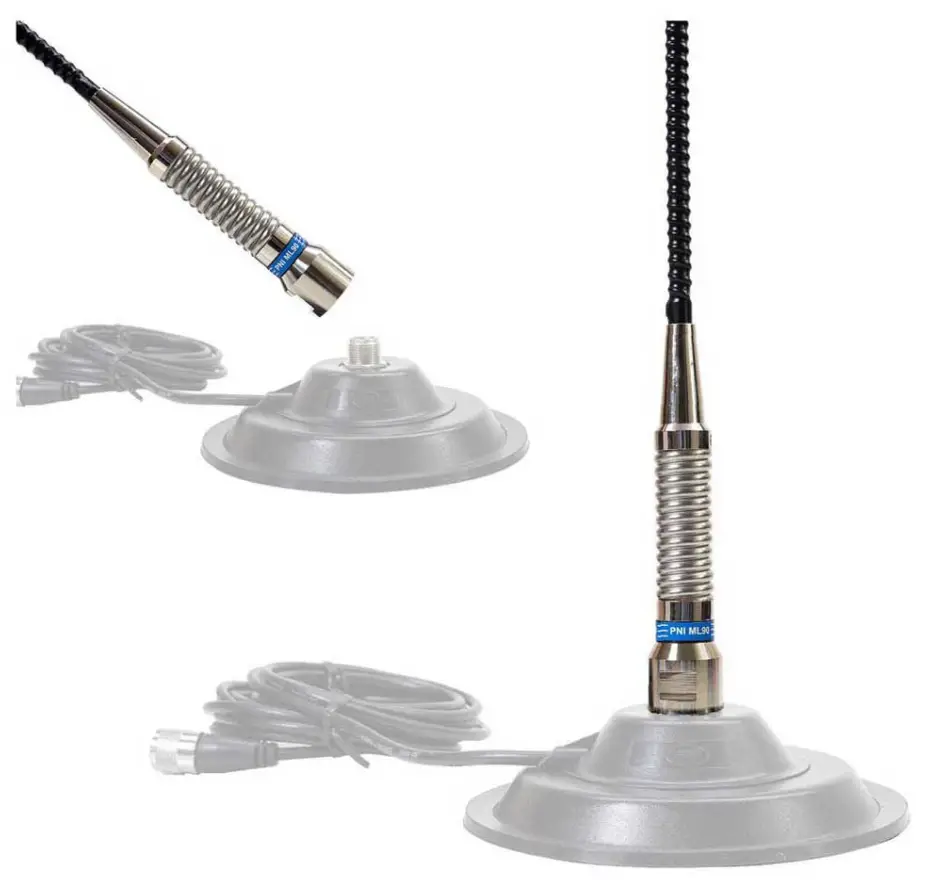

PNi ML90 CB Antenna
Installation instructions:
- Connect the antenna to the magnetic base (not included) then fix it to the car, preferably in the middle of the car dome.
- Connect the antenna to a CB radio and test the S.W.R. in an open area.
- If it is necessary to tune the antenna, we recommend performing it only by specialized personnel with dedicated equipment.
- Connect the PL259 connector on the end of the magnet cable to the antenna connector on the back of the CB radio.
Note: PNI antennas come tuned from the factory on 27.225Mhz.
Technical specifications:
| Frequency | 26 – 30 MHz |
| S.W.R. | ≤ 1.2:1 |
| Impedance | 50 Ohm |
| Maximum supported power | 150 W continuously |
| Height | 71 cm |
| Whip material | Fiber glass |
