ML75 CB Antenna
User Manual

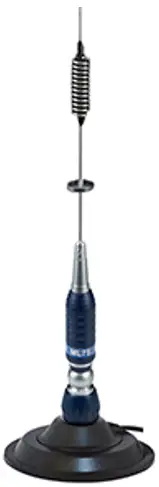

PNI ML75 CB antenna, without accessories
Description:
CB radio antenna suitable for both cars and trucks, compatible with any CB radio. Very easy to install.
Installation:
- Fix the antenna on a threaded magnetic base (eg PNI 145/PL) or connect it to a support with a connecting cable (eg PNI T941, PNI T601).
- Connect the PL259 plug to a CB radio (plug not included).
- Test the SWR in an open area using a reflectometer. In some cases it may be necessary to raise or shorten the wire to get an optimal SWR value. For maximum performance it is recommended that this procedure, called calibration, be performed by authorized personnel with special equipment.
Technical specifications:
| Frequency | 26 — 28 MHz |
| SWR | 1.2:1 |
| Impedance | 50 Ohm |
| Max. supported power | 40 W continuous |
| 300 W for a short time | |
| Length | 850 mm |
| Material | Stainless steel |
| Tilt angle | 0 – 90° |
| Connector | UHF PL |
