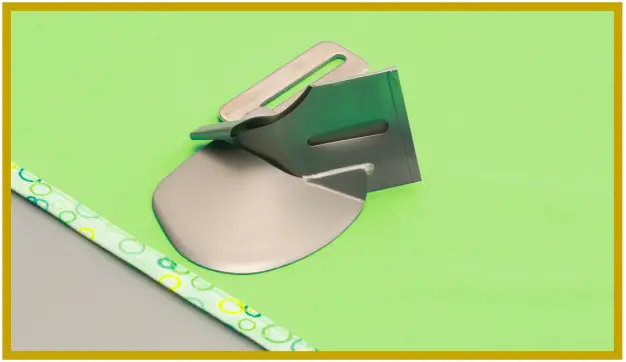

baby lock BLE8-S3 Double Fold Bias Binder Instructions
This conventional binder will double fold and sew bias strips to your project in one quick step on the Evolve, using either a chain or coverstitch. Choose from two widths based on your preference.
MACHINE SETTINGS
| Stitch type: 1-1/2” | Chain Stitch – C3 Needle Position C2-C3 Narrow Right Cover Stitch C2-C3 |
| Stitch type: 1-1/8” | Narrow Right Cover Stitch Chain Stitch – C3 Needle |
| Stitch length: | 3-4 |
| Upper looper: | Down |
| Upper knife: | Disengaged “LOCKED” |
| Sewing table: | On |
Bias Strip Cut Size
1-1/8 inch Binder:
- Cut 1-1/8 inch bias from fine fabrics such as calico, muslin, etc.
- Cut 1 inch wide for medium weight fabrics such as trigger, lightweight denim.
1-1/2 inch Binder:
- Cut 1-3/8 inch for fine fabrics such as calico, muslin, etc.
- Cut 1-1/4 inch wide for medium weight fabrics such as trigger, lightweight denim.
Note: Test with fabric strip to make sure of correct width of bias.
Note: When using BLCS the accessory adaptor BLCS-AA is needed.

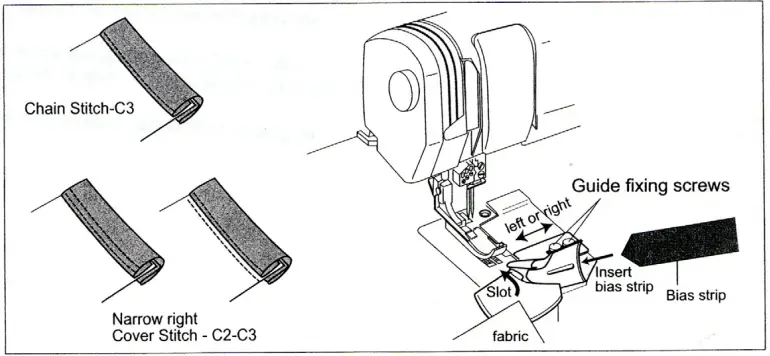

Instructions
- Secure attachment to table with guide fixing screws.
- Cut fabric strips to size needed.
- Raise presser foot. With the point of the bias strip, place strip into attachment. Use tweezers to feed the strip into the attachment.
- Place the folded bias up to the needles and under the presser foot.
- Turn the handwheel 3-4 times to secure the stitching in the fabric.
- Place the fabric that is to be bound into the slot of the attachment. Place in the folded bias in front of the presser foot.
- Loosen the guide fixing screws and move the attachment right or left to align the attachment with the needle position.
- Sew test for proper alignment before sewing on project.
