Amax Lighting Led-rsm7dl Built In Radar Sensor Owner's Manual

LED-RSM7DL Built In Radar Sensor

Product Information: LED-RSM7DL Pancake Disc Series with
Built-in Radar Sensor

The LED-RSM7DL is a 7 inch radar sensor LED ceiling mount light
designed for new construction and remodel in wet locations. It
features a built-in radar sensor that automatically turns on the
light when motion is detected, providing 900 lumens of warm white
light (3000K). Its sensing distance ranges from 4.5-5.5 yards and
has a duration of 17 seconds when motion is detected. It is made of
aluminum construction with a polycarbonate trim ring, and a
diffused polycarbonate lens that controls direct glare from the
LEDs. It is ideal for use in closets, bathrooms, hallways,
stairways, kitchens, workplaces, garages, basements, storage, or
utility rooms.

Specifications:

• Description: 7 inch radar sensor LED ceiling mount light
• Input Power: 15W
• Input Voltage: 120V
• Input Frequency: 60Hz
• Power Factor: 0.90
• Lumen: 900
• CCT: 3000K
• CRI: 90+
• Back Convex Dimension: 2 1/8×5/8
• Life: 50,000 hrs
• Warranty: 5 years Limited
• Certification: SGS Certified, Wet Location

Features:

• Diffused polycarbonate lens controls direct glare from the
  LEDs
• Aluminum construction with polycarbonate trim ring
• Simple snap-in installation for J-Box
• Can be installed in a 3 or 4 J-Box
• Turns off after 17 seconds delay if no motion is detected
• Turns on when motion is detected, in the dark or daytime
• Radar occupancy sensor

Product Usage Instructions:

1. Locate a suitable J-Box for installation.
2. Turn off the power supply to the J-Box.
3. Remove the old fixture and disconnect any wiring connected to
   it.
4. Connect the wiring to the new LED-RSM7DL fixture according to
   the wiring diagram in the product manual.
5. Attach the fixture to the J-Box using the provided screws and
   snap-in mechanism.
6. Turn on the power supply to the J-Box.
7. The LED-RSM7DL will automatically turn on when motion is
   detected and turn off after a 17 second delay if no motion is
   detected.

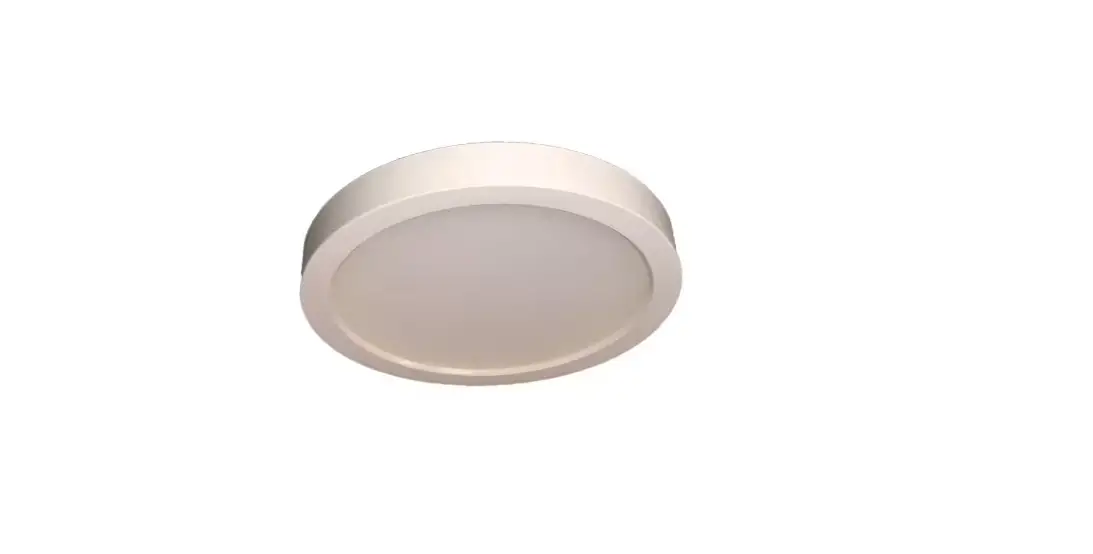

LED-RSM7DL

PANCAKE DISC SERIES WITH BUILT-IN RADAR SENSOR

New Construction and Remodel Wet Location
Specifications:
Description: This 7 inch radar sensor LED ceiling mount light is a perfect solution for areas where you need light to automatically turn on when motion is detected. This light features a 17 second duration of light when motion is detected, and with range up to 4.5-5.5 yards. Providing 900 lumens, 3000K warm white. The ideal luminaire to apply in a: closet, bathroom, hallway, stairway, kitchen, workplace, garage, basement, storage or utility room. Wet location rated.

Features: Diffused polycarbonate lens controls direct glare from the LEDs Aluminum construction with a polycarbonate trim ring
Simple snap in installation for J-Box Can be installed in a 3″ or 4″ J-Box Turns off after 17 second delay if no motion is detected Turns on when motion is detected, in the dark or daytime Sensing distance: 4.5-5.5 yards Radar occupancy sensor

Performance: Input Power Input Voltage Input Frequency
Power Factor Lumen CCT CRI Back Convex Dimension Life Warranty Certification

15W 120V 60Hz
0.90 900 3000K 90+ 2 1/8″x5/8″ 50,000 hrs 5 years Limited SGS Certified, Wet Location

lmage:

Catalog Number: Item
LED-RSM7DL/WT

Finish White

Color Temp. 3000K

Watt 15W

Dimension 7″x1/2″

Amax Lighting, Inc.
10268 Santa Fe Springs Road, Santa Fe Springs, CA 90670 Tel: 562-945-5221 Fax: 562-464-1664 www.amaxlighting.com
