ancona logo MH-MD-13003WT Wall Madallion
User Guide
ancona MH MD 13003WT Wall Madallionancona MH MD 13003WT Wall Madallion - icon.estimated installation timeancona MH MD 13003WT Wall Madallion - icon. 1people required

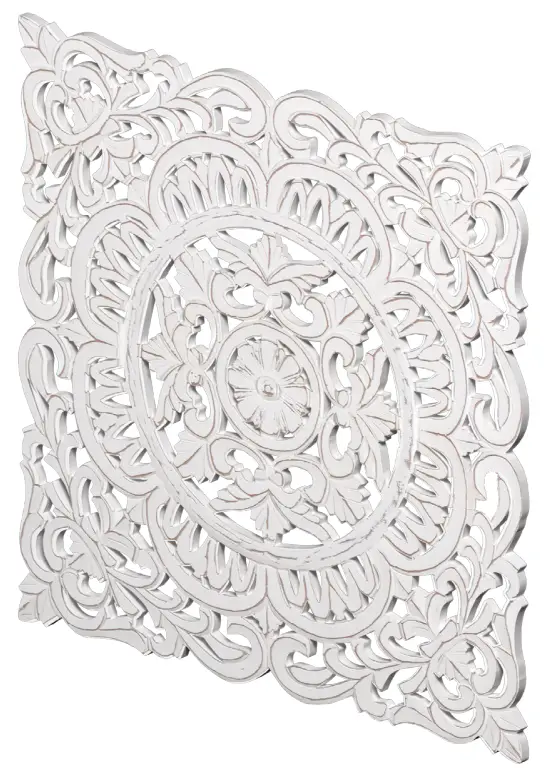

MH-MD-13003WT Wall Madallion

Ok, let’s get started!ancona MH MD 13003WT Wall Madallion - fig

  • Put on mood music!
  • To prevent damage to product, use the clean side of package carton or rug as working surface.
  • In the event of missing or damaged parts, delivery problems etc., please reach out to our team.
    We will be happy to fix the problem!

care guide

  • Clean regularly with a soft and dry cloth.
  • To protect finish, avoid use of abrasive cleaners.
  • Wipe up spills immediately. Please!

ancona MH MD 13003WT Wall Madallion - fig 1

Product parts

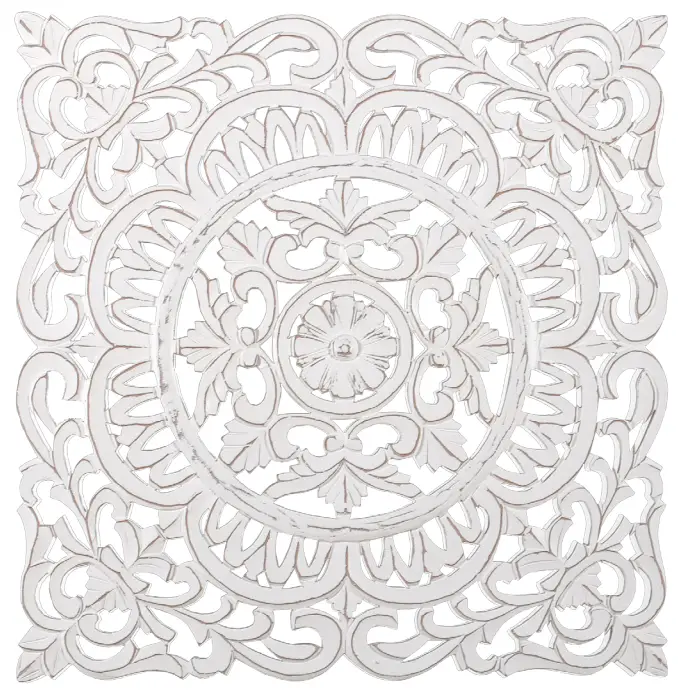

ancona MH MD 13003WT Wall Madallion - fig 2A Medallion x1

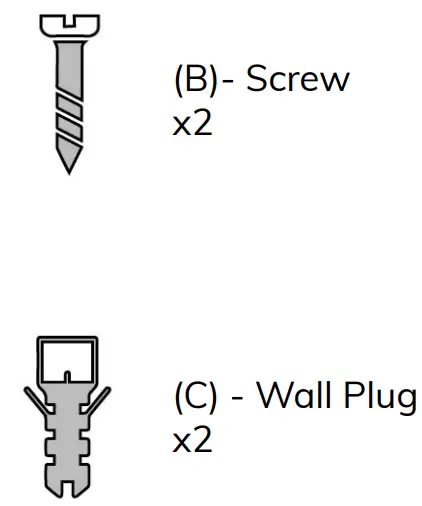

What’s includedancona MH MD 13003WT Wall Madallion - fig 3

Installation instructions

Friendly Tip: Take a deep breath going in.
This is easy even if you are not used to tools. Just follow these steps to the T, and the outcome will be worth it!ancona MH MD 13003WT Wall Madallion - fig 4

step 1:

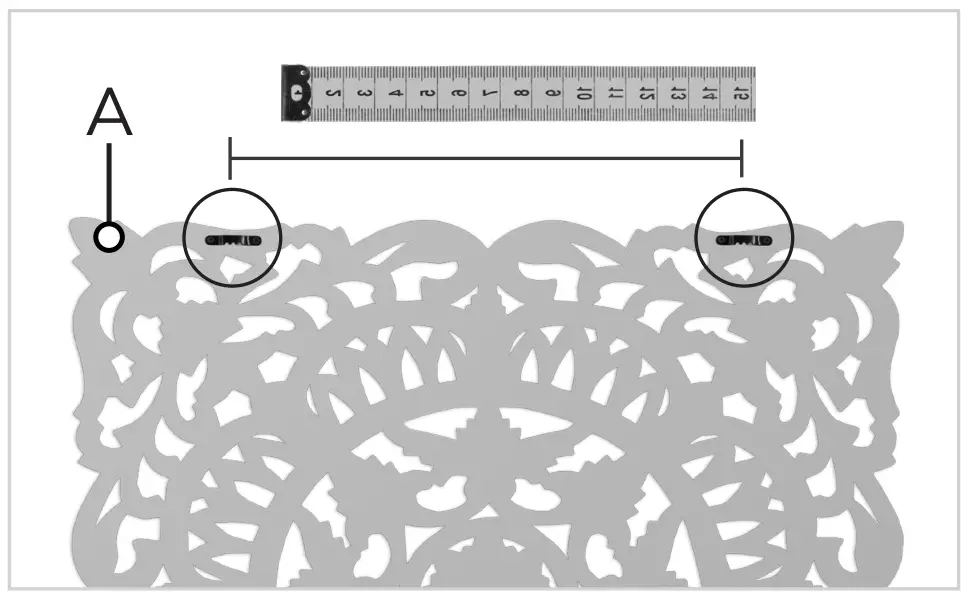

Measure the distance between the two sawtooths using a measuring tool.ancona MH MD 13003WT Wall Madallion - fig 5

step 2:

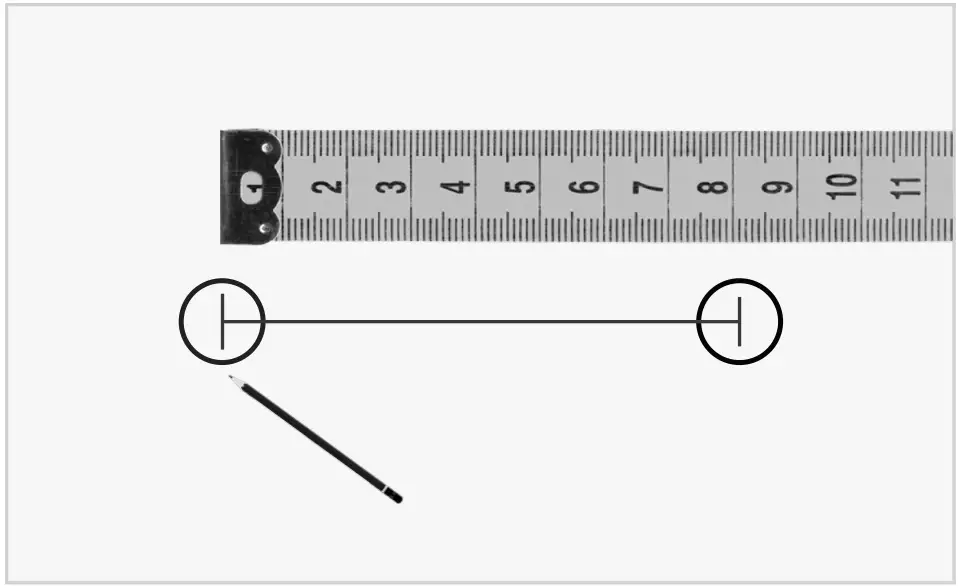

Place the measuring tool against the wall and make two marks where you want to mount the medallion.ancona MH MD 13003WT Wall Madallion - fig 6

step 3:

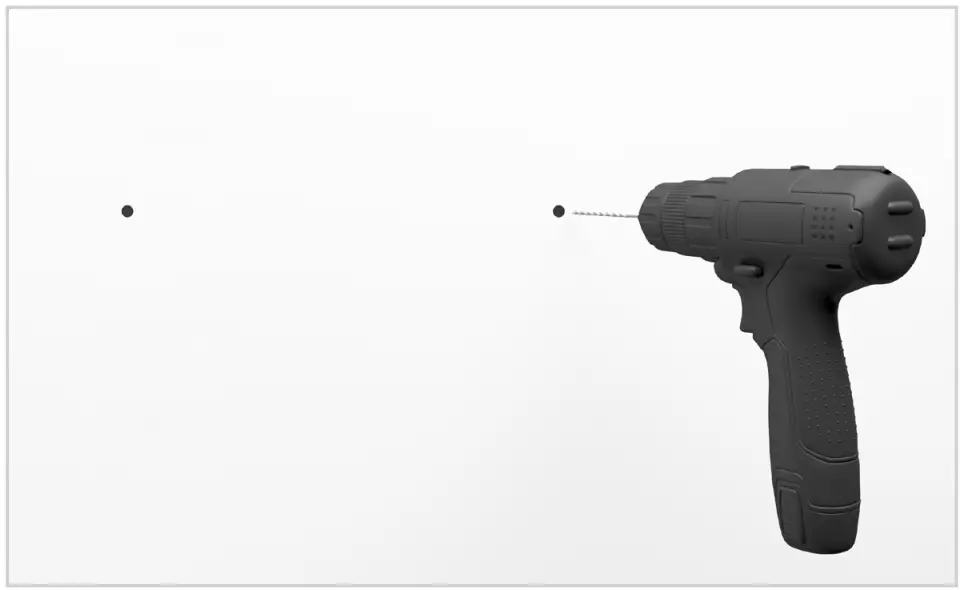

Drill holes at the points you just marked.ancona MH MD 13003WT Wall Madallion - fig 7

step 4:
Using a hammer, insert the wall plugs (C) inside the holes.ancona MH MD 13003WT Wall Madallion - fig 8

step 5:

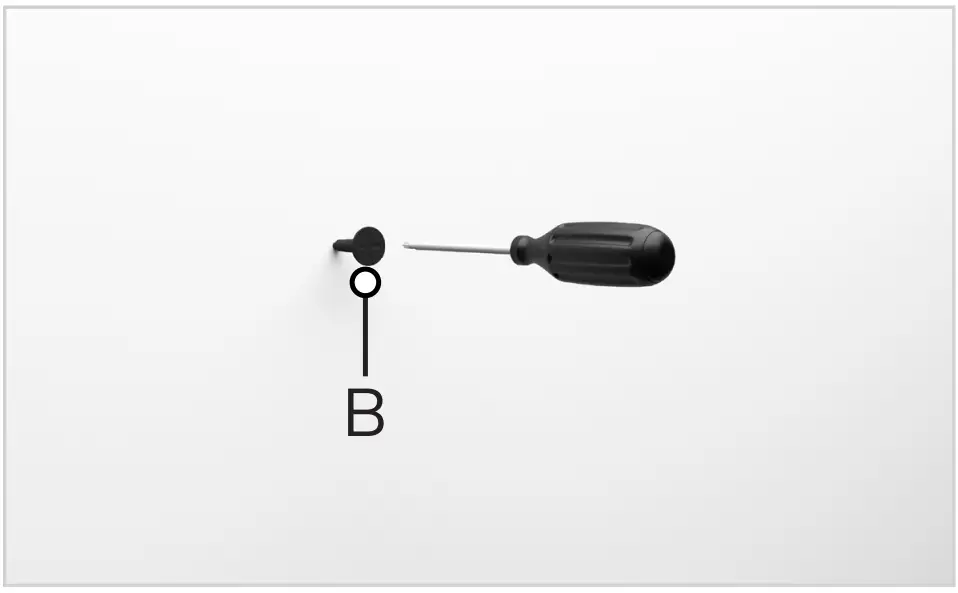

Fix the screws (B) into the wall plugs (C). Use a screwdriver to make sure they are secure.ancona MH MD 13003WT Wall Madallion - fig 9

step 6:

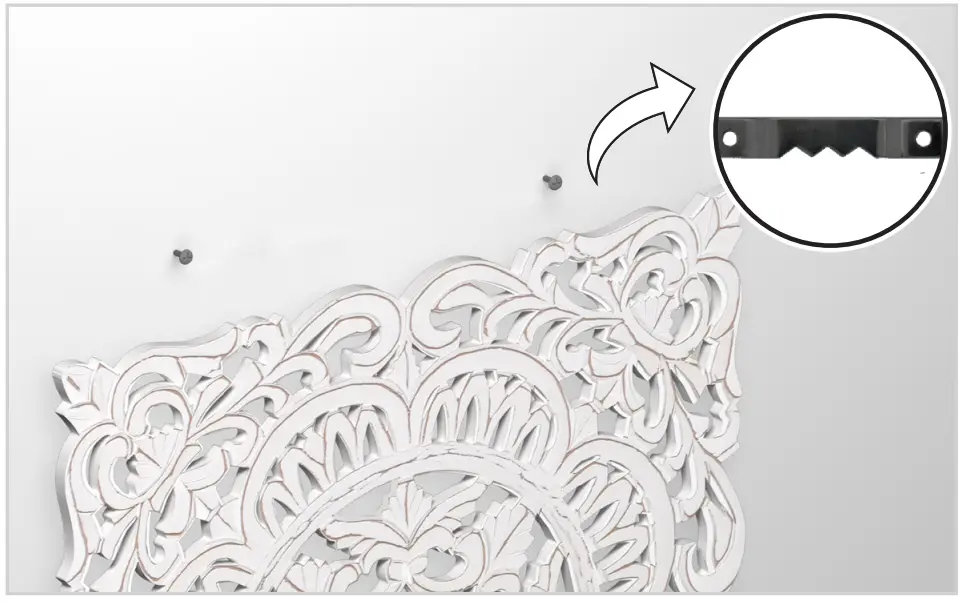

Place the sawtooths over the screws.ancona MH MD 13003WT Wall Madallion - fig 10

Voila! Your medallion is now installed and secure!
