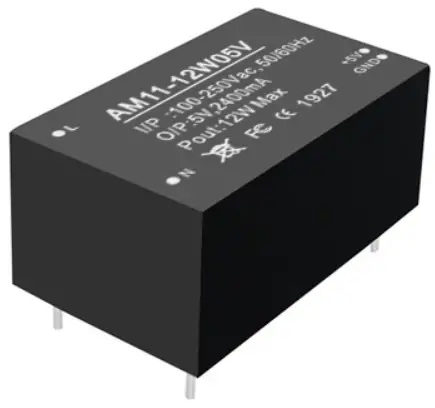

EBYTE AM11-12W05V 12W Low Power AC-DC Step-down Power Supply Module
Disclaimer
EBYTE reserves all rights to this document and the information contained herein. Products, names, logos and designs described herein may in whole or in part be subject to intellectual property rights. Reproduction, use, modification or disclosure to third parties of this document or any part thereof without the express permission of EBYTE is strictly prohibited.
The information contained herein is provided “as is” and EBYTE assumes no liability for the use of the information. No warranty, either express or implied, is given, including but not limited, with respect to the accuracy, correctness, reliability and fitness for a particular purpose of the information. This document may be revised by EBYTE at anytime. For most recent documents, Please visit www.ebyte.com
Product introduction
Brief introduction
AM11-12W05V is a low-power AC-DC step-down power supply module with an input voltage of 85~264Vac/100~370Vdc. This series of products are widely used consumer electronics, industrial control equipment, instrumentation, smart home and so on for its advantages such as ultra-low ripple, ultra-low power consumption, high efficiency, safe isolation and high reliability. The user does not need to consider stability because the output can be stabilized even in a complex voltage environment.
Product features
- Ultra-low ripple: full load ripple is less than 100mV;
- Ultra-small size: 38.2*25.2*23mm;
- Input voltage: universal voltage of 85 ~ 264Vac/100~370Vdc;
- Protection measures: over-voltage protection, over-current protection, short-circuit protection, over-temperature protection;
- High-quality scheme: greatly improve its work efficiency, with a maximum efficiency of 86.2%;
- AM11 series is aimed at economical ultra-low cost.
Application scenarios
- Power Supply System of Charging Pile；
- Intelligent home and Industrial sensors, etc.；
- Internal power supply system of security alarm；
- Industrial control；
- MCU motherboard, toys；
- Supply LED driving Lamp belt with Power；
- Intelligent street lamp；
- Intelligent switch, socket；
Specification parameters
Limit parameters
Order number | Main parameter | Minimum | Maximum | Remarks |
| 1 | Input voltage (Vac) | 85 | 264 | Vac |
2 | Input voltage (Vdc) | 100 | 370 | Vdc |
| 3 | Output power（W） | 0 | 12 | Vac |
4 | Working temperatur(℃) | -40 | +80 | Ta=40℃, tc=85℃ |
Working parameters
| Order number | Main parameter | Minimum | Typical value | Maximum | Remarks |
| 1 | Input voltage(Vac) | 100 | 220 | 250 | Vac |
| Input voltage(Vdc) | 120 | – | 350V | Vdc | |
| 2 | Working frequency (Hz) | – | 50/60 | – | Hz |
| 3 | Output power(W) | 0 | – | 12 | W |
| 4 | Output accuracy | – | ±5 | – | ％ |
| 5 | Working temperature (℃) | 40 | +25 | 85 | Ta=40℃, tc=85℃ |
| 6 | Power factor | 0.4 | – | 0.55 | >0.55 at 120Vac / >0.4 at 230Vac Full load |
| 7 | Static power(mA) | – | – | 1.0 | < =1 mA / 240Vac |
| 8 | Output voltage(Vdc) | 4.75 | 5.1 | 5.25 | V |
| 9 | Persistent current(mA) | 0 | – | 2.4 | A |
| 10 | Ripple noise(mV) | 27 | – | 50 | Full load<=120mV |
| 11 | Maximum efficiency (n%) | – | – | 86.5 | ％ |
| 12 | Over-current protection(%) | 2.43 | 2.48 | 2.55 | A (Constant current limit, automatic recovery) |
| 13 | Short circuit protection | – | – | – | Hiccup mode, automatic recovery after elimination of failure state |
| 14 | Working humidity (RH%) | 20 | – | 90 | Non-condensing |
| 15 | Storage temperature (℃) | -40 | +25 | +85 | Dry storage at normal temperature; |
| 16 | Storage humidity (RH%) | 10 | – | 90 | Dry storage at normal temperature; |
| 17 | Withstand voltage test | – | – | 3000 | I/P – O/P: 3000 VAC |
| 18 | Insulation impedance | – | – | 100 | I/P – O/P: 100M ohms / 500VDC at 25 ℃ |

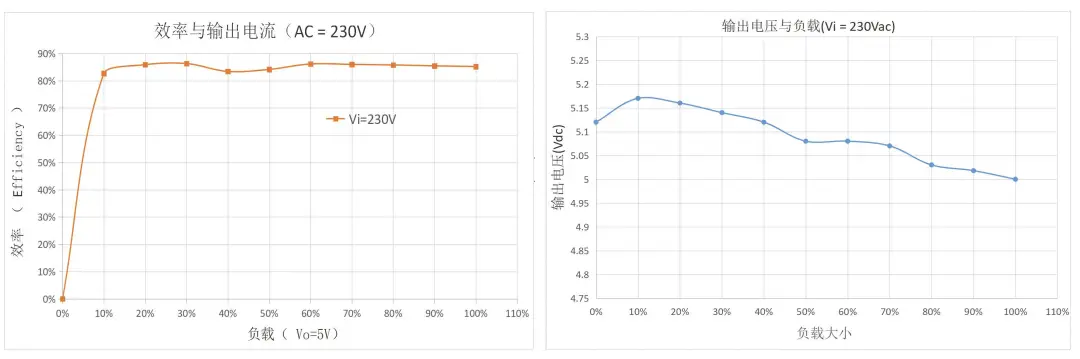

Work efficiency and load

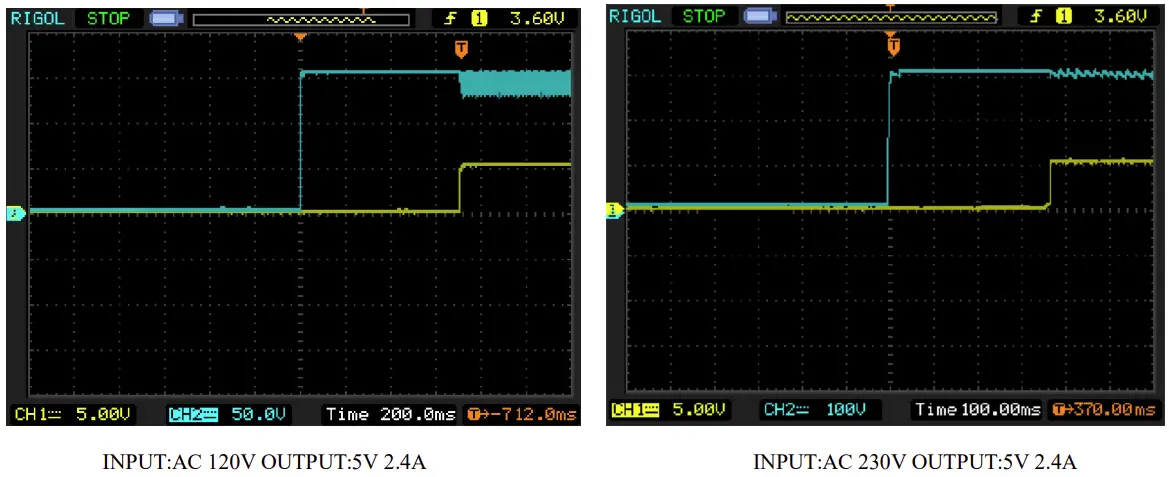

Start-up time

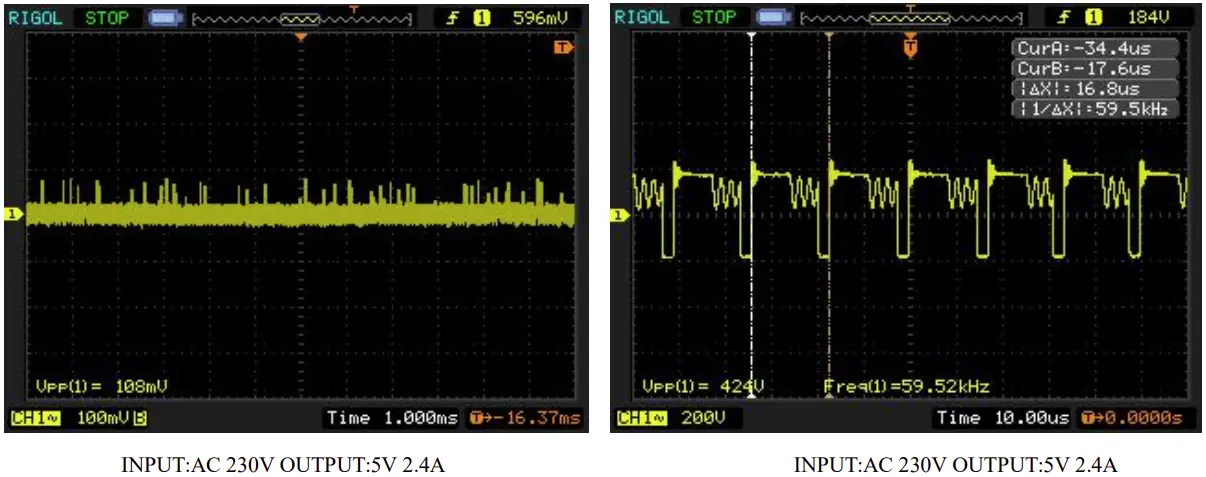

Full-load ripple
Basic operation
Notes
- Operating this module requires certain professional skills, prohibit non-professionals operate onit!
- Before using it, you must study knowledge of safe use.
- prohibit human body contact with L and N power lines after electrification to prevent accidents caused by electric shock. Recommend input front-end to Increase isolation.
- The maximum input voltage shall not exceed 250 Vac, otherwise may occur permanent damage.
- In daily maintenance, the input power should be disconnected to prevent from electric
Mechanical Characteristics and Pin Definition

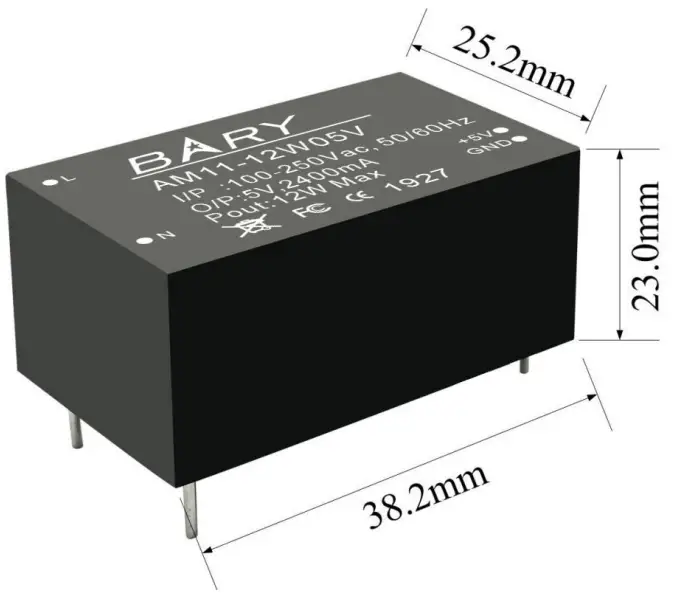

Product size
Pin Definition
Order number | Pin name | Orientation | Use |
| 1 | L | Input | AC power input |
2 | N | Input | AC power input |
| 3 | 0V | Output | Direct-current output, power ground. |
4 | +5V | Output | Direct-current output, positive power supply. |
Product selection
Product model | Input voltage | Output voltage | Output accuracy | Output current | Efficiency | Installation mode |
| AM11-12W05V | 100 ~ 250Vac | 5Vdc | ±5% | 2.4A | 86.27% | Plastic package plug-ins |
AM11-12W12V | 100 ~ 250Vac | 12Vdc | ±5% | 1.0A | 87.3% | Plastic package plug-ins |
| AM21-12W05V | 100 ~ 250Vac | 5Vdc | ±1% | 2.4A | 82% | Plastic package plug-ins |
AM21-12W12V | 100 ~ 250Vac | 12Vdc | ±1% | 1.0A | 85% | Plastic package plug-ins |
| AM21-12W24V | 100 ~ 250Vac | 24Vdc | ±1% | 0.5A | 87% | Plastic package plug-ins |
Revision history
Order number | Vision | Modification date | Revision notes | Maintain person |
| 1 | V1.0 | 20210331 | First edition, first public release | Long Jun |
About us
Technical support:[email protected]
Documents and RF Setting download link:www.ebyte.com
Thank you for using Ebyte products! Please contact us with any questions or suggestions:[email protected]
Phone:+86 028-61399028
Web: www.ebyte.com
Address:B5 MouldPark,199#Xiqu Ave, High-tech District, Sichuan, China
