Kiloview N6N0640K4NKDNI N60 4K HDMI to NDI Converter Owner’s Manual
Descriptions
N60 K NDI Bi-directional Converter is Kiloview s latest NDI converter, which can handle both NDI and NDI|HX (NDI|HX2 and NDI|HX3), encoding and decoding. It supports resolution up to 4K UHD HDMI, YCbCr 4:2:2 10bit and AVC (H.264/HEVC(H.265), delivering high-quality images with ultra-low latency less than 80ms. N60 has a built-in LCD panel and a scroll-button for better interaction. With the panel you can quickly monitor and configure your device, such as IP configuration, recording status, etc. Besides, it can also work as a big Tally.
What’ s more important, N60 supports USB 3.0 input from USB Web Camera or PC, which easily bring NDI technology to your video conferencing and image processing.
With other updated features such as PoE and dual ethernet ports, USB 3.0 with USB Camera in/out support, TF storage, PTZ control, 3.5mm analog audio and voice intercom, N60 is your ideal choice to get access to the fabulous NDI/NDI|HX world with the most versatile options and convenient operations.
Features
- Built-in LCD panel + scroll-wheel
- Cold-shoe and V-mount local storage with TF card
- USB 3.0 for Web Cam input
- Utra Low latency transmission
- PTZ control via USB
Advantages
NDI and NDI|HX, Encoding + Decoding, All-in-One
- Plug-and-play operation, simple Web Ul management
4Kp60 HDMI input and encode to both NDI and NDI|HX2 & NDI|HX3 - NDI or NDI|HX2 or NDI|HX3 decoding to 4K HDMI output
- Support video input from Web Cam via USB 3.0 expansion, or connection to PC via USB as input
Lower Latency, Better Image Quality
- End to end latency less than 80ms for full NDI
- Support YCbCr 4:2:2 10bit for encoding and decoding, enjoy professional image quality
Note: N60 can be used as either an encoder or a decoder but not simultaneously currently. Please note our update when simultaneous working is available.

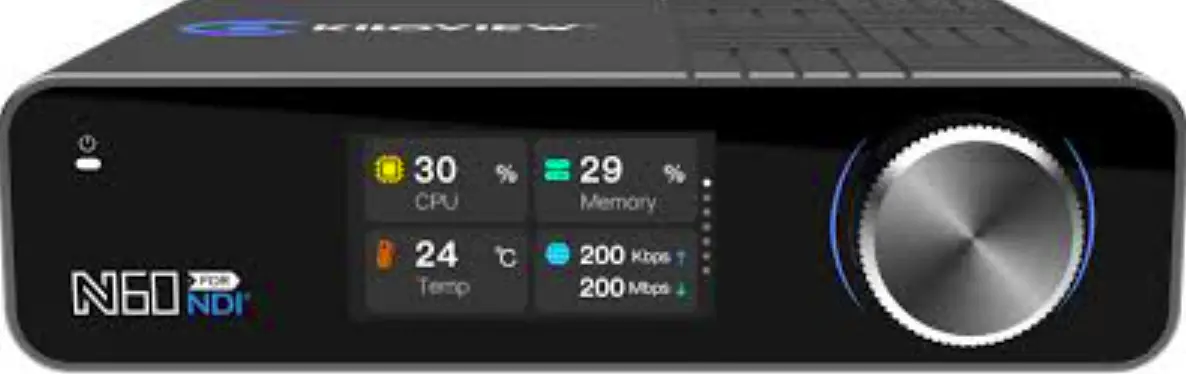

Built-in LCD panel + Scroll-wheel
- Abui in LCD panel plus a scroll-wheel for management and easy configuration
- Working as a big tally
Audio and intercom
- Support 3.5mm analog audio line in/out
- Support voice intercom between all Kiloview devices and the control PC/phone, or with Kiloview Intercom Server
PTZ control
- Support PTZ control by external USB
- USB keyboard for switching optional or control a PTZ camera
- And PTZ control over IP with different protocols, no extra cable required
Other features
- TF card storage available, enabling cache for Kiloview Smart Recording for reliable recording
- Support cold-shoe mounting and V-mounting (paid accessories)
Compatible software
Parameters
| Model | N60 |
| Connectors and Basic Function | |
| Video input | 1*4Kp60 HDMI 2.0 |
| Video output | 1*4Kp60 HDMI 2.0（Loop or decoding output） |
| Audio port | 1*3.5mm Line in1*3.5mm Line out |
| Network | 2*RJ45 1000Mbps Ethernet portEthernet 1 with PoE (IEEE 802.3AT, 24W Max) |
| Video resolution | Input: up to 3840×2160@60fps (4Kp60), lowest 720p50Output (decoding or loop out): up to 3840×2160@60fps (4Kp60), lowest 720p50 |
| NDI➅ codec capacity | 1x NDI➅ FB/HX encoding or 1x NDI➅ FB/HX decoding |
NDI➅CODEC feature | SpeedHQ (NDI CODEC): SHQ0, SHQ2ISO MPEG-4 Part 10: Advanced Video Coding (AVC)/ITU H.264ISO MPEG-H Part 2: High Efficiency Video Coding (HEVC)/ITU H.265 AVC (H.264): Baseline, Main, High, High10, High 4:2:2 up to 5.2 levelHEVC (H.265): Main, Main Intra, Main10, Main10 Intra, Main 4:2:2 10, Main 4:2:2 10 Intraup to 5.1 High Tier |
| Audio encoding anddecoding | NDI Audio; AAC-LC, Opus, G.711 a-Law/u-Law; others software expansion |
| USB | 1*USB3.0 (type A)1*USB3.0 (type C) |
| Human-computerinteraction | 1.96〞LCD screen, Kiloview Magic Rotor |
| TF storage | Support TF card for recording, capacity up to 2TB |
| Tally | Built-in OLED panel available as front/rear Tally |
| Power | DC 12V （5.5/2.5）or PoE |
| Performance | |
| NDI | Support both NDI and NDI|HX 2.0 (Note: It will support NDI|HX 3.0 in the near future) |
| Typical Bitrates | SpeedHQ (NDI CODEC):4Kp60: 250Mbps, 1080p60: 132Mbps, 1080p30/1080i60: 112Mbps, 720p60: 105Mbps480i60: 62.5MbpsAVC (H.264):Adjustable from 1Mbpsto 120Mbps. >24Mbps (4Kp60); >10Mbps(1080p60).HEVC (H.265):Adjustable from 1Mbps to 120Mbps. >15Mbps (4Kp60); >6Mbps(1080p60). |
| Recording | TF card available for local storage to .mov filles.Support remote recording with Kiloview Recorder System, ensuring reliable recordingtogether with Kiloview Smart Recording technology (TF card required). |
| Voice intercom | Support voice intercom by USB headset between devices directly, or with Kiloview Intercomserver. |
| PTZ | Support PTZ control through USB to serial RS232/485/422;or PTZ control over IP with different protocols, no extra cable required |
| Input with Web Camvia USB | Support video input from Web Cam via USB 3.0 (Note: license required) |
| Connection with PCvia USB | Support connection with PC via USB Type-C, as a video capture device (Note: licenserequired) |
| Management | Web UI and remote management with Kiloview KiloLink Server |
| Firmware update | Firmware upload by Web UI and remote upgrade with Kiloview Kilolink Server |
| Mounting | Support cold-shoe mounting and V-mounting |
| Power Consumption | 16W Max |
| Certificates | CE/ FCC/ROHS |
| Dimension | 135*98*35mm |
