OUTDOOR PANEL
AV-05FD
EAN: 5060514914137 (BLACK)
EAN: 5060514914151 (SILVER)
EAN: 5060514914144 (GOLD)

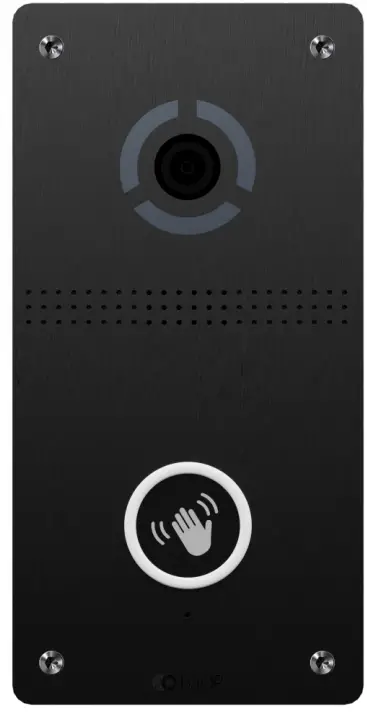

AV-05FD Outdoor Panel
BAS-IP AV-05FD – stylish vandal-proof panels with installation by the wall mount method.
This individual entrance panel is suitable for installation both in apartments and in the office, factory, gas station, etc.
Main features
- Panel type: Individual.
- Display: No.
- Camera: 1/3”.
- Angle: 110° horizontal x 60° vertical.
- Resolution: 2 Мp.
- Output video: FullHD (1920×1080), H.264 Main Profile.
- Button: Touch-free.
- Response distance: 15 — 25сm (dependingon external conditions).
- Night backlight: 6 LEDs.
- Light sensitivity: 0,01 Lux.
- Protection class: IP64.
- Working temperature: -40 — +65 °С.
- Power consumption: 6,5 W, in standby — 3,6 W.
- Power supply: PoE and +12 V DC.
- Body: Metal alloy.

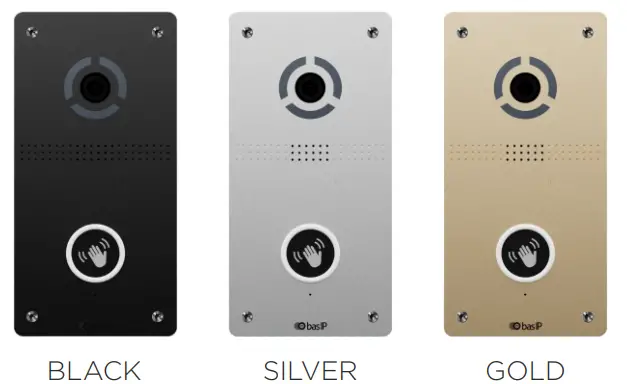

- Colors: Black, Silver, Gold.
- Dimensions for installation: 85 × 180 × 55 mm.
- Size of the panel: 95 x 190 x 37 mm.
- Installation: Flush.
Functionality
- Interface: Multi-language WEB interface.
- Lock opening:
- By means of a monitor
- From the BAS-IP Intercom application
- From API
- Shortcut buttons: 1 touchless call button.
- Authentication: WEB – interface and RTSP stream.
- Talking mode: Full duplex.
- Additionally:
- Software Link support
- SIP P2P
- Built-in relay
- Open API
