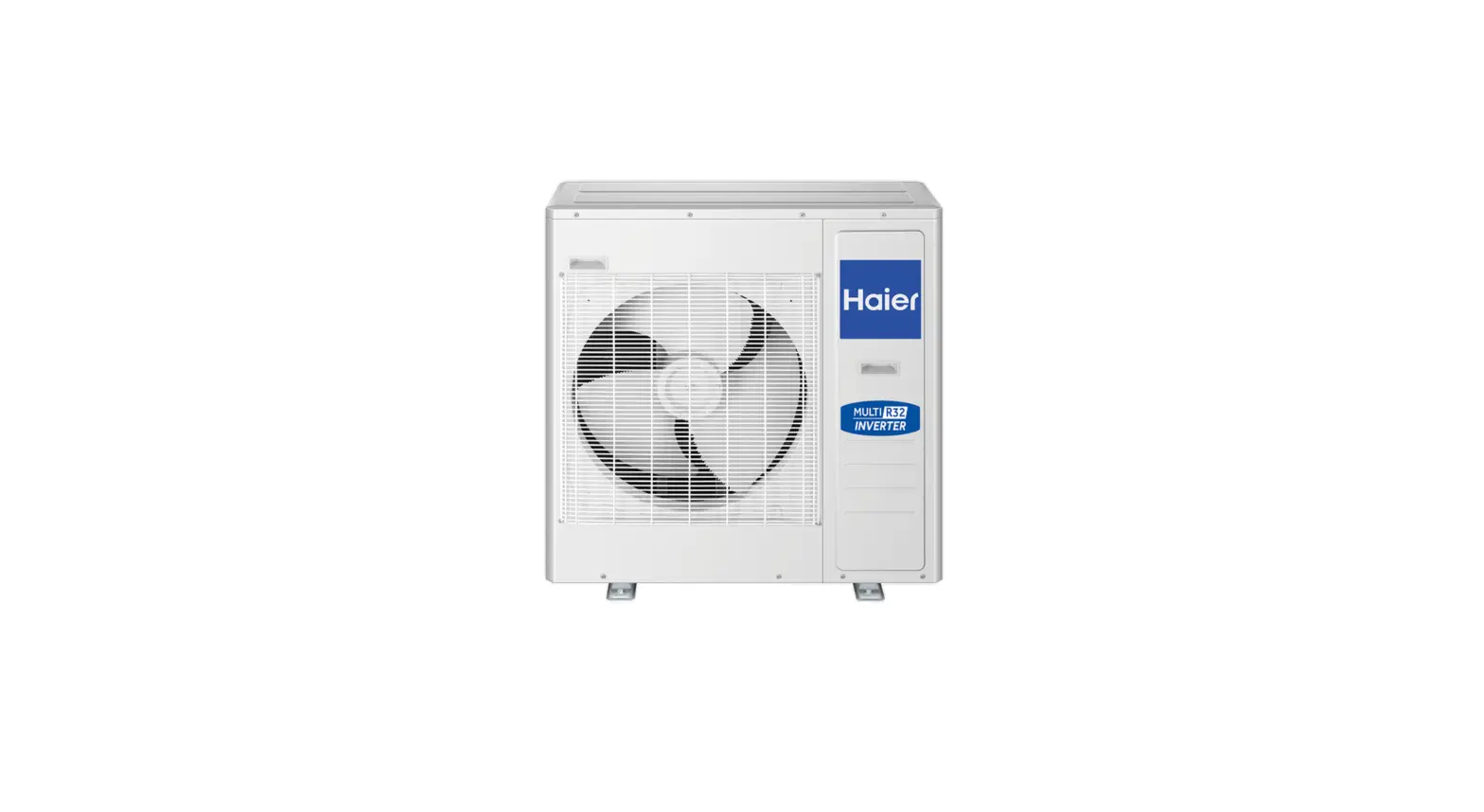

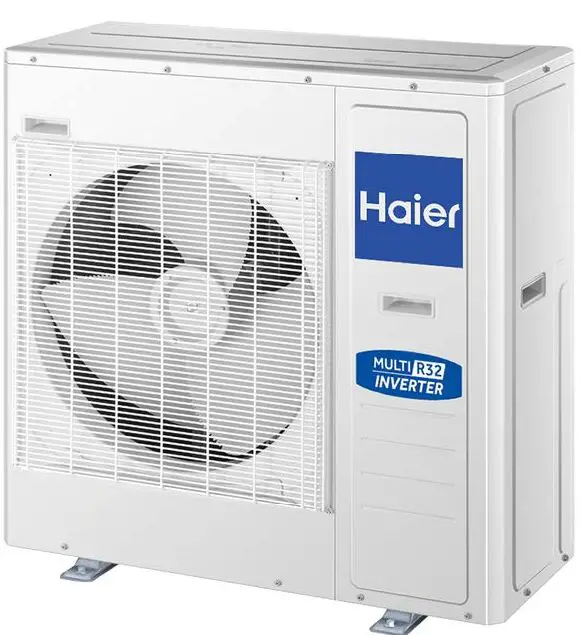

Haier 5U125S2PN1FA Multi-Head Outdoor Unit
Part of our Super Match range, this outdoor unit can be paired with various indoor units for a complete multi-room air conditioning solution.
- Heating and cooling, with an operational range from -15°C to 46°C
- Outdoor unit connects to up to five indoor units
- High-efficiency DC fan motor
- Indoor unit options include cassette, slim ducted and high wall models
DIMENSIONS
- Height 965 mm
- Width 950 mm
- Depth 370 mm
FEATURES & BENEFITS
| Flexible combinations The Super Match range offers a wide range of possible indoor unit and outdoor unit combinations, for a customised air conditioning solution for your space. |
| DC inverter technology With 3D Direct Current (DC) inverter technology, Super Match air conditioning units are able to operate with a high level of energy efficiency, while delivering rapid heating and cooling as needed. |
| Anti-corrosion coating The Blue Fin coating on the evaporator is hydrophilic for quick water drainage and resistance against corrosion. |
| R32 refrigerant This Super Match outdoor unit uses a next-generation R32 refrigerant, which carries heat efficiently and has a lower Global Warming Potential than R410A. |
| Faster servicing An easily accessible maintenance panel and service screen enable fast diagnostics. |
| Central controller With an optional central controller, you can easily control individual or connected units, and schedule air conditioning to turn on and off automatically. |
SPECIFICATIONS
Capacity
| Cooling capacity (kW) | 12.0kW |
| Heating capacity (kW) | 12.0kW |
Consumption
| COP | 4.10 |
| EER | 3.40 |
Features
| Blue fin coils | • |
| Compressor type | Twin rotary |
| DC inverter | 180° sine wave |
| DRED (Demand Response) ready | • |
| Inverter controlled compressor | • |
| MEPS approved | • |
| Refrigerant factory charge | 2.5 |
Installation
| Liquid line | 5x 6.35 |
| Maximum number indoor units | 5 |
| Maximum pipe run | 100m |
| Suction line | 3x 9.52 + 2x 12.7 |
Performance
| Airflow | 4200m3/h |
| DC inverter | 180° sine wave |
| R32 Refrigerant | • |
| Sound power SWL (outdoor) | 73dBA |
| Sound pressure SPL (outdoor) | 58dBA |
| Working temperature cooling | -10°C to +46°C |
| Working temperature heating | -15°C to +24°C |
Power Requirements
| AMP draw | 15.5A |
| Power phase | Single |
| Supply frequency | 50Hz |
| Supply voltage | 220-240V |
Product dimensions
| Depth | 370 mm |
| Height | 965 mm |
| Net weight | 79kg mm |
| Width | 950 mm |
Warranty
| Parts and labour | 5 years |
| SKU | 51630 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? 2020 Haier Inc. All rights reserved.
