Multi-Head Outdoor, 5kW
White

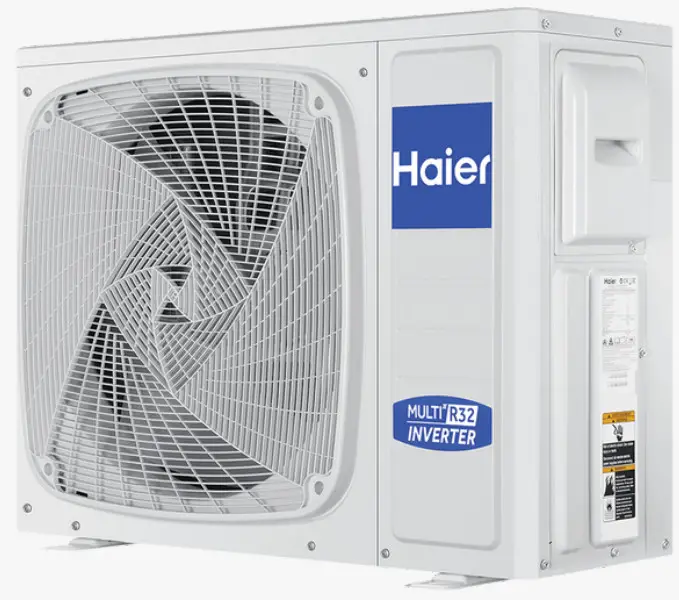

3U55S2PR1FA Multi-Head Outdoor
Part of our Super Match range, this outdoor unit can be paired with various indoor units for a complete multi-room air conditioning solution.
- Heating and cooling, with an operational range from -15°C to 46°C
- Outdoor unit connects to up to three indoor units
- High-efficiency DC fan motor
- Indoor unit options include cassette, slim ducted and high wall models
DIMENSIONS
| Height | 700 mm |
| Width | 890 mm |
| Depth | 340 mm |
FEATURES & BENEFITS
Flexible combinations
The Super Match range offers a wide range of possible indoor unit and outdoor unit combinations, for a customised air conditioning solution foryour space.
DC inverter technology
With 3D Direct Current (DC) inverter technology, Super Match air conditioning units are able to operate with a high level of energy efficiency, while delivering rapid heating and cooling as needed.
Anti-corrosion coating
The Blue Fin coating on the evaporator is hydrophilic for quick water drainage and resistance against corrosion.
R32 refrigerant
This Super Match outdoor unit uses a next-generation R32 refrigerant, which carries heat efficiently and has a lower Global Warming Potential than R410A.
Faster servicing
An easily accessible maintenance panel and service screen enable fastdiagnostics.
Central controller
With an optional central controller, you can easily control individual or connected units, and schedule air conditioning to turn on and off automatically.
SPECIFICATIONS
| Capacity | |
| Cooling capacity (kW) | 5.5kW |
| Heating capacity (kW) | 5.8kW |
| Consumption | |
| COP | 4.2 |
| EER | 3.99 |
| Features | |
| Blue fin coils | • |
| Compressor type | Twin rotary |
| DC inverter | 180° sine wave |
| DRED (Demand Response) ready | • |
| Inverter controlled compressor | • |
| MEPS approved | • |
| Refrigerant factory charge | 1.4 |
| Installation | |
| Liquid line | 3x 6.35mm |
| Maximum number indoor units | 3 |
| Maximum pipe run | 50m |
| Suction line | 3x 9.52mm |
| Performance | |
| Airflow | 3000m3/h |
| DC inverter | 180° sine wave |
| R32 Refrigerant | • |
| Sound power SWL (outdoor) | 64dBA |
| Sound pressure SPL (outdoor) | 51dBA |
| Working temperature cooling | -10°C to +46°C |
| Working temperature heating | -15°C to +24°C |
| AMP draw | 6.1A |
| Power phase | Single |
| Supply frequency | 50Hz |
| Supply voltage | 220-240V |
| Product dimensions | |
| Depth | 340 mm |
| Height | 700 mm |
| Net weight | 50kg mm |
| Width | 890 mm |
| Warranty | |
| Parts and labour | 5 years |
| SKU | 51626 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? 2020 Haier Inc. All rights reserved.
