Pentair Aw12h Air-over-water Tanks Instruction Manual

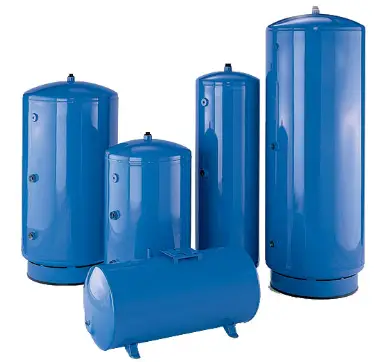

AW12H Air-Over-Water Tanks
Instruction Manual

Installation and operation Instructions
Air-Over-Water Tanks
Models AW12H, AW30H,
AW42, AW42T, AW85, AW120
Model Discontinued For Reference Only

AW12H Air-Over-Water Tanks

PRO-SOURCE

Rules For Safe Installation and Operation
WARNING To prevent possible serious or fatal injury and/or damage to equipment, system pressure must be less than 75 pounds per square inch (PSI) under any  circumstances. Failure to follow this in struct ion can result in tank blowup. Install relief valve in system be tween pump and tank capable of passing entire pump output at 75 PSI.

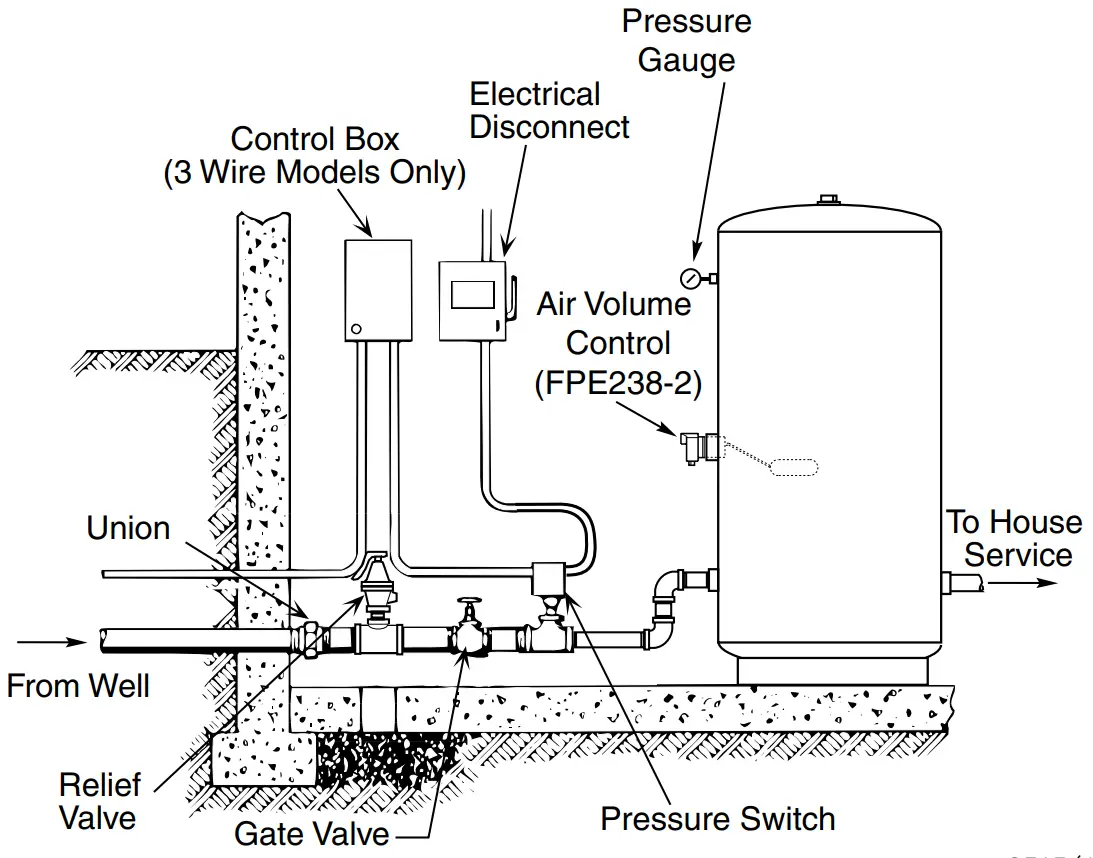

Typical Jet Pump Installation

WARNING Do not allow pump, tank or piping system to freeze. Freezing can severely damage equipment and may lead to tank explosion and serious injury.
Allowing tank to freeze voids warranty.

1. Follow local codes when installing tank.
2. Test well water for purity before using.
3. Disconnect power to pump and re lease all pressure in system be fore installing or servicing tank.
4. Drain all water from system before performing any maintenance on tank.

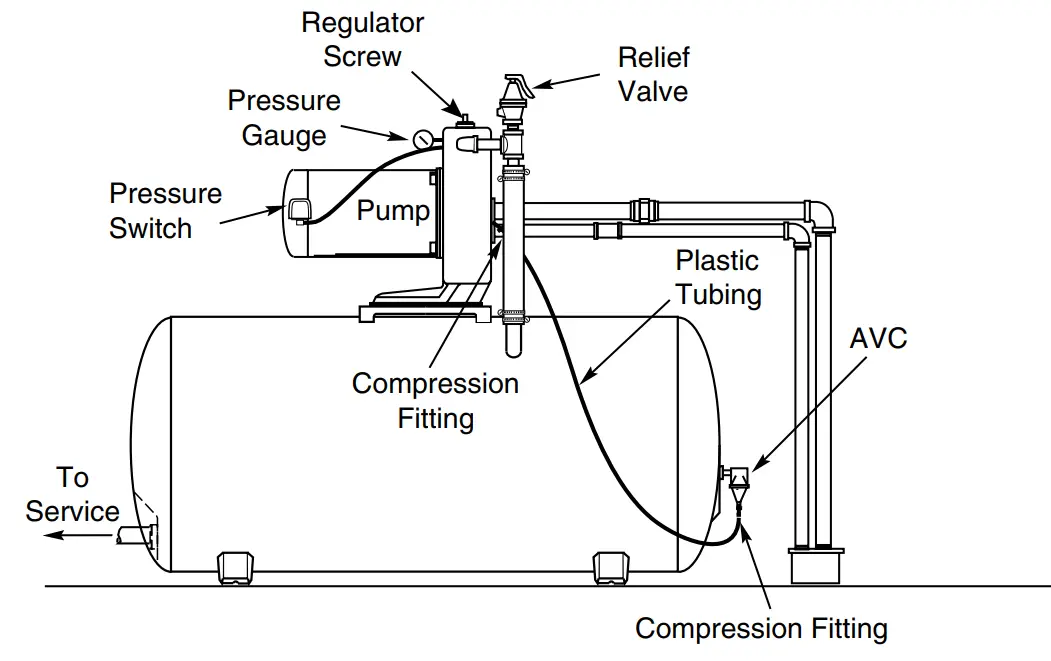

Typical Jet Installation with Horizontal Tank

Installation

1. Use PTFE pipe thread sealant tape on threaded pipe joints to tank. DO NOT use pipe joint compound on plastics, as it may damage the plastic.
2. Install air volume control according to instructions supplied with air volume control.

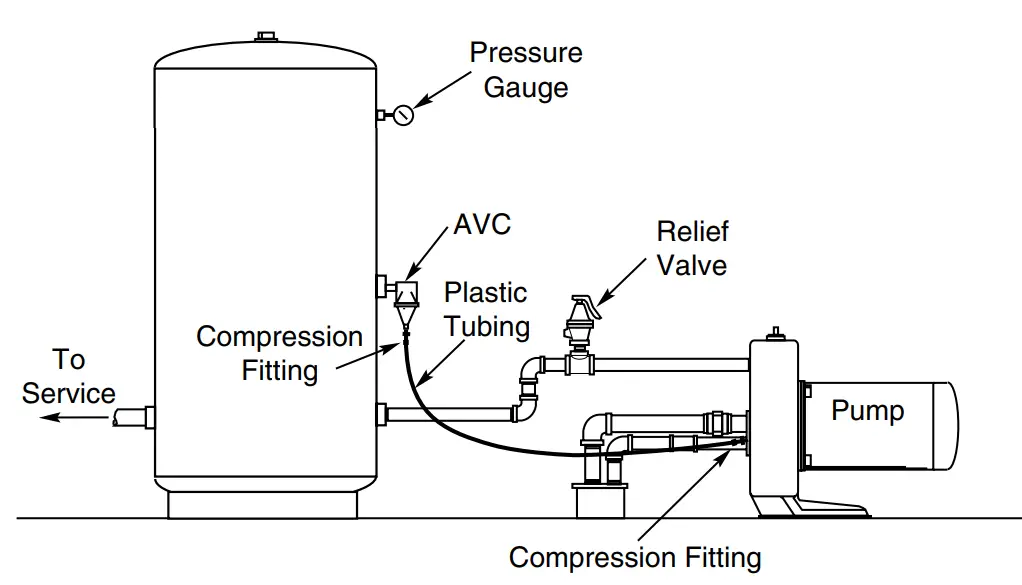

3. Connect inlet and outlet pipes as shown in illustration.
4. When installing tank in a system having a submersible well pump, be sure that orifices are installed and operating correctly. See Sub mar sable pump owner’s manual for  more information.

  Limited Warranty
PRO-SOURCE warrants to the original consumer purchaser (“Purchaser” or “You”) of the products listed below, that they will be free from defects in material and workmanship for the Warranty Period shown below.

Our warranty will not apply to any product that, in our sole judgement, has been subject to negligence, misapplication, improper installation, or improper maintenance. Without limiting the foregoing, operating a three phase motor with single phase power through a phase converter will void the warranty. Note also that three phase motors must be protected by three-leg, ambient compensated, extra-quick trip overload relays of the recommended size or the warranty is void.
Your only remedy, and PRO-SOURCE’s only duty, is that PRO-SOURCE repair or replace defective products (at PRO-SOURCE’s choice). You must pay all labor and shipping charges associated with this warranty and must request warranty service through the installing dealer as soon as a problem is discovered. No request for service will  be accepted if received after the Warranty Period has expired. This warranty is not transferable.
PRO-SOURCE SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL, INCIDENTAL, OR CONTINGENT DAMAGES WHATSOEVER.
THE FOREGOING WARRANTIES ARE EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS AND IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE FOREGOING WARRANTIES  SHALL NOT EXTEND BEYOND THE DURATION EXPRESSLY PROVIDED HEREIN.
Some states do not allow the exclusion or limitation of incidental or consequential damages or limitations on the duration of an implied warranty, so the above limitations or exclusions may not apply to You.
This warranty gives You specific legal rights and You may also have other rights which vary from state to state.
This Limited Warranty is effective June 1, 2011 and replaces all undated warranties and warranties dated before June 1, 2011.

293 WRIGHT STREET, DELAVAN, WI 53115 WWW.PUMPS.COM
PH: 888-782-7483
© 2012 Pentair, Inc. All Rights Reserved.
