RVDM-HI14C2W Mini DP to HDMI Adapter Cable
Instruction ManualMini DisplayPort > HDMI ACTIVE CABLE 4K@30Hz

Contents hide

1 RVDM-HI14C2W Mini DP to HDMI Adapter Cable

2 CABLE CONNECTION

3 TECHNICAL SPECIFICATIONS

4 RESOLUTIONS SUPPORTED

5 TECHNICAL SUPPORT

6 Documents / Resources

7 Related Posts

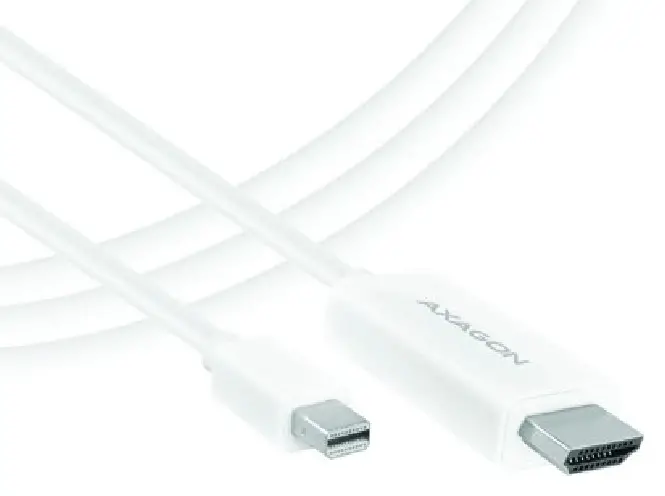

RVDM-HI14C2W Mini DP to HDMI Adapter Cable

Plug the adapter to computer Vini DP output.
Connect cable to TV/Monitor/Projector.
Turn on computer, the video adapter is ready to use.
No need to install any drivers.
Turn on the TV/Monitor/Projector and set the correct input if necessary.
Select display mode by pressing ” ” +„P” keys.
Note: Video adapter works only one-way – does not work bidirectionally.

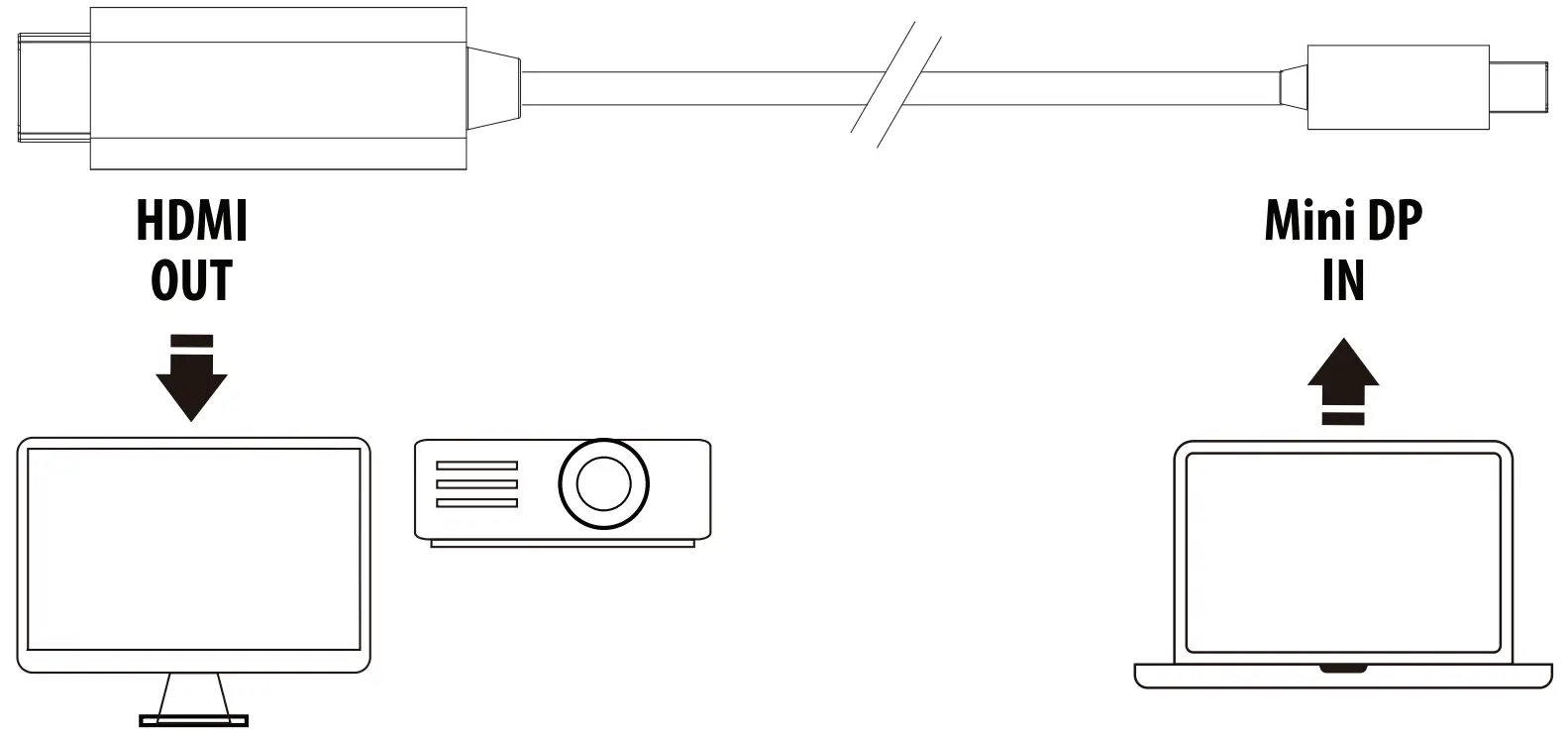

CABLE CONNECTION

TECHNICAL SPECIFICATIONS

INPUT INTERFACE
Mini DisplayPort v1.2
Mini DisplayPort (M) male connector
OUTPUT INTERFACE
HDMI
HDMI (M) male connector
SIZE NET WEIGHT
45 x 21 x 12 mm • 1.8 m cable length • 62 g
POWER SUPPLY
Powered via Mini DisplayPort bus
OTHER FEATURES
Audio pass-through
DDC (Display Data Channel)
HPD (Hot-Plug-Detect)
HDCP 1.4 & 2.2 (High Digital Content Protection)
Mirrored desktop
Extended desktop
OS SUPPORTED
All OS SUPPORTED – OS INDEPENDENT
NOTE: The resolution depends on the monitor/TV/projector and video card parameters.

RESOLUTIONS SUPPORTED

max. 4096 x 2160 (19:10) @30Hz DCI 4K
3840 x 2160 (16:9) @30Hz UHD-1 4K (UHDTV)
3840 x 1600 (21:9) UW 4K (Ultrawide 1600p)
3840 x 1200 (32:10) 29:9 4K (Super ultrawide 1200p)
3840 x 1080 (32:9)32:9 4K (Super ultrawide 1080p)
3440 x 1440 (21:9) UWQHD (Ultrawide 1440p)
2560 x 2048 (5:4) QSXGA
2560 x 1920 (4:3)
2560 x 1600 (16:10) WQXGA
2560 x 1440 (16:9) QHD
2560 x 1080 (21:9) UWFHD (Ultrawide 1080p)
2048 x 1536 (4:3) QXGA
2048 x 1152 (16:9) QWXGA
1920 x 1440 (4:3) 1920 x 1200 (16:10) WUXGA
1920 x 1080 (16:9) Full HD/1080p
1856 x 1392 (4:3)

1792 x 1344 (4:3)
1680 x 1050 (16:10) WSXGA+
1600 x 1200 (4:3)
UXGA 1600 x 900 (16:9) HD+
1536 x 864 (16:9) 1440 x 900 (16:10) WXGA+
1400 x 1050 (4:3) SXGA+
1366 x 768 (16:9) HD
1360 x 768 (16:9) HD
1280 x 1024 (5:4) SXGA
1280 x 960 (4:3) SXGA-
1280 x 800 (16:10) WXGA
1280 x 768 (5:3) WXGA
1280 x 720 (16:9) HD/WXGA/720p
1280 x 600 1152 x 864 (4:3) XGA+
1024 x 768 (4:3) XGA
800 x 600 (4:3) SVGA

TECHNICAL SUPPORT

More information, FAQs, manuals and drivers can be found on the product page in the PRODUCT SUPPORT tab at www.axagon.eu.
Nothing helped?
Write to our technical support: [email protected].
At the end of its service life, do not throw the product into household waste; take it to a collection point for electrical equipment recycling. For information about collection and recycling programmes in your country, contact your local authorities or the retailer who sold you the product.
EU declaration of conformity: The device complies with the harmonisation legislation of the European Union 2014/30/EU (EMC) and 2011/65/EU (RoHS). The complete EU declaration of conformity is available from the manufacturer.
Before using the product, the user is obliged to read the user instructions. The manufacturer disclaims any liability for damage that may occur due to improper use of the product or failure to follow the instructions contained herein. Product use other than specified must be consulted with the manufacturer.
Do not use the product in humid or explosive environments and near flammable substances.

PRODUCT SUPPORT LINKhttp://axagon.eu/produkty/rvdm-hi14c2w#supportLinkGoal

© 2021 AXAGON
Manufacturer:
RealQ s.r.o. – Zelezna 5, 619 00 Brno, Czech Republic
All rights reserved. All text and pictorial materials contained in this document are protected by Copyright Act.
All marks indicated here are the registered trademarks of their appropriate owners.
Specifications are subject to change without prior notice.
Made in CHINA for Axagon.
