Axagon Rvc-hi2 Usb-c Hdmi Adapter Instructions

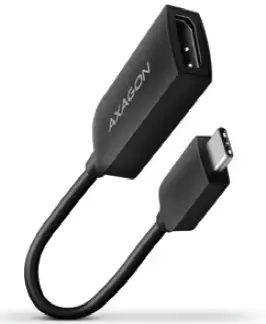

AXAGON RVC-HI2 USB-C HDMI Adapter

Instructions for use

• Plug the adapter to computer USB-C output.
• Connect cable to TV / Monitor / Projector.
• Turn on computer, the video adapter is ready to use.
• No need to install any drivers.
• Turn on the TV / Monitor / Projector and set the correct input if necessary.
• Select display mode by pressing „“+ „P“ keys.

Note: Video adapter works only one-way – does not work bi-directionally.

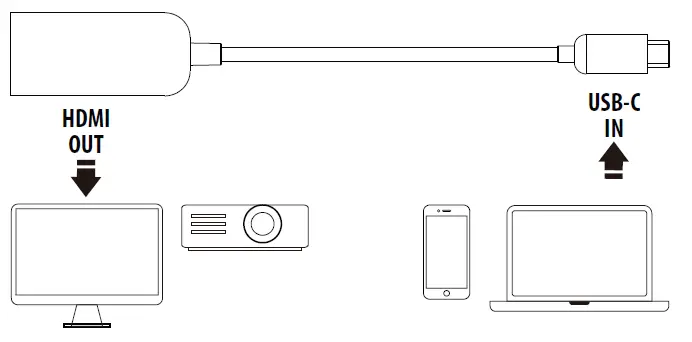

ADAPTER CONNECTION

A USB-C port with DisplayPort Alternate Mode (DP Alt Mode) or a Thunderbolt 3 port required for correct adapter operation.

TECHNICAL SPECIFICATIONS

• INPUT INTERFACE
  USB-C
  USB type C (M) male connector
• OUTPUT INTERFACE
  HDMI
  HDMI (F) female connector
  NOTE The resolution depends on the monitor / TV / projector and video card parameters.
• SIZE NET WEIGHT
  44 x 22 x 11mm · 16 cm cable lenght · 15g
• OTHER FEATURES
  HDCP 2.2 · HOT PLUG · 8-ch sound up to 96kHz/24-bit
  Mirrored desktop · Extended desktop
• POWER SUPPLY
  Powered via USB-C
• OS SUPPORTED
  Windows 10 · Mac OS · Android
  Chrome OS (updated)
  Compability depends on used Operating System and support from device manufacturer

RESOLUTIONS SUPPORTED

• max. 4096 x 2160 (19:10) @60Hz DCI 4K
• 3840 x 2160 (16:9) @60Hz UHD-1 4K (UHDTV)
• 3840 x 1600 (21:9) UW 4K (Ultrawide 1600p)
• 3840 x 1200 (32:10) 29:9 4K (Super ultrawide 1200p)
• 3840 x 1080 (32:9) 32:9 4K (Super ultrawide 1080p)
• 3440 x 1440 (21:9) UWQHD (Ultrawide 1440p)
• 2560 x 2048 (5:4) QSXGA
• 2560 x 1920 (4:3)
• 2560 x 1600 (16:10) WQXGA
• 2560 x 1440 (16:9) QHD
• 2560 x 1080 (21:9) UWFHD (Ultrawide 1080p)
• 2048 x 1536 (4:3) QXGA
• 2048 x 1152 (16:9) QWXGA
• 1920 x 1440 (4:3)
• 1920 x 1200 (16:10) WUXGA
• 1920 x 1080 (16:9) Full HD/1080p
• 1856 x 1392 (4:3)
• 1792 x 1344 (4:3)
• 1680 x 1050 (16:10) WSXGA+
• 1600 x 1200 (4:3) UXGA
• 1600 x 900 (16:9) HD+
• 1536 x 864 (16:9)
• 1440 x 900 (16:10) WXGA+
• 1400 x 1050 (4:3) SXGA+
• 1366 x 768 (16:9) HD
• 1360 x 768 (16:9) HD
• 1280 x 1024 (5:4) SXGA
• 1280 x 960 (4:3) SXGA-
• 1280 x 800 (16:10) WXGA
• 1280 x 768 (5:3) WXGA
• 1280 x 720 (16:9) HD/WXGA/720p
• 1280 x 600
• 1152 x 864 (4:3) XGA+
• 1024 x 768 (4:3) XGA
• 800 x 600 (4:3) SVGA

TECHNICAL SUPPORT: More information, FAQs, manuals and drivers can be found on the product page in the PRODUCT SUPPORT tab at www.axagon.eu.

Nothing helped? Write to our technical support: [email protected].
At the end of its service life, do not throw the product into household waste; take it to a collection point for electrical equipment recycling. For information about collection and recycling programmes in your country, contact your local authorities or the retailer who sold you the product.

EU declaration of conformity: The device complies with the harmonisation legislation of the European Union 2014/30/EU (EMC) and 2011/65/EU (RoHS).
The complete EU declaration of conformity is available from the manufacturer.

Before using the product, the user is obliged to read the user instructions. The manufacturer disclaims any liability for damage that may occur due to improper use of the product or failure to follow the instructions contained herein. Product use other than specified must be consulted with the manufacturer.
Do not use the product in humid or explosive environments and near flammable substances.
