Jlab Gebjbairplayrblk82 Air Play Gaming Earbuds Instruction Manual (+ PDF)

AUTO-CONNECTING EARBUDS

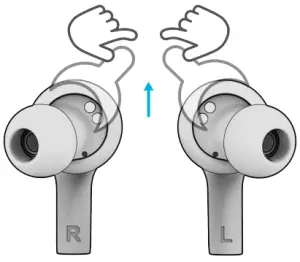

1. Take earbuds out of the charging case and remove stickers.
  Remove stickers

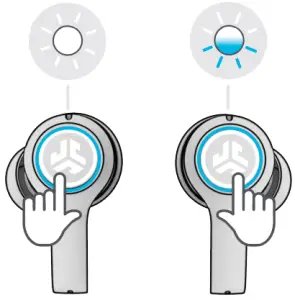

2. Press and hold both touch sensors 3+ seconds to turn ON.

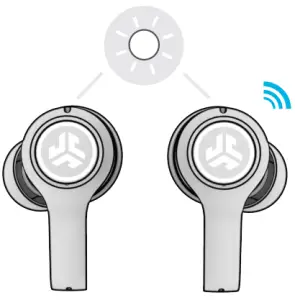

  One earbud turns solid white and the other earbud blinks blue/white indicating ready to pair to your device.
  Press and hold 3+ seconds
CONNECTING TO BLUETOOTH

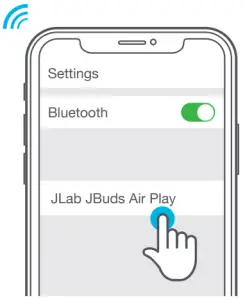

Select “JLab JBuds Air Play” in your device settings. Voice prompt “Bluetooth connected” followed by solid white lights will indicate you are connected.

ADDING NEW / ADDITIONAL BLUETOOTH DEVICES:

Turn OFF Bluetooth from any previously connected device. Turn ON Bluetooth from new device. Take earbuds out of the case. Earbuds will automatically enter Bluetooth Pairing. Select “JLab JBuds Air Play” in device settings to connect.

IN THE BOX

EARBUDS

CHARGING CASE

EARTIPS

S
M
L
Cloud Foam

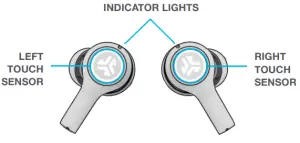

BUTTON FUNCTIONS

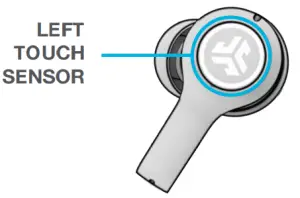

LEFT TOUCH SENSOR
- VOLUME DOWN: Single tap
- SIRI (iOS) or “OK GOOGLE”
- (ANDROID): Double tap
- SWITCH MUSIC / GAMING MODE: Press & hold 1+ sec
- EQ CHANGE: Triple tap (Cycles through 3 EQ settings)
- POWER ON: Press & hold 3+ sec

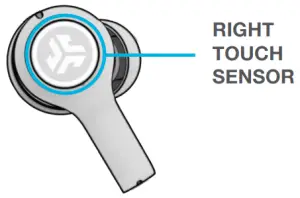

RIGHT TOUCH SENSOR
- VOLUME UP: Single tap
- PLAY / PAUSE: Double tap
- TRACK FORWARD: Press & hold 1+ sec
- ANSWER: Single tap
- HANGUP: Double tap
- REJECT INCOMING CALLS: Press & hold 1+ sec
- BE AWARE MODE ON / OFF: Triple tap
- POWER ON: Press & hold 3+ sec

VOICE PROMPTS

“Hello”: Power ON
“Earbuds joined”: Earbuds paired to each other
“Ready to Pair”: JBuds Air Play are ready to pair to Bluetooth device
“Bluetooth Connected”: Earbud is connected to device
“Battery Full”: 100-75%
“Battery Medium”: 75-25%
“Low Battery”: Less than 25% When power decreases to 10%, “Low Battery” will play
“Goodbye”: Power OFF

TURN OFF EARBUDS WITHOUT CHARGING CASE:

Enter your Bluetooth device settings and disconnect the JBuds Air Play. Earbuds will power OFF after 3 minutes.

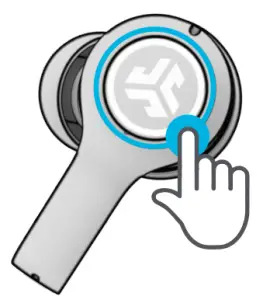

EQUALIZER MODES

Triple tap left earbud for different EQ settings. Voice prompts will indicate EQ settings (JBuds Air Play will cycle 3 EQ settings)

JLab SIGNATURE
JLab C3™ signature sound with amplified bass and vocals
BALANCED
Even sound with no additional enhancements
BASS BOOST
Amplified bass and sub-bass

CHARGING EARBUDS

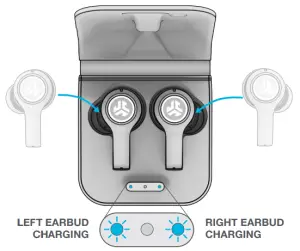

Placing the earbuds in the charging case will power OFF earbuds and start charging. Blue lights indicate earbuds are charging and will turn off when fully charged.
When earbuds are taken out of the case, they will auto power ON and reconnect to your device.

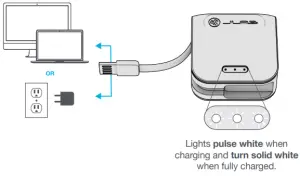

CHARGING CASE

Connect the JBuds Air Play to computer or USB 5V 1A (or less) output device.

FITTING

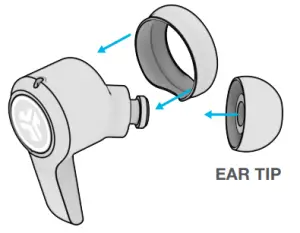

Try the optional Cush Fins and all ear tips for best fit and proper seal.

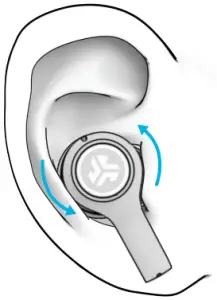

Place the earbud in the ear canal and slightly rotate to adjust for best fit.

TROUBLESHOOTING

CONNECTION FAILURE OR EARBUDS DISCONNECTED FROM EACH OTHER (MANUAL RESET)

Enter your Bluetooth device settings and forget the JBuds Air Play. Fig(A)
Open the charging case door and leave both earbuds inside. Starting with ONE earbud, quickly tap the touch sensor 7x times. Light will blink blue 4x times then turn solid blue. Leave the earbuds in the charging case. Fig(C1)
Repeat with other earbud. Quickly tap the touch sensor 7x times. Light will blink blue 4x times then turn solid blue. Fig(C2)
Take both earbuds out of the charging case and keep them within 2 inches from each other. Wait for one earbud to turn solid white and another to blink blue/white. You are now ready to pair to your Bluetooth device.

BLUETOOTH DEVICE DOES NOT CONNECT/RECONNECT

Enter your Bluetooth device settings and forget the JBuds Air Play. Fig(A)
Turn OFF then ON Bluetooth. Fig(B)
Take the earbuds out of the case. Wait for one to turn solid white and another to blink blue/white.
Select “JLab JBuds Air Play” in device settings to reconnect.

Instructional videos at: JLABAUDIO.COM/MANUALS

QUICK TIPS

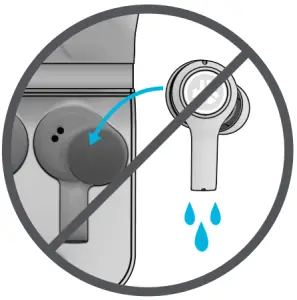

Fully dry off the earbuds before putting in the charging case.
The left or right earbud can be used independently for music and phone calls. Simply choose one and take out of the case to connect.
Choosing the correct ear tip makes a significant improvement in audio quality due to the proper seal for the driver. Test all ear tips for best results.
Only ONE Bluetooth device can be connected at a time. Turn off Bluetooth on unwanted devices and turn on Bluetooth on chosen device to connect.

WARNING

Fully dry off the earbuds before placing in the charging case.

If the earbuds are damp or wet, this will cause damage to the charging case. The warranty will be voided if the charging case shows damage by water/sweat.

CAUTIONS

Avoid extreme heat, cold, and humidity.
Avoid dropping or crushing the earbuds.
Wax may build up in the earbud tips, lowering the sound quality. Carefully remove the wax with a cotton swab or other small tool to improve the sound quality.
If you experience discomfort or pain, try lowering the volume or discontinuing use temporarily.
If you experience regular discomfort while using this product, discontinue use and consult your physician.
We recommend you treat your earbuds as you would a nice pair of sunglasses and keep them in safe location when not in use.
