EJEAS EUC01 Motorcycle Handlebar Remote Controller User Manual

EJEAS Universal Controller is a low-consumption Bluetooth remote control. It allows to keep fasten on the handlebar of your motorcycle or bicycle for controlling our brand Bluetooth intercom product. The button functions are defined by the connected host.

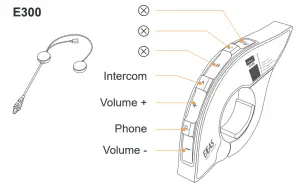

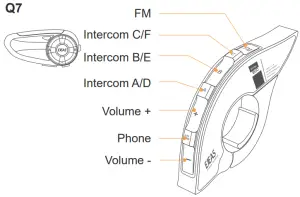

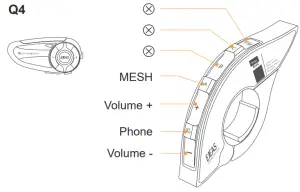

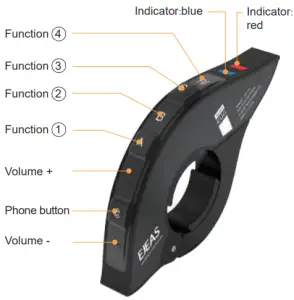

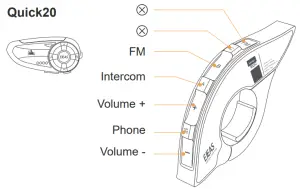

PRODUCT OVERVIEW

Instruction details

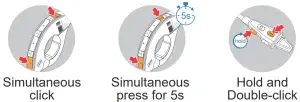

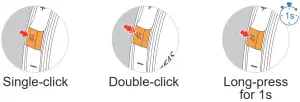

Basic operating diagram

Pairing

Connection

If no operations for 1 min, the connection is disconnected, click any button to reconnect. The same is restart the machine
Blue light slow-flicker (once per second)

Clear Pairing Memory

Red & Blue lights consistently on

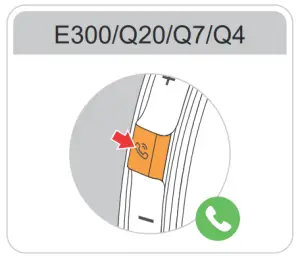

Phone answering

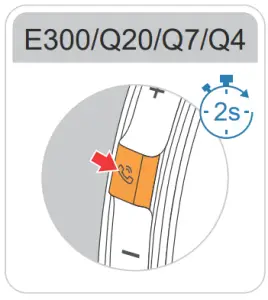

Reject call

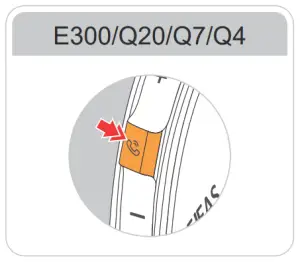

Last number redial

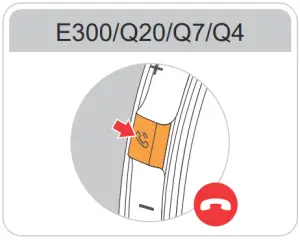

Hang up

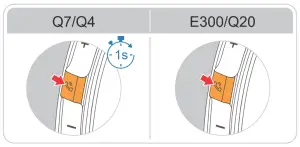

Voice Assistant

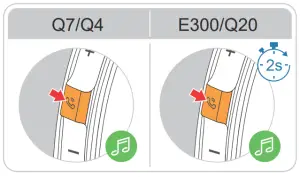

Music play / pause

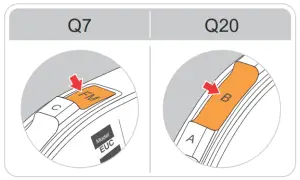

Turn on / off FM

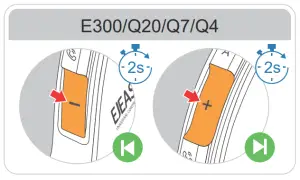

Previous / next track

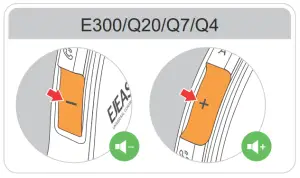

Volume control

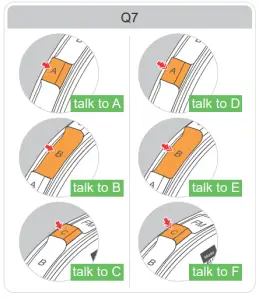

Intercom switching

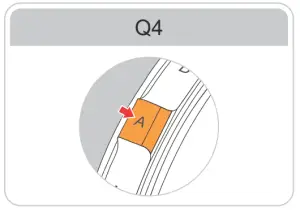

MESH connecting

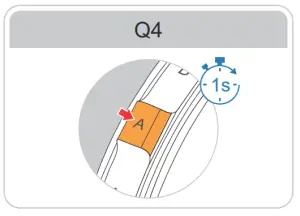

Exit MESH network

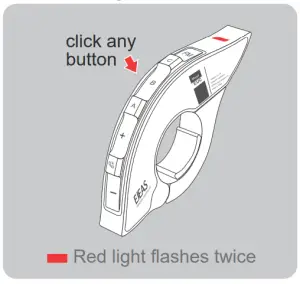

Low Battery

Voltage is under 3.2v

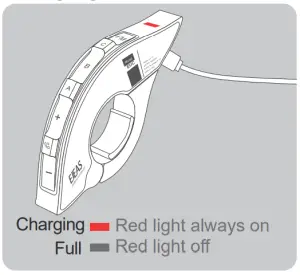

Charging

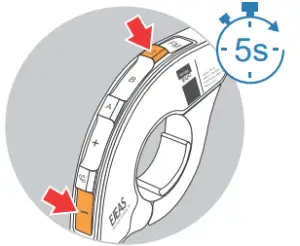

Test Mode

1. Red light gradient flickers

2. Press Blue light on
   Without Press Blue light goes off

3. Check the button: Press each button one by one & check whether these is any useless button.

4. OR: It will automatically exit the test mode when  there is no operation within 1min
   Exit the test mode


Performance parameters

• Device name: EUC
• Bluetooth version: 4.1
• Frequency range: 2402MHz ~ 2480MHz
• Battery capacity: 80mAh
• Battery type: Rechargeable polymer li-battery
• Charging time: About 1.5 hours
