Safety Instruction

• The  LED strip is only suitable for installation in dry indoor rooms.
• Risk of electric shock!
  Be sure to have a professional electrician complete in stallation. There is no warranty coverage for any lights installed without observing european safety directives.
• Caution!

  • Only connect the LED strip to a suitable power supply (24 V DC).
  • Only operate when completely unrolled. Connect LED strips in parallel.

SCOPE OF DELIVERY

• 1 x 5 metre    LED strip

TECHNICAL DATA

Power supply	24 V power supply with constant output voltage
Power	75 W
Current strength	3.125 A
Beam angle	120°
Quantity LED	2560
Length	maximum 5 metres per connection
Dimensions	5000 x 10 x 2.9 mm
Bending diameter	64 mm
	Compliant with the applicable european CE directives
	Safety class 3 – low voltage protection
	Profile necessary The LED strip needs an  additional cooling element and sufficing air ventilation.
	Suitable for indoor use only

Please refer to the respective article on www.ruteclightdesign.com! for complete technical data!

INSTALLATION

Risk of electric shock!
Switch off voltage prior to installation. Ensure that voltage cannot be accidentally switched on again.

First connect the LED strip to a controller and then to the power supply (not included in the scope of delivery).

Caution!
On conducting surfaces, place an insulation layer between the LED strip and surface. Surfaces must be flat, free of dust, grease and dry.

1. Prepare surface.
2. Shorten LED strip if necessary (Fig. 1).
3. Peel off adhesive film and gently press on LED strip, do not press directly on the LEDs.
4. Connect LED strip to power supply.

SHORTENING THE LED STRIP

Risk of electric shock!
Always disconnect the mains plug before shortening.

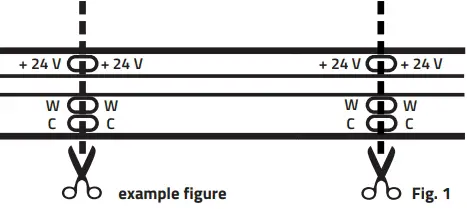

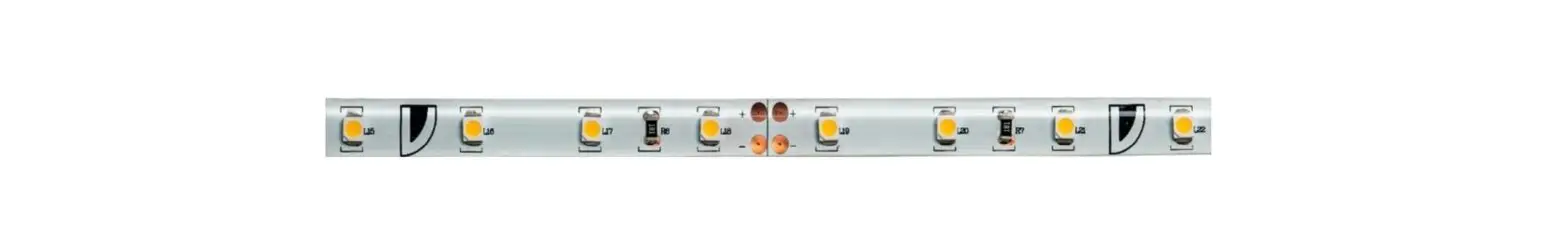

LED strip can be separated in each case after 64 LEDs (83.33 mm) (Fig. 1).

Separate the LED strip at the marked position. For a tightly assembled LED strip is a micro side cutter or an optional cutter required.

Caution!
With soldered connections note that the soldering temperature is 260° C and the soldering duration a maximum of 10 seconds per soldering point.

DISPOSAL

Dispose of electrical and electronic equipment in an environmentally friendly manner. Please contact your local council for further information.
