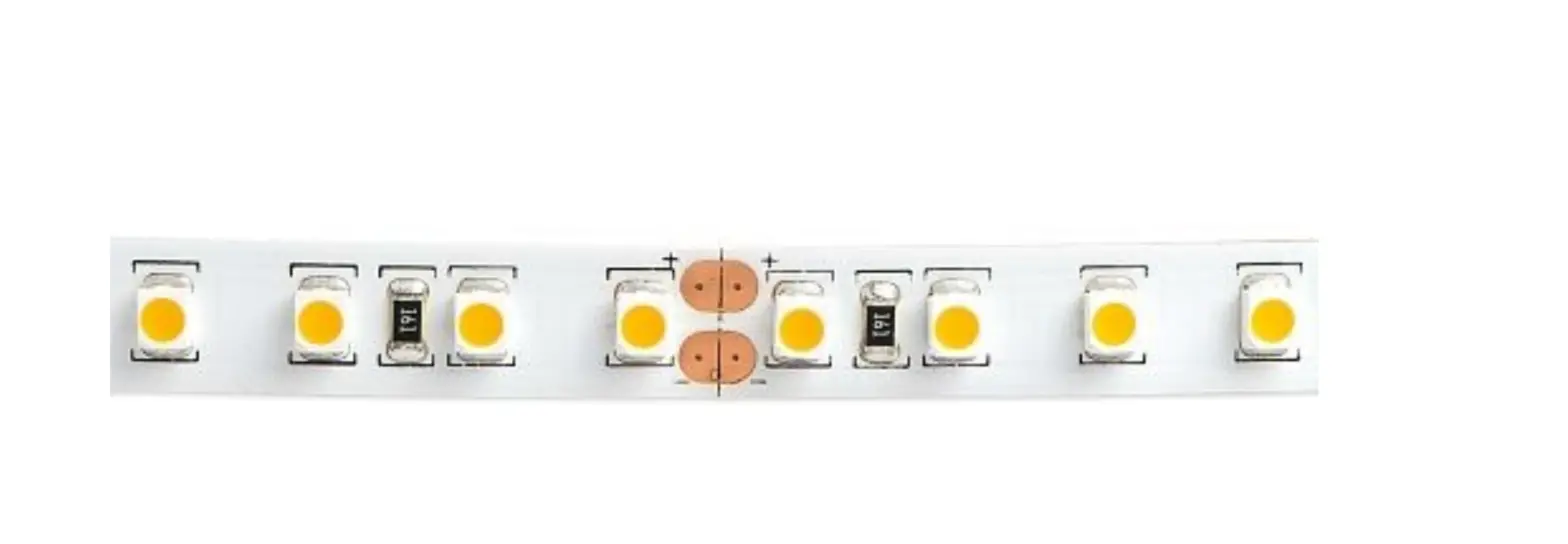

rutec Flexible LED-Strip 24V innen 3000K
Installation
Risk of electric shock!
On conducting surfaces, place an insulation layer between the
LED strip and surface. Surfaces must be flat, free of dust, grease and dry.
Caution!
On conducting surfaces, place an insulation layer between the LED strip and surface. Surfaces must be flat, free of dust, grease and dry.
- Prepare surface.
- Shorten
LED strip if necessary (Fig. 1). - Peel off adhesive film and gently press on LED strip, do not press directly on the LEDs.
- Connect LED strip to power supply.

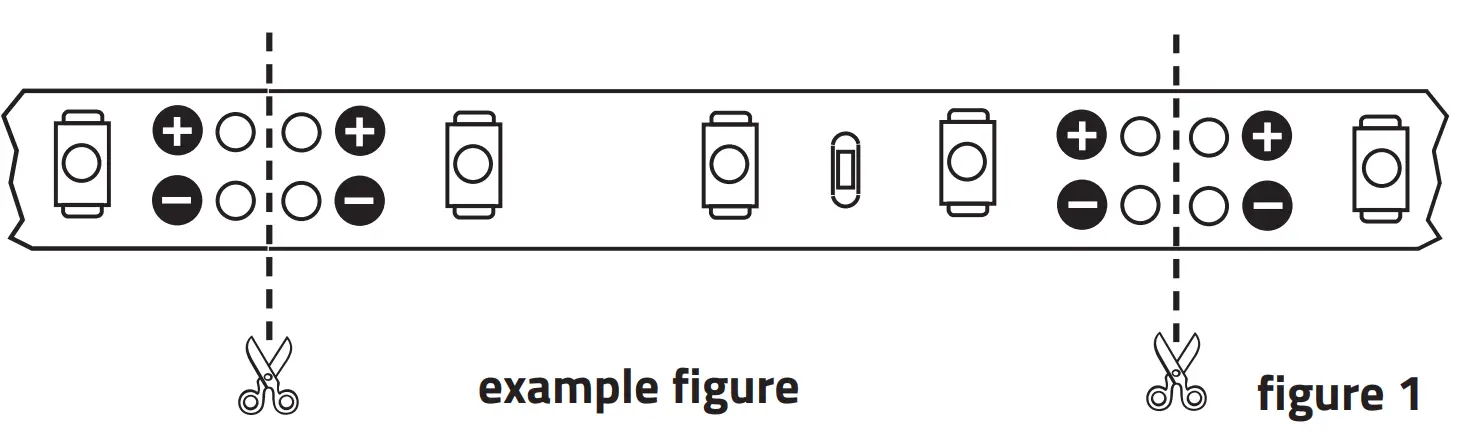

Shortening the LED strip
Risk of electric shock!

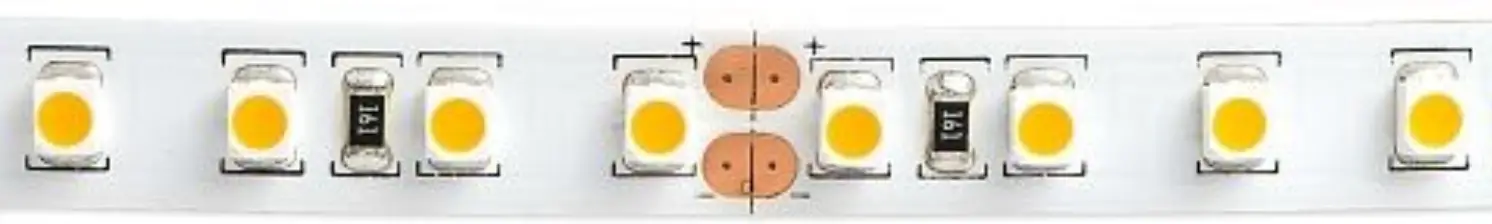

Always disconnect the mains plug before shortening. LED strip can be separated in each case after nine LEDs (100 mm) (Fig. 1).
Separate the LED strip at the marked position. For a tightly assembled LED strip is a micro side cutter or an optional cutter required.
Caution!
With soldered connections note that the soldering tem perature is 260° C and the soldering duration a maximum of 10 seconds per soldering point
Only use neutral cross-linked silicon (never use silicon which includes vinegar!).
Disposal
Dispose of electrical and electronic equipment in an environmentally friendly manner. Please contact your local council for further information.
The LED strip is only suitable for installation in dry indoor rooms.
Risk of electric shock!
Be sure to have a professional electrician complete in stellation.
There is no warranty coverage for any lights installed without observing European safety directives. Caution!
Only connect the LED strip to a suitable power supply (24 V DC).
Only operate when completely unrolled.
Connect LED strips in parallel.
Scope of delivery
1 x 5 metre LED strip
Technical data
| Power supply | 24 V power supply with constant output voltage |
| Power | 22 W |
| Current strength | 916 A |
| Beam angle | 120° |
| Quantity LED | 450 |
| Length | maximum 5 metres per connection |
| Dimensions | 5000 x 10 x 1,4 mm |
| Bending diameter | 60 mm |
| Compliant with the applicable european CE directives |
 | Safety class 3 – low voltage protection |
 | Suitable for indoor use only |
Please refer to the respective article on www.rutec.de for complete technical data!
