HBTD8200VFC-F Bluetooth Voltage Free Contact Switch
Product Information
The HBTD8200VFC/F Bluetooth Voltage-free Contact Switch is a compact device designed to fit into a junction box or electrical box to control on/off switching for a variety of free voltage loads. It features NO and NC Relay suitable for various alarm systems or BMS signal access. The switch has a quick setup mode & advanced setup mode, a floorplan feature to simplify project planning, and is compatible with EnOcean BLE switches. It also hasa 5-year warranty and can be remotely controlled via gateway support HBGW01.
Hardware Features
- VFC/F: Volt-free Contact/Dry Contact ON/OFF relay switch: – 24VDC@2A,[email protected] – 250VAC@4A
- Freely select NO or NC contact
- One-key device replacement
- Compact design with two screw holes to be built inside luminaires
- Remote control via gateway support HBGW01
- Grouping luminaires via mesh network
- Scenes Push switch configuration Schedule
- Astro timer (sunrise and sunset) Power-on status (memory against power loss)
- 1 Push input for flexible manual control
- Zero-crossing detection circuit to reduce in-rush current and prolong relay lifetime
- Short-circuit protection Overload protection
- Offline commissioning Bulk commissioning (copy and paste settings)
- Different permission levels via authority management
- Device firmware update over-the-air (OTA)
App Features
- Simple device setup and commissioning can be done via app
- Hardware features include quick setup mode & advanced setup mode, floorplan feature to simplify project planning, and compatibility with EnOcean BLE switches
- Network sharing via QR code or keycode
- Interoperability with Hytronik Bluetooth product portfolio
- Smartphone app for both iOS & Android platform
- Internet-of-Things (IoT) featured
- Koolmesh Pro app on iPad for on-site configuration
- Fully support EnOcean self-powered switch module PTM215B (HBES01/W & HBES01/B)
Technical Specifications
- Bluetooth Transceiver Operation frequency: 2.4 GHz – 2.483 GHz
- Transmission power: 4 dBm
- Range (Typical indoor): 10~30m
- Operating voltage: 220~240VAC 50/60Hz
- Stand-by power Load ratings: Not specified
Product Usage Instructions
The HBTD8200VFC/F Bluetooth Voltage-free Contact Switch is designed to fit into a junction box or electrical box to control on/off switching for a variety of free voltage loads. To use the switch, follow these instructions:
- Install the switch into the junction box or electrical box according to the manufacturer’s instructions.
- Select the appropriate NO or NC contact for your application.
- Connect the switch to the power source (220~240VAC 50/60Hz).
- Open the Koolmesh Pro app on your iPad for on-site configuration or the smartphone app for both iOS & Android
platform for remote control. - Follow the instructions in the app to configure the switch and set up scenes, schedules, and other features as desired.
- The switch can be remotely controlled via gateway support HBGW01 and grouped with other luminaires via mesh network.
Note: For more detailed instructions on setup and commissioning, refer to the product manual or visit www.iot.koolmesh.com
Product Description
HBTD8200VFC/F is designed to fit into a junction box or electrical box to make Push switch (retractive switch) to achieve on/off control. HBTD8200VFC/F can choose from a variety of free voltage loads. It has NO and NC Relay suitable for various alarm systems or BMS signal access. Whether used for new build or retro-fit projects to add intelligent control to standard lighting xtures, HBTD8200VFC/F does it all. Simple device setup and commissioning can be done via app.
App Features
Quick setup mode & advanced setup mode
Web app/platform for project deployment & data analysis

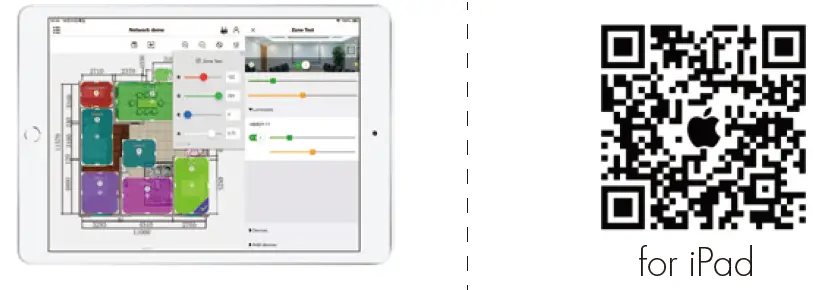

Koolmesh Pro app on iPad for on-site configuration
Floorplan feature to simplify project planning
One-key device replacement
Device social relations check
Remote control via gateway support HBGW01
Grouping luminaires via mesh network
Scenes
Push switch conguration
Schedule
Astro timer (sunrise and sunset)
Power-on status (memory against power loss)
Offline commissioning
Bulk commissioning (copy and paste settings)
Different permission levels via authority management
Network sharing via QR code or keycode
Interoperability with Hytronik Bluetooth product portfolio
Compatible with EnOcean BLE switches
Compatible with EnOcean BLE switches
Device firmware update over-the-air (OTA)
Continuous development in progress…
Continuous development in progress…
VFC/F: Volt-free Contact/Dry Contact ON/OFF relay switch:
- 24VDC@2A,[email protected]
- 250VAC@4A
Freely select NO or NC contact
Compact design with two screw holes to be built inside luminaires
1 Push input for Flexible manual control
Zero crossing detection circuit to reduce in-rush current and prolong relay lifetime
Short-circuit protection
Overload protection
5-year warranty
BLUETOOTH 5.0 SIG mesh
Smartphone app for both iOS & Android platform
Koolmesh Pro app for iPad
Web app/platform: www.iot.koolmesh.com
EnOcean
Self- Powered Iot

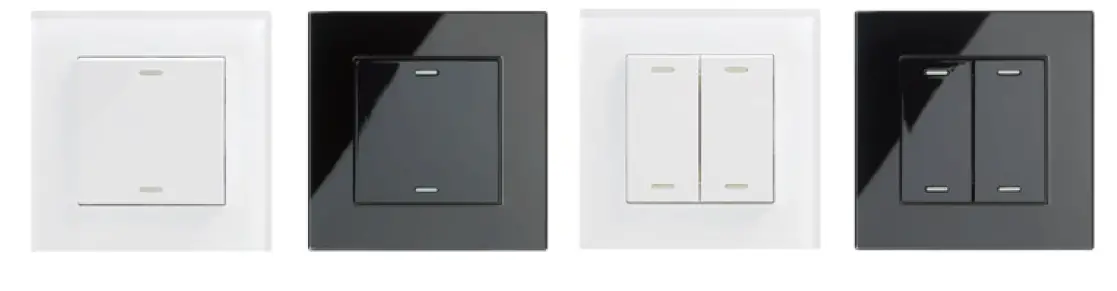

Fully support EnOcean self-powered switch module PTM215B (HBES01/W & HBES01/B)
Technical Specifications
| Bluetooth Transceiver | |
| Operation frequency | 2.4 GHz – 2.483 GHz |
| Transmission power | 4 dBm |
| Range (Typical indoor) | 10~30m |
| Protocol | BLUETOOTH SIG Mesh |
| Environment | |
| Operation temperature | Ta: -20°C ~ +45°C |
| Case temperature (Max.) | Tc: +75°C |
| Storage temperature | -40°C ~ 70°C |
| Relative humidity | 10 ~ 90% |
| IP rating | IP20 |
| Insulation | Class II |
| Input & Output Characteristics | |
| Operating voltage | 220~240VAC 50/60Hz |
| Stand-by power | <0.5W |
| Load ratings | 24VDC@2A,[email protected] 250VAC@4A |
| Safety & EMC | |
| EMC standard (EMC) | EN55015, EN61547,EN62479, EN61000 |
| Safety standard (LVD) | IEC/EN 61058, AS/NZS 61058 |
| Radio Equipment (RED) | EN300 328, EN301489-1/-17, EN62479 |
| Certifcation | Semko, CB, CE , EMC, RED, RCM,UKCA |

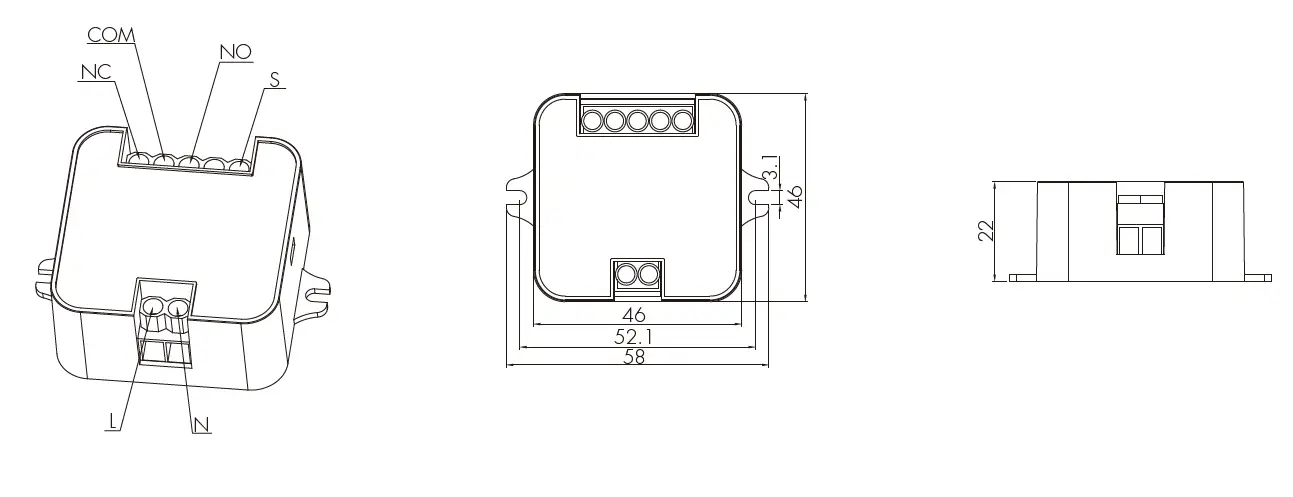

Mechanical Structure & Dimensions

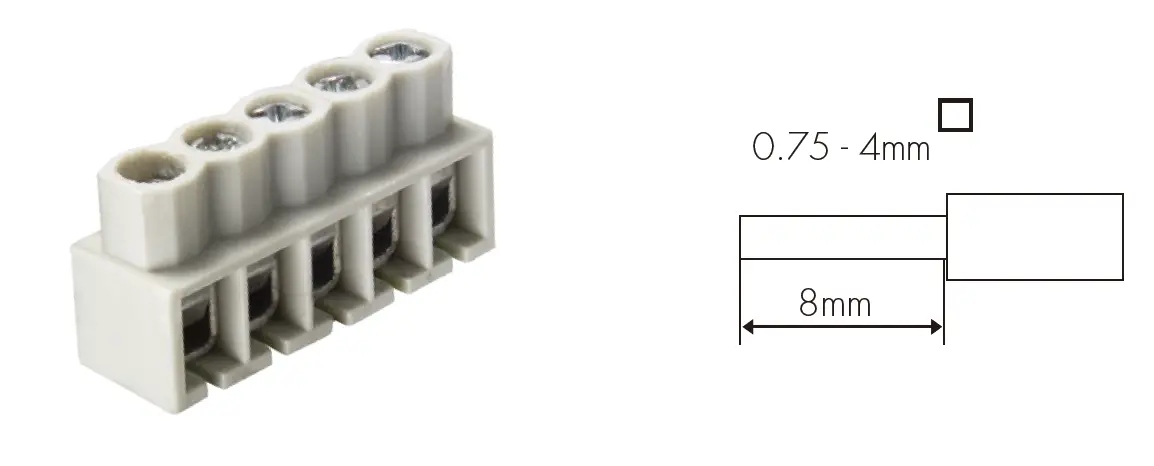

Wire Preparation
To make or release the wire from the terminal, use a screwdriver to push down the button.

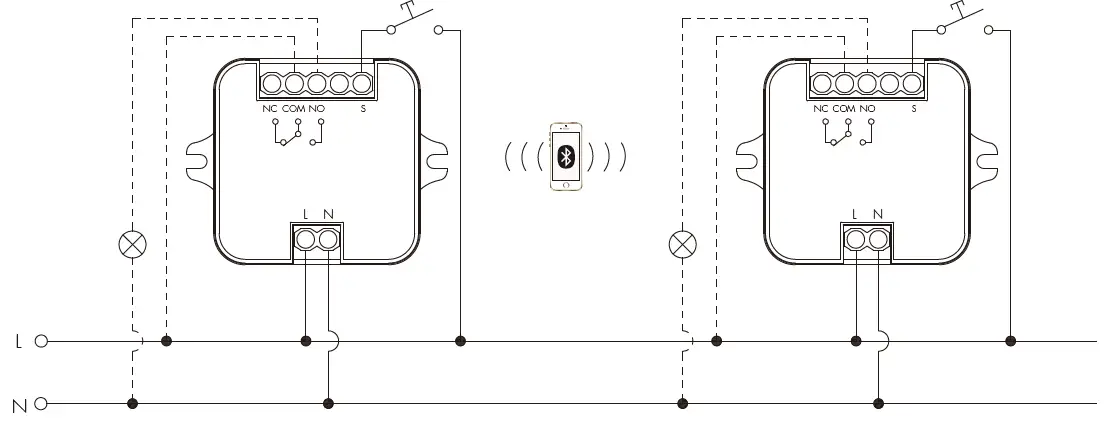

Wiring Diagram
Original status (stand-by)
Dimming Interface Operation Notes
Switch-Dim
The provided Switch-Dim interface allows for a simple dimming method using commercially available non-latching (momentary) wall switches. Detailed Push switch configurations can be set on Koolmesh app.
| Switch Function | Action | Descriptions | ||
| Push switch | Short press (<1 second) * Short press has to be longer than 0.1s, or it will be invalid. |
|
| |
| Double push |
|
| ||
| Long press (≥1 second) |
| |||
| Sensor-link | / |
| ||
| Emergency Self-Test Function | Short press (<1 second) * Short press has to be longer than 0.1s, or it will be invalid. |
|
| |
| Long press (≥1 second) |
|
| ||
| Fire Alarm (VFC signal only) | Refer to | App User Manual V2.1 |
| |
Additional Information / Documents
- To learn more about detailed product features/functions, please refer to www.hytronik.com/download->knowledge ->Introduction of App Scenes and Product Functions
- Regarding precautions for Bluetooth product installation and operation, please kindly refer to www.hytronik.com/download ->knowledge ->Bluetooth Products – Precautions for Product Installation and Operation
- Data sheet is subject to change without notice. Please always refer to the most recent release on www.hytronik.com/products/bluetoothtechnology ->Bluetooth Dimmers
- Regarding Hytronik standard guarantee policy, please refer to www.hytronik.com/download ->knowledge ->Hytronik Standard Guarantee Policy
