Installation and Instruction Manual
Bluetooth Switch – ON/OFF Control
HBTD8200S/F
Technical Specifications
| Product type |  Switch (Flush mount) |
| Mains voltage | 400VA(Capacitive); 800W(Resistive) |
| Rated load | 220~240VAC 50Hz |
| Stand-by power | <0.5W |
| Operation frequency | 2.4 GHz – 2.483 GHz |
| Transmission power | 4 dBm |
| Range (Typical) | 10 ~ 30m |
| Protocol | 5.0 SIG Mesh |
| Operation temperature | Ta: -20°C ~ +45°C |
| Case temperature (Max.) | Tc: +75°C |
| Storage temperature | -20°C ~ +60°C |
| Max. relative humidity | 20 ~ 90% |
| IP rating | IP20 |
| Impulse withstand voltage | 2.5KV |
| Duty type | PTI material group IIIa |
| Insulation material | S1 |
| Glow wire | level 3, 850°C |
| Protection | Built-in protection provide |
| Type of switch | Single load(single-pole disconnection) |
| Insulation | Class II Pollution degree 2 |
| EMC standard (EMC) | EN55015, EN61547, EN61000-3-2, EN61000-3-3 |
| Safety standard (LVD) | IEC 61058-1, EN 61058-1, IEC 61058-1-2 EN 61058-1-2, AS/NZS 61058.1 |
| Radio Equipment (RED) | EN300 328, EN301489-1, EN301489-17, EN62479 |

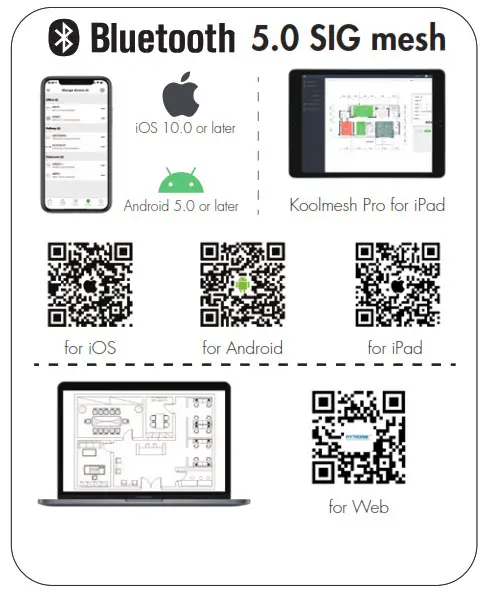

Download the App
Free App for set-up and commissioning
https://apps.apple.com/cn/app/koolmesh/id1570378349
https://apps.apple.com/cn/app/koolmesh/id1483721878
https://play.google.com/store/apps/details?id=com.koolmesh.sig
www.hytronik.com
Web app/platform: iot.koolmesh.com
Dimming Interface Operation Notes
Switch-Dim
The provided Switch-Dim interface allows for a simple dimming method using commercially available non-latching (momentary) wall switches. Detailed Push switch configurations can be set on the Koolmesh app.
| Switch Function | Action | Descriptions |
| Push switch | Short press (<1 second) • Short press has to be longer than 0.1s. or it will be invalid. | – Turn ori/off – Recall a scene – Turn on only – Exit manual mode – Turn off only – Do nothing |
| Double push | – Turn on only – Exit manual mode – Turn off only – Do nothing – Recall a scene | |
| Long press (1 second) | – Dimming – Colour tuning – Do nothing | |
| Simulate sensor | / | – Upgrade a normal on/oft motion sensor to a Bluetooth controlled motion sensor |

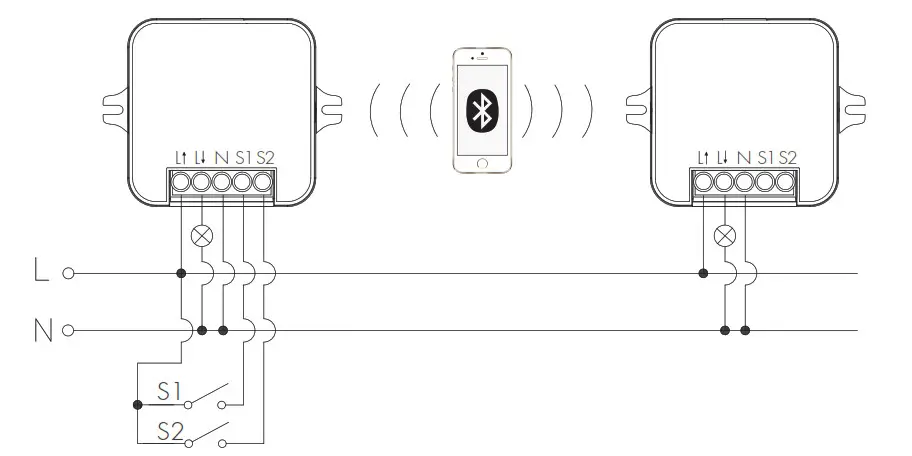

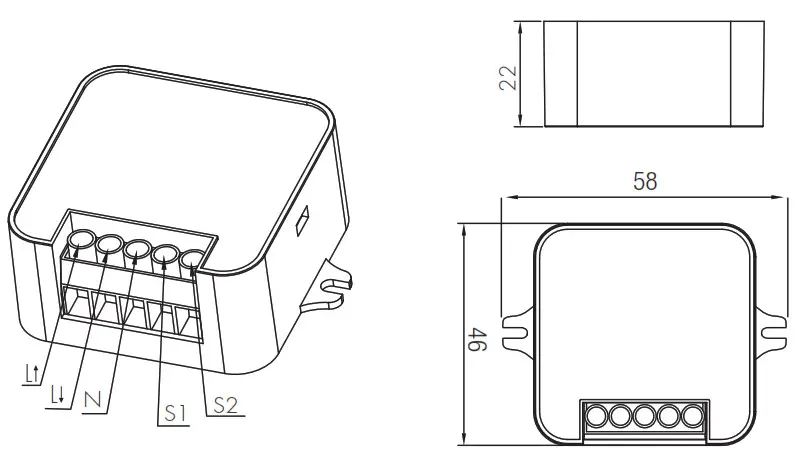

Installation
Warnings:
- Installation must be carried out by a qualified engineer in accordance with local regulations.
- Disconnect power supply before installing.
- Ensure environmental conditions are suitable for electronic equipment.

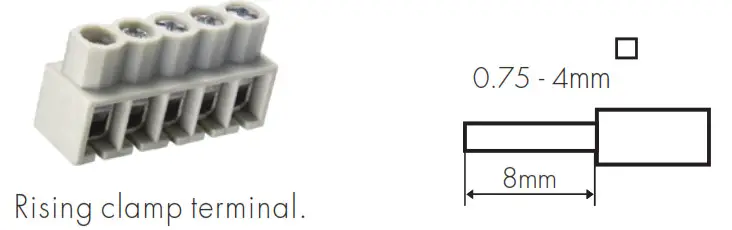

Wire Preparation
Additional Information / Documents
- To learn more about detailed product features/functions, please refer to www.hytronik.com/download ->knowledge ->Introduction of App Scenes and Product Functions
- Regarding precautions for Bluetooth product installation and operation, please kindly refer to www.hytronik.com/download ->knowledge ->Bluetooth Products – Precautions for Product Installation and Operation
- The datasheet is subject to change without notice. Please always refer to the most recent release on www.hytronik.com/products/bluetooth technology ->Bluetooth Sensor ->Receiver Nodes
- Regarding Hytronik standard guarantee policy, please refer to www.hytronik.com/download ->knowledge ->Hytronik Standard Guarantee Policy
HBTD8200S/F-20200403-A2
