FISHER PAYKEL OS24NDB1 24 Inch Combination Steam Oven 9 Function
Reduce the need for oils and fats with steam cooking. Its compact size makes this perfect to pair with a warming drawer underneath.
- 1.3 cu ft total capacity
- Cooking flexibility with nine oven functions, including five Steam functions, Broil and Convection
- Steam cooking allows you to cook a food in its own juices, to retain nutrients and flavour
- Designed to match aesthetically with companion products such as warming drawers, for flexible cooking configurations

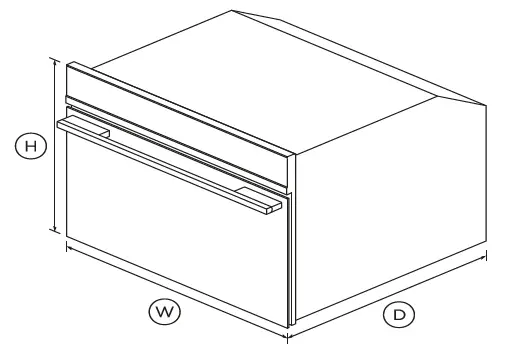

DIMENSIONS
- Height: 18 1/16″
- Width: 23 7/16″
- Depth: 22 1/8″
FEATURES & BENEFITS
Sized to suit
This compact 24” Steam Oven can be placed almost anywhere. All Companion products can be installed at a convenient height to suit your kitchen design and preference.
Simple to use
An easy to use, intuitive display shows the time and provides useful information about functions along with a refill alert.
Easy cleaning
Cleaning and care of the Steam Oven is simple. After each use, just wipe the smooth stainless steel interior with a dry cloth.
Safe & sound
The CoolTouch door is safe to touch from the outside, protecting your hands and the surrounding cabinetry.
Easy installation
Plug in and cook straight away. The Steam Oven is easy to install,with no plumbing needed.
Healthy eating
The Steam Oven allows you to cook food in its own juices to retain nutrients and flavor. With nine oven modes, it doesn’t just steam, but also has Broil and Fan functions.
SPECIFICATIONS
Accessories
- Baking pan 1
- Food probe 1
- Matching Trim Kit Part 81226
- Meat probe 1
- Optional lower trim kit Part 81662
- Perforated baking tray 1
- Wire shelf 1
Capacity
- Shelf positions 3
Cleaning
- Easy clean stainless steel
- Easy to clean formed side
- Removable water tank
Controls
- Audio feedback
- Automatic cooking/minute
- Celsius/Fahrenheit
- High resolution touch display
- Intuitive information display
- Multi-language interface
- Precise electronic temperature
- True convection oven
Functions
- Broil
- Convection Broil
- Number of functions 9
- Recipe function
- Ring + broil
- Steam + ring
- Steam 100
- Steam 130
- Steam Assist
Performance
- Broil power: 4400W
- Fan Element Power: 1500W
- Grill power: 1500W
- Steam generator: 1800W
Power requirements
- Amperage: 15A
- Supply frequency: 60Hz
- Supply voltage: 208V
Product dimensions
- Depth: 22 1/8″
- Height: 18 1/16″
- Width: 23 7/16″
Safety
- ADA compliant
- Control panel key lock
- CoolTouch door
SKU: 81230
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
Other product downloads available at: fisherpaykel.com
- User Guide
- Service& Warranty
- Installation Guide
- Guide D’lnstallation
- Installation Guide – Cavity Trim Kit
- Specification Guide Combination Steam Oven
- Data Sheet Combination Steam Oven
- Data Sheet Combination Steam Oven with 30″ Trim
- Data Sheet Combination Steam Oven with Bottom Trim
- Planning Guide Minimal and Contemporary Triple Stack Install
