QUICK REFERENCE GUIDE > OS24NMLB1

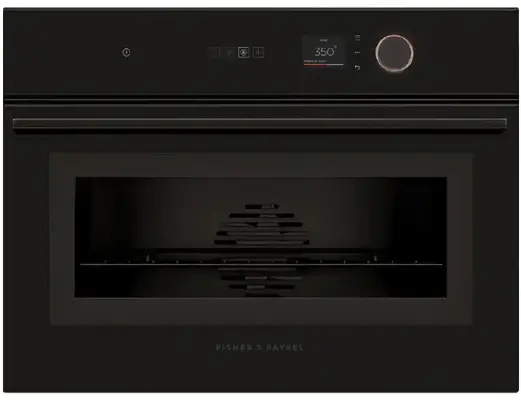

Combination Steam Oven, 24″, 18 Function
Series 7 | Minimal
Black Glass
Designed to be the cornerstone of any kitchen solution, our Combination Steam Oven is engineered for the home chef. In compact size, this oven can be placed almost anywhere.
- 18 oven functions including Steam, Sous Vide, Air Fry and VentBake
- With steam cooking, convection cooking, or a combination of both
- Pair with our Vacuum Seal Drawer companion product for effortless Sous Vide preperation
DIMENSIONS
| Height | 18″ |
| Width | 23 7/16″ |
| Depth | 22 1/4″ |
FEATURES & BENEFITS
COMBINATION COOKING
Give every ingredient the respect it deserves with combination steam cooking. Using a fusion of dry convection heat with variable amounts of steam, you can easily retain the delicate texture of ingredients like salmon and snapper, the vitamins and minerals of greens, or the depth of flavor of a perfect cut of meat.
MASTERY OF TEMPERATURE
Elevate your meals with the precise temperature and humidity control of steam cooking. Steam cooking has a gentler heat transfer into the food, so you get nutritious and delicious results that are moist and tender on the inside, crisp and flaky on the outside, all with minimal effort.
PRESERVE FLAVOR AND NUTRIENTS
Cooking with steam creates dishes that are full of flavor, while preserving all the vitamins, minerals and textures of delicate ingredients, like fish and seafood. With five steam-only cooking functions, including Sous vide, Steam and Steam Proof, you can use steam to create healthier dishes that get the best out of each component on the plate.
MULTI-FUNCTION FLEXIBILITY
A truly multiple function oven where both steam-only and convection-only cooking mediums can stand on their own merits. You have the freedom to choose – whether it’s dry heat or moist heat, or a combination of the two – each delivering different cooking results. A Wireless Temperature Sensor precisely monitors cooking in real time, giving you complete control.
DESIGN FREEDOM
With a matte black glass finish, this Minimal style oven blends seamlessly, enhancing your kitchen design without dominating it. It’s understated and elegant, whether on its own or part of a matching appliance set. Pair with a Vacuum Seal Drawer for the ultimate kitchen solution.
SIZED TO SUIT
This compact 24” Steam Oven can be placed almost anywhere. All Companion products can be installed at a convenient height to suit your kitchen design and preference.
SPECIFICATIONS
| Accessories | |
| Broil pan | 1 |
| Broil rack | 1 |
| Chromed shelf runners | • |
| Descale solution | 2 sachets, Part 580925 |
| Large solid dish | 1 |
| Perforated large dish | 1 |
| Step down wire shelf | 1 |
| Telescopic sliding runners | 1 set |
| Wire shelf | 1 |
| Wired temperature sensor | 1 |
| Capacity | |
| Shelf positions | 4 |
| Total capacity | 1.9cu ft |
| Usable capacity | 1.6L |
| Acid resistant graphite enamel | • |
| Removable oven door | • |
| Removable shelf runners | • |
| Controls | |
| Adjustable audio and display | • |
| Audio feedback | • |
| Automatic cooking/minute | • |
| Automatic pre-set | • |
| Delay start | • |
| Electronic clock | • |
| Electronic oven control | • |
| Food probe | • |
| Guided cooking by food types | • |
| Halogen lights | • |
| Multi-language display | UK English, US English, |
| Sabbath mode | • |
| Soft close doors | • |
| True convection oven | • |
| Turned stainless steel dials | • |
| Wi-Fi connectivity | • |
| Wireless temperature sensor | • |
| Functions | |
| Aero Bake | • |
| Aero Broil | • |
| Air fry | • |
| Bake | • |
| Maxi Broil | • |
| Number of functions | 18 |
| Pizza bake | • |
| Roast | • |
| Slow cook | • |
| Sous vide | • |
| Steam | • |
| Steam defrost | • |
| Steam proof | • |
| True Aero | • |
| True Aero + High steam | • |
| True Aero + Low steam | • |
| True Aero + Medium steam | • |
| Vent bake | • |
| Performance | |
| ActiveVent™ system | • |
| AeroTech™ technology | • |
| Automatic rapid pre-heat | • |
| SteamTechnology | • |
| Temperature range | 95 °F – 445 °F |
| Whisper quiet cooking | • |
| Power requirements | |
| Amperage | 16.6-19.4A |
| Supply frequency | 60Hz |
| Supply voltage | 208-240V |
| Product dimensions | |
| Depth | 22 1/4″ |
| Height | 18″ |
| Width | 23 7/16″ |
| Safety | |
| ADA compliant | • |
| Balanced oven door | • |
| Control panel key lock | • |
| CoolTouch door | • |
| Non-tip shelves | • |
| Safety thermostat | • |
| Warranty | |
| Parts and labor | 2 years |
| SKU | 82634 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
