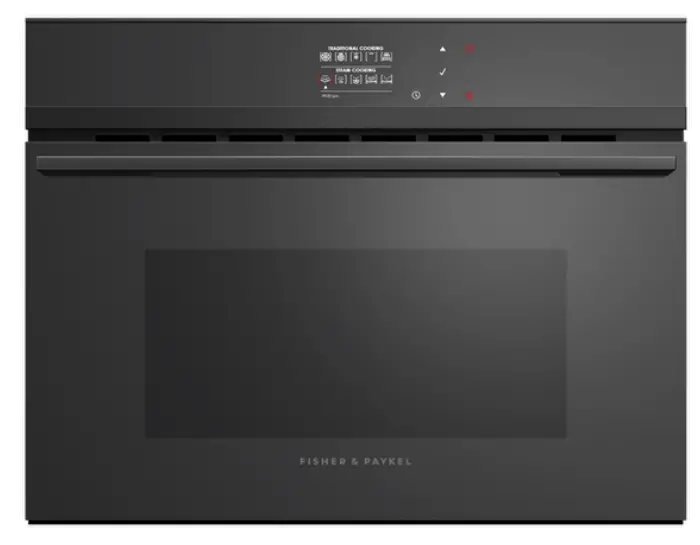

FISHER PAYKEL OS24NDBB1 Combination Steam Oven, 24 Inch, 9 Function
INTRODCTION
Get more flexibility in the kitchen with both convection cooking and steam cooking, which reduces the need for oils and fats.
- Cooking flexibility with nine oven functions, including five Steam functions, Broil and Convection
- Steam cooking allows you to cook a food in its own juices, to retain nutrients and flavour
- Part of our suite of companion products, designed to match aesthetically for flexible configurations 1.3 cu ft total capacity

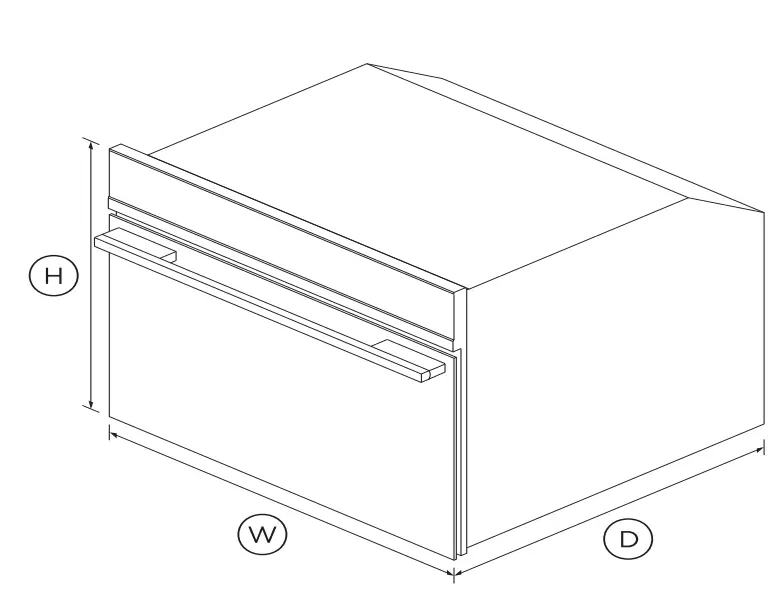

DIMENSIONS
Height 18 1/16″
Width 23 1/2″
Depth 22 1/8″
FEATURES & BENEFITS
SIZED TO SUIT
This compact 24” Combination Steam Oven can be placed almost anywhere in the kitchen. Companion products share the same dimensions and can be installed in multiple configurations to suit your kitchen design and preference.
COOKING FLEXIBILITY
The Combination Steam Oven allows ingredients to retain their nutrients, moisture content and coloration. With nine oven modes, it doesn’t just steam, but also has Broil and Fan functions.
EASY TO USE
An easy to use, intuitive display shows the time and provides useful information about functions along with a refill alert.
BEAUTY OF CHOICE
With the choice of a stylish stainless steel or elegant black trim, our Companion products help you achieve a coherent kitchen aesthetic that suits your design style.
EASY CLEANING
Cleaning and care of the Combination Steam Oven is simple. After each use, just wipe the smooth stainless steel interior with a dry cloth.
SAFE AND CONVENIENT
The CoolTouch door is safe to touch from the outside, protecting your hands and the surrounding cabinetry. The water tank slides in easily, with no plumbing require
SPECIFICATIONS
| Accessories | |
| Baking pan | 1 |
| Food prob | 1 |
| Optional lower trim kitB | Part 81662 |
| Optional lower trim kit Part | 1 |
| Wire shelf | 1 |
| Capacity | |
| Shelf positions | 3 |
| Total capacity | 1.3cu ft |
| Cleaning | |
| Easy clean stainless steel | • |
| Removable water tank | • |
| Steam clean (oven) | • |
| Controls | |
| Audio feedback | • |
| Automatic cooking/minute | • |
| Celsius/Fahrenheit | • |
| Delay start | • |
| Electronic capacitive touch | • |
| Electronic clock | • |
| Electronic oven control | • |
| Food probe | • |
| Guided cooking by food type | • |
| Guided cooking by food type | • |
| Intuitive touchscreen display | • |
| Multi-language display | • |
| Multi-language interface | • |
| Precise electronic temperature | • |
| Recipe and food based | • |
| Functions | |
| Broil | • |
| Number of functions | 9 |
| Ring + broil | • |
| Steam + ring | • |
| Steam 100 | • |
| Steam 130 | • |
| Steam assist | • |
| Steam clean (oven) | • |
| Performance | |
| Fan Element Power | 1500W |
| Power requirements | |
| Amperage | 15A |
| Supply frequency | 60Hz |
| Supply voltage | 208 – 240V |
| Product dimensions | |
| Depth | 22 1/8″ |
| Height | 18 1/16″ |
| Width | 23 1/2″ |
| Safety | |
| ADA compliant | • |
| Control panel key lock | • |
| CoolTouch door | • |
| Safety thermostat | • |
| Warranty | |
| Parts and labor | 2 years |
| SKU | 81927 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
Other product downloads available at fisherpaykel.com
User GuideService & WarrantyInstallation GuideInstallation Guide – Cavity Trim KitSpecification Guide Combination Steam OvenData Sheet Combination Steam OvenData Sheet Combination Steam Oven with 30″ TrimData Sheet Combination Steam Oven with Bottom TrimPlanning Guide – Minimal and Contemporary Triple Stack Install
