OS24NDBB1 Combination
Steam Oven, 24″, 9 Function
User Guide

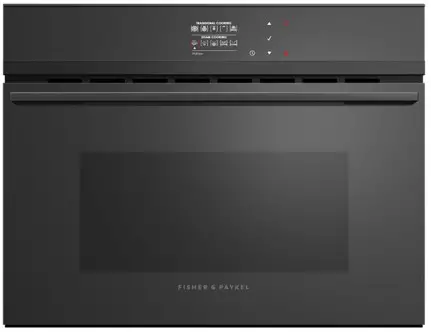

OS24NDBB1 Combination Steam Oven, 24″, 9 Function
Series 9 | Minimal Black
Get more flexibility in the kitchen with both convection cooking and steam cooking, which reduces the need for oils and fats.
- Cooking flexibility with nine oven functions, including five Steam functions, Broil and Convection
- Steam cooking allows you to cook a food in its own juices, to retain nutrients and flavor
- Part of our suite of companion products, designed to match aesthetically for flexible configurations
- 1.3 cufttotal capacity

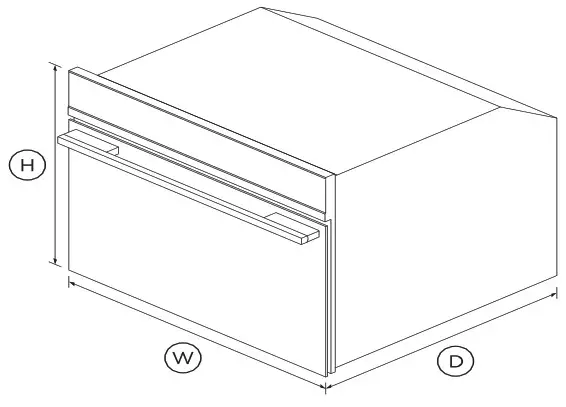

DIMENSIONS
| Height | 18 1/16″ |
| Width | 23 1/2″ |
| Depth | 22 1/8″ |
FEATURES & BENEFITS
Sized to suit
This compact 24” Combination Steam Oven can be placed almost anywhere in the kitchen. Companion products share the same dimensions and can be installed in multiple configurations to suit your kitchen design and preference.
Cooking flexibility
The Combination Steam Oven allows ingredients to retain their nutrients, moisture content and coloration. With nine oven modes, it doesn’t just steam, but also has Broil and Fan functions.
Easy to use
An easy to use, intuitive display shows the time and provides useful information about functions along with a refill alert.
Beauty of choice
With the choice of a stylish stainless steel or elegant black trim, our Companion products help you achieve a coherent kitchen aesthetic that suits your design style.
Easy cleaning
Cleaning and care of the Combination Steam Oven is simple.
After each use, just wipe the smooth stainless steel interior with a dry cloth.
Safe and convenient
The Cool Touch door is safe to touch from the outside, protecting your hands and the surrounding cabinetry. The water tank slides in easily, with no plumbing required.
SPECIFICATIONS
| Accessories | |
| Baking pan | 1 |
| Food probe | 1 |
| Optional lower trim kit | Part 81662 |
| Perforated baking tray | 1 |
| Wire shelf | 1 |
| Capacity | |
| Shelf positions | 3 |
| Total capacity | 1.3cu ft |
| Usable capacity | 1cu ft |
| Cleaning | |
| Easy to clean formed side | • |
| Removable water tank | • |
| Controls | |
| Audio feedback | • |
| Automatic cooking/minute | • |
| Celsius/Fahrenheit | • |
| Electronic capacitive touch | • |
| High resolution touch display | • |
| Intuitive information display | • |
| Multi-language display | UK English, US English, |
| Multi-language interface | • |
| Precise electronic temperature | • |
| Recipe and food based | • |
| True convection oven | • |
| Functions | |
| Broil | • |
| Number of functions | 9 |
| Ring + broil | • |
| Steam + ring | • |
| Steam 100 | • |
| Steam 130 | • |
| Steam assist | • |
| Steam clean (oven) | • |
| Performance | |
| Fan Element Power | 1500W |
| Grill power | 1500W |
| Steam generator | 1800W |
| Power requirements | |
| Supply frequency | 60Hz |
| Supply voltage | 208 – 240V |
| Product dimensions | |
| Depth | 22 1/8″ |
| Height | 18 1/16″ |
| Width | 23 1/2″ |
| Safety | |
| Control panel key lock | • |
| Cool Touch door | • |
| SKU | 81927 |
TEST The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
Other product downloads available at fisherpaykel.com
