Perlick Bc72 Bc Series Flat Top Bottle Coolet Instruction Manual

INSTALLATION AND OPERATION INSTRUCTIONS
FLAT TOP BOTTLE COOLER – BC SERIES

MODELS
BC24, BC36, BC48, BC60, BC72, BC96

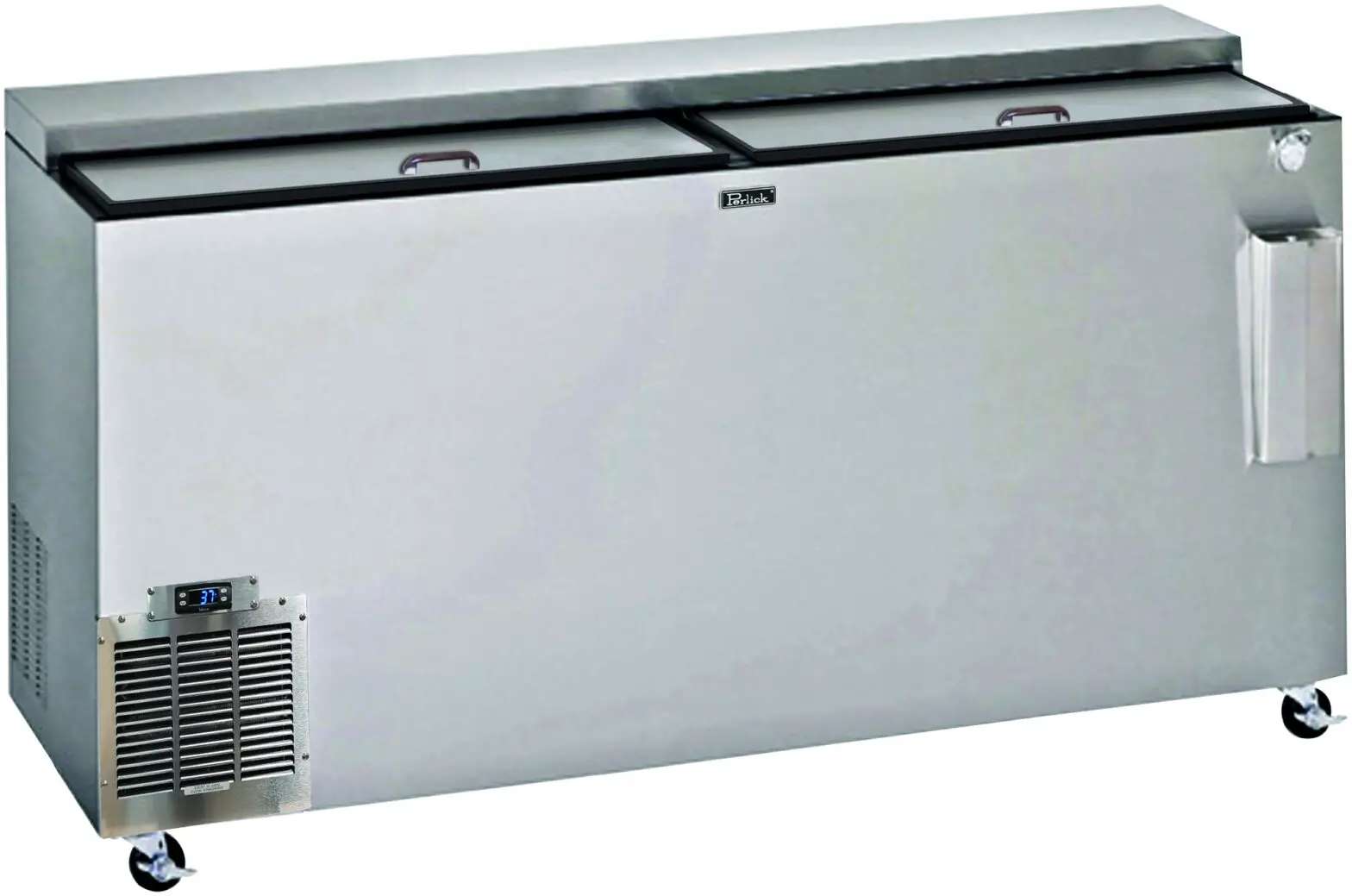

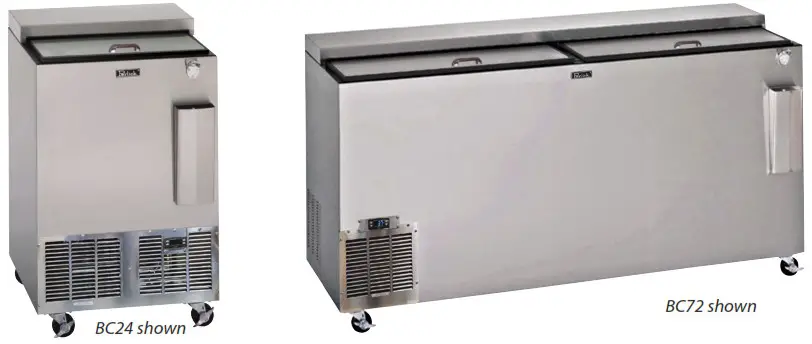

BC72 shown

GENERAL INFORMATION

Introduction
Congratulations on your purchase of a Perlick commercial underbar product. This manual has been prepared to assist you in the installation of your cabinet and to acquaint you with its operation and maintenance.
This manual has been prepared to assist you in the installation of your under counter refrigerator and to acquaint you with its operation and maintenance.
We dedicate considerable time to ensure that our products provide the highest level of customer satisfaction. If service is required, your dealer can provide you with a list of qualified service agents. For your own protection, never return merchandise for credit without our approval.
We thank you for selecting a Perlick product and assure you of our continuing interest in your satisfaction.

Warranty
To register your product, visit our web site at www.perlick.com. Click on “Commercial”, then “Service”. Click on the link “Warranty Registration Form”. You must complete and submit this form or the installation date will revert back to the ship date.
Please record the purchase date and the dealer’s name, address, and telephone number below.
Model Number: ____________________________
Serial Number:_____________________________
Purchase Date: ____________________________
Dealer Name & Address _____________________
_________________________________________
_________________________________________
_________________________________________
Phone Number ____________________________

SAFETY

PLEASE READ all instructions completely before attempting to install or operate the unit. Take particular note of the DANGER, WARNING and CAUTION information in the manual. The information is important for the safe and efficient installation, operation and care of your Perlick unit.

 Indicates a hazard that WILL result in serious injury or death if precautions are not followed.
Indicates a hazard MAY cause serious injury or death if precautions are not followed.
Indicates a hazard where minor or moderate injury may occur if precautions are not followed.
 Indicates that property damage may occur if warnings or instructions are not followed.

IMPORTANT! Read and understand all information in this manual before attempting the installation.
All plumbing and electrical work must be performed by a qualified technician and conform to all applicable state and local codes.

Perlick is committed to continuous improvement. Therefore, we reserve the right to change specifications without prior notice

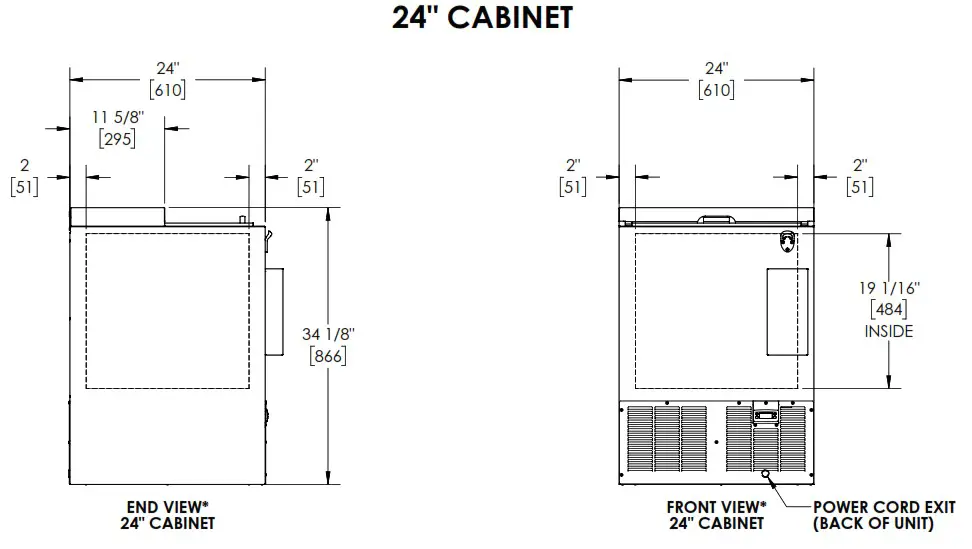

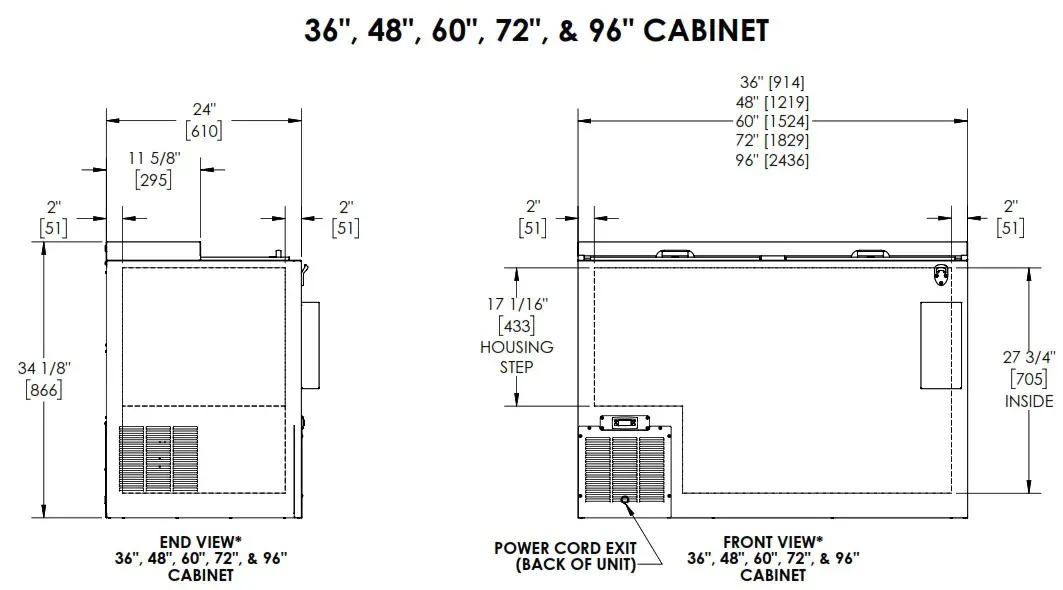

BC24 SERIES BC36 SERIES BC48 SERIES BC60 SERIES BC72 SERIES BC96 SERIES

Preparing the Cabinet for Use

Refrigerant

Take caution when handling, moving and using the product to avoid damaging the refrigerant tubing or increasing the risk of a leak
 All service work shall be performed by factory authorized service personnel and all component parts shall be replaced with like components to minimize the risk of possible ignition due to incorrect parts or improper service.
If service is necessary, repair work must be performed by a Perlick authorized servicer. Work done by unqualified individuals could potentially be dangerous and will void the warranty.
This product contains blown foam insulation using blowing agent R-611 (Methyl Formate). The foam in this product does not contain HFC’s, CFC’s, or HCFC’s.

All models covered in this user manual are manufactured using refrigerant R290 (Propane). R290 is a hydrocarbon. This refrigerant is flammable and is only allowed for use in appliances which fulfill the requirements of UL 471 (To cover potential risk originated from the use of flammable refrigerants). Consequently, R290 is only allowed to be used in refrigerating appliances which are designed for this refrigerant and fulfill the above-mentioned standard.

• R290 is heavier than air. The concentration will always be highest at floor level.
• The explosion limits are as follows:
  o Lower Limit: 1.7% by vol. (37 g/m3)
  o Upper Limit: 9.5% by vol. (177 g/m3)
  o Ignition Temperature: 470 °C

UNCRATING AND INSPECTION

Remove all crating material before operating. Carefully inspect cabinet for hidden damage. If damage is discovered, file your claim immediately with the transport company. Perlick is not responsible for damage in transit.

 Do not use or store flammable liquids (ie; gasoline) or vapors near the appliance to avoid fire.

INSTALLATION

 The unit must NOT be totally enclosed or damage may occur. Air circulation must not be restricted. The condenser at cabinet front must be provided with a minimum of two inches air space. Be sure to provide access so front cover can be removed to clean the condenser.
 If unit has been laid on its back or sides, place unit upright and allow a minimum of 24 hours before connecting power. Failure to follow this procedure may damage the compressor and void the warranty.
 Use care when handling, moving and using the product to avoid damaging the refrigerant tubing or increasing the risk of a leak.

ELECTRICAL

For specifications, see data plate located on the cabinet. Also, see wiring diagram located in this publication.

Inspect the electrical cord and plug for damage prior to energizing the unit to avoid potential electric shock.
Use electical grounding to avoid electrocution or electric shock. This appliance is equipped with a 3-prong (grounding) polarized plug for your protection against possible shock hazards. Failure to use grounding may result in death, serious injury, or property damage.
Never use an extension cord to connect the unit to the electrical source. Do not use a two-prong adapter or remove the power cord ground prong. Failure to use grounding may result in death, serious injury, or property damage.

 Using any voltage other than specified will result in serious damage to the unit.

Use and Operation

 Do not use or store flammable liquids (ie; gasoline) or vapors near the appliance to avoid fire.
 If service is necessary, repair work should be performed by a Perlick authorized service personnel. Work done by unqualified individuals could create dangerous conditions in unit that may result in serious injury or death.

 The unit must NOT be totally enclosed or damage may occur.

REPAIR & MAINTENANCE

 All service work shall be performed by Perlick-authorized service personnel. All component parts shall be replaced with like components. Incorrect parts or improper service may result in fire.

INSTALLING CASTERS OR LEGS (OPTIONAL)

Attach bracket assembly to the bottom of the cabinet base using the ¼”-20 Philips head machine screws provided.
Attach casters or legs to the mounting bracket with ¼” – 20 Philips head screws provided
To comply with NSF requirements, cabinet must be sealed to floor or on legs, casters, or rollers.

ADJUSTABLE PARTITIONS & SHELVING
Perlick Bottle Coolers may be provided with adjustable partitions and shelving which will accommodate various bottle sizes.

• Remove bottles and cans from their cases before placing in cooler to ensure proper air flow.
• When loading product into cabinet, care must be taken to avoid blocking airflow into and out of the evaporator. Maintain at least 2” of clearance on evaporator air intake and exhaust for proper operation.

PLACING THE CABINET

To assure maximum performance, fresh air must be allowed to circulate through the machinery compartment. It is important to allow at least two inched of clearance at the back or left end of the cabinet. Do not place anything in front of the cabinet that would obstruct air flow at these grilles. Do not place the unit in an unventilated small room.

Removing the factory installed back clearance spacers without providing proper left side grill clearance for compressor air flow will void the warranty.
Cabinet should be leveled.

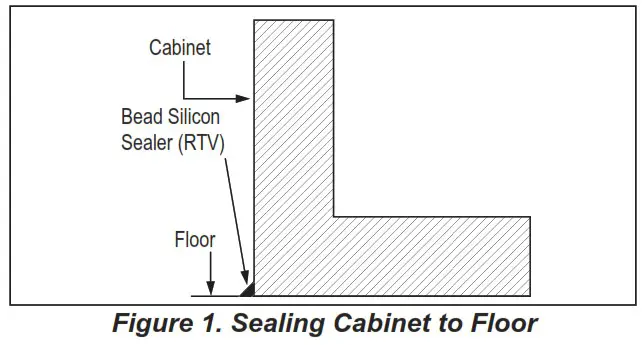

For sanitation purposes, it may be necessary to seal the base of the cabinet to the floor. This can be accomplished by laying a bead of silicone sealant along the base of the cabinet as shown by the figure below (figure 1).

TEMPERATURE CONTROL

A digital temperature control is located on the front face of the Bottle Cooler, above the condensing unit housing. It is factory set at approximately 38°F for standard refrigeration, 30°F for low-temperature models, and 50°F for wine temperature models. Make adjustments as detailed below to attain the desired temperature.

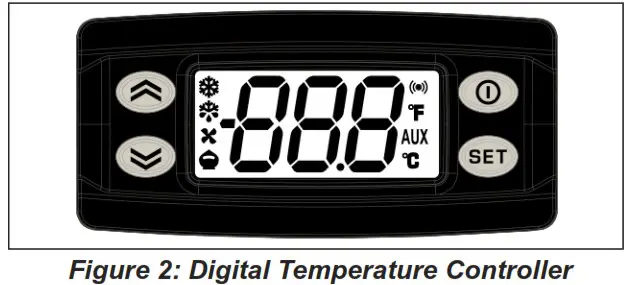

Digital Temperature Control

To display the Set point values press the key when the ‘SET’ label is displayed. The Set point value appears on the display. To change the Set point value, press the and keys within 15 seconds. Press to confirm the modification.

CLEANING THE CONDENSER

  Flammable Refrigerant.Risk of fire or explosion. Do not damage refrigeration tubes.

• The condenser (located behind the from grille) should be inspected every 30 days, and cleaned, if necessary. Failure to keep the condenser clean will cause a loss in condensing unit efficiency, or compressor failure.

CLEANING THE DOORS

• Doors should be periodically removed from the cabinet and inspected for a buildup of foreign materials, such as syrups, beer, etc. Buildups on the underside of the doors, along with the cabinet breaker strips on which they ride, will cause them to bind, and therefore, not function as designed. If dirty, these surfaces should be cleaned with a mild detergent and water and then coated with an NSF certified silicone lubricating material.

To remove doors:

• With door closed, lift it upward by its handle and slide forward until doors clears the cabinet top. Use the reverse procedure to reinstall the doors.

CLEANING THE CABINETS

• Use a damp cloth with a mild detergent and water to clean the inside and outside of the cabinet. Dry thoroughly. Do not allow cleaning agents or large amounts of water to go down the drain. Use an acceptable stainless steel polish to clean all stainless steel surfaces. Never use steel wool or scouring pads to clean stainless steel.

Avoiding Stainless Steel Corrosion
Corrosion can be prevented by following product cautions, cleaning instructions, and avoiding use of certain chemicals or objects which will cause stainless steel corrosion.

STAINLESS STEEL ENEMY

• Steel wool or steel scouring pads
• Cherry/Orange/Olive juice
• Chlorine Bleach
• Sharp Objects

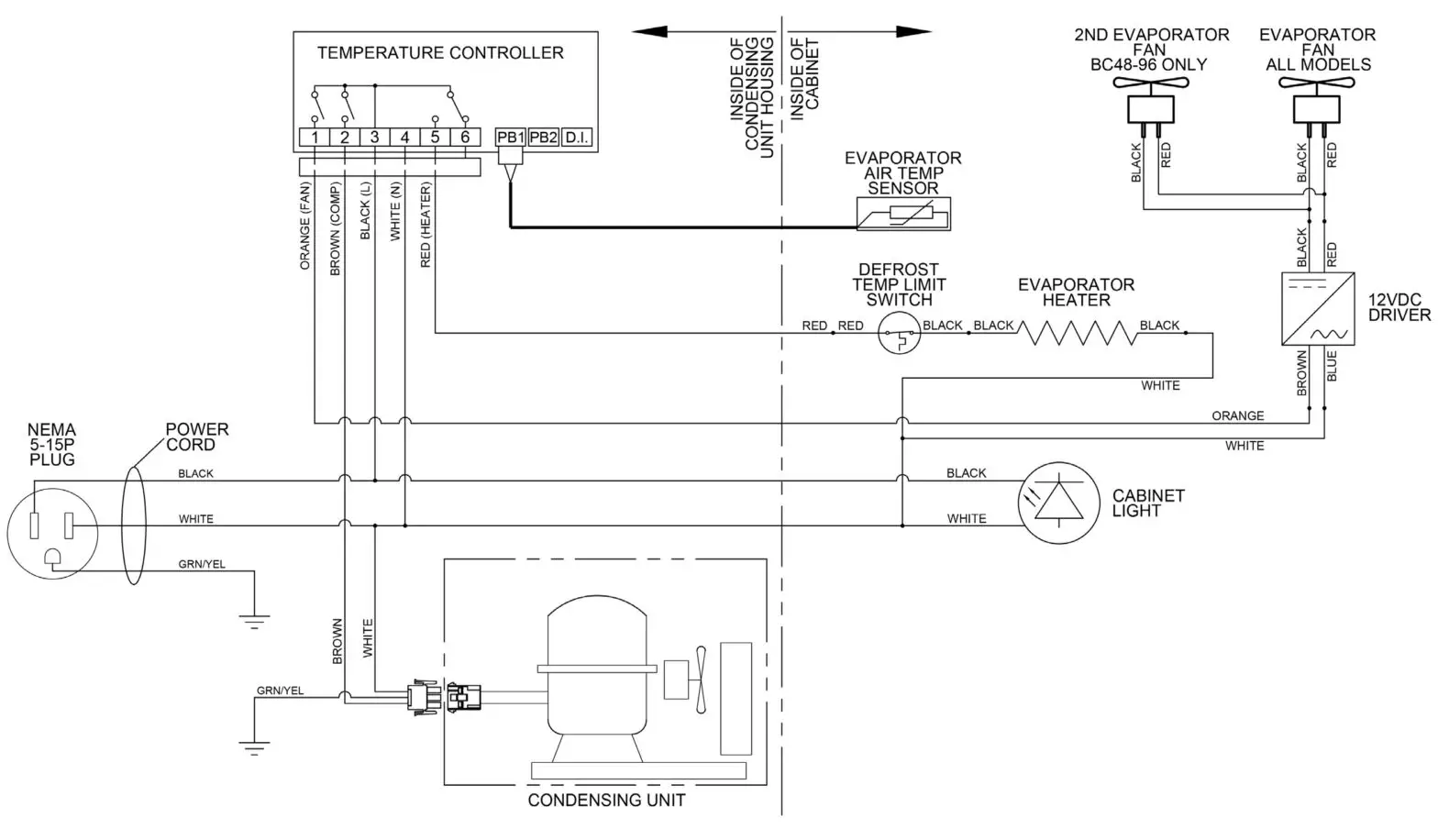

Wiring Diagram – Standard and Wine-Temp Bottle Coolers

Wiring Diagram – Low-Temp Bottle Coolers

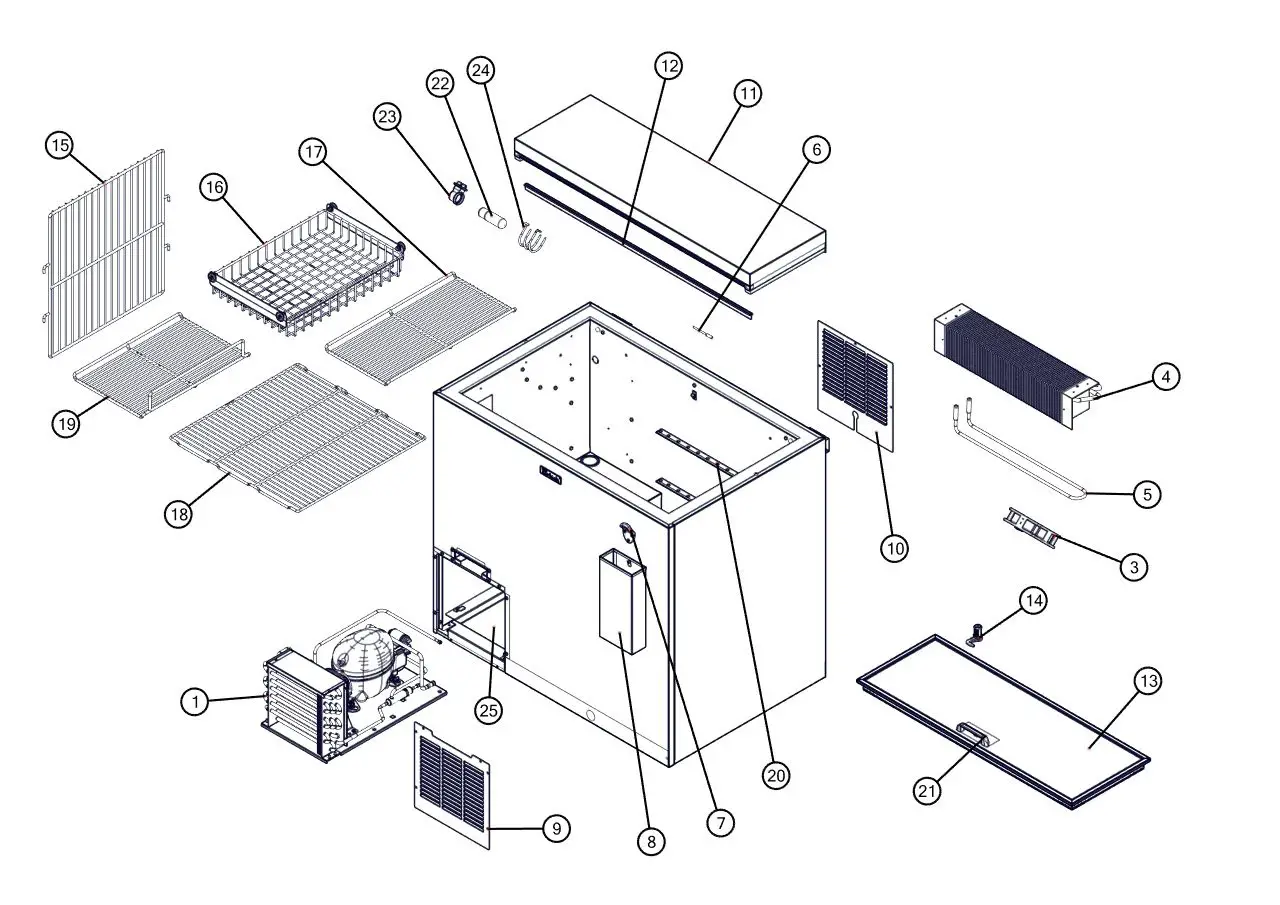

Replacement Parts – Flat Top Bottle Coolers

ITEMS NOT SHOWN

Perlick is committed to continuous improvement. Therefore, we reserve the right to change specifications without prior notice

Form No. Z2295
Rev. 11.19.2020

8300 West Good Hope Road
Milwaukee, WI 53223
Toll-Free 800.558.5592
Fax 414.353.7069
www.perlick.com
