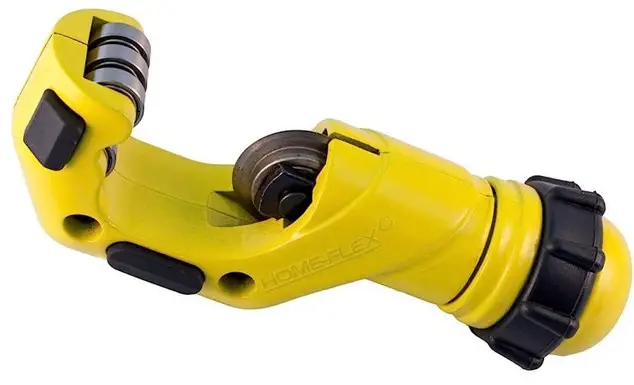

11-TC-02125 CSST Tube Cutter Blade
Change Instructions
CSST Tube Cutter Blade Change Instructions
11-TC-02125 CSST Tube Cutter Blade Change

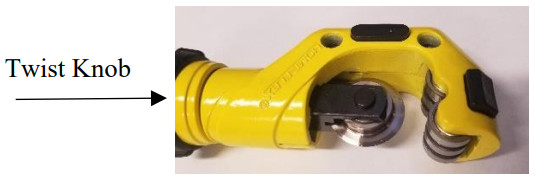

- Expose the cutter wheel fully by twisting the knob at the base of the unit.

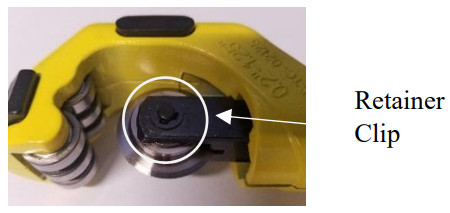

- Carefully remove the retainer clip (commonly called a “C” clip). Wear eye protection when removing as it may have a tendency to fly off.

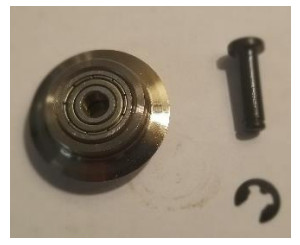

- Remove the pin and wheel/bearing assembly

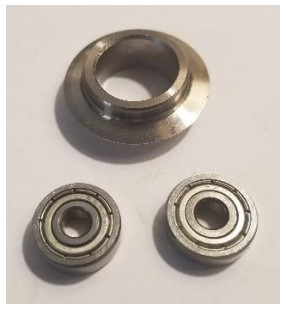

- Replace the old cutter wheel assembly. Should bearings become dislodged, gently slide them back in place.
- Reassemble in reverse order.
