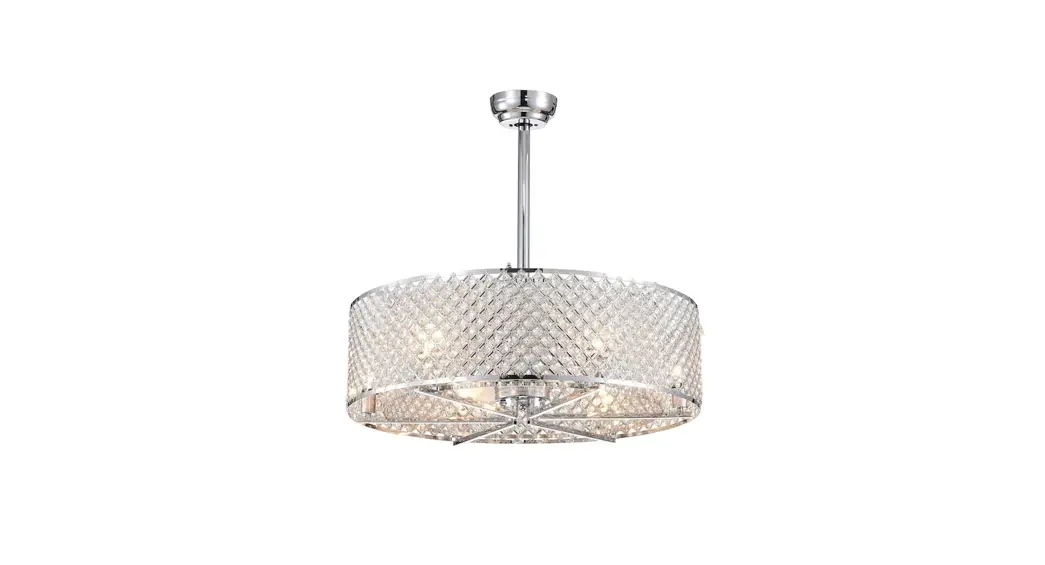

Alexa 23 Inch Polished Nickel with Silver Blades Fandelier
Installation Guide

QFA4046PK Alexa 23 Inch Polished Nickel with Silver Blades Fandelier

WARNINGS AND CAUTIONS

READ AND SAVE THESE INSTRUCTIONS

Please read and understand this entire manual before attempting to assemble, install or operate the product.
WARNING

• RISK OF ELECTRIC SHOCK – Before beginning installation, turn off electricity at the circuit breaker box or the main fuse box.
• RISK OF FIRE – Use bulbs specified by the markings and/or labels on the fixture.
• RISK OF PERSONAL INJURY – DO NOT bend the blades when installing the fan, or cleaning the fan. Do not insert foreign objects in between rotating fan blades.
• RISK OF FIRE, ELECTRIC SHOCK, OR PERSONAL INJURY
  – mount to outlet box marked (acceptable for fan support of 22.7kg(50lbs) or less) and use mounting screws provided with the outlet box.
• All set screws must be checked, and re-tightened where necessary, before installation.
• After making the wire connections, the wires should be spread apart with the grounded conductor and the equipment-grounding conductor on one side of the outlet box and the ungrounded conductor on the other side of the outlet box.
• Suitable for use with solid-state speed controls.
• use only with light kits marked suitable for use in damp locations.
• This unit weighs 5.7kg .

CAUTION

• For your safety, read the instructions completely before beginning installation.
• If in doubt about electrical installation, consult a licensed electrician.
• Disconnect fixture from the power source before replacing bulbs or cleaning. Make sure the bulbs are given sufficient time to cool be before removing.

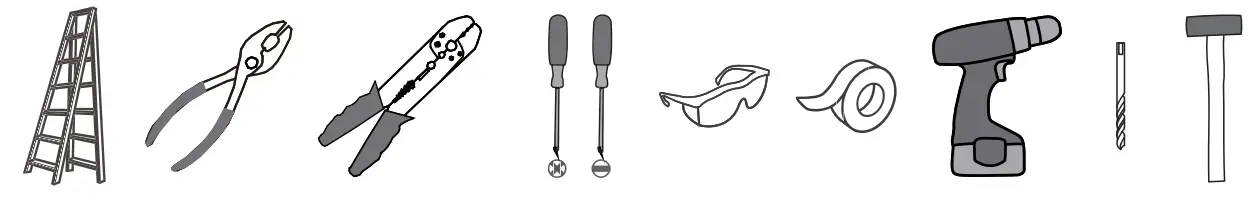

TOOLS REQUIRED

CARE AND MAINTENANCE

• Wipe clean using soft, dry cloth or static duster. Always avoid using harsh chemicals and abrasives to clean fixture as they may damage the finish. If you need further assistance call Quoizel Customer Care at 1-800-645-3184 (9:00 am – 5:00 pm EST), or visit us online at www.quoizel.com.

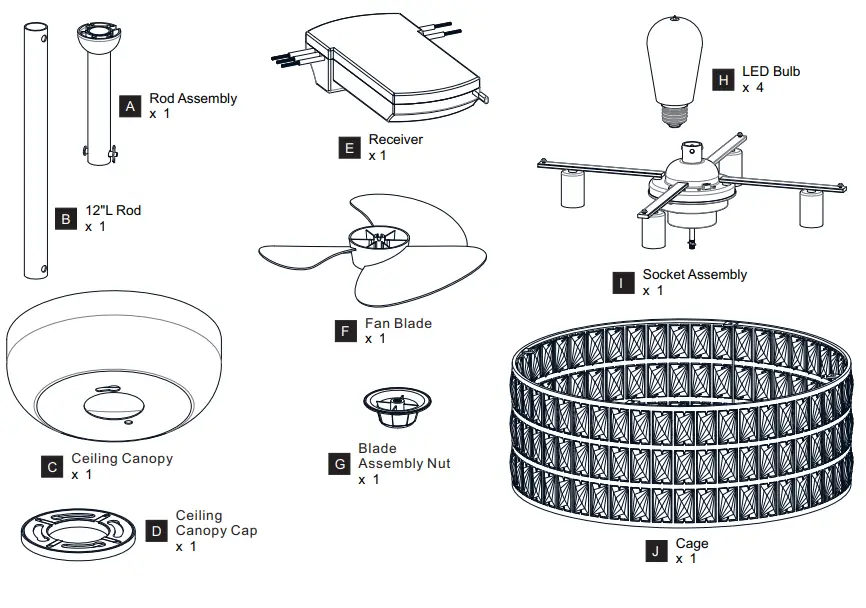

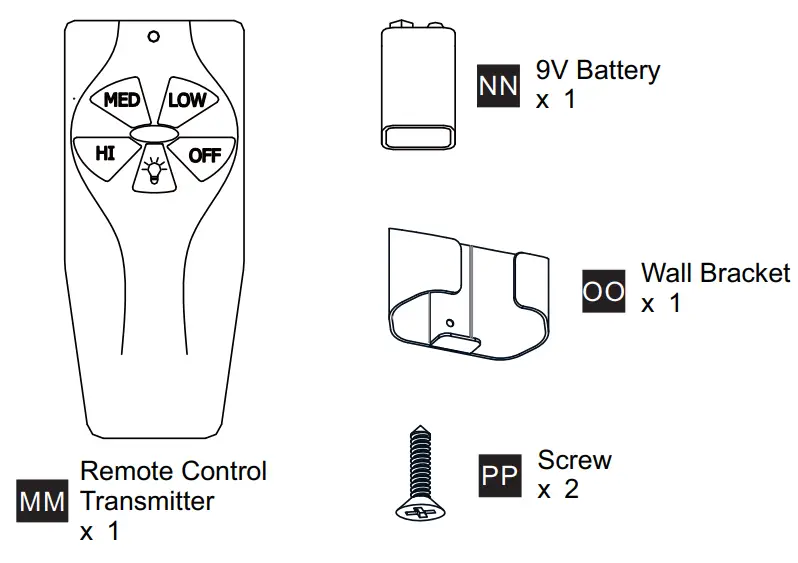

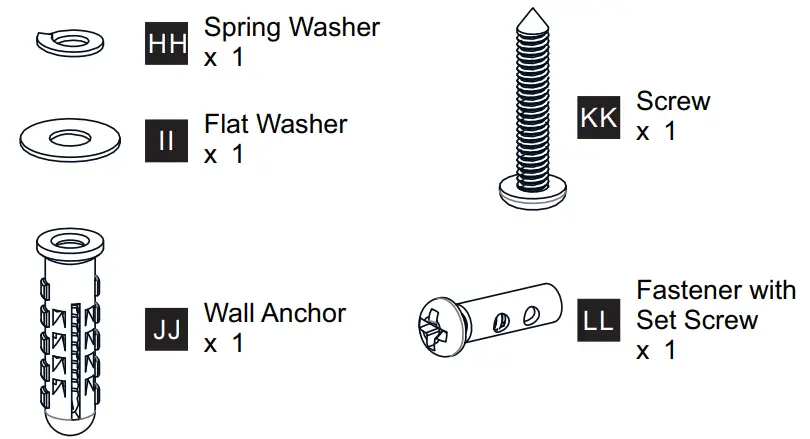

PACKAGE CONTENTS

PACKAGE CONTENTS (PARTS BAG 1)

PACKAGE CONTENTS (PARTS BAG )2

PACKAGE CONTENTS (PARTS BAG )3

INSTALLATION

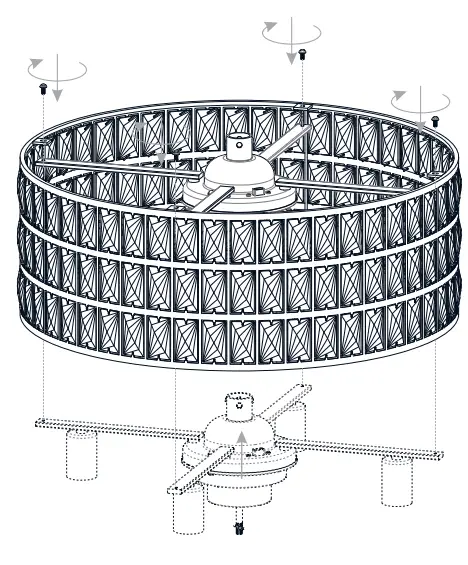

Install Socket Assembly to Cage

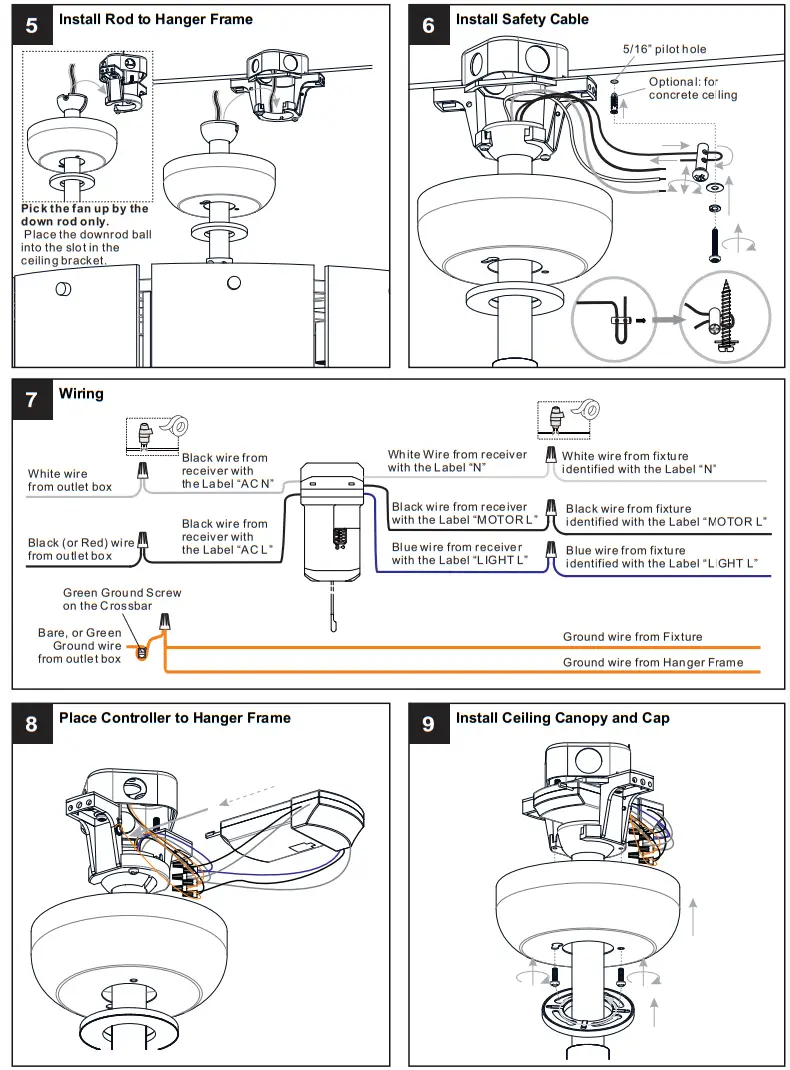

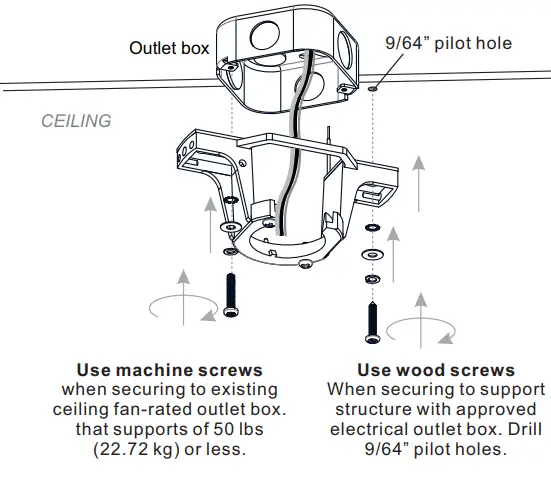

Install Hanger Frame

This fan cannot be used for a ceiling whose angle is greater than 10 degrees. For angled ceilings, point opening toward the peak.

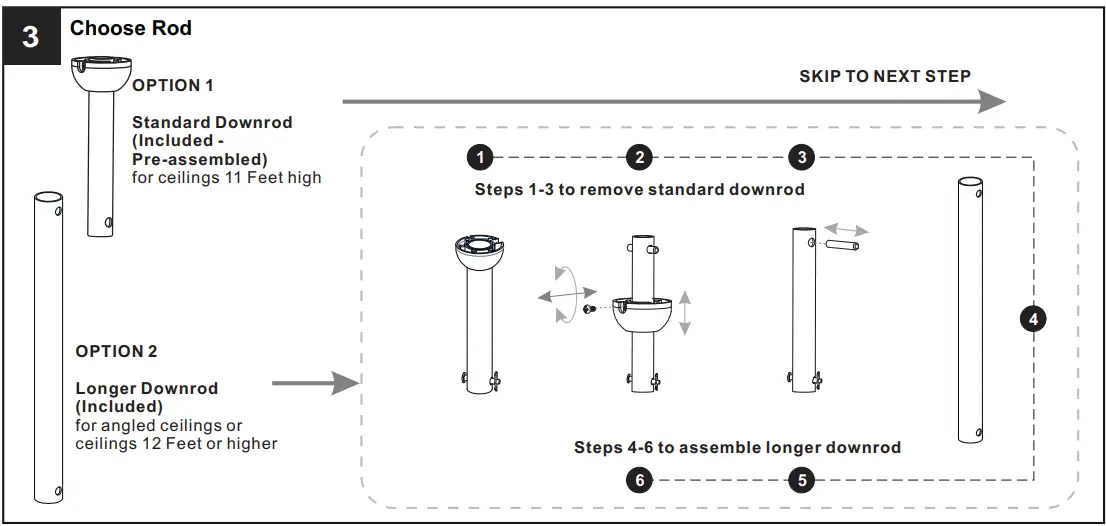

Choose Rod

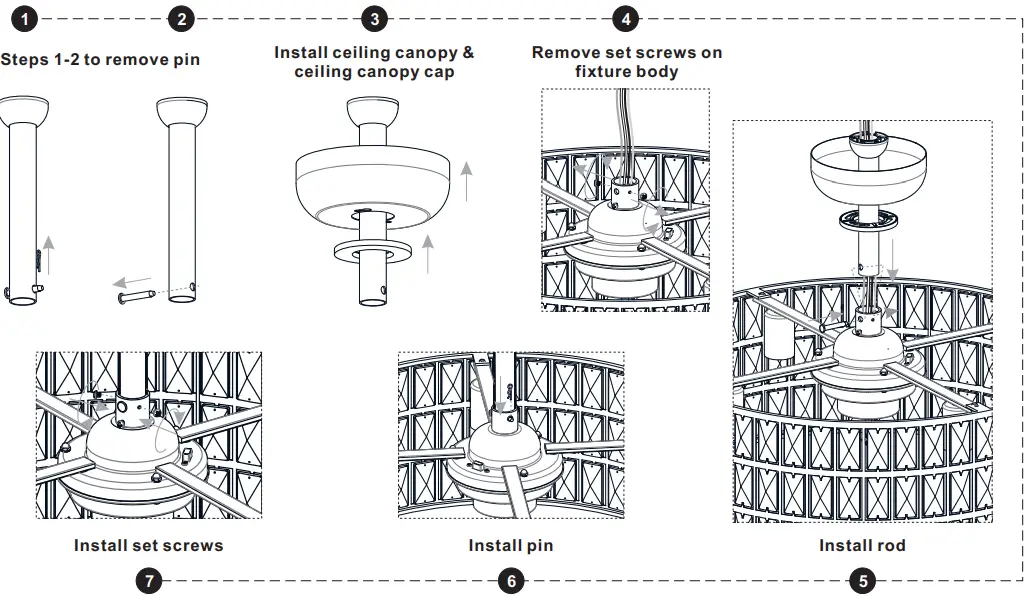

Install Rod to Fixture Body

Install Rod to Fixture Body

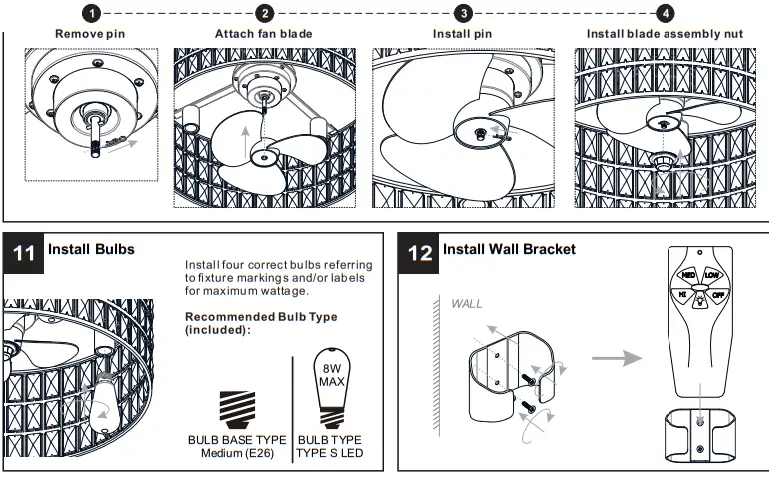

Install Fan Blade

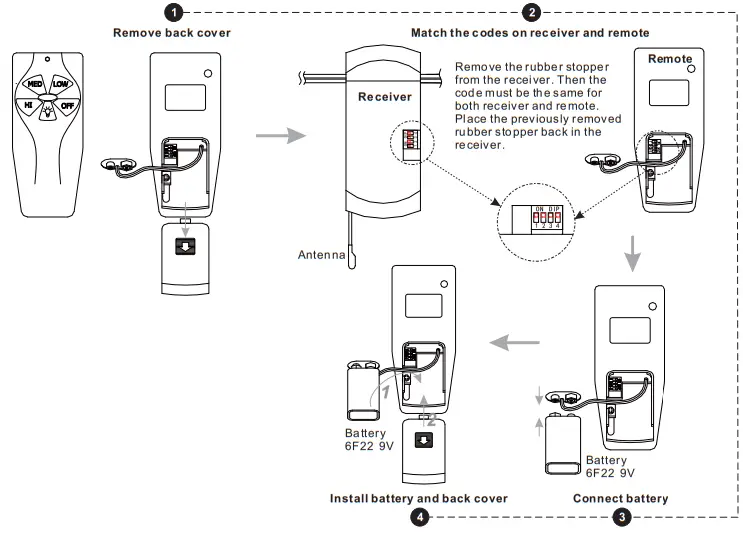

Install Battery to Remote Control Transmitter

OPERATION

1. Light button:  Press it to turn on the lights. Press it again to turn off the lights. Long press it, and the bulbs will be dimmable.
2. HI, MED, LOW, OFF buttons: To adjust the fan speed.

ADDITIONAL FUNCTIONS

Note:

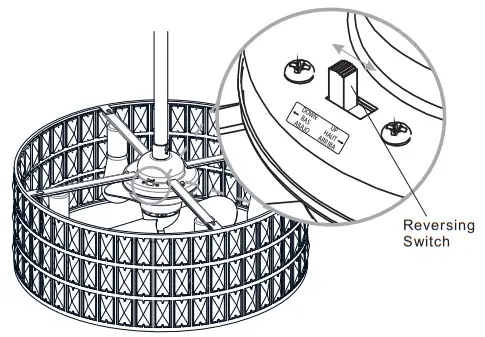

1. If the airflow is desired in the opposite direction, turn the fan off and wait for the blades to stop turning.
2. Push the reverse switch to the Left or Right completely.

Your installation is now complete! Restore electricity and save this sheet for future reference.
