QUOIZEL QFA4046PK 23 inch Polished Nickel with Silver Blades Fandelier

INSTRUCTIONS

READ AND SAVE THESE INSTRUCTIONS

Please read and understand this entire manual before attempting to assemble, install or operate the product. WARNING

• RISK OF ELECTRIC SHOCK – Before beginning installation, turn off electricity at the circuit breaker box or the main fuse box.
• RISK OF FIRE – Use bulbs specified by the markings and/or labels on the fixture.
• RISK OF PERSONAL INJURY – DO NOT bend the blades when installing the fan, or cleaning the fan. Do not insert foreign objects in between rotating fan blades.
• RISK OF FIRE, ELECTRIC SHOCK, OR PERSONAL INJURY – mount to outlet box marked (acceptable for fan support of 22.7kg(50lbs) or less) and use mounting screws provided with the outlet box.
• All set screws must be checked, and re-tightened where necessary, before installation.
• After making the wire connections, the wires should be spread apart with the grounded conductor and the equipment-grounding conductor on one side of the outlet box and the ungrounded conductor on the other side of the outlet box.
• Suitable for use with solid-state speed controls.
• use only with light kits marked suitable for use in damp locations.
• This unit weighs 5.7kg.

CAUTION

• For your safety, read instructions completely before beginning installation.
• If in doubt about electrical installation, consult a licensed electrician.
• Disconnect fixture from the power source before replacing bulbs or cleaning. Make sure the bulbs are given sufficient time to cool be before removing.

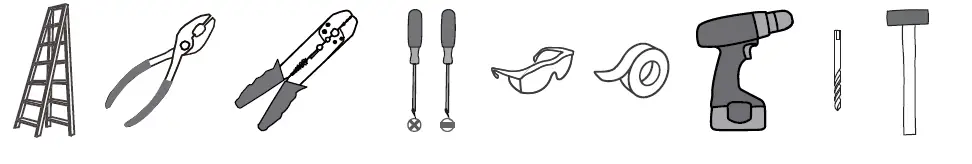

TOOLS REQUIRED

CARE AND MAINTENANCE

Wipe clean using soft, dry cloth or static duster. Always avoid using harsh chemicals and abrasives to clean fixture as they may damage the finish.
If you need further assistance call Quoizel Customer Care at 1-800-645-3184 (9:00am – 5:00pm EST), or visit us on-line at www.quoizel.com.

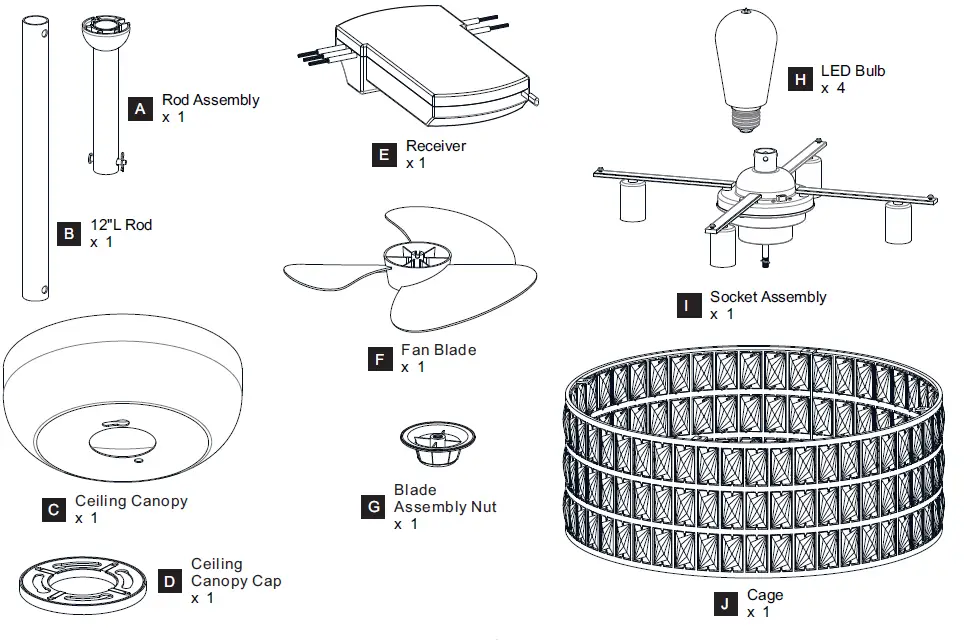

PACKAGE CONTENTS

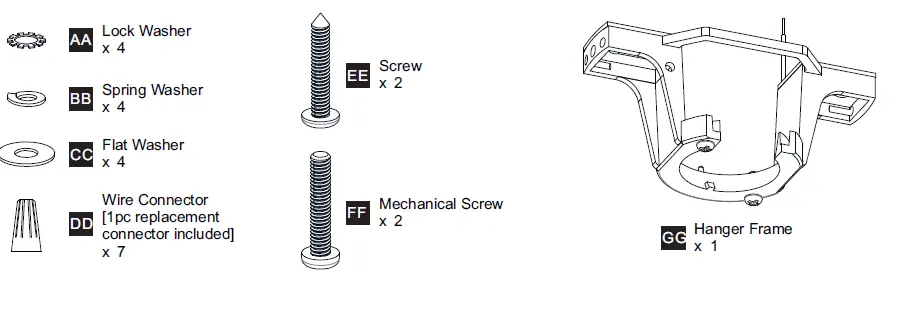

(PARTS BAG 1)

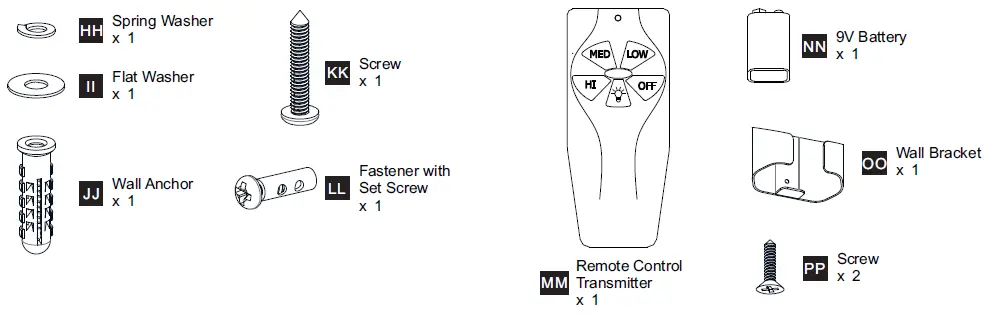

(PARTS BAG 2,3)

INSTALLATION

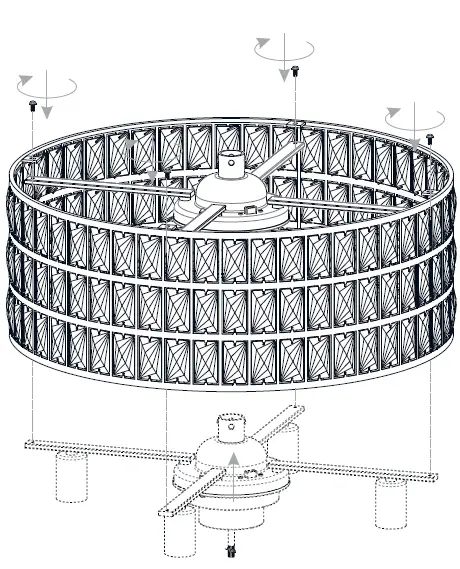

Install Socket Assembly to Cage

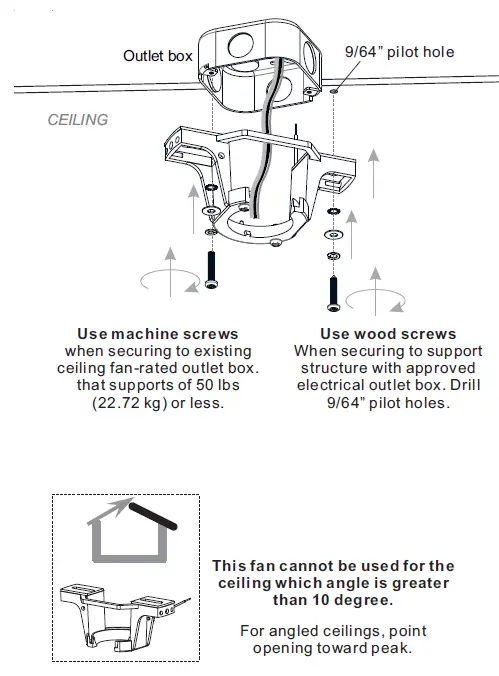

Install Hanger Frame

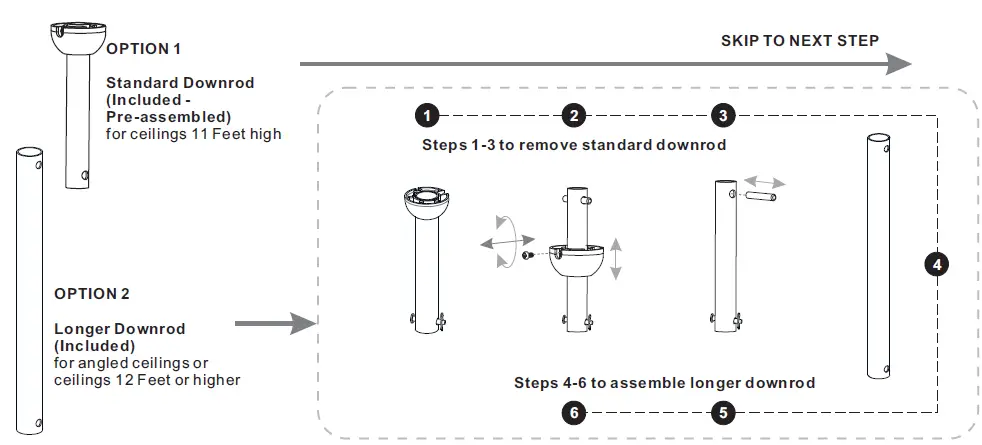

Choose Rod

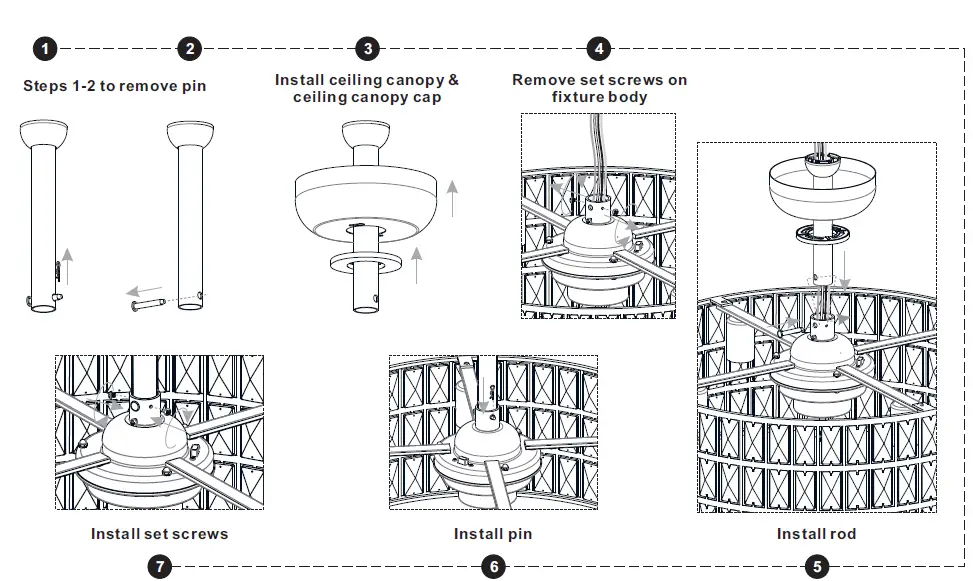

Install Rod to Fixture Body

Install Rod to Hanger Frame

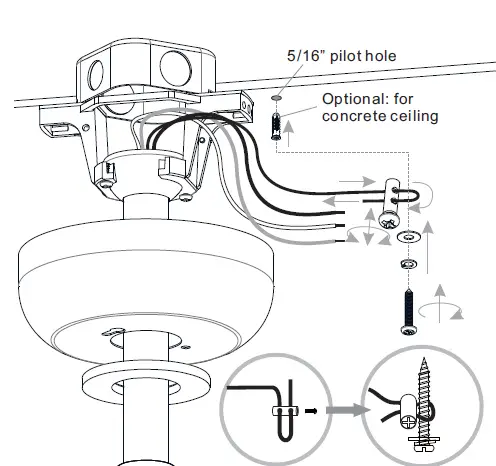

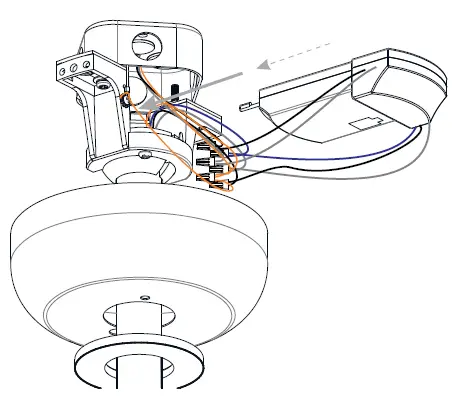

Install Safety CableWiringPlace Controller to Hanger FrameInstall Ceiling Canopy and Cap

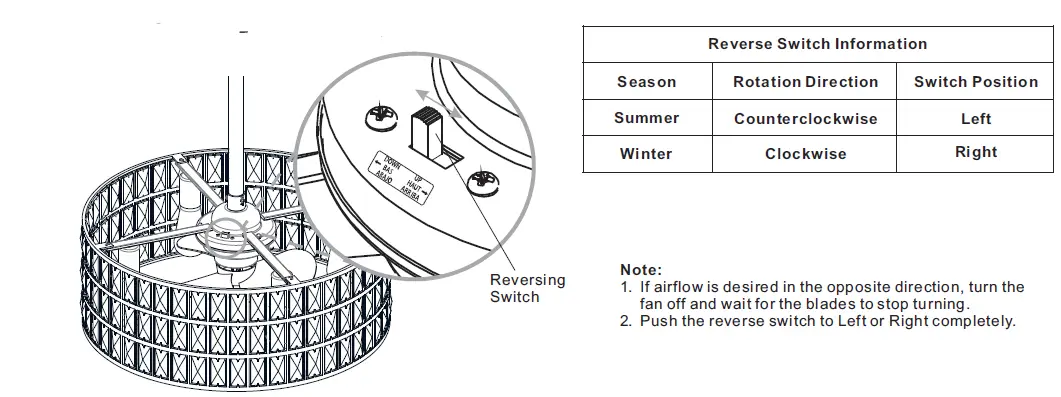

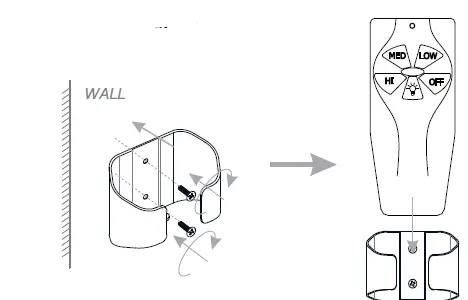

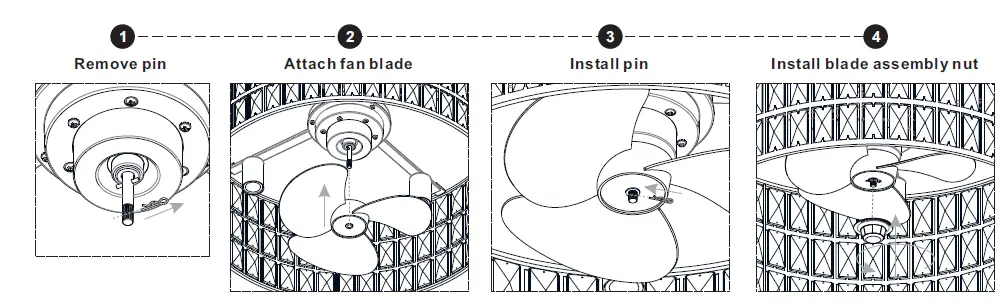

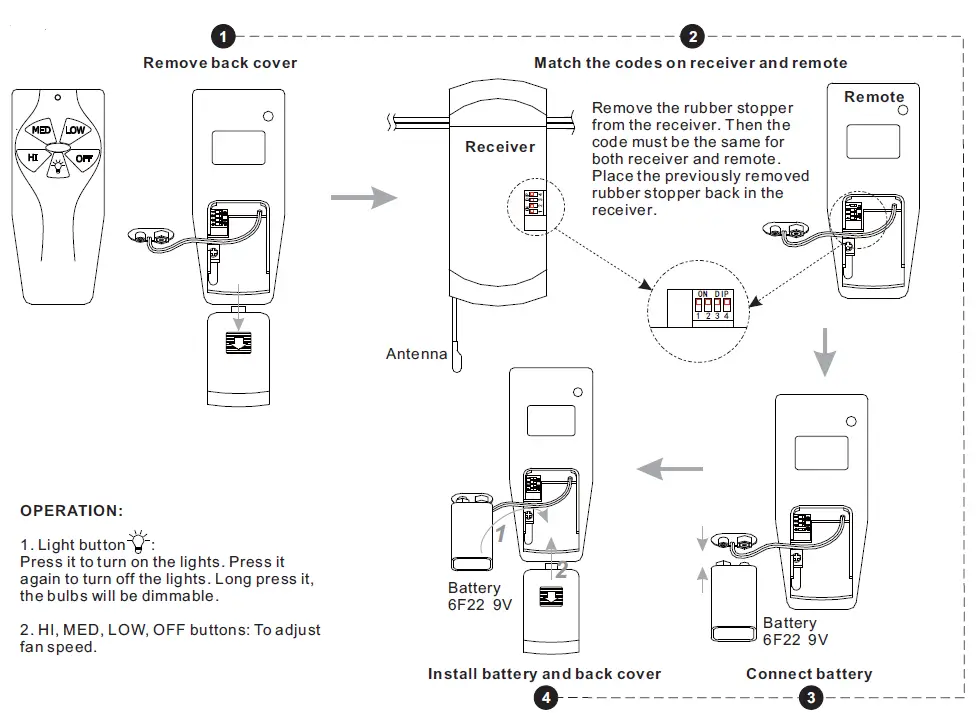

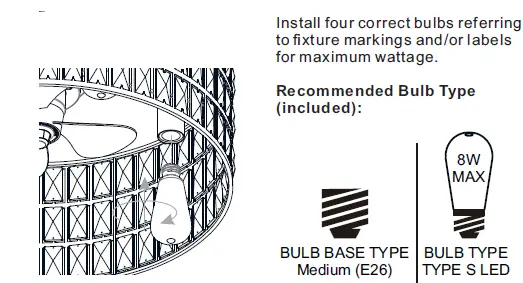

Install Fan BladeInstall BulbsInstall Wall Bracket Install Battery to Remote Control TransmitterReverse Fan Blade (Optional)Your installation is now complete! Restore electricity and save this sheet for future reference.
