Fellowes 9320301 Air Purifier For Mold User Guide (+ PDF)

Do not repair or modify the unit unless specifically recommended in this manual. All repairs should be completed by a qualified technician.
The plug for this unit is polarized with one blade wider than the other. Do not force the plug into an electrical outlet.
Do not alter the plug in any way. If the plug does not fit into the outlet, reverse the plug. If it still does not fit, contact a qualified technician to install a proper outlet.
Does not use if the power cord or plug is damaged or the connection to the wall outlet is loose.
Use AC 120V only.
Do not damage, break, forcefully bend, pull, twist, bundle, coat, pinch, or place heavy objects on the power cord.
Periodically remove dust from the power plug. This will reduce the chance that humidity will accumulate, which increases the risk of electric shock.
If the power plug is damaged, it must be replaced by the manufacturer or a qualified technician.
Remove the power plug from the outlet before cleaning the unit. When removing the power plug, grasp by holding the plug itself, never hold by the cord.
Remove the power plug from the outlet when the unit is not in use.
Do not handle the power plug with wet hands.
Do not operate the unit when using indoor smoke-generating insecticides.
Do not clean unit with benzene or paint thinner. Do not spray insecticides on the unit.
Do not use the unit where it is humid or where the unit may get wet, such as in a bathroom.
Do not insert fingers or foreign objects into the air intake or outlet.
Do not use the unit near flammable gases. Do not use near cigarettes, incense, or other spark-creating items.
Unit will not remove carbon monoxide emitted from heating appliances or other sources.
Do not block the intake or outlet vents.
Do not use near hot objects, such as a stove. Do not use where the unit may come into contact with steam.
Do not use the unit on its side.
Keep away from products that generate oily residue, such as a deep fryer.
Do not use detergent to clean the unit.
Do not operate without a filter.
Do not wash and reuse the True HEPA Filter.
Do not run power cord under carpets or cover with throw rugs.
When moving machine, always lift using handle.

PRODUCT SPECIFICATIONS

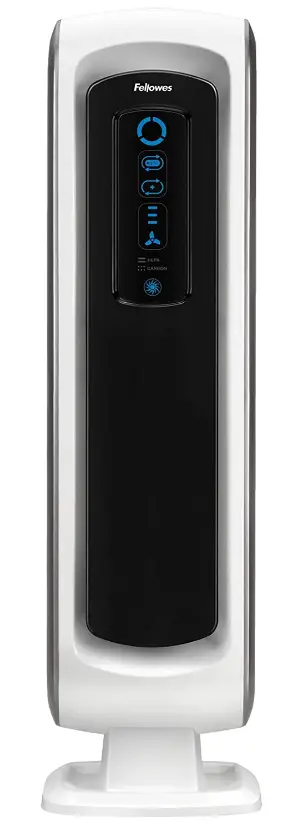

	AeraMax™ 100 Air Purifier
Room Area Served	100 sq. ft./8 sq. m.
Power Supply	AC 120V/60Hz
Power Rate	Low 37W, High 51W
Fan Speed	3 Speeds
Display	Touch Screen
Control Type	Auto/Manual/Aera+™
Air Quality Sensor	Yes
Filters	1 True HEPA Filter with AeraSafe™ Antimicrobial Treatment 1 Carbon Filter
Cleaning System	Carbon Filter True HEPA Filter with AeraSafe™ Antimicrobial Treatment PlasmaTRUE™
CADR	68 Smoke/ 65 Dust/ 75 Pollen
Color	White

FILTER SPECIFICATIONS

True HEPA Filter Replacement with AeraSafe™ Antimicrobial Treatment

9287001

Carbon Filter Replacement

9324001

INFORMATION TO THE USER

This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one more of the following measures:

Reorient or relocate the receiving antenna
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.

WARNING

Any changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment.

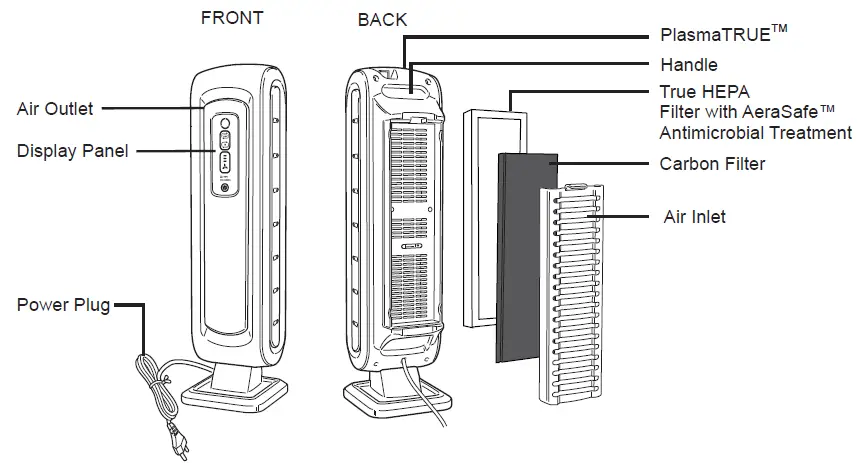

AIR PURIFIER FEATURES

ULTRA-QUIET OPERATION This Fellowes AeraMax™ Air Purifier has a three-speed fan with ultra-quiet operation that is ideal for 24 hour use.
EASY MAINTENANCE For optimum performance, replace the True HEPA Filter when the HEPA Filter indicator has changed to red, or approximately every 12 months under normal usage conditions. Change the Carbon Filter when the Carbon Filter indicator has changed to red or approximately every 3 months under normal usage conditions.
AERASMART™ SENSOR This air purifier is equipped with an air quality sensor that automatically adjusts the fan speed to keep your air purified. Blue, amber and red lights indicate the purity of your air.
THREE-SPEED SETTING From LOW for quiet, energy-efficient operation too HIGH for the most effective cleaning.
AERA+™ MODE Designed for peak allergy season conditions. Increases air turnover rate by 35% versus low fan setting mode to remove even more allergens from your air. Replacement Filter Indicator Lights Indicate when to replace the True HEPA Filter and Carbon Filter, depending on usage.

FOUR-STAGE PURIFICATION SYSTEM

Removes 99.97% of airborne pollutants.

CARBON FILTER Removes odors and captures large airborne particulates.
TRUE HEPA FILTER Captures 99.97% of particles as small as 0.3 microns, including ragweed and other allergens, viruses, germs, dust mites, mold spores, pet dander and cigarette smoke. AeraSafe™ Antimicrobial Treatment Built-in protection from the growth of odor causing bacteria, mildew and fungi on the True HEPA Filter.
PLASMATRUE™ TECHNOLOGY In the final stage of purification, Fellowes® PlasmaTRUE™ Technology creates an ionized field to help safely remove airborne pollutants.

NOTE: Follow these instructions for best results.

Place unit at least 2 feet (½ meter) from the wall.
Keep unit away from drafty areas.
Keep curtains away from unit, as they may interfere with air intake/outlet.
Place unit on a stable surface with plenty of air circulation.

Remove protective film from the control panel.

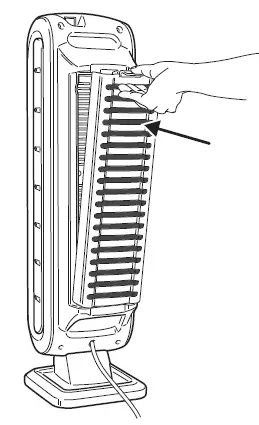

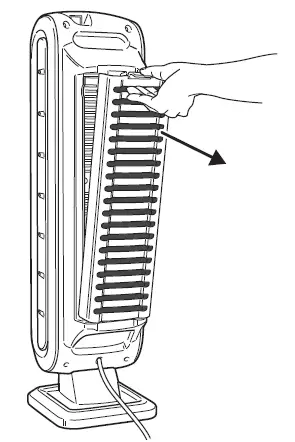

Compress tab and pull out back panel.

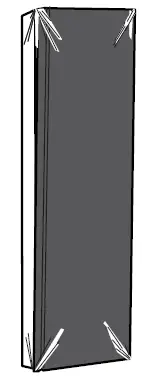

Remove bag from filters. Place filters back in unit.

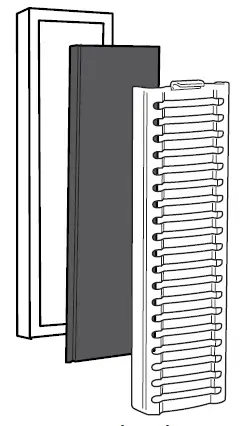

Insert Carbon Filter first and then True HEPA Filter.

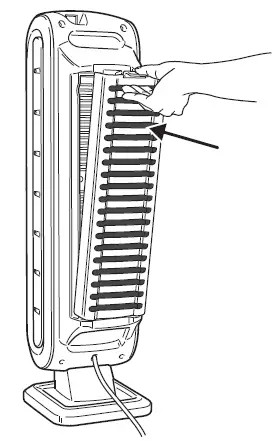

Fully insert filter panel bottom tabs first, then insert top tab until click is heard.
Plug in the power cord to a wall outlet.
Turn unit on. Unit will beep.

For approximately the first 4 minutes after turning the unit on, the auto icon will flash while the unit measures air quality.

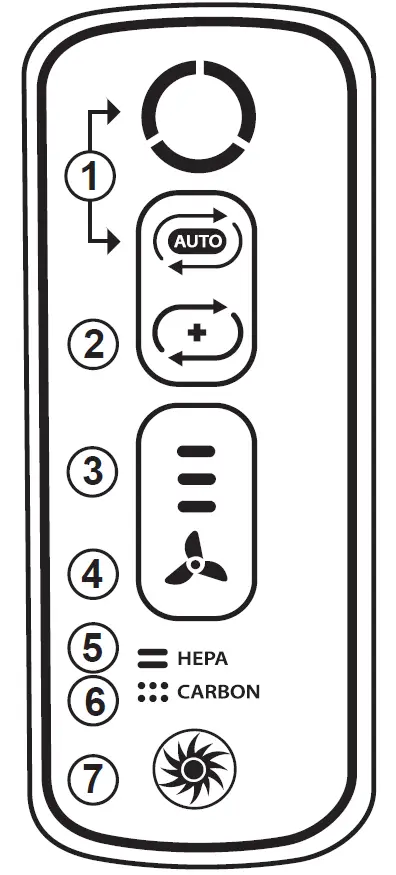

DISPLAY PANEL

AeraSmart™ SENSOR – Monitors the air quality and automatically adjusts the fan speed to keep your air purified. Blue, amber and red lights indicate the purity of your air. The unit is set to default to automatic operation when it is first turned on. If in manual operation, go back to auto at any time by pressing the auto icon.
Aera+™ MODE – Designed for peak allergy season conditions. Increases air turnover rate by 35% versus low fan setting mode to remove even more allergens from your air. Switch to Aera+™ mode by pressing the To return to auto operation, press the icon once more to turn off.
FAN SPEED INDICATOR – Shows current fan speed setting: low, medium or high speed.
MANUAL FAN SPEED ADJUSTMENT – Tap fan icon to manually select fan speed.
TRUE HEPA FILTER CHANGE INDICATOR – Amber and red lights indicate when to replace filter. The red indicator light will signal when to replace filter. (Recommended to replace filter every twelve months under normal usage conditions.) For replacement filters, see page 4.
CARBON FILTER CHANGE INDICATOR – Amber and red lights indicate when to replace filter. The red indicator light will signal when to replace filter. (Recommended to replace filter every three months under normal usage conditions.) For replacement filters, see page 4.
PlasmaTRUE™ TECHNOLOGY – Creates an ionized field to help safely remove airborne pollutants.

OPERATION

AUTOMATIC OPERATION

The unit is set to default to automatic operation when it is first turned on. The air purifier will automatically sense the amount of impurities in the air, and adjust the fan speed to keep your air purified.

MANUAL OPERATION

After you turn on the unit, you can switch to manual operation by tapping the fan icon to manually select the fan speed.

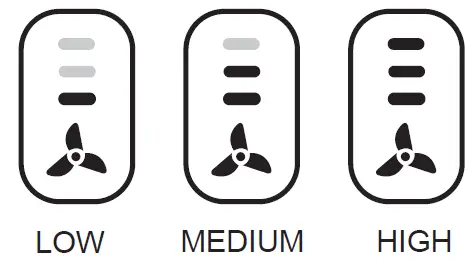

LOW, MEDIUM, OR HIGH SETTINGS

AERASMART™ SENSOR

Air quality indicator shows levels of air quality.

Blue level indicates air is clean.
Amber level indicates air quality is poor.
Red level indicates high level of pollutants in the air.

AERA+™ MODE

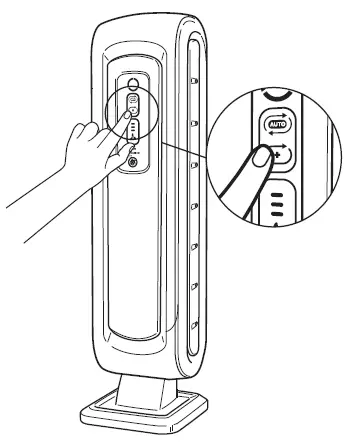

After you turn on the unit, you can switch to Aera+™ mode by pressing the Aera+™ mode icon. To go back to auto operation, press Aera+™ mode icon to turn off.

CARE AND MAINTENANCE

CLEANING

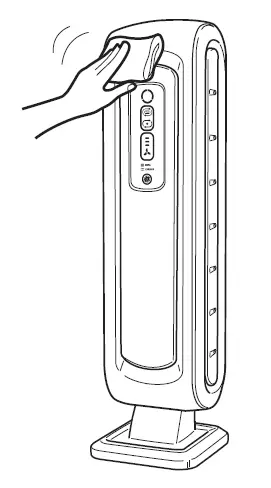

Clean unit as necessary by wiping with a dry, soft cloth; for stubborn stains, use a warm, damp cloth.
Do not use volatile fluids such as benzene, paint thinner, or scouring powder, as they may damage the unit surface.
Keep the unit dry.

FILTER REPLACEMENT

The replacement filter indicators will signal when to replace the True HEPA Filter and/ or Carbon Filter. The replacement period will vary depending on the hours of use and air quality. However, under normal usage, most True HEPA Filters need to be replaced annually, and Carbon Filters every three months.

Do not wash and reuse the True HEPA or Carbon Filters—they will not work effectively. Only use Fellowes brand AeraMax™ replacement filters.

WARNING: Before replacing any filters, make sure to remove the power plug from the wall outlet.

REPLACEMENT PROCEDURE

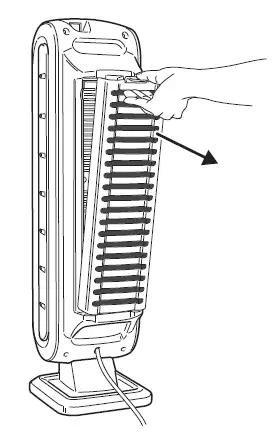

Compress tab and pull out back panel.
Pull out the filters that need to be changed.
Remove any packaging wrap from the new filter(s). For replacement filter part numbers, see page 4.
Place the new filters in the main unit. (True HEPA Filter should always be inserted first, then the Carbon Filter)

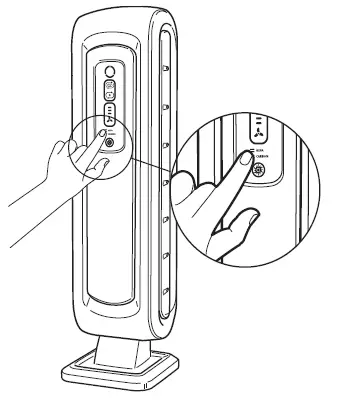

To reset the filter light once a new True HEPA and/or Carbon Filter is installed:
- Be sure that back panel is snapped in place.
- Turn on the unit.
- Locate the filter replacement icon on the display panel.
- Press and hold the filter replacement icon for 3 seconds until unit beeps. HEPA Filter icon will flash amber. Press filter icon area to alternate between HEPA and Carbon.
- Once desired filter is illuminated, press and hold for 3-5 seconds. A short beep will be heard and the light should turn off. Repeat process for each filter as needed.

TROUBLESHOOTING

BEFORE YOU CALL

SOLUTIONS TO COMMON PROBLEMS

Review this list before you call for service. This list covers problems that are not the result of defective materials or workmanship.

PROBLEM	POSSIBLE SOLUTION
The unit leaves smoke and odors in the air.	• Make sure the sensor is not blocked or clogged. • Move the unit closer to the offending odors. • Replace the filters as needed.
The unit seems to produce odors.	• Replace the filters as needed.
The unit makes a faint ticking sound.	• This indicates that the PlasmaTRUETM function is working.
The unit interferes with radio or television reception.	• Because this unit radiates radio frequency energy, we suggest you try one or more of the following: – For better reception, adjust the television/radio antenna. – Move the unit away from the affected television/radio. – Plug the unit power cord into an outlet different from the television/radio power cord.
The True HEPA and Carbon Filter indicators remain lit after replacing the True HEPA and/or Carbon Filter.	• Repeat filter light reset instructions from page 10.
The PlasmaTRUE™ icon is not illuminated.	• Touch and hold PlasmaTRUE™ icon for five seconds until unit beeps.
The wrong filter replacement light was reset.	• In the case of unintended filter reset, repeat the filter reset procedure on page 10 within 5 minutes of unintended reset. • The filter counter and indicator will return to the status previous to the reset.

Frequently Asked Questions

Do you like this item?

We love it! The filters are full of gunk when I replace them. Carbon filters last us about 3 months and the hepa filter about a year. We love it so much we bought a larger one for the living room. This one is kept in our bedroom. Allergy and asthma symptoms are definitely reduced using this air purifier.

Has anyone else noted the machine cycle normally and then jump from blue to red and staying there for too long a period without “rebooting”?

This is an old question but I just noticed it when ordering a new purifier. I’m answering in case someone more recently has same question. We’ve had this air purifier in my daughter’s bedroom for a couple of years now. We quickly noticed the light changing to red but it always coincides with a change in her room.

Does this unit create ozone? Some said it did and I could find out more.

This is directly from there website:

Does it do a good job w cigarette smoke

Not sure. I don’t smoke or allow smoking in my house.

can you turn off the ionizer?

Yes. Just press & hold the ionizer button for a few seconds and it will shut off. We leave the ionizer off all the time.

Can this kill mold hiding behind walls?

Only the air passing through the filtration system will be affected.

how often do you have replaced both carbon and HEPA filters? thank you.

The carbon filter should be replaced every 3 months, and the HEPA filter needs to be replaced once per year.

what are the dimensions of the Fellowes 9320301 Aeramax 100 Air Purifier with The HEPA filter?

27.25Hx7.25Wx8.5D.

Hi we have had this for a week and there is no fan running but lights keep changing every now and then from blue to red no filter lights on?

check the manual, the lights refer to air quality, you are probably set to the factory default position

How often do you change the filter in the purifier

Carbon filter is every three months. A red light went on one night, indicating the carbon filter needed to be changed. I changed it the next day. I’m told the HEPA filter is changed once a year. It’s very handy having the light come in, indicating what is needed.

I need one especially for animal dander. can you help?

Stronger the better. It has a Hepa filtration and is probably as good as you can do.

How bright is the display? Is there a setting to reduce the brightness for the bedroom?

There is no way to reduce the brightness of the display, but it doesn’t disturb me when I am trying to sleep.

can it be used with 220-240v current?

The 93203 is designed to be used in a 120V setting and should not be used in a 220-240V environment.

How quiet is it?

The unit is quiet. You barely hear the fan noise only when it is set to Level 3. Overall, very happy with the unit.

I already have two of this. Yes, it’s sensitive to chemical smells, however I’d like to understand what kind of sensor does it have, how does it work?

The units use a VOC sensor to detect contaminants in the air. As increased levels of contaminants are detected, the unit increases its fan speed, cleans the air until the level of contaminant is decreased, and then returns to the lower speeds. We hope this helps, but should you have any additional questions, please call our Customer Care Center at 1.800.945.4545, M-F, 7am-7pm, CST.
