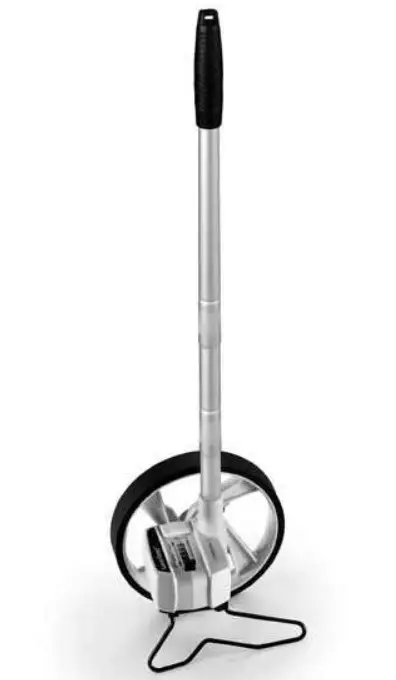

075.002A RollPilot Mini Mechanical Distance Measuring Wheel
Instruction Manual
Read the operating instructions and the enclosed brochure „Guarantee and additional notices“ completely. Follow the instructions they contain. Safely keep these documents for future reference.
Function/application

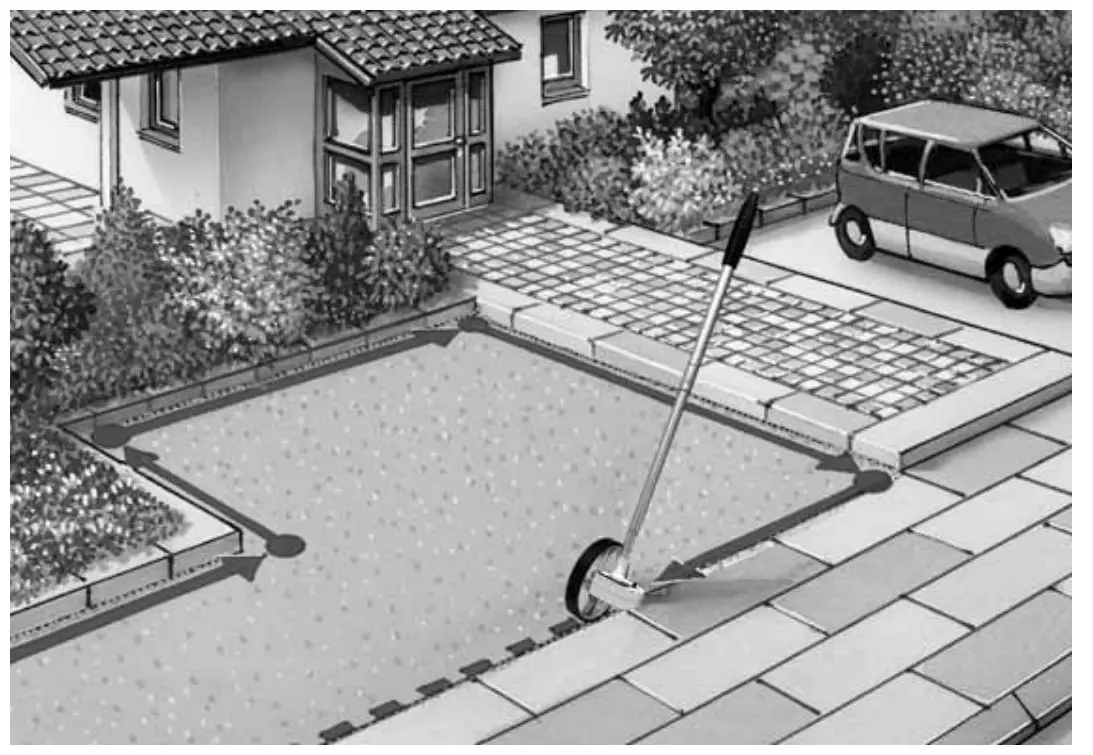

The mechanical distance measuring wheel is designed for use on straight lines and curves. The mechanical measuring wheel delivers accurate measured values when measuring distances of up to 9,999.9 m. The moving pointer shows the exact start and end positions. The telescopic handle makes the distance measuring wheel easy to carry.

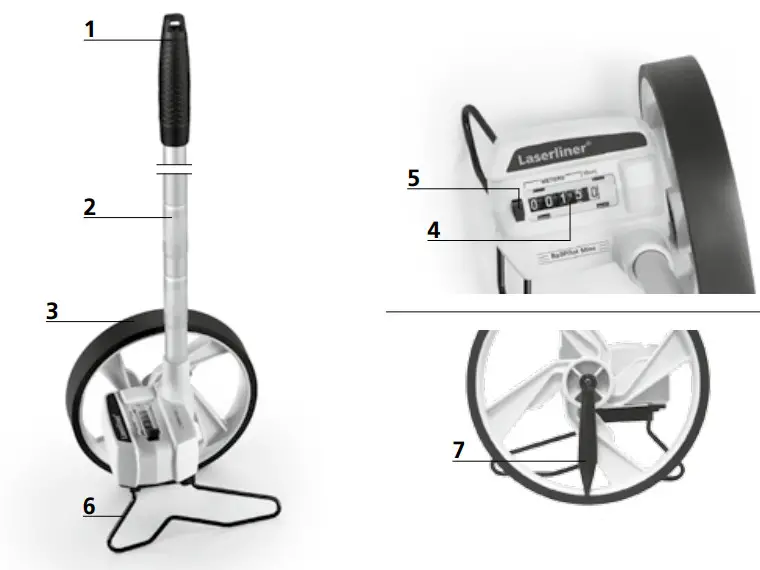

| 1. Non-slip handle | 5. Delete the measured value |
| 2. Telescopic handle | 6. Stand (fold-out) |
| 3. Measuring wheel with 0.5 m circumference | 7. Moving pointer for start and end position |
| 4. Mechanical counter |

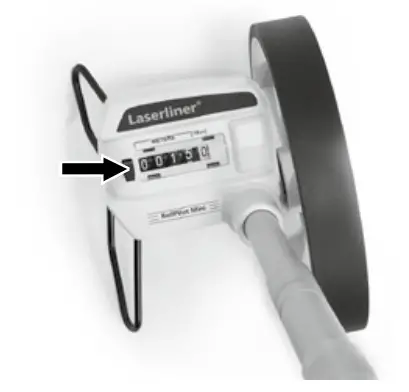

- Delete measured value
The mechanical counter is set to zero by pressing button 5.

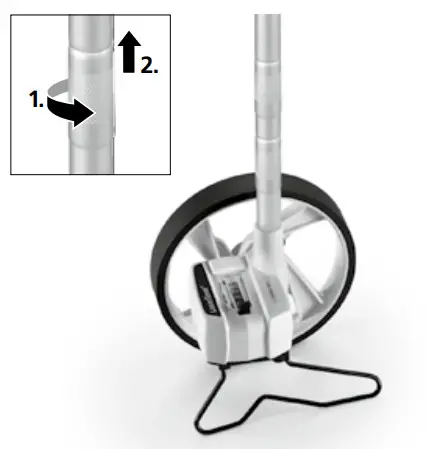

- Pull out telescopic handle
The height of the telescopic handle can be adjusted at two points.

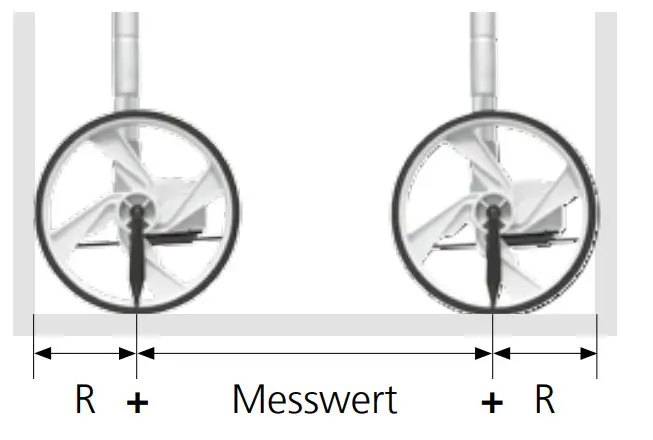

- To measure from wall to wall
1. Position the device with the rear of the measuring wheel against the wall.
2. Move the measuring wheel straight to the other wall.
3. Read off the measured value and add the diameter of the wheel.

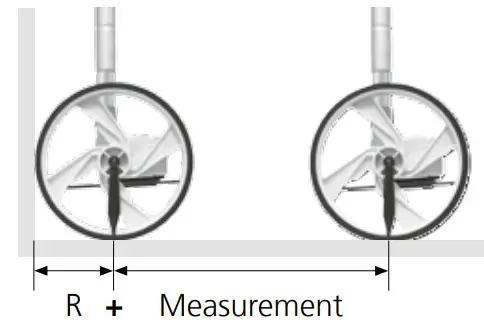

To achieve accurate measurement results, the guide bar must be held at the same angle during the entire measurement. A vertical position is recommended. - To measure from the wall to spot
1. Position the device with the rear of the measuring wheel against the wall.
2. Move the measuring wheel straight to the marked spot.
3. Read off the measured value and add the radius of the wheel.

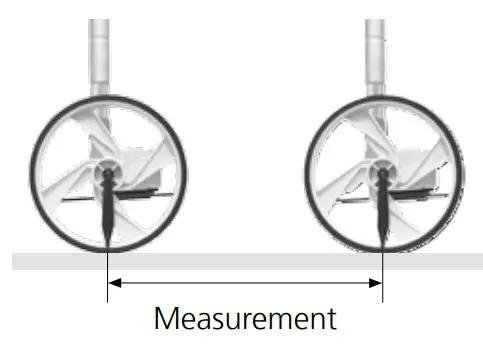

- To measure from spot to spot
1. Position the pointer (7) on the first marked spot.
2. Move the measuring wheel straight to the other marked spot.
3. Read off measured value.
Technical data
subject to technical alterations. 09.2014
| Accuracy | ± 0.1% |
| Range | 0 — 9,999.9 m |
| Circumference of measuring wheel | 500 mm |
| Measuring wheel diameter | 159 mm |
| Measuring wheel radius | 79.5 mm |
| Dimensions (W x H x D) | 124 x 1100 x 159 mm (extended) / 124 x 550 x 159 mm |
| Weight | 550 g |
EU directives and disposal
This device complies with all necessary standards for the free movement of goods within the EU.
This device can be recycled and contains reusable materials.
Therefore, appropriately dispose of the device at the end of its useful life – do not dispose of in the regular household waste.
Conforming to applicable regulations, have the device disposed of by a municipal or approved waste disposal company.
If in doubt, enquire with your municipal administration about correct and environmentally acceptable disposal facilities.
Further safety and supplementary notices at: www.laserliner.com/info
