Laserliner 075 005 Rollpilot S12 Measuring Wheel Instruction Manual

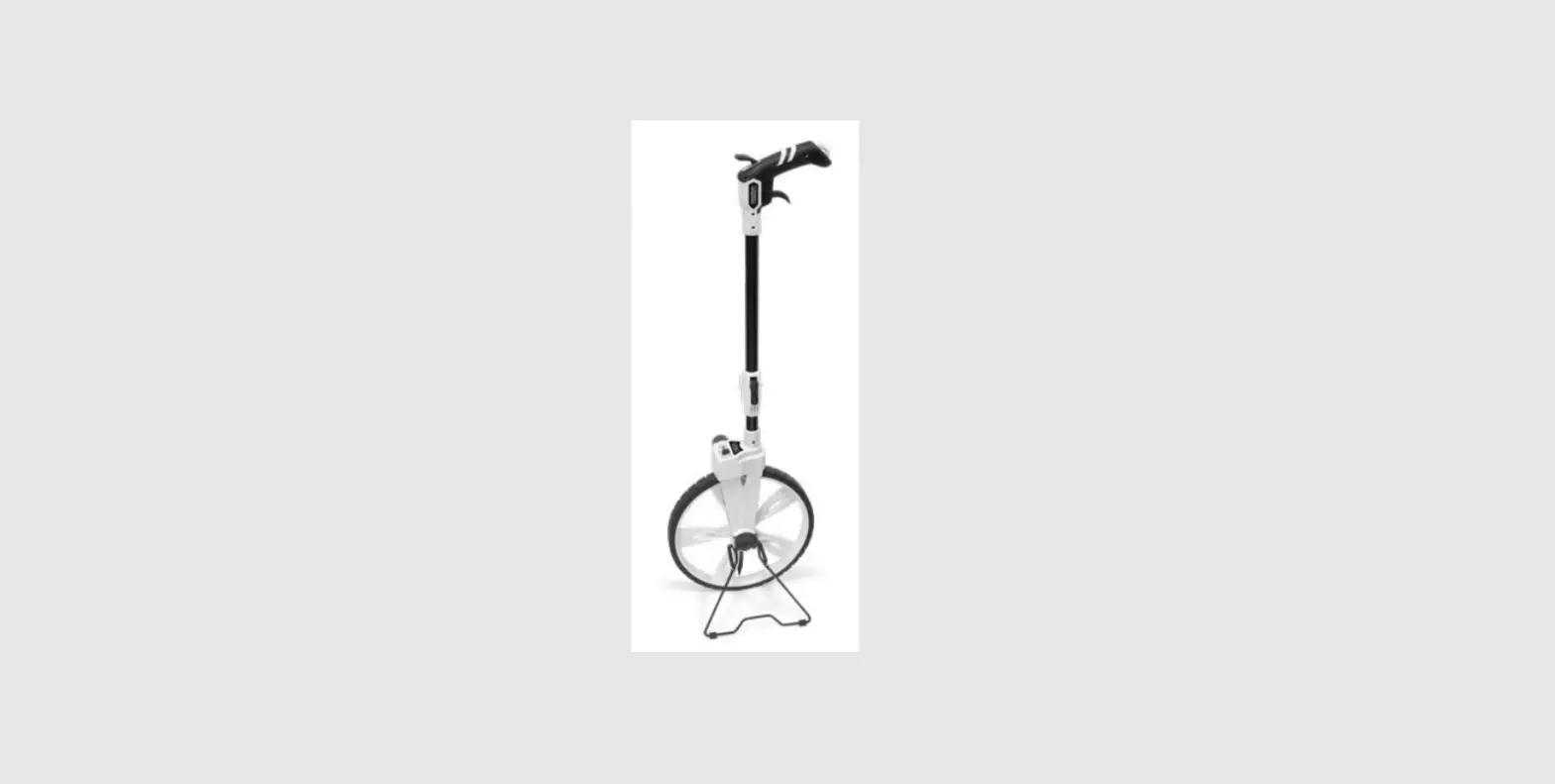

Laserliner 075 005 RollPilot S12 Measuring Wheel

Completely read through the operating instructions, the „Warranty and Additional Information“ booklet as well as the latest information under the internet link at the end of these instructions. Follow the instructions they contain. This document must be kept in a safe place and passed on together with the device.

Function / application

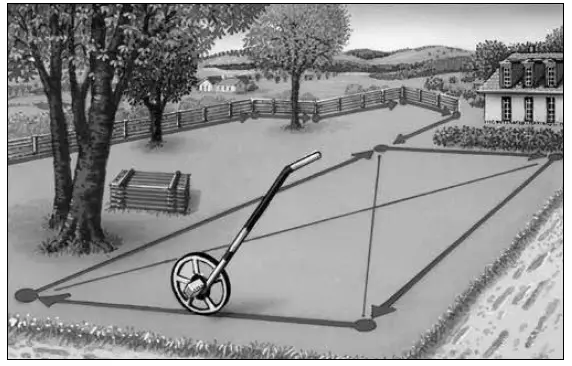

The mechanical distance measuring wheel is designed for use on straight lines and curves. The mechanical measuring wheel delivers accurate measured values when measuring distances of up to 9.999,9 m. The moving pointer shows the exact start and end positions. The folding design and transport case make the measuring wheel easy to carry.

General safety instructions

• The device must only be used in accordance with its intended purpose and within the scope of the specifications.
• Keep the measuring device away from children.
• The structure of the device must not be modified in any way.
• Do not expose the device to mechanical stress, extreme temperatures, or significant vibration.
• Avoid moisture and sand; clean thoroughly after use
• Note the risk of crashing when assembling from the transport position
• Please ensure compliance with the safety regulations set out by local and national authorities with regard to the correct and proper use of the device.

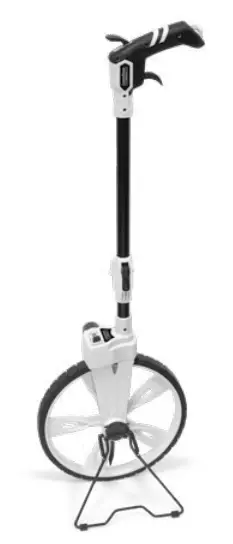

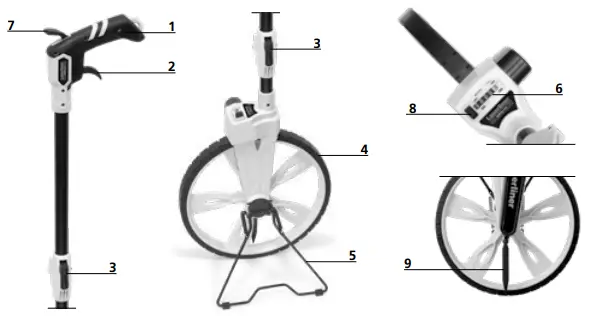

OVERVIEW

1. Non-slip handle
2. Lock measuring wheel
3. Locking lever
4. Measuring wheel with 1 m circumference
5. Stand (fold-out)
6. Mechanical counter
7. Delete measured value
8. Delete measured value
9. Moving pointer for start and end position

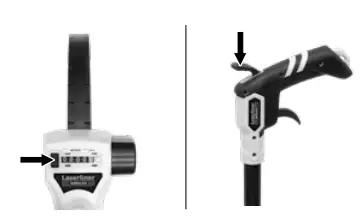

Delete measured value

The mechanical counter is set to zero by pressing button 7 or lever 8.

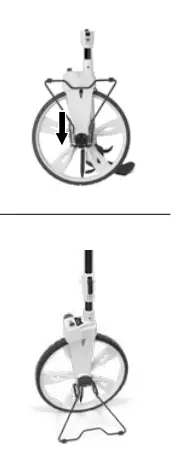

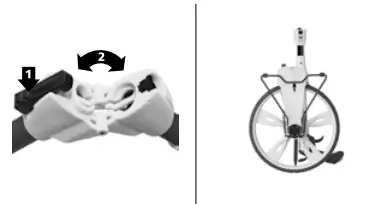

Fold for carrying

Fold out the stand

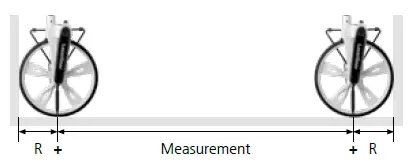

To measure from wall to wall

1. Position the device with the rear of the measuring wheel against the wall.
2. Move the measuring wheel straight to the other wall.
3. Read off the measured value and add the diameter of the wheel.

To achieve accurate measurement results, the guide bar must be held at the same angle during the entire measurement. A vertical position is recommended.

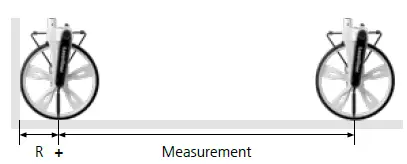

To measure from the wall to spot

1. Position the device with the rear of the measuring wheel against the wall.
2. Move the measuring wheel straight to the marked spot.
3. Read off the measured value and add the radius of the wheel.

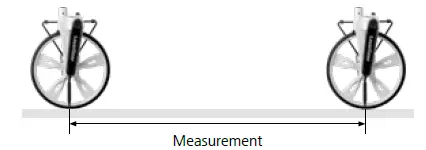

To measure from spot to spot

1. Position the pointer (9) on the first marked spot.
2. Move the measuring wheel straight to the other marked spot.
3. Read off measured value.

Information on maintenance and care

• Clean all components with a damp cloth and do not use cleaning agents, scouring agents and solvents.
• Store the device in a clean and dry place.

Calibration

• The meter needs to be calibrated and tested on a regular basis to ensure it produces accurate measurement results. We recommend carrying out calibration once a year.

EU directives and disposal

This device complies with all necessary standards for the free movement of goods within the EU. This product is an electric device and must be collected separately for disposal according to the European Directive on waste electrical and electronic equipment.

Further safety and supplementary notices at: http://laserliner.com/info?an=AET
