Laserliner 081150 Superline-laser 360 Degree Rx 30 Cross Line Laser Red With Receiver Instruction Manual

SuperLine-Laser 360°

Read the operating instructions and the enclosed brochure „Guarantee and additional notices“ completely. Follow the instructions they contain. This document must be kept in a safe place and if the laser device is passed on, this document must be passed on with it.

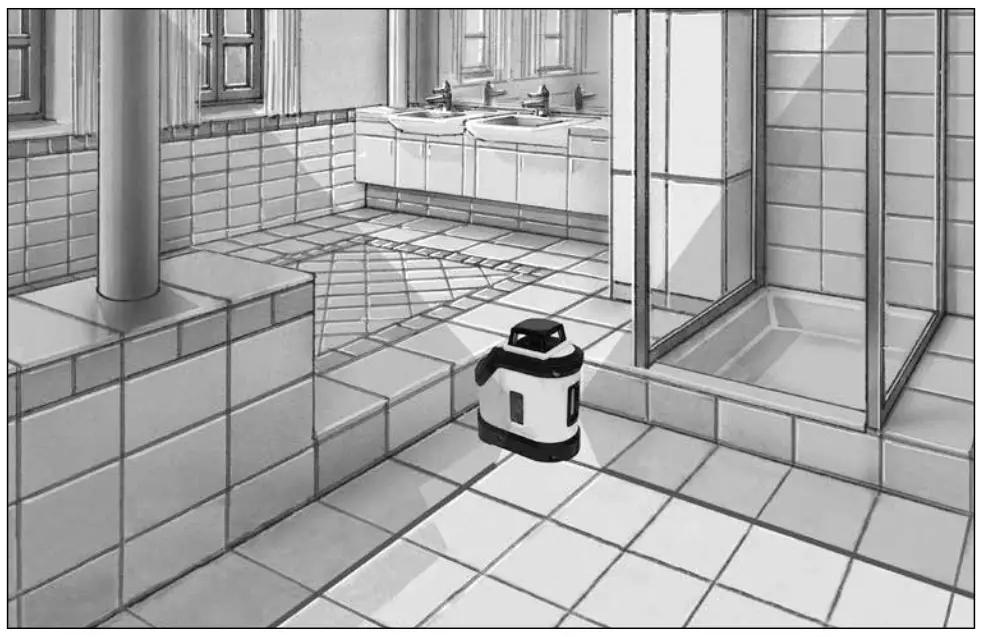

Automatic laser with horizontal 360° laser circle, 2 vertical lines, and slope function

• The horizontal laser line creates a continuous 360° laser line with the vertical lines aligned perpendicular to it. Ideal for almost any alignment job.
• The 2 vertical lines are aligned at right angles to one another.
• Individually switchable laser lines
• Out-Of-Level: is indicated by optical signals when the unit is outside its self-leveling range.
•  Additional slope function to align the angled surface

General safety instructions

• The device must only be used in accordance with its intended purpose and within the scope of the specifications

Laser radiation!
Do not stare into the beam!
Class 2 laser
< 1 mW · 650 nm
EN 60825-1:201

• Attention: Do not look into the direct or reflected beam.
• Do not point the laser beam towards persons.
• If a person‘s eyes are exposed to class 2 laser radiation, they should shut their eyes and immediately move away from the beam.
• Under no circumstances should optical instruments (magnifying glass, microscope, binoculars) be used to look at the laser beam or reflections.
• Do not use the laser at eye level (1.40 … 1.90 m)
• Reflective, specular, or shiny surfaces must be covered whilst laser devices are in operation.
• In public areas shield off the laser beam with barriers and partitions wherever possible and identify the laser area with warning signs.
• Tampering with (making changes to) the laser device is not permitted.
• This device is not a toy – keep it out of the reach of children.

Special product feature

Automatic alignment of the device with a magnetically dampened pendulum system.
The device is brought into the initial position and aligns itself autonomously.
Transport LOCK: The device is protected with a pendulum lock during transport.
Devices with PowerBright technology have special high-performance diodes to produce super bright laser lines These remain visible over longer distances, in bright ambient light, and on dark surfaces.
RX-READY technology enables line lasers to be used even in unfavorable light conditions.
The laser lines pulsate at a high frequency and this can be picked up by special laser receivers over long distances.

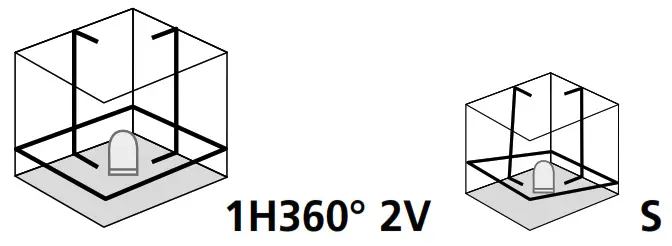

Number and direction of the lasers
H = horizontal laser / V = vertical laser / S = Slopefunctio

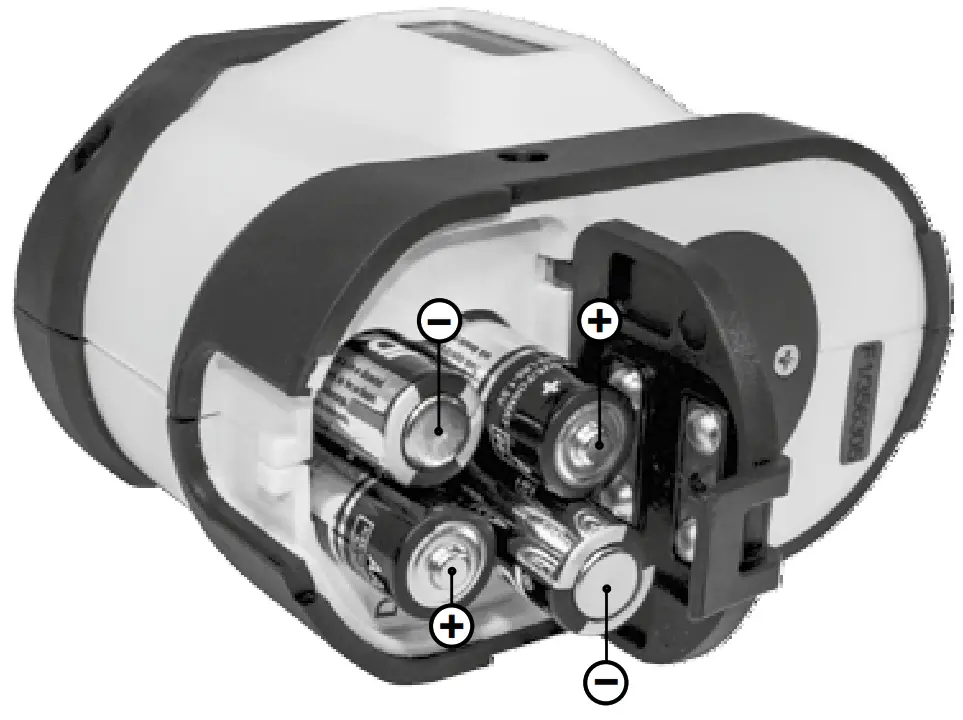

1. Inserting the batteries
   Open the battery compartment (2) and insert the batteries in accordance with the installation symbols, ensuring the correct polarity.

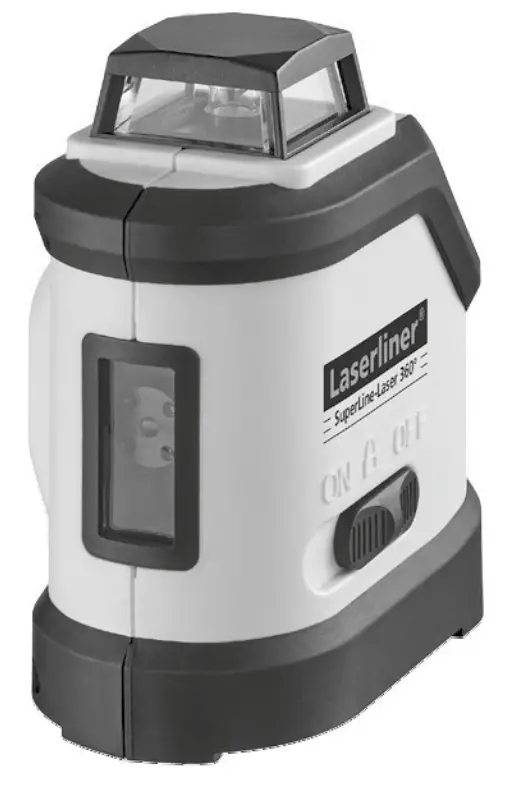

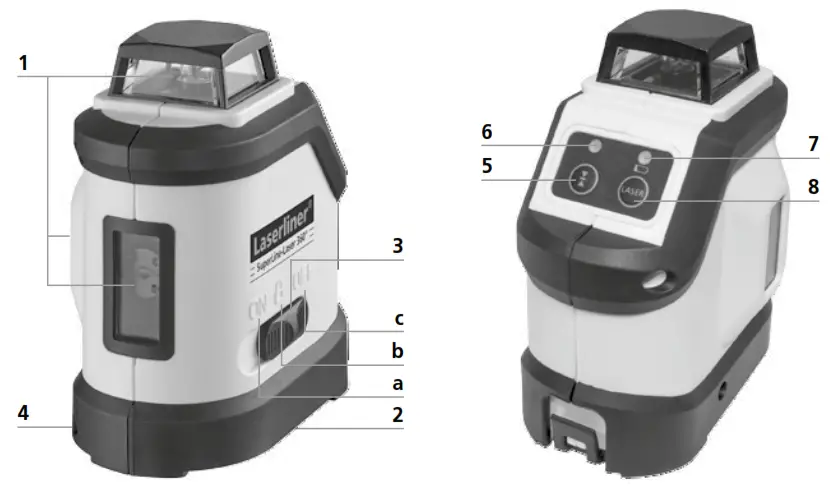

   1 Laser emitting window 2 Battery compartment (bottom) 3 Slide switch an ON b Slope mode c OFF / Transport lock

   4 1/4“ tripod threads (bottom) 5 Hand receiver mode 6 LED Hand receiver mode

   7 LED status indicator (the LED lights red  when the battery charge is low) 8 Laser line selection button

2. Horizontal and vertical leveling
   Release the transport restraint, and set slide switch (3) to „ON“. The horizontal laser line appears.

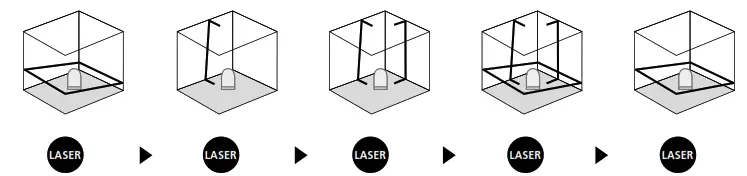

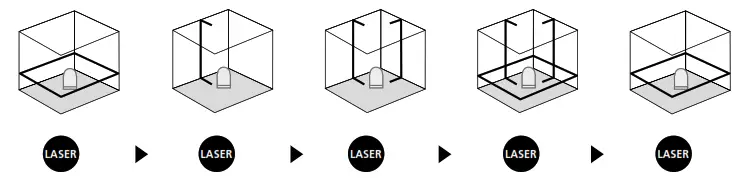

   The laser lines can be switched individually with the selection button.
   The transport restraint must be released for horizontal and vertical leveling. The laser lines flash when the device is outside the automatic leveling range of 3°. Position the device such that it is within the leveling range.
3. Slope mode
   Do not release the transport restraint, set slide switch (3) to the mid-position, and select the lasers with the selector switch. Sloping planes and tilts can now be measured. In this mode, the laser lines no longer align automatically. This is signalized by the laser lines flashing.
4. Hand receiver mode
   Optional: Working with the laser receiver RX
   Use an RX laser receiver (optional) to carry out leveling at great distances or when the laser lines are no longer visible.
   To work with a laser receiver, switch the line laser to a hand-held receiver mode by keeping button 5 (hand-held receiver mode on / off) pressed.
   The laser lines will now pulsate with high frequency, making the laser lines darker. The laser receiver can detect these pulsating laser lines.
   Follow the operating instructions of the corresponding laser receiver.

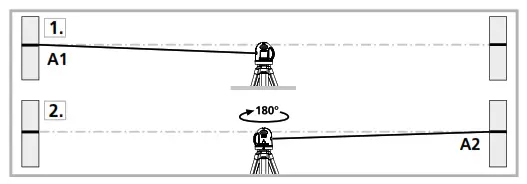

Preparing the calibration check:
It is possible for you to check the calibration of the laser. To do this, position the device midway between 2 walls, which must be at least 5 meters apart. Do this by turning the unit on, thus releasing the transport restraint (cross laser on). Please use a tripod.

1.  Mark point A1 on the wall.
2. Turn the device through 180° and mark point A2. You now have a horizontal reference between points A1 and A2.

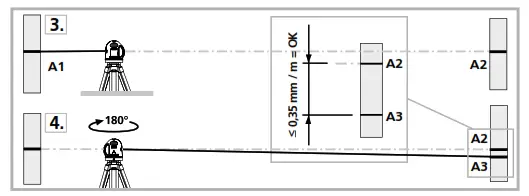

   Performing the calibration check:
3. Position the device as near as possible to the wall at the height of point A1.
4. Turn the device through 180° and mark point A3. The difference between points A2 and A3 is the tolerance.

 When A2 and A3 are more than 0.35 mm / m apart, an adjustment is necessary.
Contact your authorized dealer or else the UMAREX-LASER LINER Service Department.
Checking the vertical line:
Position the device about 5 m from a wall. Fix a plumb bob with a line of 2.5 m length on the wall, making sure that the bob can swing freely. Switch on the device and align the vertical laser to the plumb line. The precision is within the specified tolerance if the deviation between the laser line and the plumb line is not greater than ± 1.75 mm.

Checking the horizontal line:
Position the device about 5 m from a wall and switch on the cross laser. Mark point B on the wall. Turn the laser cross approx. 2.5 m to the right and mark point C. Check whether the horizontal line from point C is level with point B to within ± 1.75 mm. Repeat the process by turning the laser to the left.

Regularly check the adjustment before use, after transport, and after extended periods of storage.

Technical data

(Subject to technical alterations. 03.17)

EU directives and disposal
This device complies with all necessary standards for the free movement of goods within the EU.
This product is an electric device and must be collected separately for disposal according to the European Directive on waste electrical and electronic equipment.
Further safety and supplementary notices at: http://laserliner.com/info?an=sulilas360
