Tall L-Shaped Raised Garden Bed Kit
Instruction Manual
(Note: This manual is designed for all L•Shaped Raised Garden Bed Kits, and the variety of parts & quantity will vary depending on the model that was purchased )
CAUTION: Please be aware that there are sharp metal edges. The use of protective equipment such as gloves and closed-toe shoes is recommended.
CHOKING HAZARD: Small parts. Keep product away from children.
Assembly Guide
Remove Protective Film
Remove protective films from all panels, and lay panels on a flat surface according to the L-shaped configuration.
Assemble Straight Panels
Cap nuts are used for the top 2 rows, standard nuts are used for the lower 4 rows. Assemble all straight panels: initially attach all washers and nuts loosely, and then tighten up using the included hand wrench and a screwdriver/cordless doll.
Tighten Nuts & Bolts
Make sure to tighten each nut and bolt for reinforcement of the garden-raised bed.
Attach Corner Panels
After straight panels are assembled, attach corner panels to straight panels using the same method. Make sure corner panels are attached to the outside of the straight panels. (Please refer to the Bracing Rod Installation Guide for rod assembly instructions.)
After all straight and corner panels
Attach the angled Joint panel to the straight panels using the same method. Make sure to attach the straight panels outside of the angled joint panel. (Please refer to the Bracing Rod Installation Guide for rod assembly instructions.)
Safety Edging
Push the safety edging down along the top rolled steel edge, covering the perimeter of the bed, and cut on the extra length. Make sure the edging is attached securely.
Complete
Congratulations on completing the assembly! We are sure there are more configurations you can make with your great imagination!

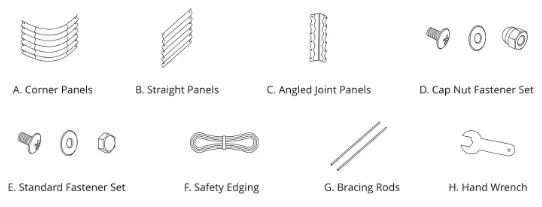

Parts List
(This general manual applies to all Vego Garden-shaped garden beds. The package of a product model may not contain all the parts below. The number of parts for each product model may vary.)
Bracing Rod Installation Guide
Bracing Rods
Vego Garden bracing rods are used to reinforce the structure of oversized raised beds. I r Tall L• Shaped Raised Garden Bed Kits include 2.5ft bracing rods.
Bracing Rod Installation
Install bracing rods in the 4th bolt holes from the top, making sure the rods are in parallel holes. Attach bolt, panel, washer, and rod loosely, then tighten the bolts with the included hand tool for reinforcement.
Note: Bolts and washers used for rod installation are the same as those used to assemble the panels of the raised bed.
Reference Pictures

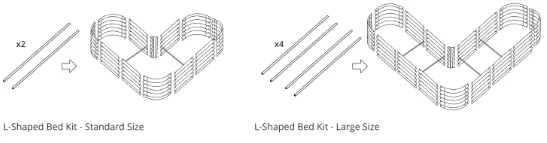

Configurations
L-Shaped Bed Kit – Standard Size
- Length: 5.5 ft
- Width 5.5 ft
- Height: 17 in
- Growing Area: 21 sqft
- Cubic Feec 30
- Cubic Yard: 1.1
L-Shaped Bed Kit – Large Size
- Length: 7 ft
- Width: 7 ft
- Height 17 in
- Growing Area: 29 sqft
- Cubic Feet 41
- Cubic Yard: 1.5

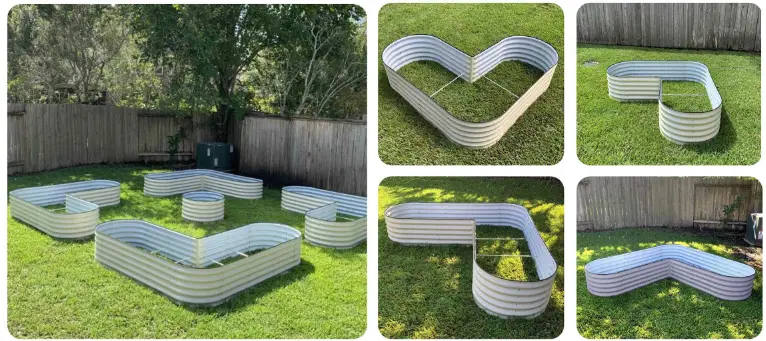

Product Photo
