HYCO O188 Wireless Ring Controller

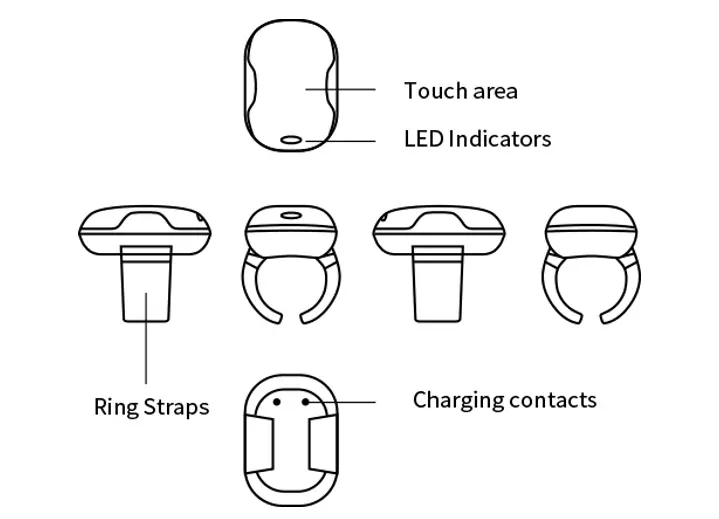

Design
Components
| Components | Quantity |
| Wireless Ring Controller | 1 |
| All-purpose USB Cable (Long) | 1 |
| Magnetic Cable (Short) | 1 |
| Charging Storage Box | 1 |
| User Manual | 1 |
Specifications
| Model | O188 |
| Weight | 10g (excluding the charging storage box) |
| Dimensions (W*D*H) | 32.9mm*23.7mm*29.9mm |
| Ring Straps | Elastic and adjustable to fit different finger sizes |
| Touch Keys | Forward, back, click, double-click |
| Bluetooth | Bluetooth V5.1+BR+EDR+BLE |
| BT Transmission Distance | >10 m |
| LED Indicators | RGB LED (programmable) |
| Battery (Rechargeable) | [email protected] |
| Charging Time | 2.5 hours |
| Charging the Controller | Portable charging storage box |
| Box Battery | [email protected] |
| Charging the Box | Micro USB |
| Battery Life | 24 hours |
| IP Level | IP54 |
| Operating Temperature | -10℃ to 50℃ (14℉ to 122℉) |
| Humidity | 0%-95%RH (non condensing) |
Instruction

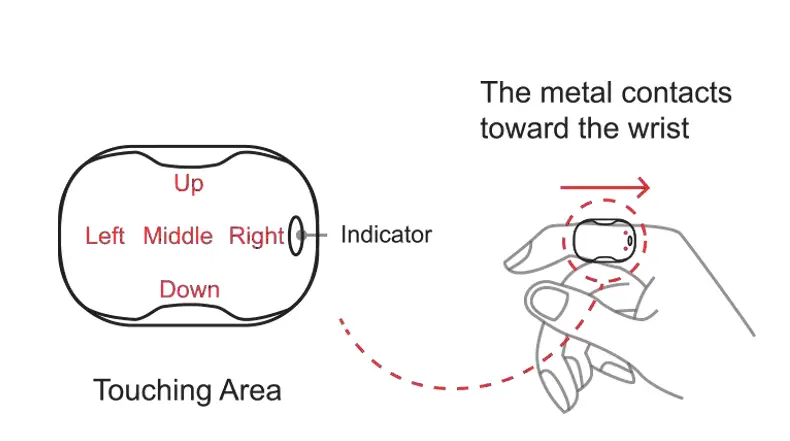

- How to wear O188
- Wear O188 on the forefinger and make sure the metal contacts toward the wrist, andthe top part is the touch area
- Wear O188 on the forefinger and make sure the metal contacts toward the wrist, andthe top part is the touch area

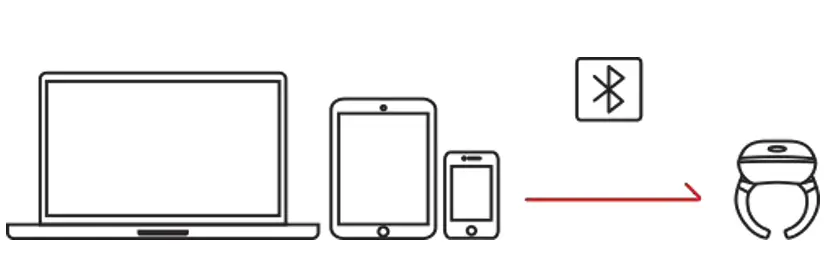

- Bluetooth connection
- Enable Bluetooth, search and click “O188” to match. Once connected, O188 canbeactivated successfully.
- Enable Bluetooth, search and click “O188” to match. Once connected, O188 canbeactivated successfully.

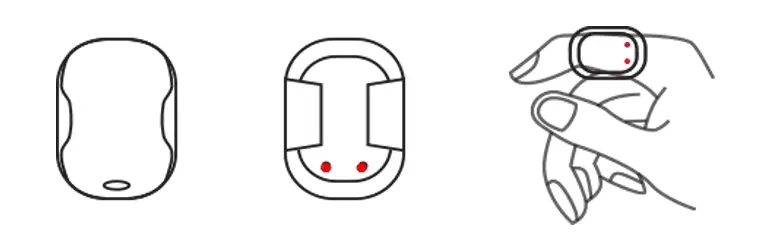

- How to charge O188
- Before charging, make sure the O188 charging contacts touch the contacts in thestorage box. Red light blinking indicates that O188is being charged, and green light will blink after O188 is fully charged
- Before charging, make sure the O188 charging contacts touch the contacts in thestorage box. Red light blinking indicates that O188is being charged, and green light will blink after O188 is fully charged
How to use
Two indicator modes are purple and yellow. Touch and hold the middle area to switching modes:

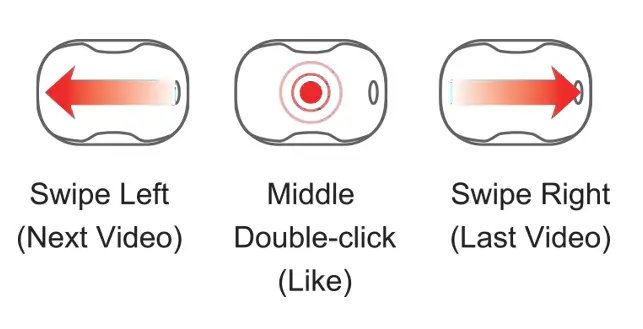

- Short video browsing

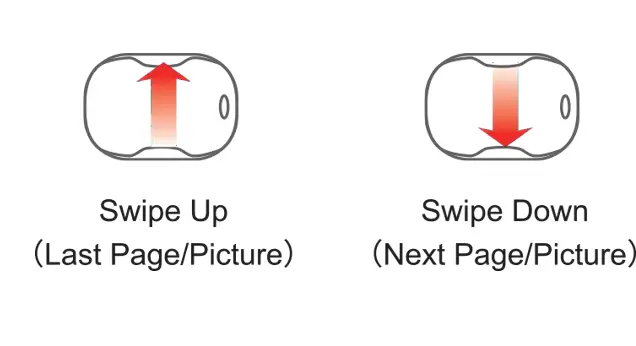

- Reading e-books/previewing photos (page sliding)
- Remote Camera
- Screenshot
Yellow mode

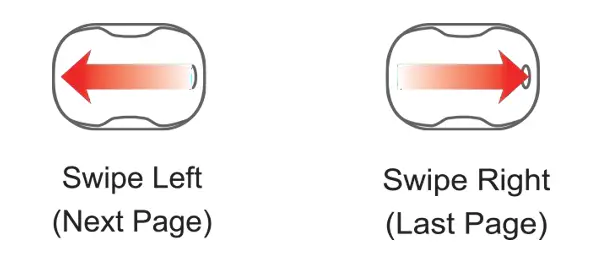

PPT page sliding
O188 Box Indicators
- Green light flashes: battery full
- Yellow light flashes: battery half
- Red light flashes: battery low
- Red light on: charging
O188 Indicators
- Double red light flashes: battery low
- Red light flashes: charging
- Green light flashes: charging finished
Service
Warranty: one year for O188, and 6 months for battery, charging box and other parts(free maintenance within one year, except for human factors).
HYCO Technology
- Website: www.hycoiot.com
- Email: [email protected]
- Phone Number: +86 15201965826
