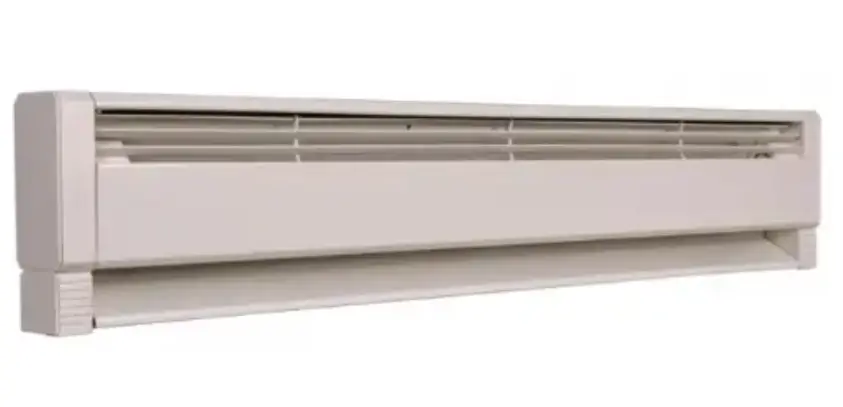

FAHRENHEAT PLF504 PLF Hydronic Electric Baseboard Heaters
THE HYDRONIC STORY

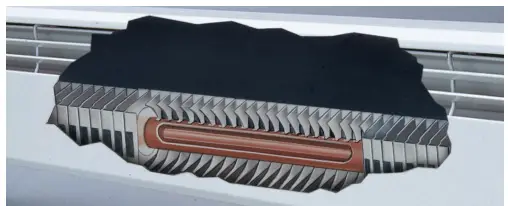

The electric heating element is partially submerged in an inert heat transfer fluid totally sealed in a large 7/8″ diameter copper tube spanning the length of the heater. This thermal mass transfers heat evenly across the entire length of the heater. The PLF series provides uniform warmth with longer heat retention and minimal temperature variation.
For optimum performance, use a wall mounted digital thermostat to maintain comfortable room temperature.
APPLICATIONS INCLUDE:
- NEW HOME CONSTRUCTION
- REMODELING OR ROOM ADDITIONS
- APARTMENTS
- CONDOS
- LIGHT COMMERCIAL
EFFICIENT HEAT DISSIPATION
- LARGE ALUMINUM HEATING FINS DELIVER ASTEADY CONVECTION FLOW
EASY INSTALLATION
- HEATER MOUNTS FLUSH TO WALL AND FLAT ON WOOD, TILE, OR CARPET
- PRE-NOTCHED GUIDE MARKS IN CABINET REAR
- POWER SUPPLY CONNECTION CAN BE MADE AT EITHER END OF BASEBOARD
SAFE OPERATION
- LOW OPERATING SURFACE TEMPERATURES
- SAFETY CUTOUT SHUTS DOWN HEATER IN THE EVENT OF OVERHEATING
BRAND YOU KNOW AND TRUST
- 10-YEAR LIMITED WARRANTY ON ELEMENT
- OVER FOUR DECADES OF ELECTRIC HYDRONIC EXPERIENCE
SELECTION CHART
| catalog Number | upc 6 85360 | volts | watts | btu/hr | amps | leNgth | ship WEIGHT (lbs.) |
| pLf500 | 03577 2 | 120 | 500 | 1706 | 4.2 | 28 inches | 10 |
| pLf504 | 03578 9 | 240/208 | 500/375 | 1706/1280 | 2.1/1.8 | 28 inches | 10 |
| pLf750 | 03581 9 | 120 | 750 | 2560 | 6.3 | 34 inches | 12 |
| pLf754 | 03582 6 | 240/208 | 750/563 | 2560/1921 | 3.1/2.7 | 34 inches | 12 |
| pLf1000 | 03562 8 | 120 | 1000 | 3413 | 8.3 | 46 inches | 15 |
| pLf1004 | 03563 5 | 240/208 | 1000/750 | 3413/2560 | 4.2/3.6 | 46 inches | 15 |
| pLf1250 | 03566 6 | 120 | 1250 | 4265 | 10.4 | 58 inches | 19 |
| pLf1254 | 03567 3 | 240/208 | 1250/938 | 4265/3200 | 5.2/4.5 | 58 inches | 19 |
| pLf1500 | 03570 3 | 120 | 1500 | 5120 | 12.5 | 70 inches | 22 |
| pLf1504 | 03571 0 | 240/208 | 1500/1125 | 5120/3839 | 6.3/5.8 | 70 inches | 22 |
| pLf2004 | 03574 1 | 240/208 | 2000/1500 | 6826/5120 | 8.3/7.2 | 94 inches | 30 |
| Accessories | |||||||
| CATALOG | upc | SHIP | |||||
| NUMBER 6 85360 DESCRIPTION WEIGHT (lbs.) PT2DS 04606 8 25 amp @ 120-277 vac, Double pole snap action thermostat assembly. comes assembled to end cap 1 | |||||||
FEATURES
- Hydronic Element
- Built-in wireway
- Durable texture polyester powder coat finish
- Heavy-duty steel louvered grilles discourage insertion of foreign objects and direct heat outward
- Large wiring compartment

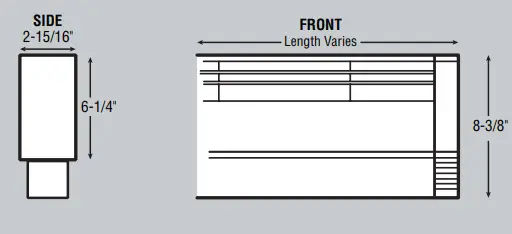

DIMENSIONS
All knockouts are 7/8 ” diameter for 1/2″ conduit
www.fahrenheatpro.com
Fahrenheat | Marley Engineered Products
