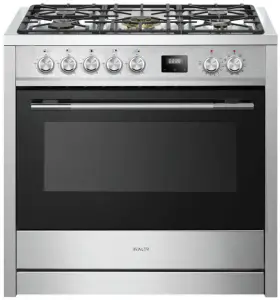

INALTo IUC9010S 90cm Freestanding Dual Fuel Cooker
OVEN MODES EXPLAINED
 | Light: This turns on the two oven lamps |
 | Bake (Conventional): Heat will come from both the upper and lower elements |
 | Fan Forced: This uses the central rear heating element and fan to distribute heat evenly. |
 | Fan Bake: This uses the fan along with the upper and lower elements. |
 | Fan Forced Bake: This uses the central rear heating element and fan, combined with the bottom element. |
 | Roast (Fan Grill): Fan combined with the upper element and grill element |
 | Full Grill: Upper element combined with outer grill element. |
 | Half Grill: The grill heating element by itself. |
 | Pastry Bake + Pizza: The fan circulates heat from the lower element throughout the oven. |
 | Defrost: The oven fan circulates the air at room temperature around the cavity, enabling you to quickly defrost food. |
THE CONTROL PANEL
- Cooktop Zone Controls Use these knobs to control the corresponding indicative cooktop burner areas.
- Programmable Timer Use these controls to set a timer, cooking duration, or adjust the clock. Please refer to page 9 in the user manual for more details.
- Temperature Controls Temperature Controls: Use this control to select a temperature between 60°C and Max.
- Mode Selector Use this knob control to select the type of oven cooking mode.
INSTALLATION
- Please refer to pages 46 of the user manual for general safety instructions.
- For a complete installation guide, refer to the Installation Instructions in the user manual pages 2127.
DETAILS
Dimensions (W, D, H mm): 900 × 600 × 900960
Warranty: 2 Years
SUPPORT
Telephone: 1300 11 4357
Email: [email protected]
