00201683 QI-FC10 Wireless Charger
Instruction Manual

Operating instruction

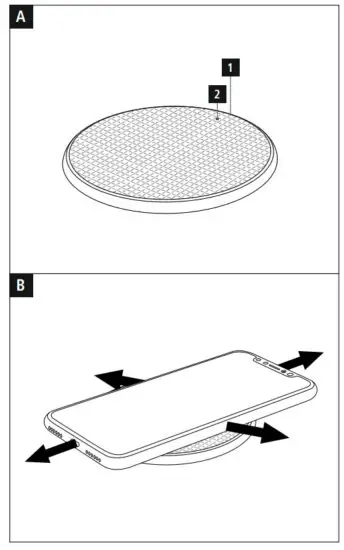

Controls and displays

1. USB-C input
2. Status LED

LED function indicator

1)The display at the end of charging may differ on some devices, depending on the manufacturer.
Thank you for choosing Hama product.
Take your time and read the following instructions and information completely.Please keep these instructions in a safe place for future reference. If you sell the device, please pass these operating instructions on to the new owner.

Explanation of warning symbols and notes
Risk of electric shock
This symbol indicates a risk of electric shock from touching uninsulated product parts that may carry hazardous voltage.
Warning
This symbol is used to indicate safety instructions or to draw your attention to specifichazards and risks.
Note
This symbol is used to indicate additional information or important notes.

Package contents

• “QI-FC10” Wireless Charger for Smartphones
• 1x USB-C cable
• These operating instructions

Safety instructions

• Protect the product from dirt, moisture, and overheating and use it in dry environments only.
• Do not drop the product and do not expose it to any major shocks.
• Do not operate the product outside the power limits specified in the technical data.
• Do not use the product in areas in which electronic products are not permitted.
• Ensure that the product is not covered up by textiles, metal, or other objects in order to avoid damage caused by overheating.
• Dispose of packaging material immediately in accordance with the locally applicable regulations.
• Do not modify the product in any way. Doing so voids the warranty.
• Do not continue to operate the product if it is visibly damaged.
• Use the product only for the intended purpose.
• Do not use the product in the immediate vicinity of heaters, other heat sources, or in direct sunlight.
• Only use the article under moderate climatic conditions.
• As with all electrical products, this device should be kept out of the reach of children.
• Do not use the product in a damp environment and avoid splashing water.
• Do not bend or crush the cable.
• Never apply force when using the product or during installation.
• Take care that components such as airbags, safety areas, controls, instruments, etc., and visibility are not blocked or restricted.
• Ensure that the product is securely mounted before every journey.
• Do not allow yourself to be distracted by the product when driving a vehicle. Always pay attention to the surrounding traffic and your environment.
• Always pull directly on the plug when disconnecting the cable, never on the cable itself.

Risk of electric shock

• Do not open the device or continue to operate it if it becomes damaged.
• Do not use the product if the
  AC adapter, the adapter cable, or the mains cable are damaged.
• Do not attempt to service or repair the product yourself. Leave any and all service work to qualified experts.

Do not place any bank or similar cards with magnetic strips or magnetically sensitive objects on the product.
The data on the cards could be damaged or completely deleted.
Warning
Ensure that there are no metal parts (e.g. metal plate for magnetic holders) on the back of your device.
Metal heats up significantly in the field of an induction charger and can damage your device and/or the charger.

Start-up and operation

Warning

• Only operate the product from a socket that has been approved for the device. The socket must be installed close to the product and must be easily accessible.
• Disconnect the product from the power supply using the On/Off switch –ifthis is not available, unplug the power cord from the socket.
• If using a multi-socket power strip, make sure that the total power consumption of all connected devices does not exceed the power strip’s maximum throughput rating.
• If you will not be using the product for a prolonged period, disconnect it from mains power.

Note

• To be able to charge your device via the wireless charger, it must be compatible with induction charging technology. Please refer to the operating instructions of your device for more information.
• Note that mobile phone cases, covers, etc., and other materials between the wireless charger and the back of your device may interfere with or even prevent the charging process.
• Connect the enclosed USB-C cable to the USB-C input (1) of the inductive charger and a suitable USB charger. When doing so, consult the operating instructions for the USB charger.

Note

• The maximum charging power of up to 10 Wisonly is achieved with a Qualcomm quick charging device (5 V/2A,9V/1.67 A).
• An active power supply is confirmed by the status LED (2) briefly lighting up red.

Warning
Do not use defective chargers or USB ports and do not attempt to repair them.

• Place your device with its back on the inductive charger (B).
• The charging process begins as soon as an effective induction field has been established. The status LED (2) lights up solid red. The current charge status is displayed on your device.
• If no induction connection can be established, change the position of your device if necessary (B).
• The charging process ends automatically once your device’s battery is fully charged. The status LED (2) lights up solid blue.

Care and maintenance

Only clean this product using a lint-free, slightly damp cloth, and do not use any harsh cleaners. Ensure that no water is able to enter the product.
Note
Disconnect the device from the mains before cleaning and during prolonged periods of non-use.

Warranty disclaimer

Hama GmbH &CoKG assumes no liability and provides no warranty for damage resulting from improper installation/mounting, improper use of the product, or failure to observe the operating instructions and/ or safety notes.

Technical data

Wireless charger

Input	5V 2.0 A 9V 1.67 A
Output (under optimized conditions)	5W /7.5 W/10 Wmax.
Dimensions	Ø101.5 mm x6.6 mm

Declaration of conformity

Hama GmbH &CoKG hereby declares that the radio equipment type [00201683] is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following Internet address:
www.hama.com ->00201683->Downloads.

Hama GmbH &CoKG
86652 Monheim /Germany
Service &Support
www.hama.com
+49 9091 502-0

Alllistedbrandsare trademarks of the corresponding companies. Errors and omissions excepted, and subject to technical changes. Our general terms of delivery and payment are applied.
