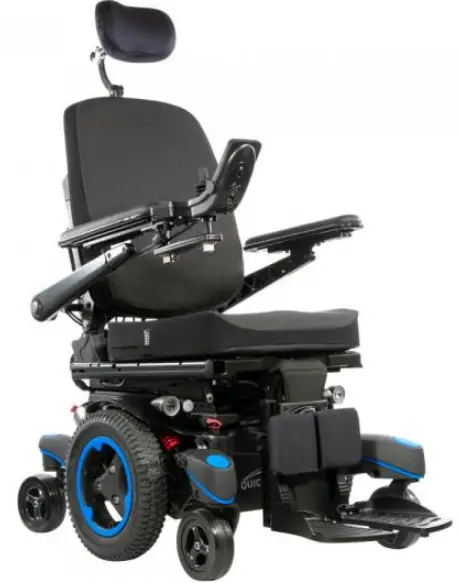

QUICKIE Q700 M Power Wheelchair

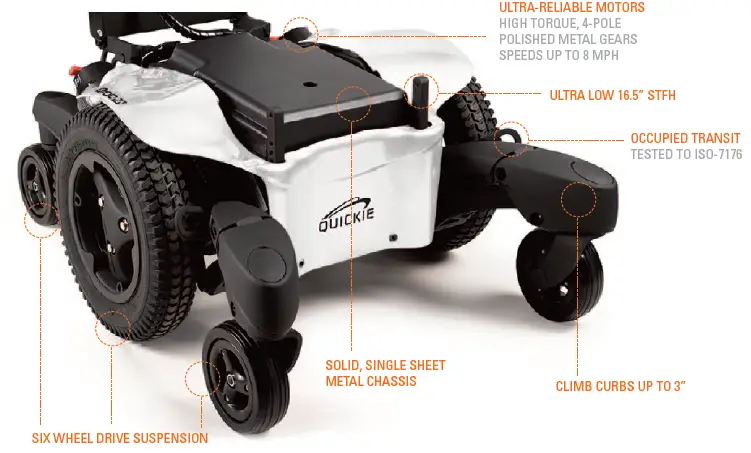

- RELIABLE Every Q700 M is built to keep you moving. The chassis is formed from a single sheet of metal, and its steel components receive automotive undercoat plating. The industry’s best motors undergo additional end-of-line testing before leaving our factory.
- MANEUVERABLE True mid-wheel drive allows the Q700 to turn on its own axis, so you enjoy intuitive driving and excellent maneuverability in tight, compact spaces
- PERFORMANCE With its independent movement of all six wheels, the Q700 M suspension gives you the ability to safely crawl up and down steep obstacles, keeping all six wheels on the ground

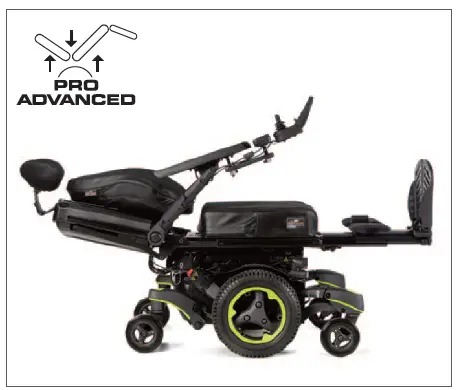

SEDEO® PRO ADVANCED™
Designed for comfort and aesthetics, the SEDEO PRO ADVANCED covers the most demanding clinical needs. With Biometric Repositioning and a full range of programmable seating positions, it is the best ergonomic seating from QUICKIE
SEDEO® PRO™
Truly modular in design, the SEDEO PRO provides a new level of functionality, comfort and design. For moderate to complex clinical needs, the PRO combines a highly adjustable seat frame with an excellent choice of postural support options.
SEDEO® LITE™
The SEDEO LITE is an adjustable seat frame with a sleek look. Its minimal design alleviates weight capacity concerns when using aftermarket equipment. Traditional back canes are width-adjustable from 15″ to 20″ and easily fit JAY® backs. An array of options cover mild to moderate clinical needs, and intuitive adjustability meets individual requirements.

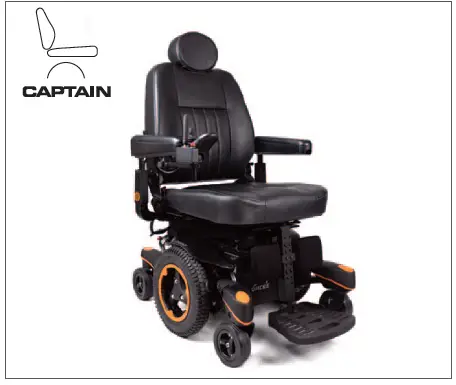

Captain’s Seat
The Captain’s Seat provides a relaxed sitting position and features a semi-recline, fold-down back, adjustable seat depth, and convertible seat pan that allows you to use your preferred cushion. Available with a 50° tilt and power centermount leg support
Q700 M SEAT FRAME COMPARISON
| SEDEO PRO ADVANCED | SEDEO PRO | SEDEO LITE | CAPTAIN SEAT | |
| Cryo™ Fluid | Available on JAY Syncra Seating | Available on JAY Syncra Seating | Available on JAY Fusion | Available on JAY Fusion |
| Seat Width | 16″ to 22″ | 16″ to 26″ | 15″ to 20″ | 16″, 18″, 20″ |
| Seat Depth | 17″ to 22″ | 14″ to 22″ | 16″ to 22″ | 16″ to 22″ |
| Back Support Height | 21″ to 30″ | 21″ to 30″ | 18″ to 30″ | 25″ |
| Biometric Repositioning | • | |||
| Memory Seating | • | |||
| Powered Recline | 165° | 150° | ||
| Anti-shear Back Support | 7″ | 4″ (optional) | ||
| Pressure Relief Alert Reminders (PRAR) | • | |||
| Tilt Angle | 50° | 50° | 50° | 50° |
| Elevate with C-Me | 12″ | 12″ | 12″ | |
| JAY & WHITMYER | • | • | • | • |
| Remote Seating App | • |
| Q700 M See order form as specifications may vary based upon configuration | |||
| HCPC codes | No Power Seating Options | Single Power Seating Options | Multi Power Seating Options |
| Group 3 Standard Duty | K0848/K0849 | K0856/K0857 | K0861 |
| Group 3 Heavy Duty | K0850 | K0858 | K0862 |
| Group 4 Standard Duty | K0868/K0869 | K0877/K0878 | K0884 |
| Max. user weight | 300 lbs* (450 lbs for HD) | ||
| Seat-to-floor height | 16.5″ to 19″ | ||
| Total width | 25″ | ||
| Total length | 36.5″ | ||
| Turning radius | 19.8″ (Excludes footplates) | ||
| Max. speed | 6 mph (Group 3 Standard) | 5 mph (Group 3 HD) | 8 mph (optional) |
| Battery size | Group 34 or Group 24 | ||
| Overall weight | Starting at 294 lbs | Starting at 318 lbs | Starting at 366 lbs |
| Drive wheel position | Mid | ||
| Ground clearance | 3″ | ||
| Wheel options | 14″ drive wheels; 6″ casters | ||
| Max. range | Up to 18 miles (w/Group 24 batteries and 6 mph motors) | ||
| Transit Brackets | ISO 7176-19:2008 Transit Approved | ||
| Warranty | Lifetime Limited | ||
COLOR OPTIONS
SHROUD COLORS
COLOR ACCENTS
