XC1 Audio Clock
User Manual
Preface
Dear Customers:
Thanks for purchasing the aune XC1 audio clock.
We sincerely hope the XC1 will bring you excellent Hi-Fi experience.
Please read this manual carefully before using the device.

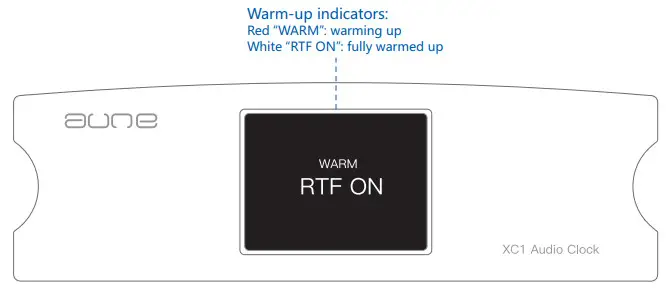

Front Panel at a Glance

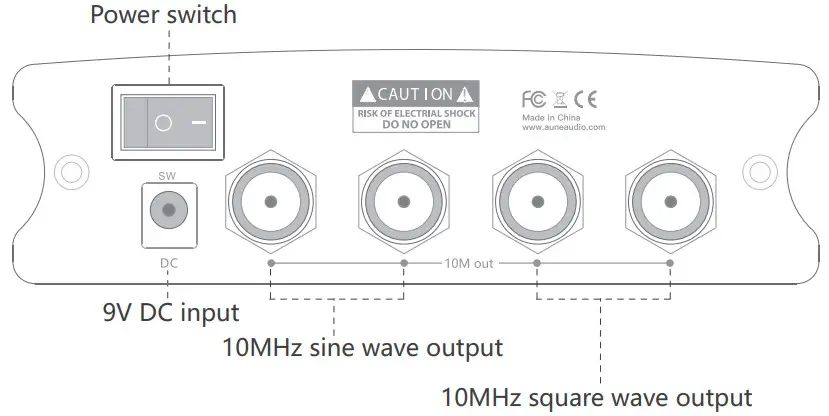

Rear Panel at a Glance
Introduction
The XC1 is a high steady state audio clock , providing high quality reference clock signals.
The two 10MHz sine wave outputs and the two 10MHz square wave outputs can work simultaneously.
Specifications
| Output Frequency | 10MHz*4 |
| Output Frequency | 10MHz >7dBm (50Ω) |
| Output Waveform | Square wave*2 / Sine wave*2 |
| Frequency Accuracy (Factory) | < ±0.5ppm |
| Warm-Up Time | 5min (Basic warm-up) |
| Ambient Temperature | Normal working: 0℃-50℃ Recommended: 15℃-35℃ |
| Dimensions | 145 W x 171 D x 45 H (mm) |
| Weight | 2kg |
Misc
Enclosure material: premium machined and anodized aluminum
DC supply: 9V 2A
Power: ＜10W
* To guarantee your experience, please use the original power cord
