Telldus 14732 Remote Controlled Outdoor Outlet User Manual (+ PDF)

User manual for remote
controlled outdoor outlet

	facebook.com/telldus
	@telldus

Contents hide

1 Connect to a remote control*

2 Connect sensor to TellStick

3 Read this before installation

4 Speciﬁcations

5 Documents / Resources

5.1 References

6 Related Posts

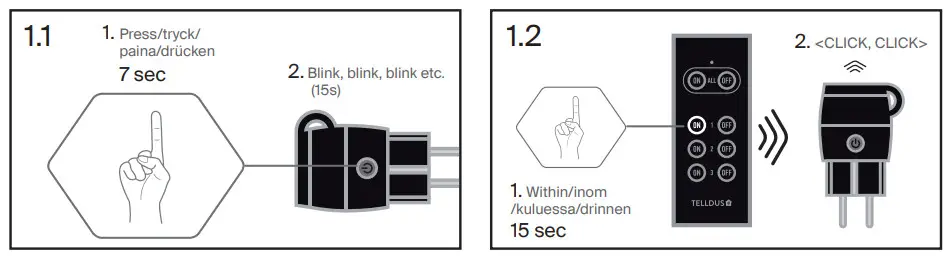

Connect to a remote control*

* Remote Control only included in selected packages

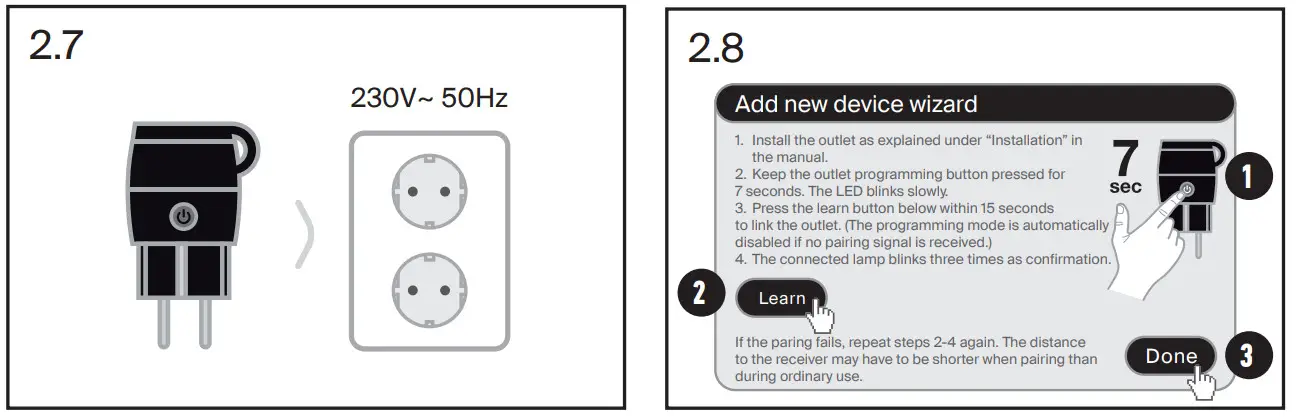

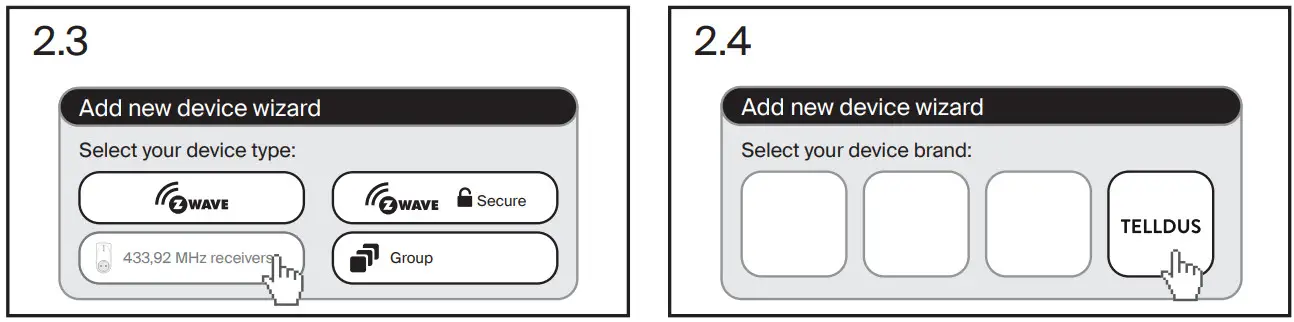

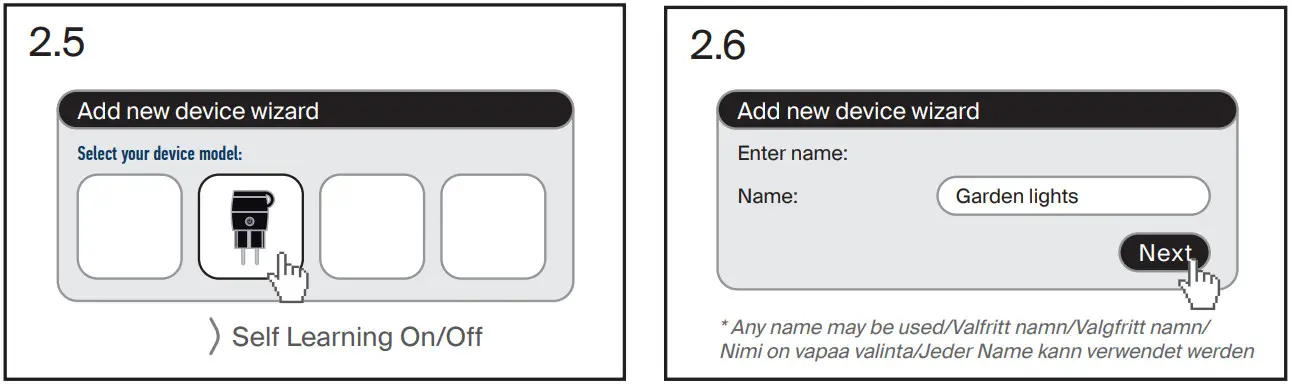

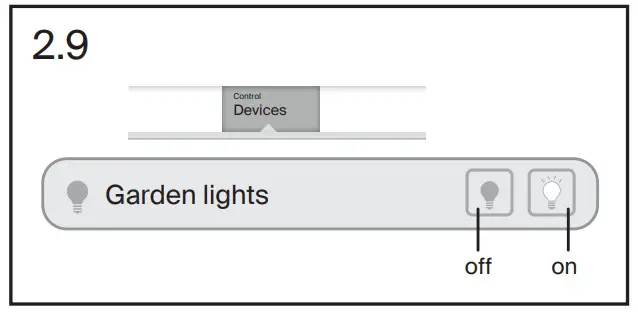

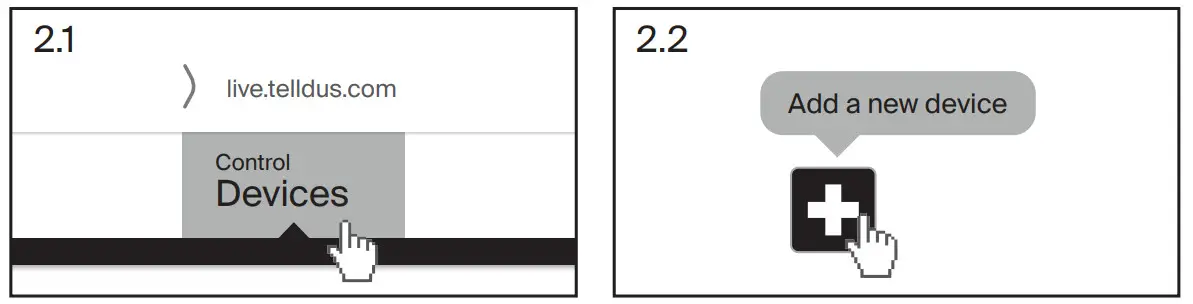

Connect sensor to TellStick

Requires a TellStick and a Telldus Live account

Read this before installation

Remote-controlled outlets & remote control

Remote control* has 3 channels and 1 group function.
Each outlet has 5 memory settings.
Blue LED indicates ON/OFF and programming status.

Installation

Remove the plastic tab from the battery in the remote control*.
Connect the outlet to mains power.
Connect a lamp to the outlet. If there is a power switch on the connecting cable make sure it is switched on.

Unpair a single remote control* from an outlet:

Keep the button on the outlet pressed for 7 seconds. The LED blinks slowly.
Press the corresponding OFF button on the remote control* to remove the learned code (the learning mode is automatically disabled after 15 seconds if no button is pressed).
The connected lamp blinks three times as conﬁ rmation. Unpair all remote controls* from an outlet:
Keep the button on the outlet pressed for 7 seconds. The LED blinks slowly.
Within 7 seconds, press the button brieﬂ y once more (the learning mode is automatically disabled after 15 seconds if no button is pressed).
The connected lamp blinks three times as conﬁrmation.

* Remote Control only included in selected packages

Speciﬁcations

Article number	14732
Battery	3V CR2032
Max resistive load	3680 W
Range	0-30m
Protection class	IP44
Protection class	I
Frequency	433.92 MHz
Operating temperature	0°C–35°C
Power supply	230 V~, 50 Hz
Standby power/Standby	<1 W

Correct disposal of the products
Within the European Union, this symbol indicates that the products must not be disposed of in the household waste. Devices contain valuable recyclable materials that should be recycled for reuse and uncontrolled waste disposal may cause harm to the environment and human health. Please dispose the old products via suitable collection systems or send the unit to the ofﬁ ce where you bought it. This will make the product recycling.
