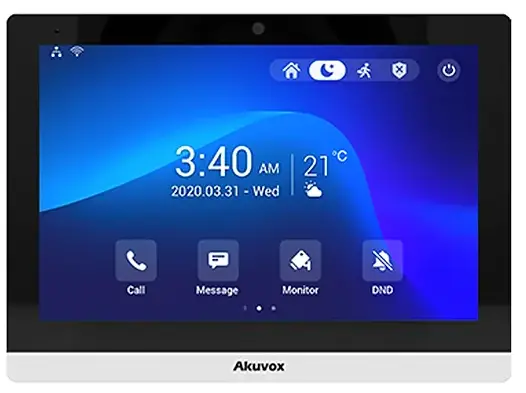

Akuvox C319 Video Intercom Monitor
Unpacking

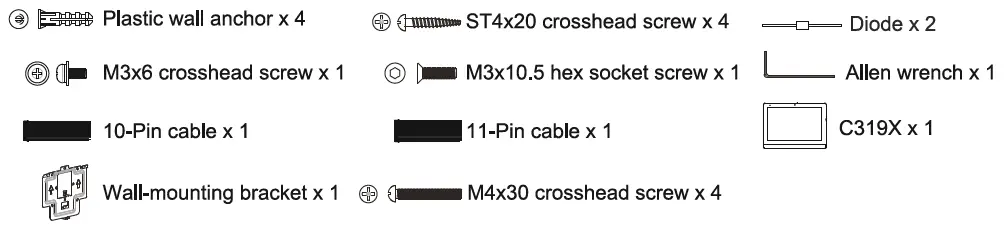

Before you start using the device, please check the version you got and ensure that the following items are included in the shipped box:

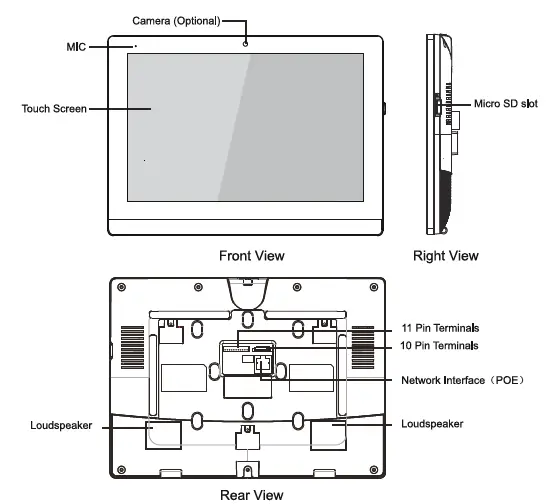

Product Overview
Installation
Step 1: Wall-mounting Bracket Installation
Without embedded box in the wall
According to the position of the cable in the wall, dig out a square hole(height*width*depth =66*50*50 mm) that can accommodate all cables.
Align the square hole of the wall-mounting bracket with the hole dug out before, then mark the four fixation holes through wall-mounting bracket on the wall.
Take down the wall-mounting bracket, then using a 6 mm hand drill to make the four fixation holes on the wall which marked before.
Once the fixing holes were made.insert plastic wall anchors.
Twist M3xl0.5 hex socket screw into the bottom hole of the wall-mounting bracket until the tail of which align to the edge. Then fix the
wall-mounting bracket on the wall with four ST4x20 crosshead screws. If there is a ground wire to be connected, use M3x6 crosshead screw to fix it on the wall-mounting bracket.
With embedded box in the wall

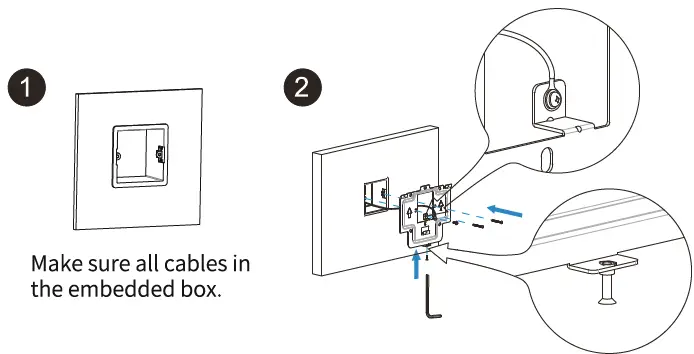

Make sure all cables in the embedded box.
Twist M3xl0.5 hex socket screw into the bottom hole of the wall-mounting bracket until the tail of which align to the edge. Then fix the wall-mounting bracket on the wall with two M4x30 crosshead screws. If there is a ground wire to be connected, use M3x6 crosshead screw to fix it on the
wall-mounting bracket.
Step 2: Device Mounting

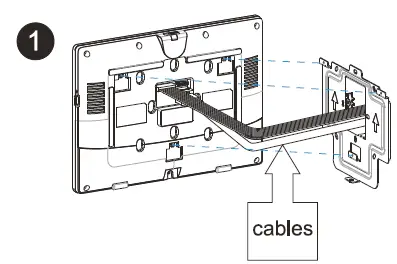

Connect the cables to device.

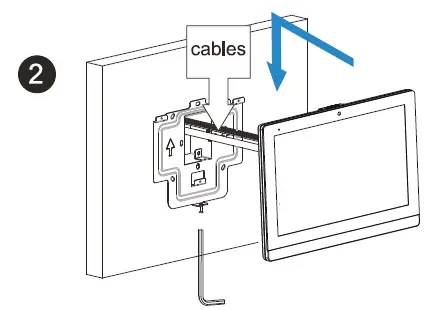

Push down to fix the device securely. Tighten M3x10.5 hex socket screw on the device with Allen wrench.
Device Wiring
Warning

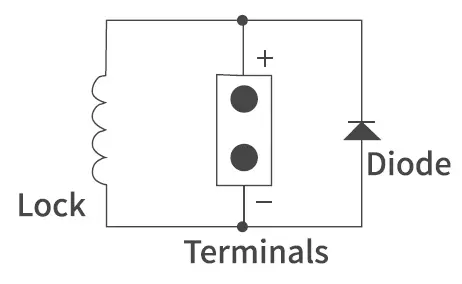

When you connect a device containing a coil, such as a relay or an electromagnetic lock, it is necessary to protect the intercom against voltage peak while switching off the induction load. For this way of protection we recommend a diode 1 A/200 V (included in the accessories) connected anti parallet to the device.

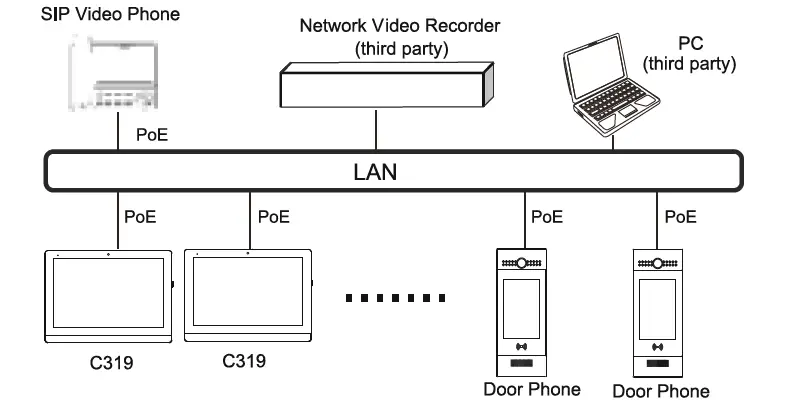

Application Network Topology
Configuration
- Access basic information: After setting up network and power, enter Setting> System Info to check Account, Network, Version status.
- Access the Website: Launch a browser and type in the IP address then enter the username and password to login.(username/password: ad min /ad min by default)
- Account Registration: On web UI, go to the path: Account> Basic page to fill in the account information, click Submit to confirm.(Please refer to user manual for more information)
Operation
Make a call:
Enter the callee’s number or room address, then press Dial
icon to make a audio
call or press Video
icon to make a video call. Press
icon to hang up.
Receive a call:
Press
icon to pick up the incoming call in video mode or press
icon to pick up the call in audio mode.
Unlock:
During the talk, you can press the Unlock
icon on the talking interface to unlock the door. Monitor:
Press the Monitor
icon to receive the video from the door phone or from third-party devices.
