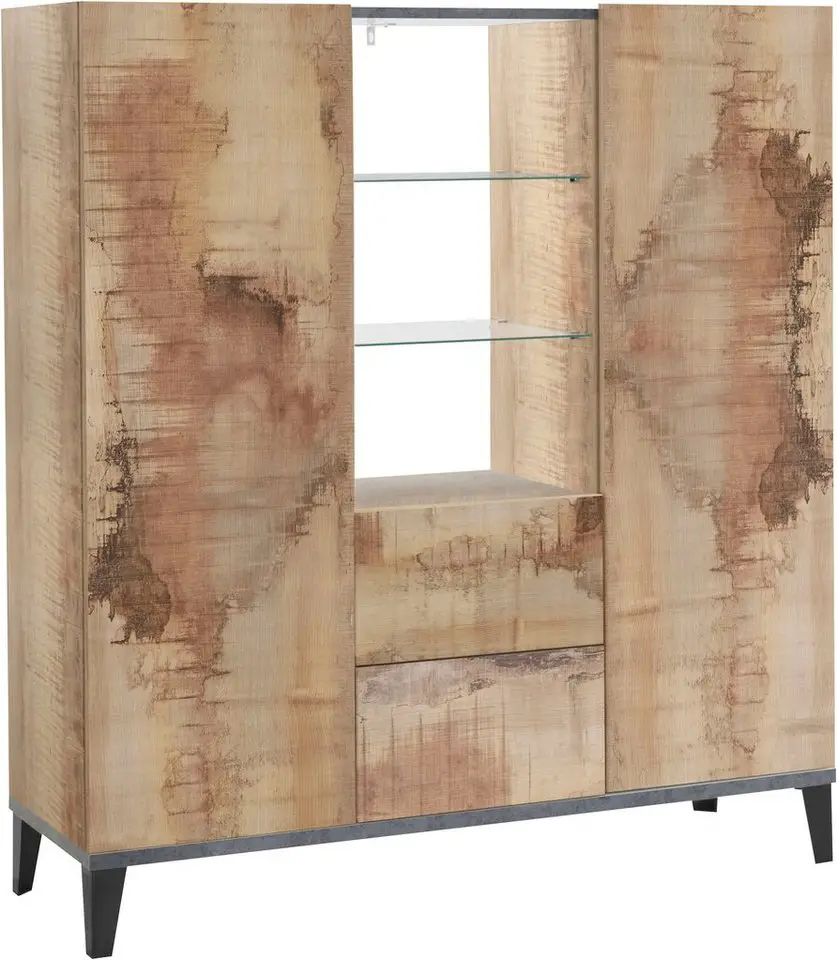

OTTO 7439324486 Inosign Highboard Sunrise Instruction Manual
Safety instructions
The triangle reminds you during the installation of the following notes.
Do not exceed the maximum loads speci!ed. Otherwise, the furniture may sustain damage or be irreparably damaged. 8
Do not bump glass surfaces or edges with hard objects. 9

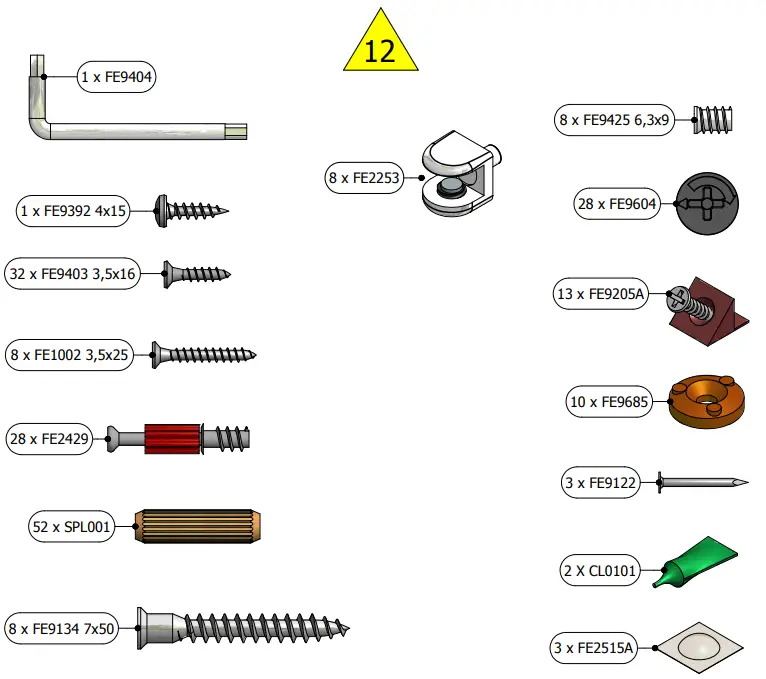

Ensure that children do not put any small parts such as nuts, caps or the like in their mouth. They could swallow and choke 12 on them.

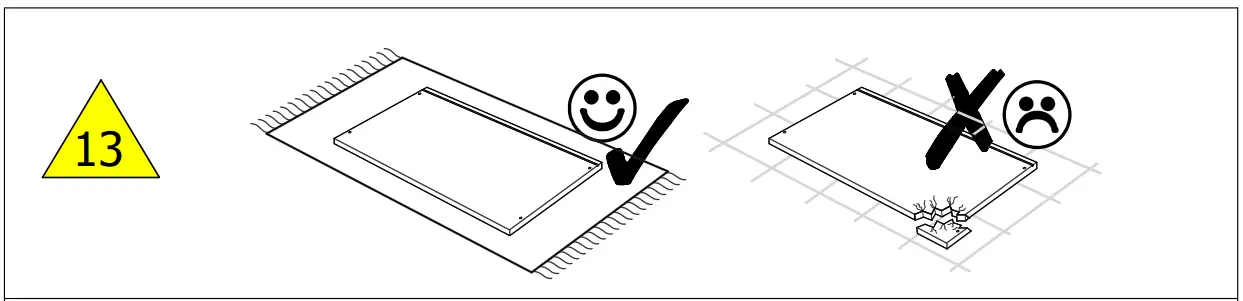

When assembling the product, please proceed with caution 13 and comply with the assembly instructions.

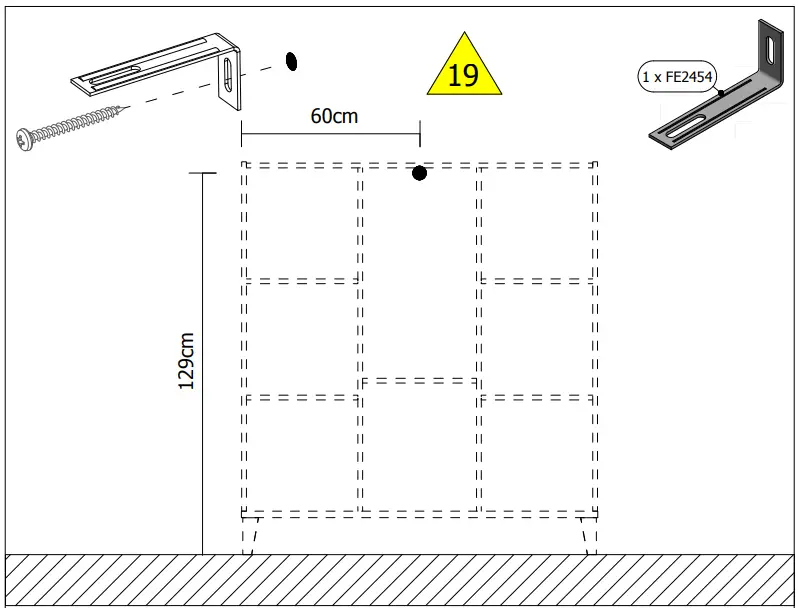

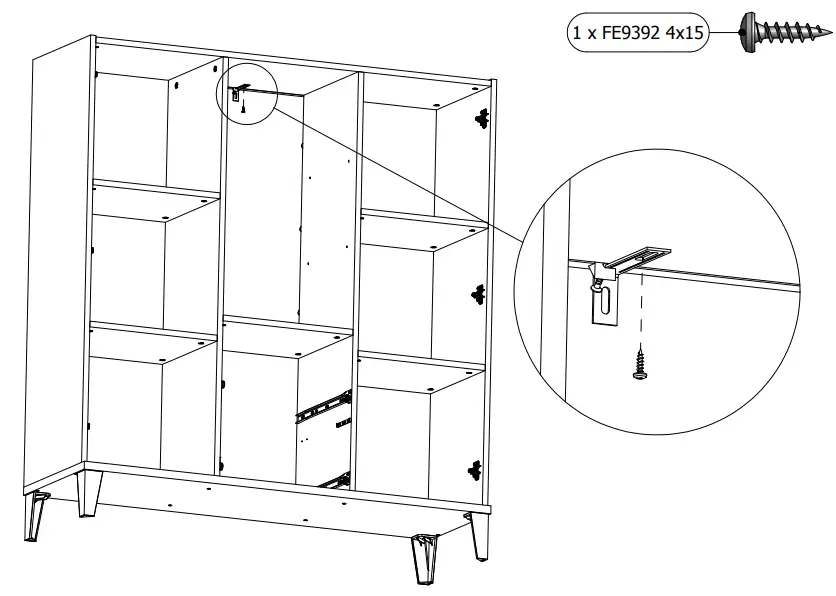

Assembly should be carried out by a quali!ed person, because wrong assembly may lead to that the furniture will topple over and cause injury or damage. As wall materials vary, screws for !xing to wall are not included. For advice on suitable screw systems, contact your local specialised dealer.
Service
Name: _____________
No.: _____________
Type: _____________
Instructions

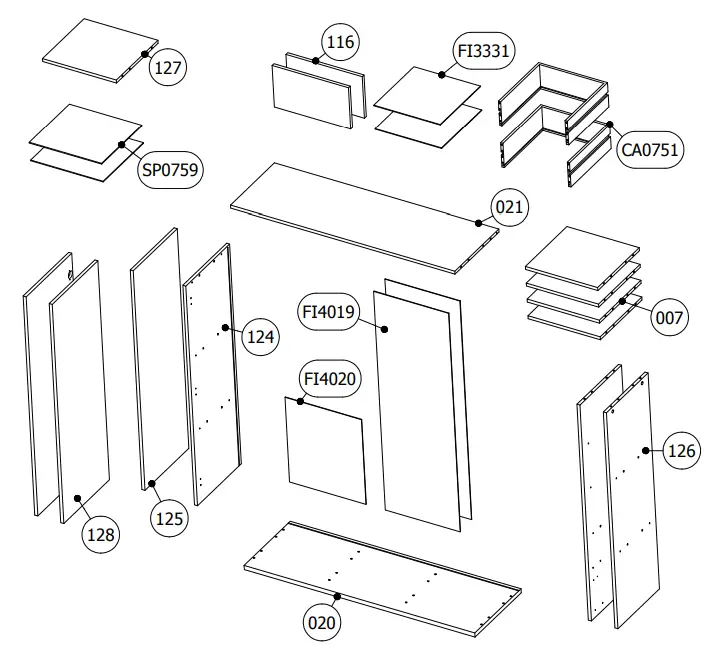

| Code | Qt. | Dimensions | Box |

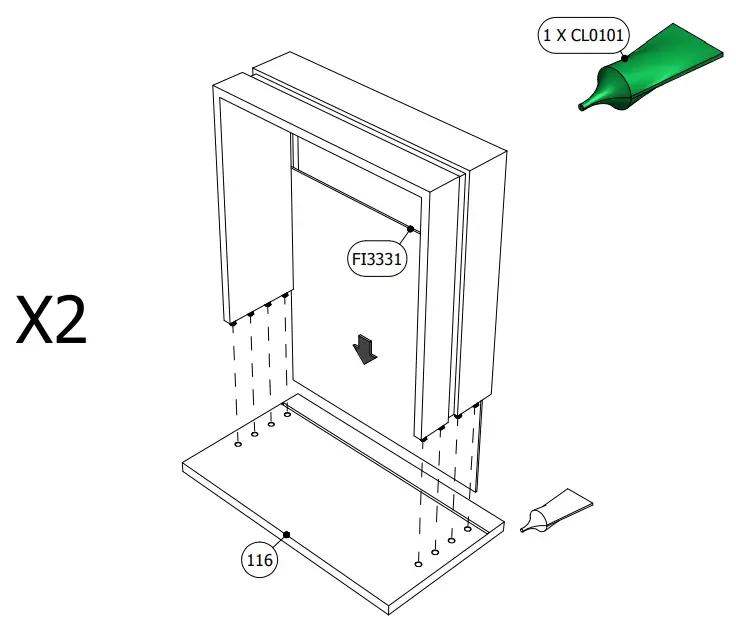

| FI3331 | 2 | 346x350x3 | 1-1 |

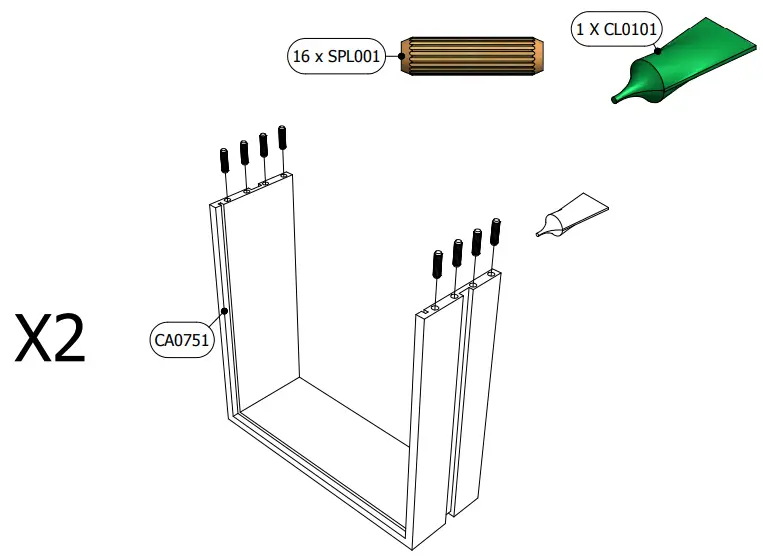

| CA0751 | 2 | 359x350x130 | 1-1 |

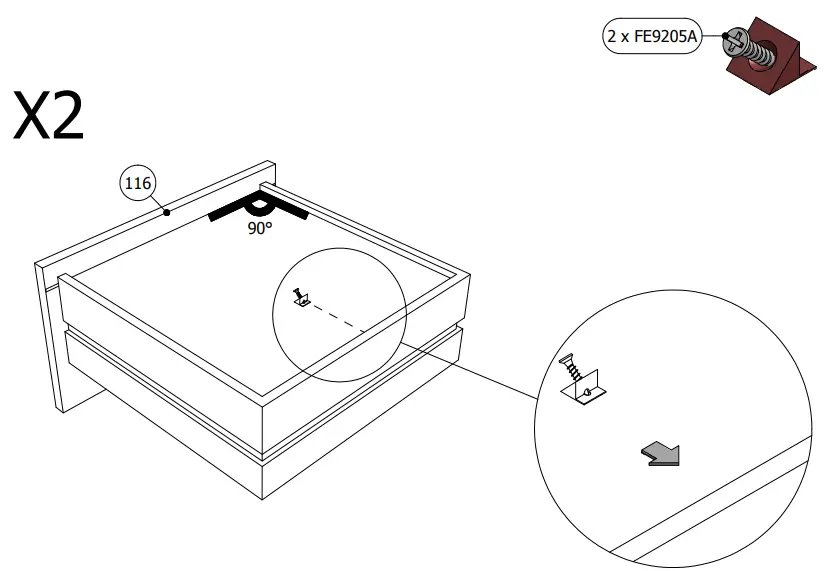

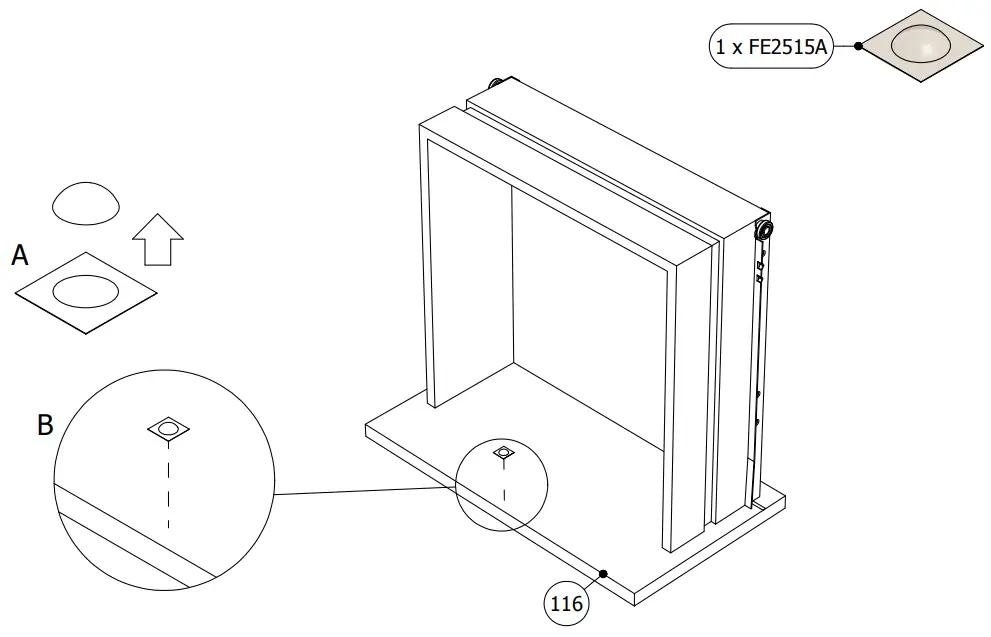

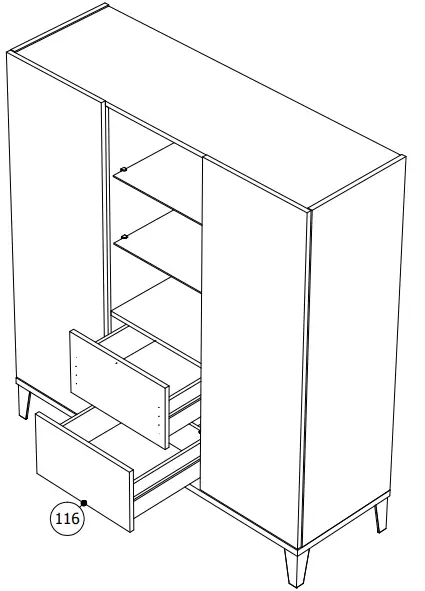

| 116 | 2 | 397x223x16 | 1-1 |

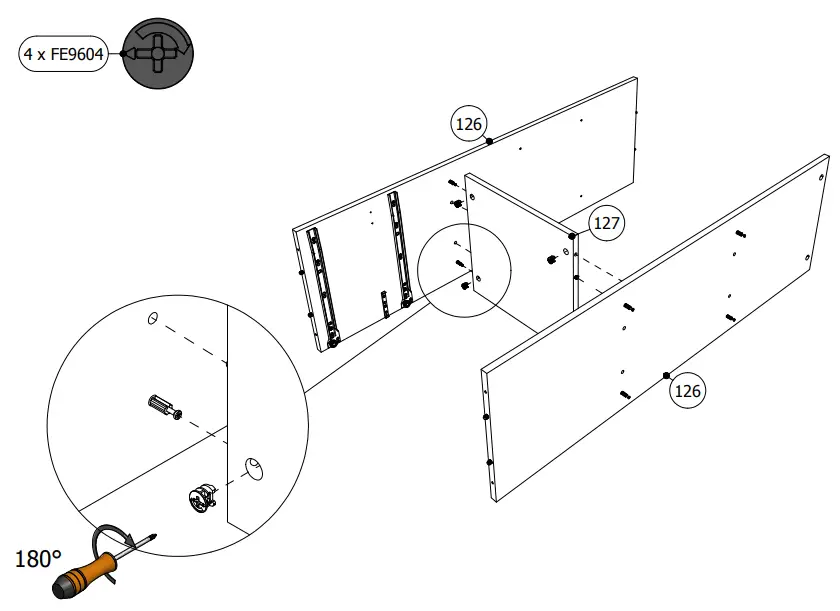

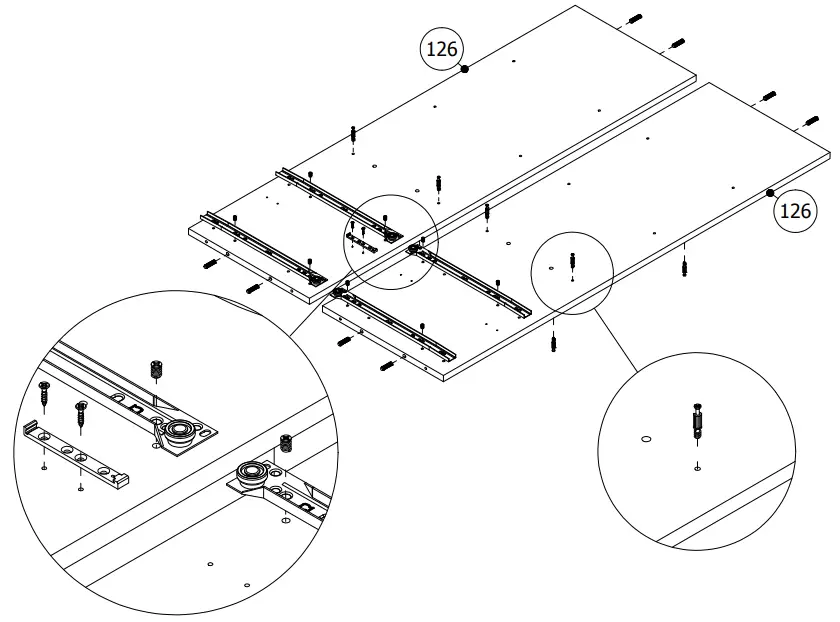

| 126 | 2 | 1158x362x16 | 2-2 |

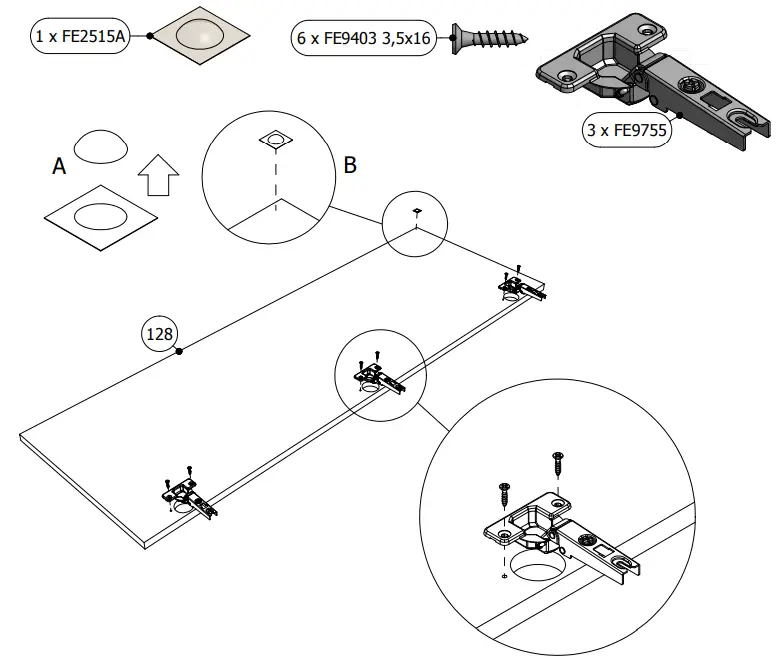

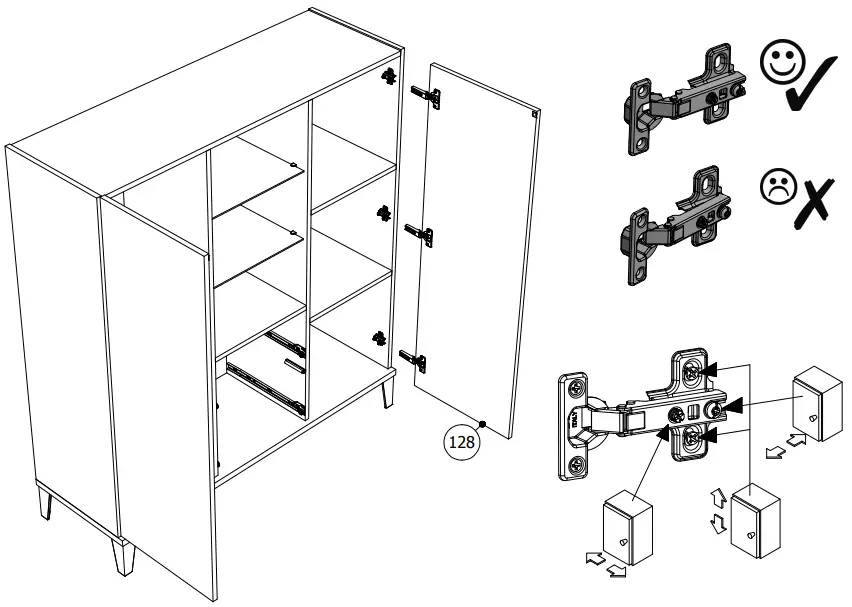

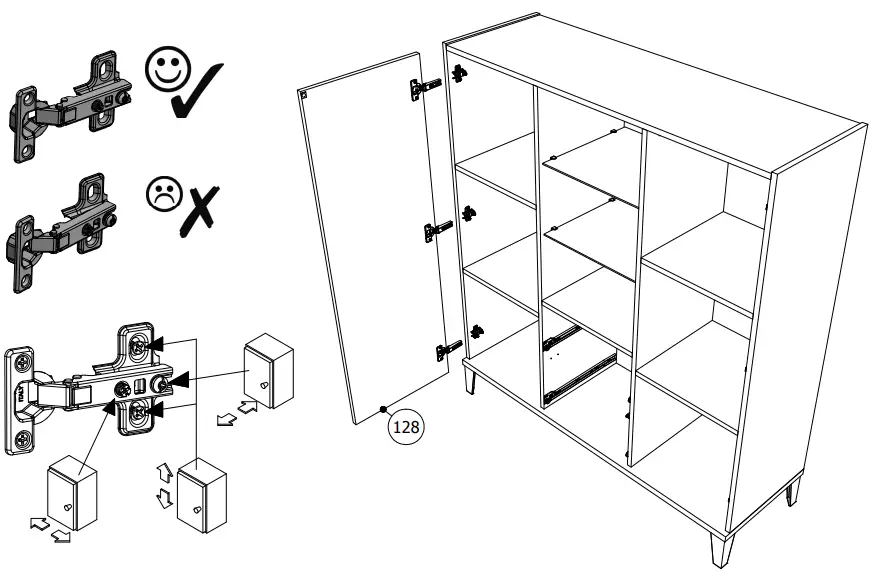

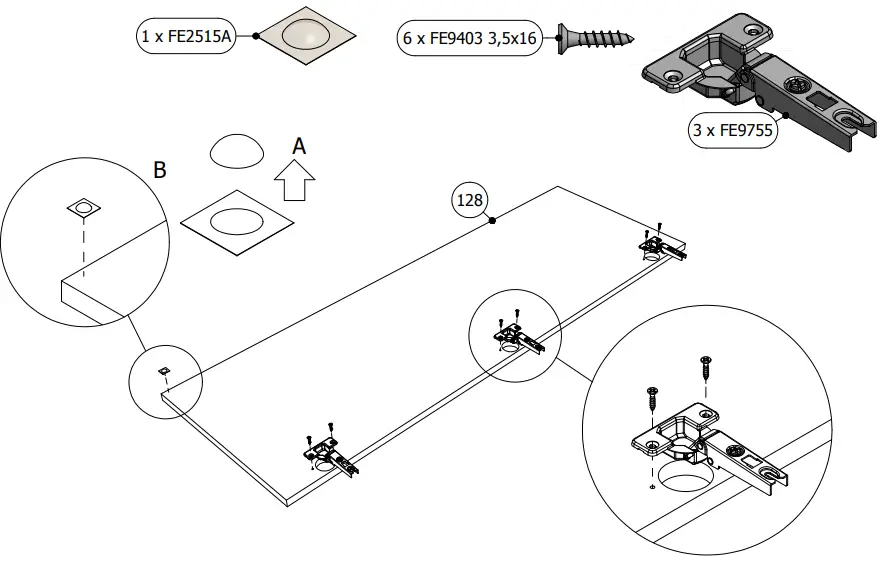

| 128 | 2 | 1175x397x16 | 2-2 |

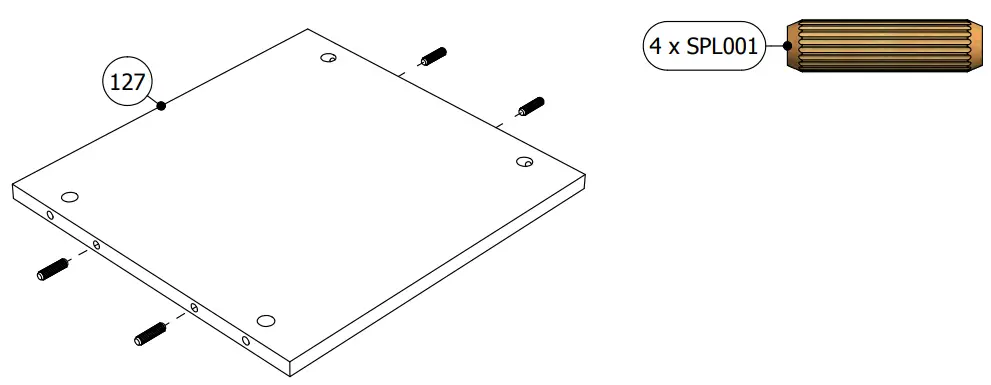

| 127 | 1 | 384x362x16 | 1-1 |

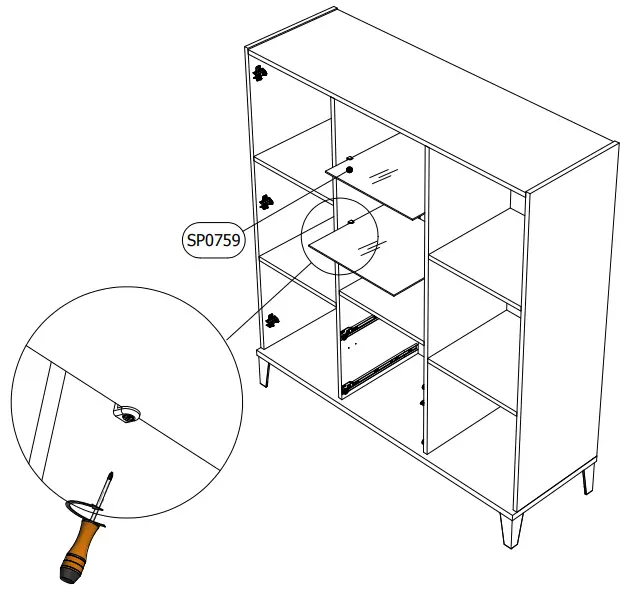

| SP0759 | 2 | 377x350x4 | 1-1 |

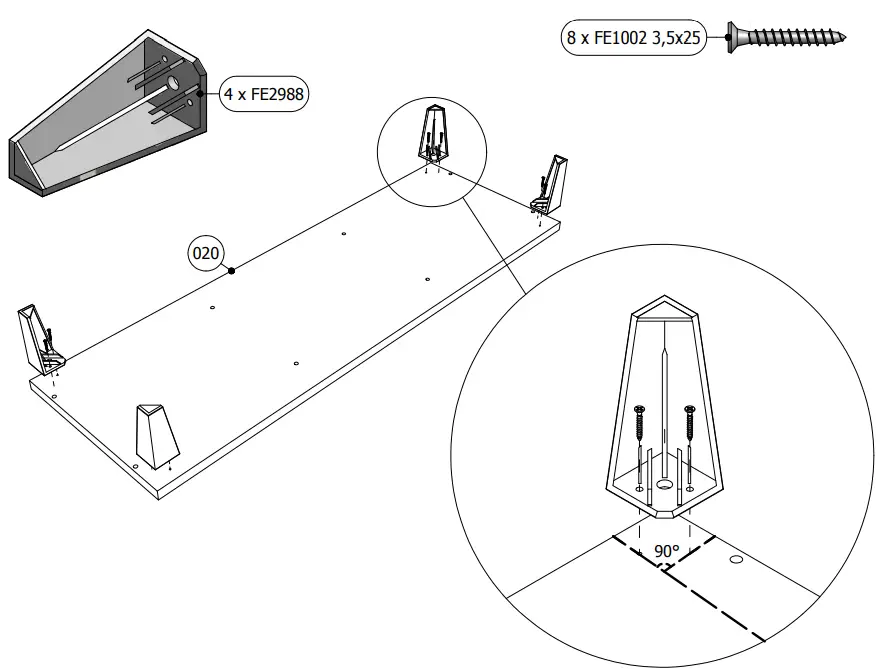

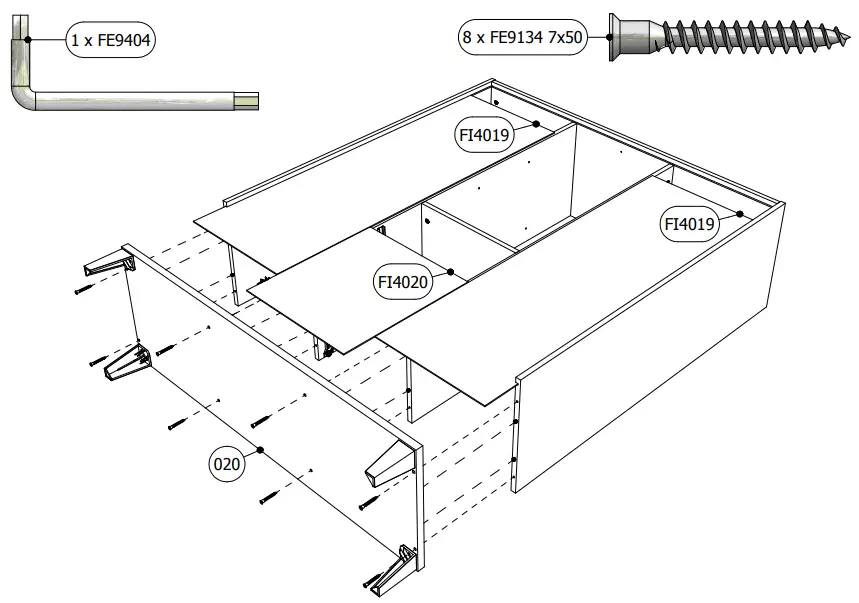

| 020 | 1 | 1201x402x22 | 1-1 |

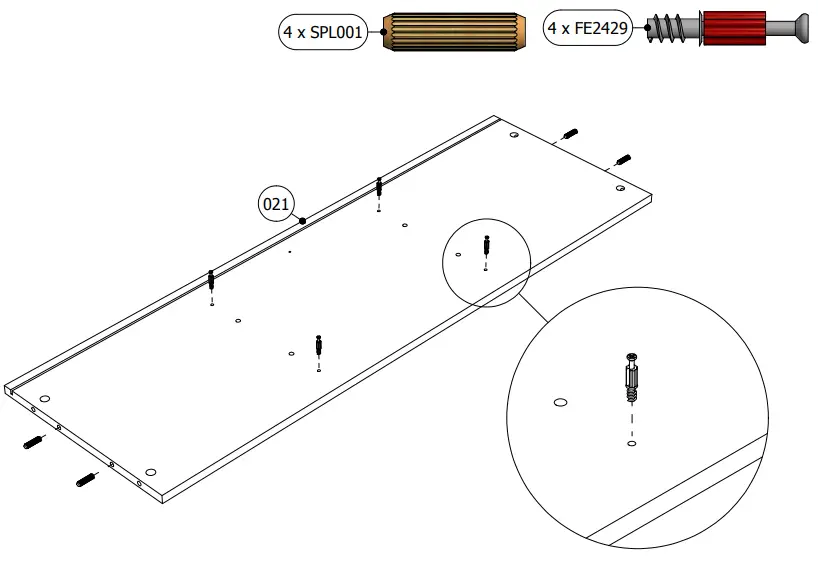

| 021 | 1 | 1168x382x16 | 1-1 |

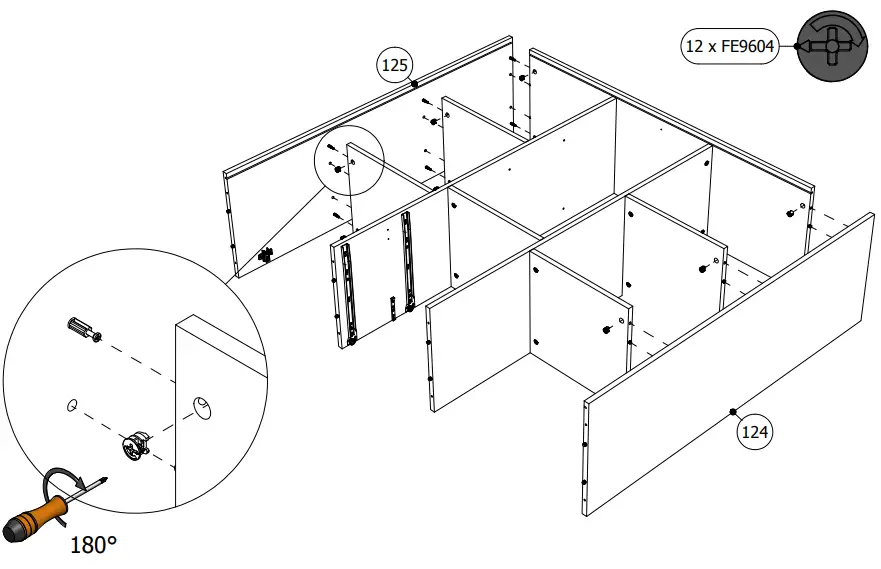

| 125 | 1 | 1178x382x16 | 2-2 |
| FI4019 | 2 | 390x1172x3 | 1-1 |
| 124 | 1 | 1178x382x16 | 2-2 |
| FI4020 | 1 | 398x454x3 | 1-1 |

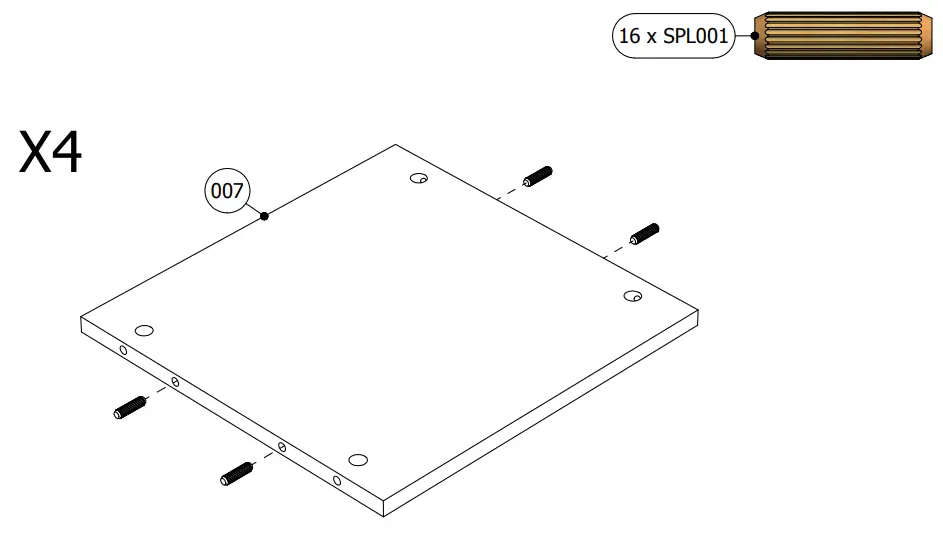

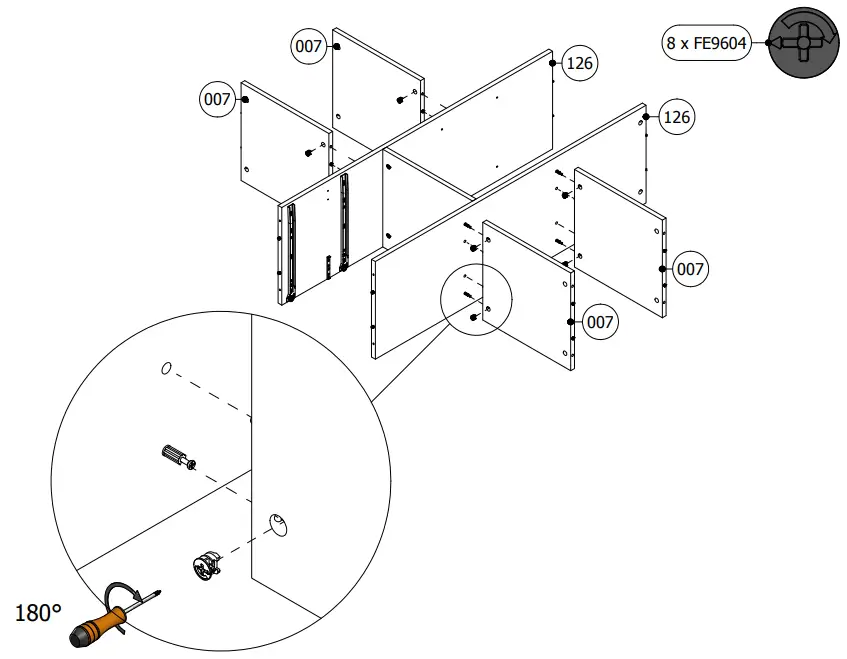

| 007 | 4 | 376x362x16 | 1-1 |
Care tips
Please only clean with a duster or a damp cloth.
Do no use any abrasive cleaners.
In general, keep water away from your furniture (e. g. when mopping or watering plants). The moisture may penetrate the furniture and damage it.
