700019335 Nov 2021 Rev.2
Specifications are subject to change without notification.
Quick Start Guide

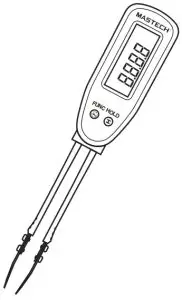

MS8910
SMD Tester
1 YEAR
LIMITED WARRANTY
The special attention should be paid when using the test and measurement instrument because improper usage may cause electric shock and damage the equipment.
– Use proper measurement category (CAT), voltage, and amperage rated probes, test leads, and adapters for the measurement.
– Do not use or store the device around explosive gas, vapor, or under high temperature and humidity.
– When handling the test probes and crocodile clips, keep your fingers behind the physical guard.
– Examine the measuring test leads (if present) before use. Any element of which the insulation deteriorates (even partially), replace them with proper functional test leads.
– Connect the common test lead before the live test lead and remove the live test lead before the common test lead.
– Before measuring current, make sure the instrument fuses available and disconnect the power supply to the circuit test
– Remove the batteries if the device is not used for an extended period of time, or if stored in temperatures above 45 °C. If the batteries are not removed, battery leakage can damage the device.

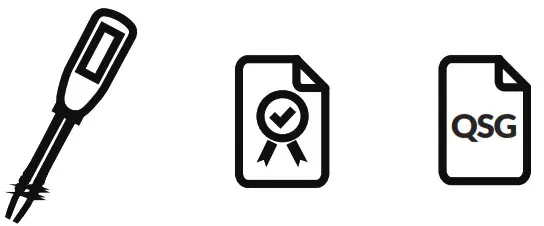

Contents
Specifications | |||
| Range | Resolution | Accuracy | |
 | 300Ω | 0.1Ω | ±(1.0%+2) |
 | 3nF | 1pF | ±(2.0%+3) ±(3.0%+3) |
EMMA
MGL HUMAN S.L.
C/ Picu Castiellu, Parcelas i1-i4 33163Argame Morcín, Asturias, Spain
Tel: +34 985-08-18-70
Email: [email protected]
http://www.mastech-group.com/support.php?n=0
SKU Number: MS8910CBGLO
