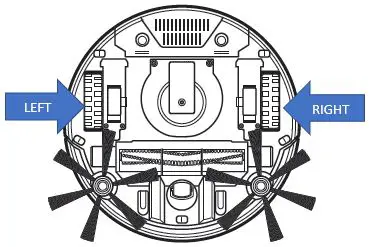

- To determine left vs right wheel, turn the machine upside down
- Cleaning brushes should be nearest you and battery compartment positioned away from you
- To remove the wheel, remove both screws from the wheel access cover
- Press down on the wheel, hook finger in access cover opening and lift up and out slowly (remove spring)
- Carefully pull wires to remove the connector from the wheel assembly – then, plug wire connector into new wheel assembly
To replace:
- Attach one of the spring to the hook on the underside of the wheel assembly and the other end to the hook on the bottom of the wheel access cover (maintaining tension)
- Lower the wheel into place while maintaining tension on the spring and holding the access cover to prevent the spring from falling off
- Angle the tabbed end of the access cover into the wheel while open, then lower cover into place
- Insert both screws and secure
