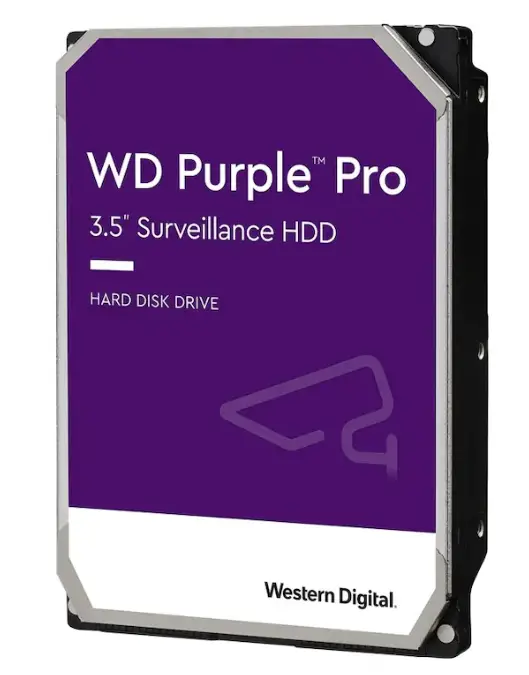

Western Digital WD Purple Pro Smart Video Hard Drive
Highlights
- The WD Purple™ Pro HDD, with OptiNAND™ technology in 22TB1, delivers massive capacity in a drive engineered for advanced, AI-enabled, always-on smart video recorders, appliances, and servers.
Western Digital’s exclusive AllFrame™ AI technology improves ATA streaming to help reduce frame loss and improve overall video playback. - WD Purple™ Pro drives are optimized to handle up to 64 single-stream HD cameras2 as well as many of the latest smart cameras that transmit multiple streams
- With a workload rating up to 550TB/year3, these drives are built to keep up with heavy video data capture and analysis.
- The reliable WD Purple™ Pro is engineered with an MTBF of up to 2.5 million hours4 for advanced smart video solutions that operate in 24/7 environments.
- Western Digital Device Analytics™ provides a wealth of storage device parametric operational and diagnostic data to compatible systems.
Purpose-built storage for your smart video solution
The WD Purple™ Pro HDD, with OptiNAND™ technology in 22TB1, delivers big capacity in an enterprise-class drive for video analytics servers, AI, and deep learning systems to enable data-driven outcomes.
Western Digital’s exclusive AllFrame™ AI technology
AllFrame AI technology supports up to 32 AI streams for deep learning analytics within the system while reducing frame drops.
Multiple cameras, multiple streams
WD Purple™ Pro drives are optimized to handle up to 64 single-stream HD cameras2 in addition to 32 concurrent AI streams. This flexibility allows you to easily upgrade and scale your smart video solution to meet your changing needs.
Advanced workload capability for advanced systems
These reliable drives are built with a workload rating up to 550TB/year3 to keep up with the 24/7 data capture and analysis demands of advanced AI-enabled recorders, video analytics applicances, and deep learning analytics servers.
Designed for reliable operation
Engineered with an MTBF of up to 2.5 million hours4 and backed with a 5-year limited warranty, the WD Purple™ Pro HDD also features tarnish-resistant components and full multi-bay support for dependable operation in large-scale surveillance systems.
Proactive storage management with WDDA™
Western Digital Device Analytics™ (WDDA) provides drive health management features for compatible recorders and video management systems.
Specifications
| 22TB1 | 18TB1 | 14TB1 | 12TB1 | 10TB1 | 8TB1 | ||||||
| Model Number | WD221PURP | WD181PURP | WD141PURP | WD121PURP | WD101PURP | WD8001PURP | |||||
| Formatted capacity1 | 22TB | 18TB | 14TB | 12TB | 10TB | 8TB | |||||
| Form factor | 3.5-inch | 3.5-inch | 3.5-inch | 3.5-inch | 3.5-inch | 3.5-inch | |||||
| Advanced Format (AF) | Yes | Yes | Yes | Yes | Yes | Yes | |||||
| Recording technology | CMR | CMR | CMR | CMR | CMR | CMR | |||||
| RoHS compliant5 | Yes | Yes | Yes | Yes | Yes | Yes | |||||
| Product Features | |||||||||||
| Cameras supported | Up to 64 HD2 | Up to 64 HD2 | Up to 64 HD2 | Up to 64 HD2 | Up to 64 HD2 | Up to 64 HD2 | |||||
| AI streams | 32 | 32 | 32 | 32 | 32 | 32 | |||||
| Firmware feature name | AllFrame AI | AllFrame AI | AllFrame AI | AllFrame AI | AllFrame AI | AllFrame AI | |||||
| Tarnish resistant components | Yes | Yes | Yes | Yes | Yes | Yes | |||||
| Performance | |||||||||||
| Interface transfer rate (max) Buffer to host Host to/from drive (sustained)6 | 6 Gb/s 265 MB/s | 6 Gb/s 272 MB/s | 6 Gb/s 255 MB/s | 6 Gb/s 245 MB/s | 6 Gb/s 265 MB/s | 6 Gb/s 245 MB/s | |||||
| Cache (MB)1 | 512 | 512 | 512 | 256 | 256 | 256 | |||||
| RPM | 7200 | 7200 | 7200 | 7200 | 7200 | 7200 | |||||
| Reliability/Data Entigrity | |||||||||||
| Load/unload cycles7 | 600,000 | 600,000 | 600,000 | 600,000 | 600,000 | 600,000 | |||||
| Annualized workload rating3 | Up to 550 TB/yr | Up to 550 TB/yr | Up to 550 TB/yr | Up to 550 TB/yr | Up to 550 TB/year | Up to 550 TB/year | |||||
| Non-recoverable read errors per bits read | <1 in 10^15 | <1 in 10^15 | <1 in 10^15 | <1 in 10^15 | <1 in 10^15 | <1 in 10^15 | |||||
| MTBF4 | 2,500,000 | 2,500,000 | 2,500,000 | 2,500,000 | 2,000,000 | 2,000,000 | |||||
| Limited Warranty (years)8 | 5 | 5 | 5 | 5 | 5 | 5 | |||||
| Power Management | |||||||||||
| Average power requirements (W) Read/write Idle Standby and sleep | 6.9 5.6 1.2 | 6.3 5.9 0.9 | 6.0 5.7 0.8 | 6.6 5.6 0.6 | 9 8 0.5 | 8.6 7.4 0.4 | |||||
| Environmental specifications | |||||||||||
| Temperature Operating Non-operating | 0°C to 65°C -40°C to 70°C | 0°C to 65°C -40°C to 70°C | 0°C to 65°C -40°C to 70°C | 0°C to 65°C -40°C to 70°C | 0°C to 65°C -40°C to 70°C | 0°C to 65°C -40°C to 70°C | |||||
| Shock (Gs) Operating Operating Non-operating | 40 40 200 | 50 50 250 | 70 70 300 | 30 65 250 | 70 70 250 | 30 65 250 | |||||
| Acoustics (dBA) Idle Seek (average | 20 32 | 20 27 | 20 36 | 20 29 | 34 38 | 27 29 | |||||
| Physical Dimensions | |||||||||||
| Height (in/mm, max) | 1.028/26.1 | 1.028/26.1 | 1.028/26.1 | 1.028/26.1 | 1.028/26.1 | 1.028/26.1 | |||||
| Length (in/mm, max) | 5.787/147 | 5.787/147 | 5.787/147 | 5.787/147 | 5.787/147 | 5.787/147 | |||||
| Width (in/mm, ± .01in) | 4/101.6 | 4/101.6 | 4/101.6 | 4/101.6 | 4/101.6 | 4/101.6 | |||||
| Weight (lb/kg, ± 3%) | 1.48/0.67 | 1.52/0.69 | 1.52/0.69 | 1.46/0.66 | 1.65/0.75 | 1.58/0.715 |
INSTRUCTIONS
- MB = one million bytes, 1GB = one billion bytes, and 1TB = one trillion bytes. 1TB = one trillion bytes. Actual user capacity may be less, depending on operating environment.
- Single stream per camera @ 3.2Mbps (1080p, H.265, 25 fps). Results may vary depending on camera resolution, file format, frames per second, software, system settings, video quality, and other factors.
- Workload Rate is defined as the amount of user data transferred to or from the hard drive. Workload Rate is annualized (TB transferred X (8760 / recorded power-on hours)). Workload Rate will vary depending on your hardware and software components and configurations
- Projected values. When final, MTBF, and AFR specifications will be based on a sample population and are estimated by statistical measurements and acceleration algorithms under typical operating conditions, workload of 220TB/year, and drive temperature of 40°C. Derating of MTBF and AFR will occur above these parameters, up to 550TB writes per year, and 65°C drive temperature. MTBF and AFR ratings do not predict an individual drive’s reliability and do not constitute a warranty.
- This drive is in compliance with the European Union Directive 2011/65/EU and Directive (EU) 2015/863 on the restriction of the use of certain hazardous substances in electrical and electronic equipment.
- Up to stated speed. 1 MB/s = 1 million bytes per second. Based on internal testing; performance may vary depending upon host device, usage conditions, drive capacity, and other factors.
- Controlled unload at ambient condition
- See support.wdc.com/warranty for regional specific warranty details.
