DESIGN GUIDE – Title 24
CORRIDOR WITH 0-10V LUMINAIRES
SEQUENCE OF OPERATION:
LIGHT FIXTURES:
– All fixtures are dimmable;
– Max. and Min. Trim can be set via App;
OCCUPANCY CONTROL:
– Fixtures automatically go to set brightness when space is occupied;
– Fixtures automatically turn off or low level when space is vacant; – Occupancy or Vacancy mode;
– Brightness level for Occupied and Vacant state, delays and transitions can be set via App;
MANUAL CONTROL: – ON/OFF, dim up and down, select scene;
TIME SCHEDULE: – Time, recurring day of the week schedules, yearly special day schedules can be set via App;
ADDITIONAL OPTIONS: – Shade control;
– GPS Time-keeper for clock accuracy;
– Gateway for clock accuracy, remote assistance, energy and space utilization analytics, BMS integration, voice-activated commands
– Emergency Lighting Control

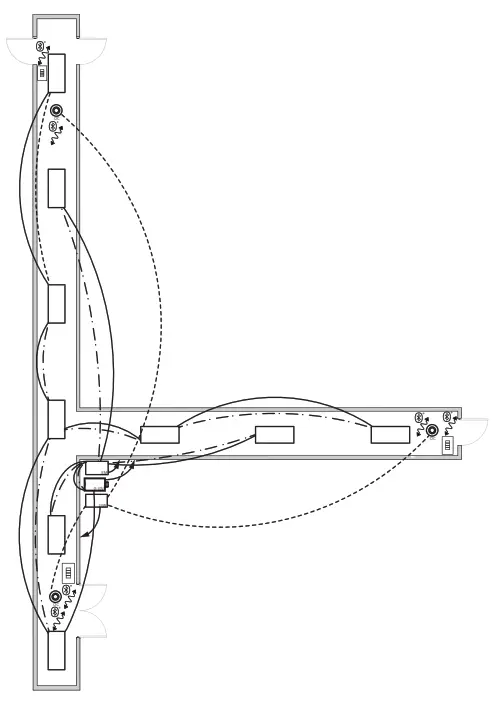

LEGEND
 | LINE VOLTAGE |
| …._…._ | 0-10V |
| ………….. | LOW VOLTAGE |
 | TO MAIN POWER |
 | LUMINAIRE LIGHT |
 | OCCUPANCY SENSOR |
 | KEYPAD SWITCH |
 | BLUETOOTH MESH |
 | CONTROLLER |
 | EMERGENCY PACK |
 | TRANSFORMER |
BILL OF MATERIAL
| QTY | PRODUCT# | DESCRIPTION |

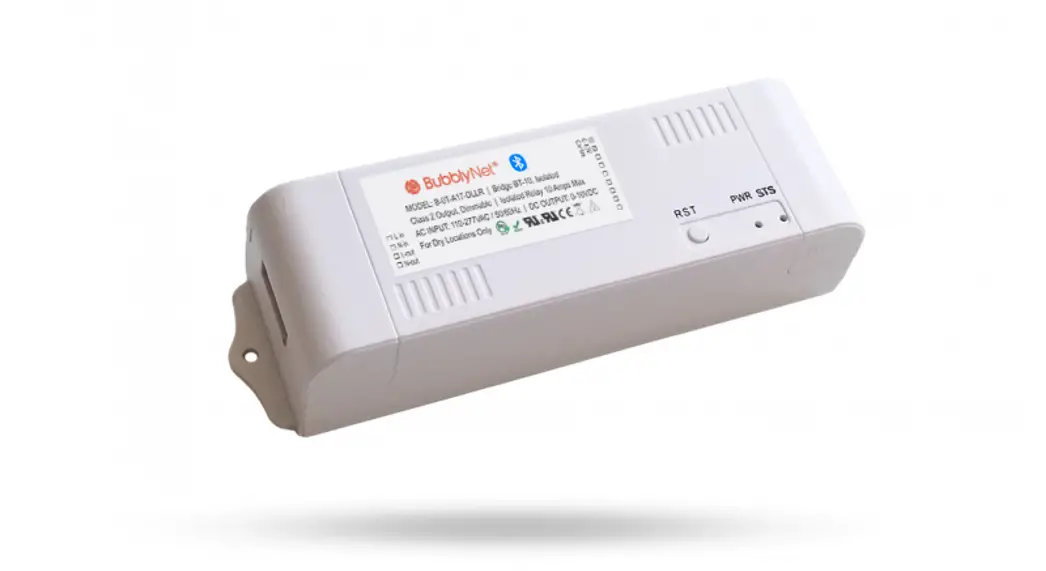

| 1 | C-T20-17-DJ00 | 0-10V-CONTROLLER WITH RELAY |
| 3 | S-OP-012-DTWH | OCCUPANCY SENSOR |
| 3 | K-Q4-UDL-00WH | KEYPAD – Q SERIES – 4 BUTTONS WHITE |
| 1 | A-E20-00-17-DJR0 BY OTHERS: | EMERGENCY PACK |
| 9 | 0-10V DOWNLIGHT | 0-10V DIMMING |
- This Design Guide exemplifies typical application. It may not comply with your general and local codes. Please refer to a licensed professional for compliance to code requirements for your project. The manufacturer reserves the right to change or modify the design, dimensions and specifications at any time without notice. The manufacturer accepts no liability for consequential damage which is occasioned to the user based on the data provided.
