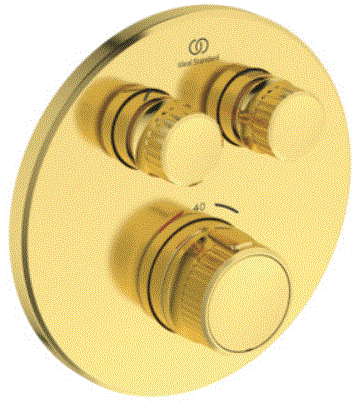

Product Information
The product in question is a replacement part for a Ideal Standard International NV Corporate Village – Gent Building product. The replacement part is called CERATHERM NAVIGO and has the model numbers A7296 and A7302. The product is made in Germany and has a maximum torque of 3 Nm. Additionally, the product provides a maximum water pressure of 3 bar and a maximum flow rate of 18 l/min.
Product Usage Instructions
- Turn off the water supply before installation.
- Remove the old part that needs to be replaced.
- Install the new replacement part by following the instructions provided in the user manual.
- Ensure that all connections are tight and secure.
- Turn on the water supply and test for leaks.
- If there are no leaks, the product is ready for use.
Note: If you are unsure about how to install the replacement part, please contact a professional plumber for assistance.

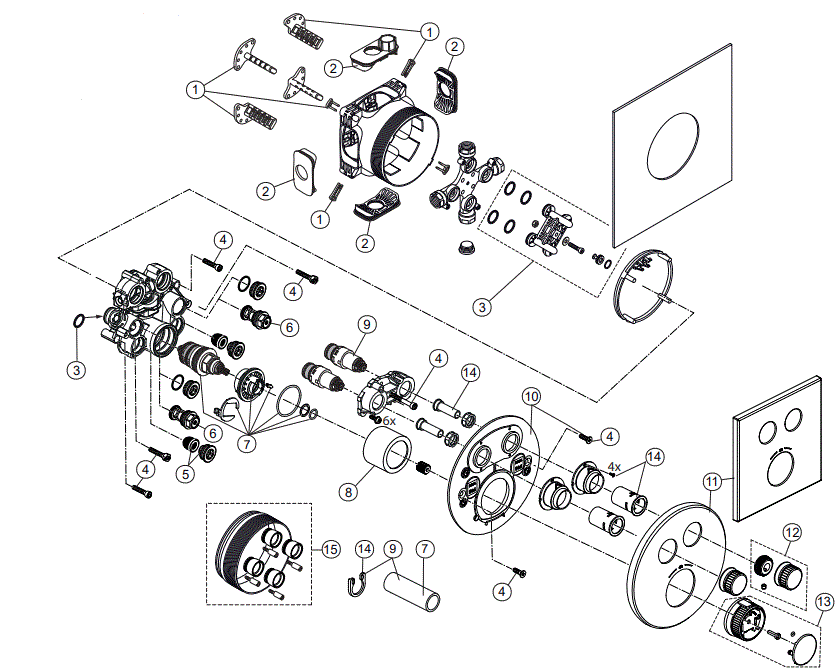

PRODUCT OVERVIEW
| 1 | A 963 131 NU |
| 2 | A 963 132 NU |
| 3 | A 963 146 NU |
| 4 | A 960 890 NU |
| 5 | A 960 891 NU |
| 6 | A 960 706 NU |
| 7 | A 861 575 NU |
| 8 | A 861 577 XX |

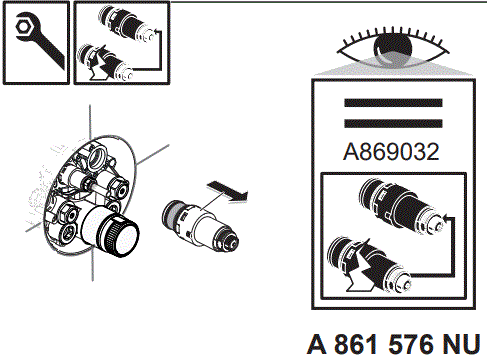

| 9 | A 861 576 NU |
| 10 | A 861 578 NU |
| 11 | A 861 579 XX |
| A 861 585 XX | |
| 12 | A 861 580 XX |
| 13 | A 861 581 XX |
| 14 | A 861 582 NU |
| 15 | A 960 704 NU |
| A 962 476 NU |

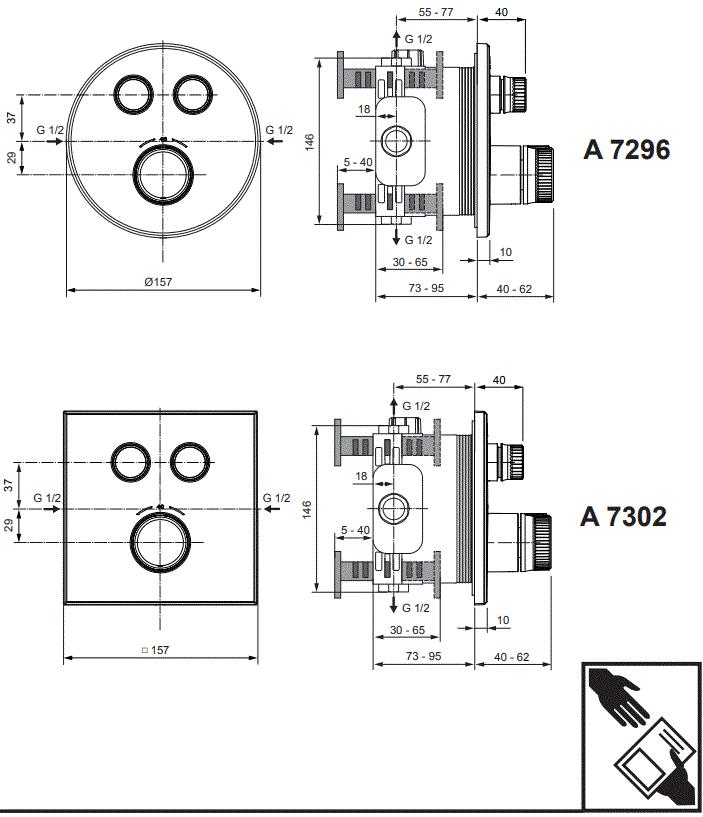

DIMENSION

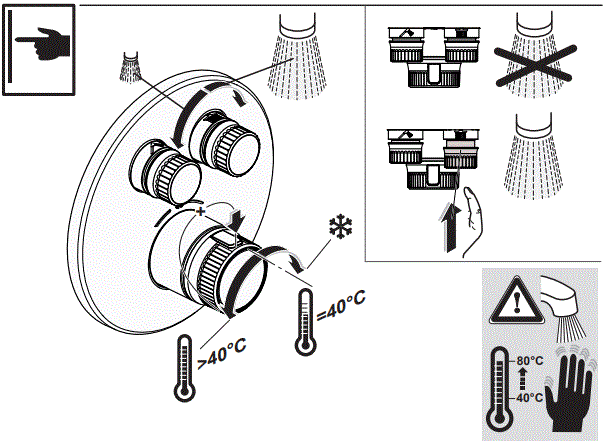

WARNING

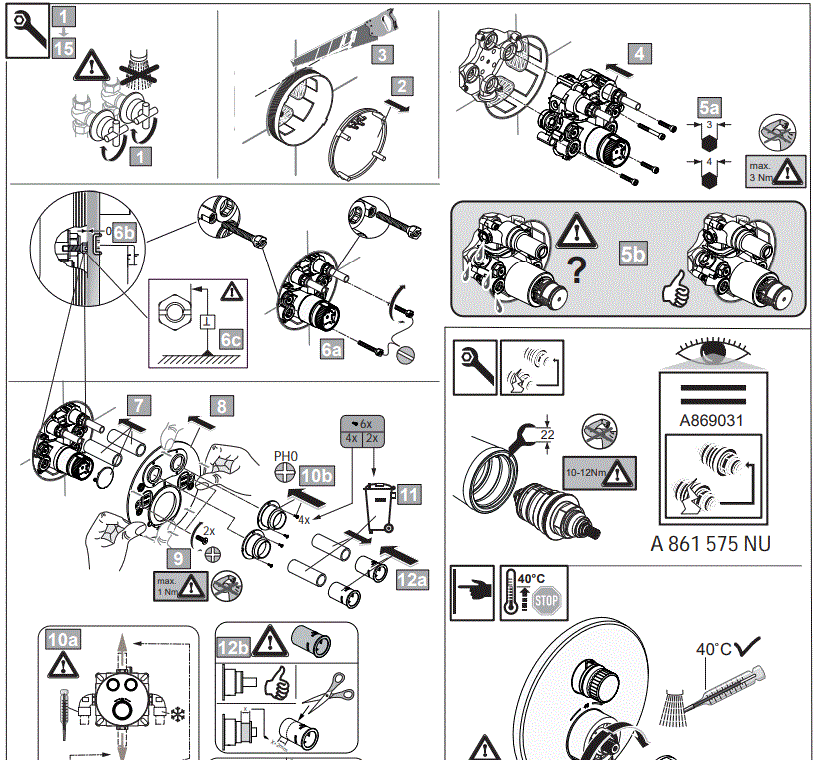

INSTALLATION
