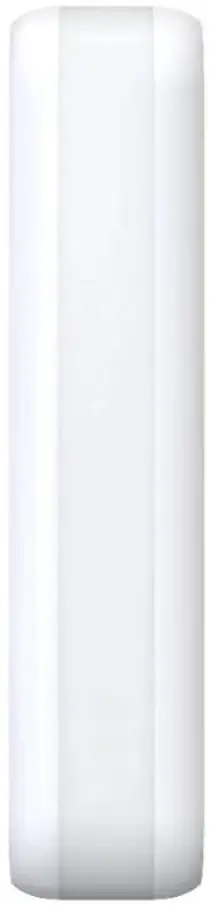

HIKVISION DS-PDC10AM-VG3 AX Hybrid Series Wired PIR AM Curtain Detector User Manual

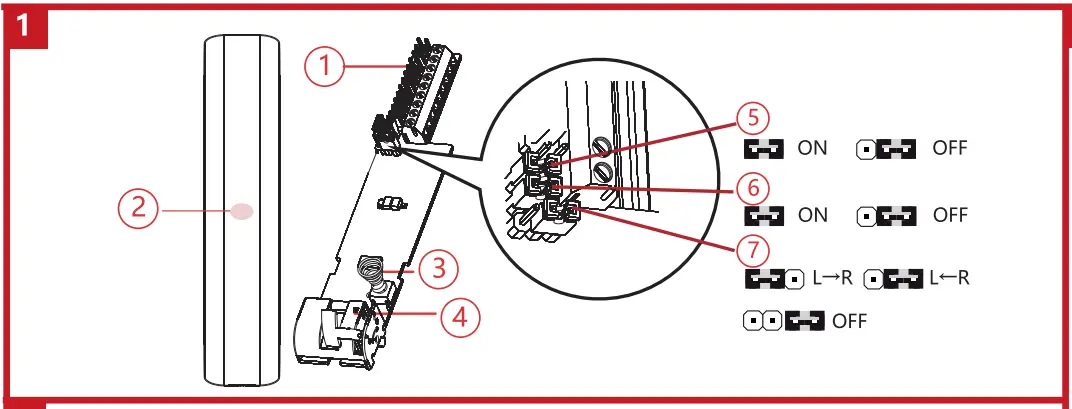

Appearance
- Terminal
- LED Indicator
- Tamper Switch
- Mode Switch
- LED Jumper
Alarm:
PIR Triggered:
Anti-Masking:
Fault:
- Anti-masking Jumper
- Direction Jumper
L→R: direction from left to right only
R→L: direction from right to left only
OFF: Turns off the direction selection
Installation

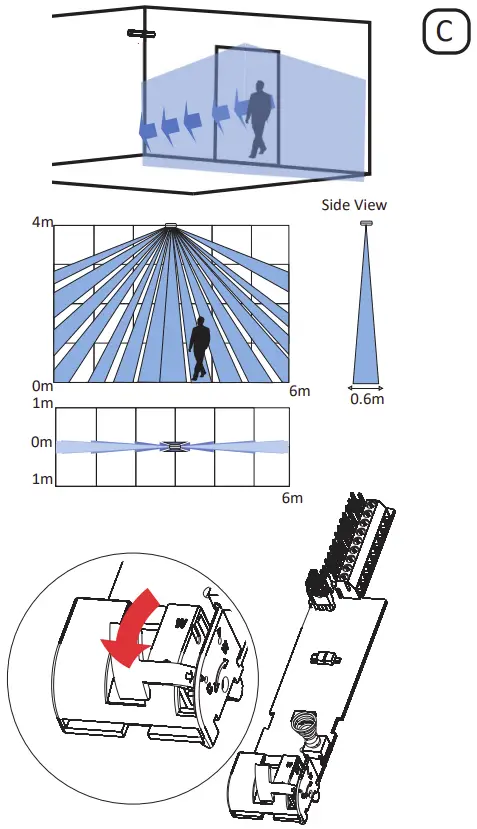

Ceiling mounting

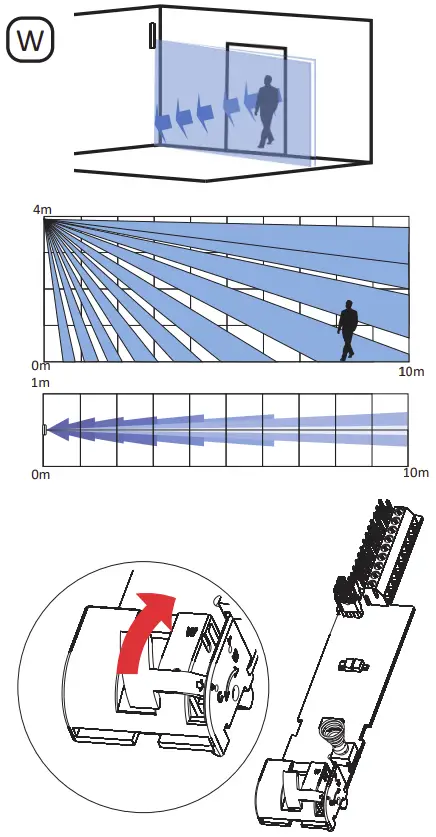

Wall mounting

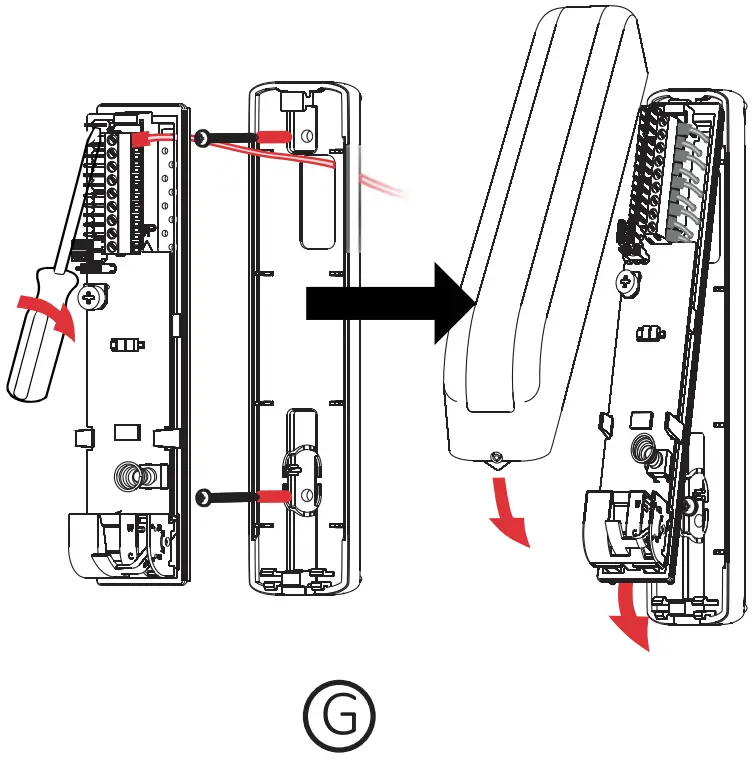

Mounting with the general mounting plate.

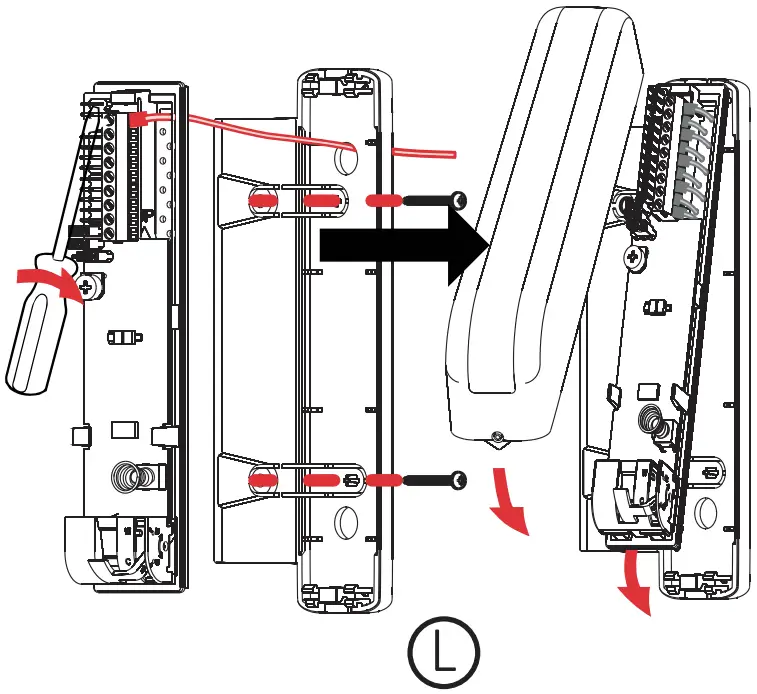

Mounting with L-mounting plate.

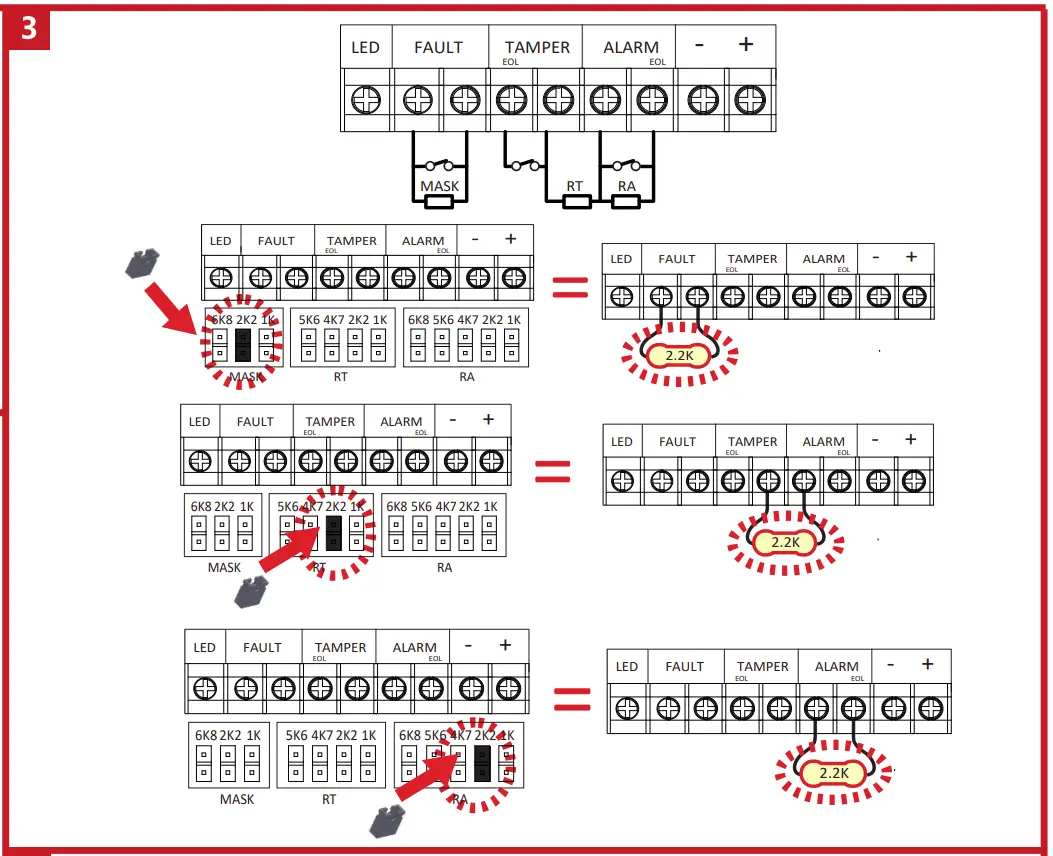

Resistor Wiring
Relay Status
| Normal | Intrusion Alarm | Fault | Mask | |
| Alarm Relay | Close | Open | Close | Open |
| Fault Relay | Close | Close | Open | Open |
Method 1: Use the jumper to select EOL (End of Line) resistance on FAULT/TAMPER/ALARM pins.
Method 2: Add the resistor to FAULT/TAMPER/ALARM wiring ports.
Note: If EOL wiring is not used, leave the jumpers OFF. Do not force the jumper if it is not matched the pin. Method 1 & 2 should not be used on the ALARM/TAMPER at the same time.
- Fault Resistance: 1K, 2K2, 6K8
- Tamper Resistance: 1K, 2K2, 4K7, 5K6
- Alarm Resistance: 1K, 2K2, 4K7, 5K6, 6K8

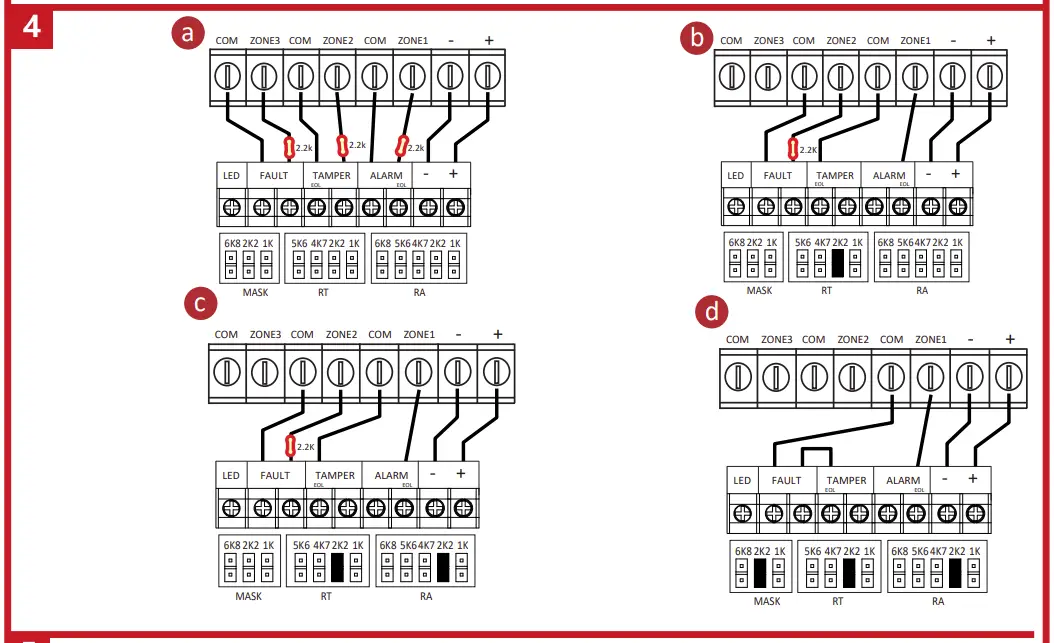

Connection Type
Note: The resistor must be connected in series with one end of the detector.
- Normally Closed
- Single End of Line Wiring
- Double End of Line Wiring:
- Triple End of Line Wiring:
Anti-Masking
Specification
| Detection Method | Passive Infrared |
| Detection Range | Wall Mount: 10m Ceiling Mount: 6m |
| Detection Angle | 5° |
| Detectable Speed | 0.2 to 3m/s |
| Sensitivity | Auto |
| White Light Filter | 6500Iux |
| Digital Temperature Compensation | Support |
| Creep Zone Protection | Support |
| Anti-masking | Support |
| Digital Processing | Support |
| Sealed Optics | Support |
| Tamper Protection | Front,Rear |
| Alarm Output | Normally Closed |
| LED Indicator | Blue(Alarm), Green+Orange(Mask) |
| Power Consumption | 22mA Max |
| Power Supply | 9 to 16VDC |
| Typical Voltage | 12 VDC |
| Operation Temperature | -25 °C to 60 °C (-13 °F to 140 °F) |
| Storage Temperature | -25 °C to 60 °C(-13 °F to 140 °F) |
| Operation Humidity | 10% to 90% |
| IP Rate | IP65 |
| Dimension(WxHxD) | 29.2mm x 134.4mm x 39.5mm |
| Weight | 77.5g |
| Mounting Height | 2 to 4m |
| Mounting Method | Wall, Ceiling |
| Application Scenario | Indoor/Outdoor |
| Bracket | L-shaped adapter included |
Please use the power adapter complaining with LPS. The recommended power adapter is made by Shenzhen Honor Electronic Co., Ltd.
